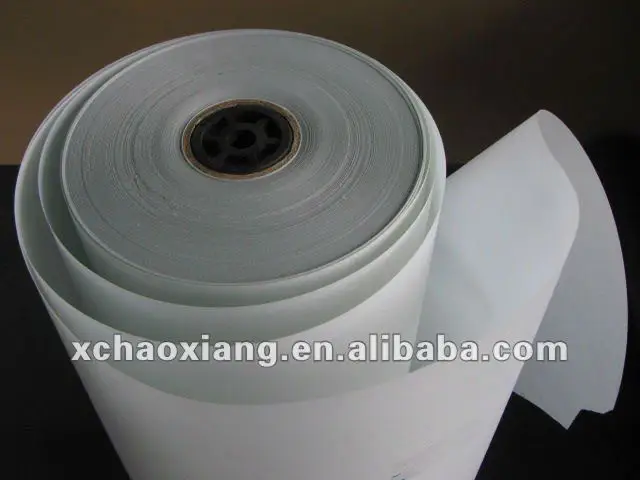

B Class Insulation Polyester Fiber Non Woven Fabric DMD Paper For Motor

DMD paper. 6630 DMD B Class Flexible laminate, Dilectric Armature B CLASS 130 Degrees Celsius

1. Composition/Process

Total three Layers: Dacron+Mylar+Dacron :( Two-layer polyester non-woven fiber fabric adhered to either side of one-layer Polyester film in

the center with high-melt-point B-class adhesive).

2. Features:

Super dielectric property.

Reliable heat resistance.

High mechanical strength.

Good impregnating performance.

3.Applications:

It is suitable for B-class electric motors, generators, transformers and

other electric appliances or equipment, insulation based on slot, interlayer,

liners and interturn.

4. Availabilities:

 Thickness: 0.15-0.45mm.

 Standard width: 1000mm.

 Color: white blue,pink or customized as per customers' requirements

5. DM, DMDM can be customized. Didfferent layers are available.

6. Why not choose HAOXIANG ?

  - Enviroment-friendly products

  - High cost-efficiency

  - A team of experienced professionals

  - Customer- oriented approach

  - Prompt response to customers' questions related to our products
