Fan Motor Transformer Generator Electric Heater Fiber Roll Fish Paper Insulation

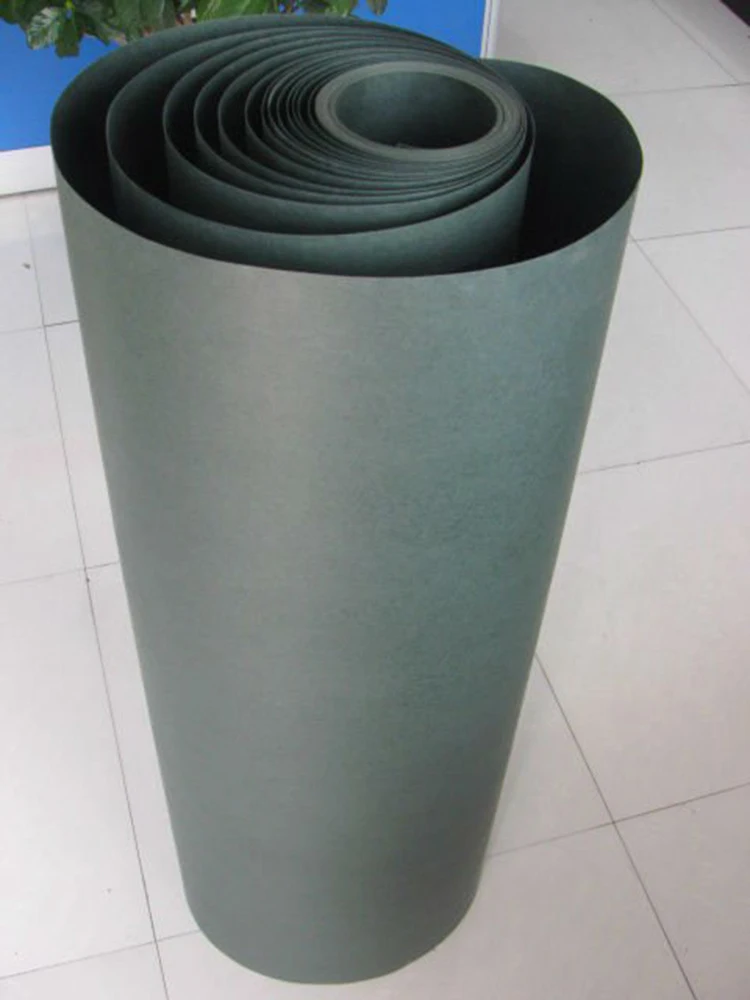

fish paper insulation
Product Description
Electrical Insulation Paper for Motor Winding / Mylar Fish paper INSULATION MATERIALS
Composition/Structure:
·Two-layer flexible insulation materials : Fish paper plus polyester film.
·Adhesive amid the two layers: Acid-free and against high temperature.
Application:
·For low-voltage (E-grade) motors, generators and electric appliances.
·Insulation based on slot, liner or interturn.
No. | Index name | number | |||||||
1 | Thickness( mm) | 0.10 | 0.15 | 0.17 | 0.20 | 0.25 | 0.30 | ||
2 | Tolerance( mm) | ±0.015 | ±0.020 | ±0.020 | ±0.030 | ±0.030 | ±0.030 | ||
3 | Weight ( g/m2) | 115±17 | 190±28 | 215±32 | 250±38 | 310±46 | 370±55 | ||
4 | Thickness (um) | 36 | |||||||
5 | tensile strength N/10mm | vertical | Before flexible | ≥90 | ≥135 | ≥150 | ≥180 | ≥210 | ≥270 |
after | ≥70 | ≥80 | ≥90 | ≥100 | ≥120 | ≥160 | |||
lateral | before | ≥60 | ≥80 | ≥90 | ≥100 | ≥120 | ≥150 | ||
after | ≥40 | ≥60 | ≥60 | ≥70 | ≥80 | ≥100 | |||
7 | Voltage (kv) | before | ≥6.0 | ||||||
after | ≥5.0 | ||||||||
8 | Normal caking property | No layers | |||||||
9 | Heating caking property | 130±2°C ,10min , no layers, no bubble | |||||||
Some of our strengths may be attractive:
1. Experienced workteam and profound knowledge in electrical insulation industry.
2. Premium quality benefits from technological reformation.
3. Competitive prices and best services.
4. From electrical insulation materials manufacturing base, the central China.
5. OEM offered.
