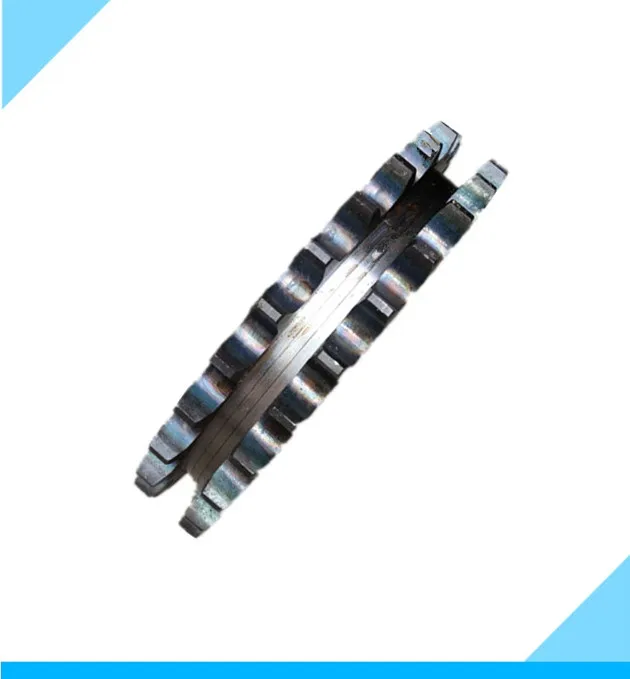

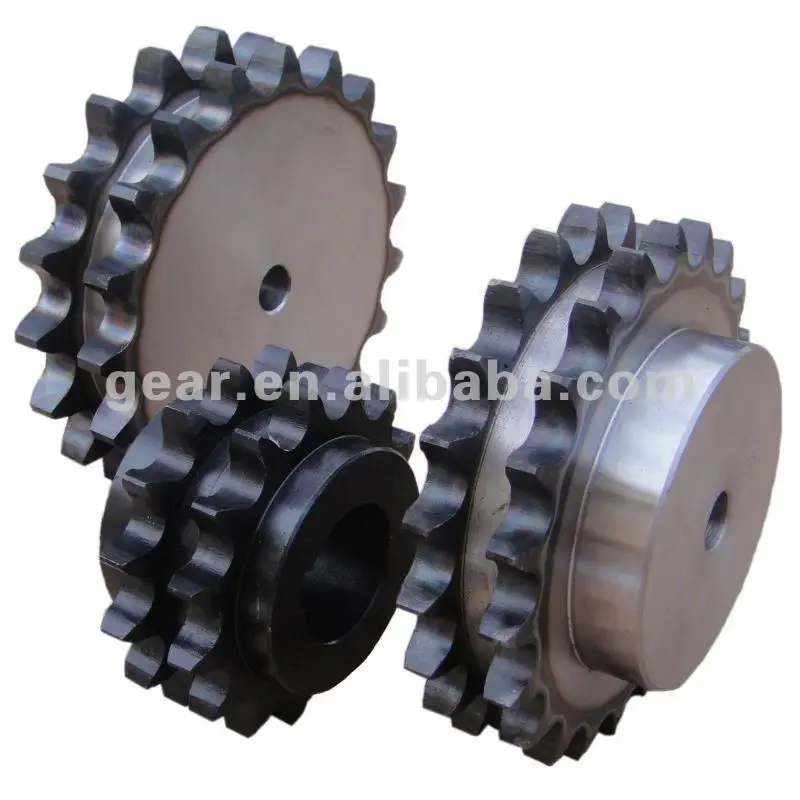

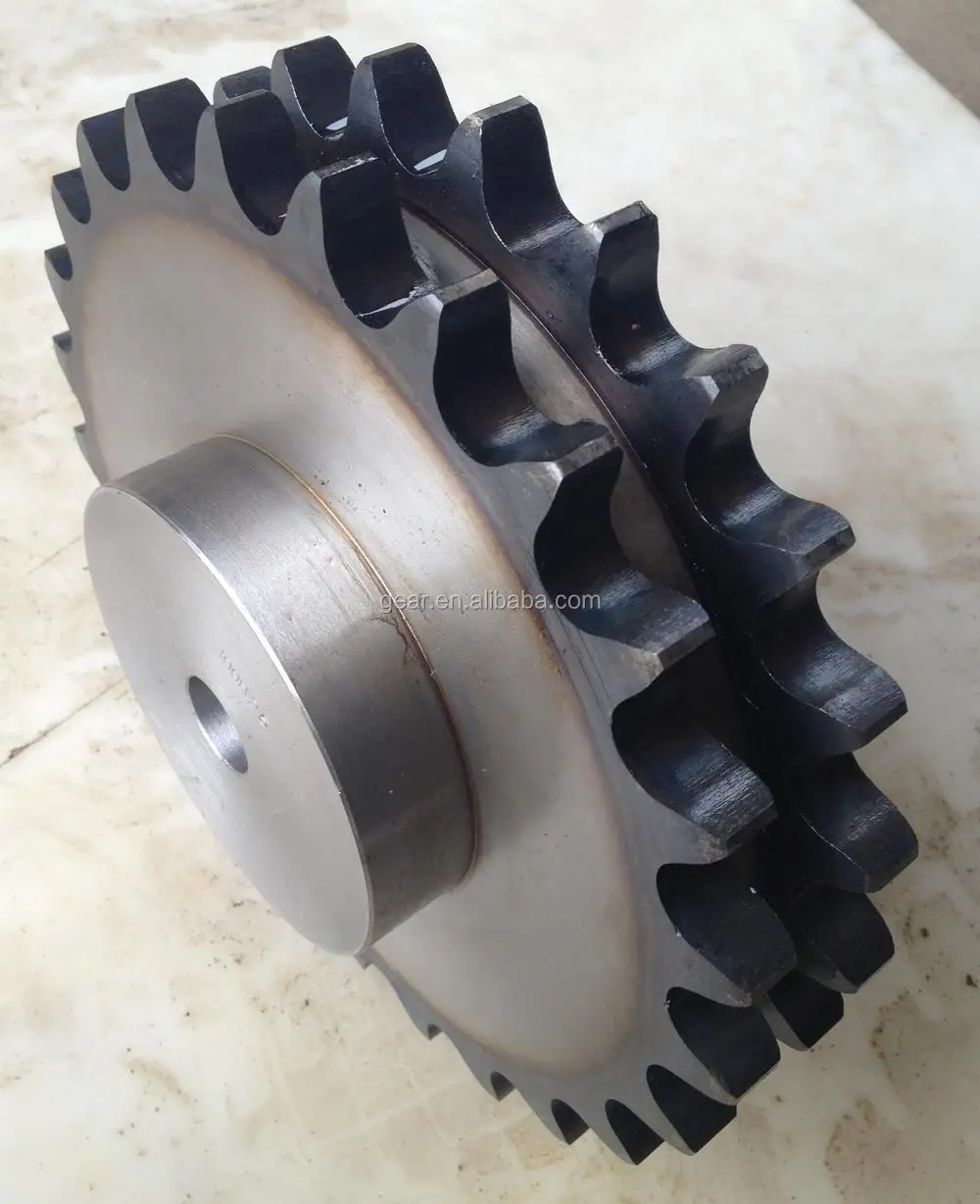

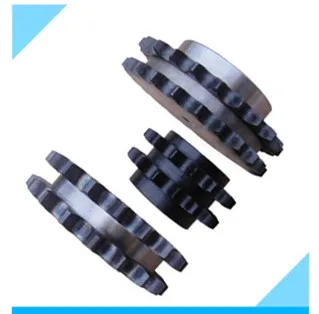

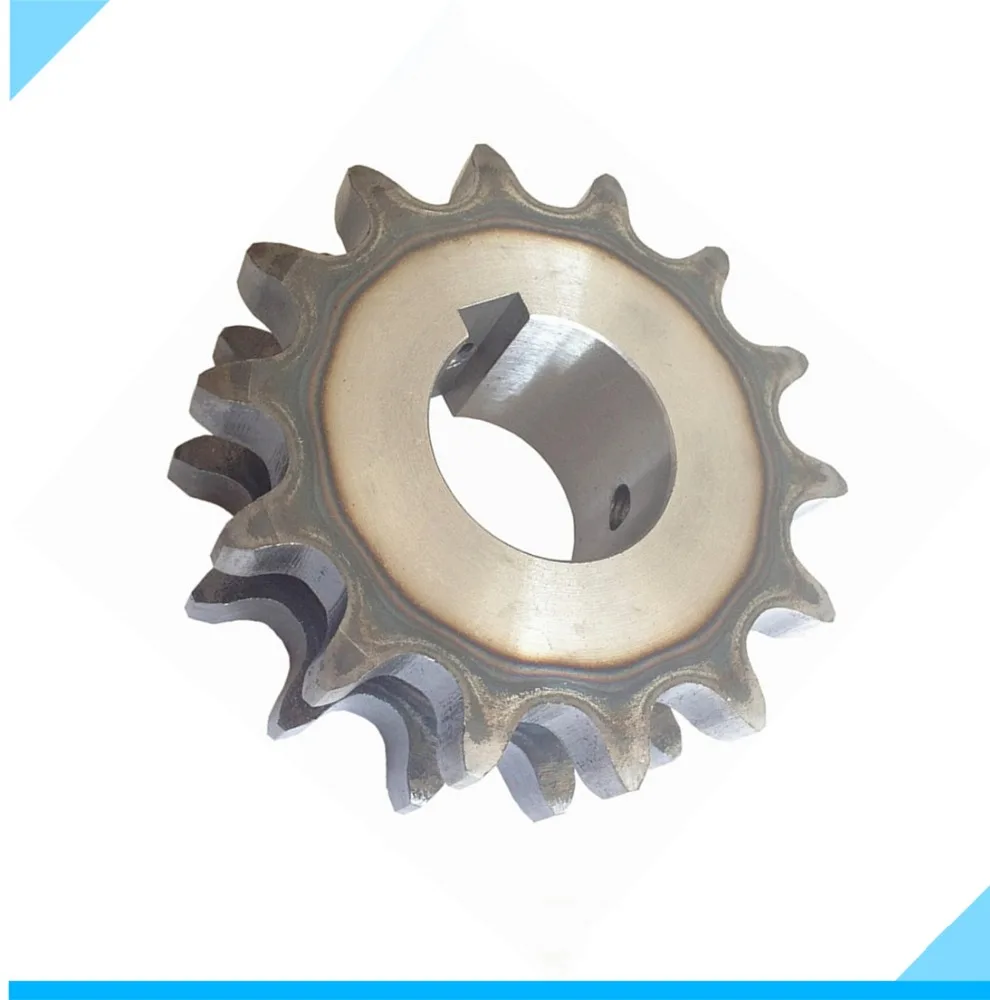

ASA double roller chain sprocket

Product Overview

Description

1. Sprocket processing: forging, machining, hobbing, treatment on quenching, surface treatment/rust-proof treatment

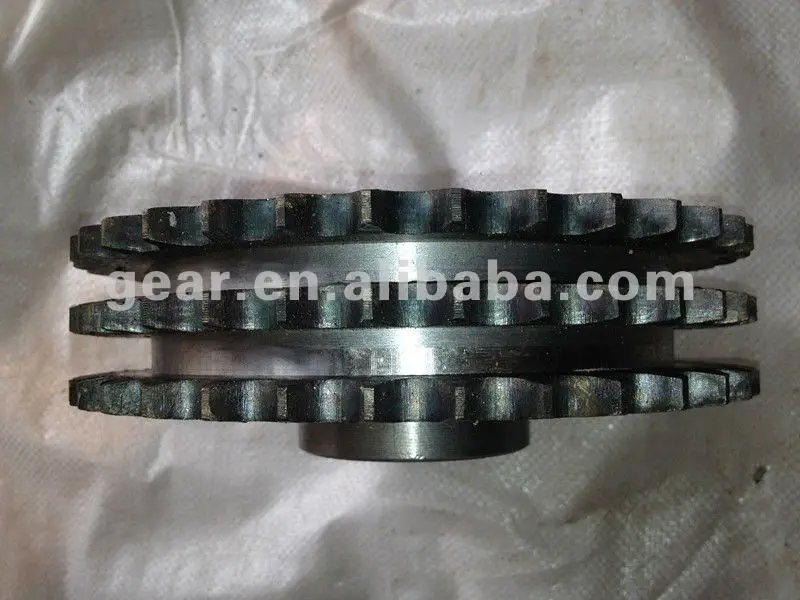

2. Type: A/B series, simplex, duplex, triplex
3. Material: Q235, Steel 1045, stainless steel, 40Cr, 20CrMnTi, 42CrMo, copper,etc.
4. surface treatment: polishing, black oxide, zinc plating, electrophoresis, etc.
5. Hardness: treatment on quenching optional for hardness HB(220-250) or HRC(38-46)
6. Standard: ANSI, ISO, KANA, DIN or produced according to your special drawing.
7. For Chain according to DIN8187/8188

Metric Sprocket



part no.	06B	08B	10B	12B	16B	20B	24B	28B	32B	40B
pitch	9.525mm	12.7mm	15.875mm	19.05mm	25.4mm	31.75mm	38.1mm	44.45mm	50.8mm	63.5mm



ASA Standard Sprocket



part no.	25	35	40	41	50	60	80	100	120	140	160	180	200	240
pitch	1/4"	3/8"	1/2"	1/2"	5/8"	3/4"	1"	1-1/4"	1-1/2"	1-3/4"	2"	2-1/4"	2-1/2"	3"





ADVANTAGE

1. CCC,ISO CERTIFIED
2. OEM SERVICE
3. LARGE STOCK TO ENSURE QUICK DELIVERY
4. HIGH PRECISION AVAILABLE
5. LARGE QUANTITY EXPORTED EVERY YEAR
6. SPROCKET MANUFACTURING BASE IN CHINA





4. C45 Shear Sprocket with Bushing(SAE660)

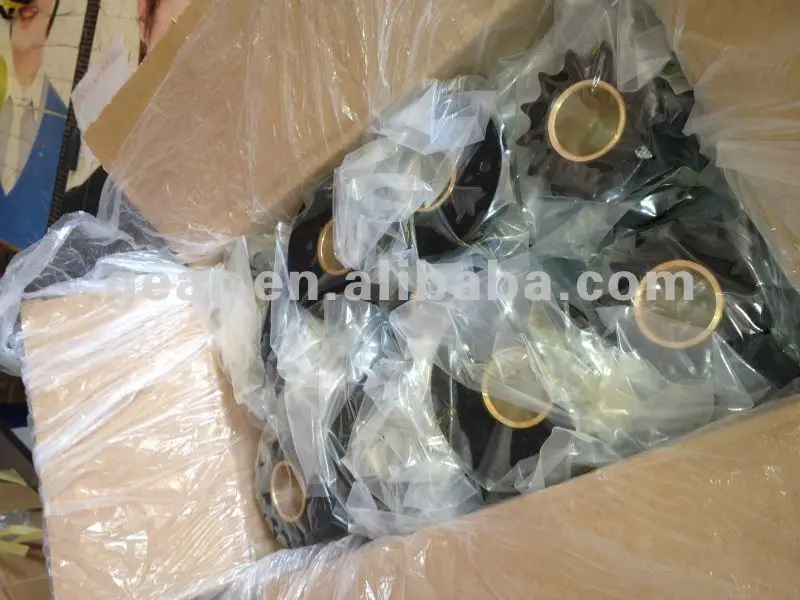

Package



Individual Plastic Bag Plus Carton



with Nylon Bag Outside



Production Line

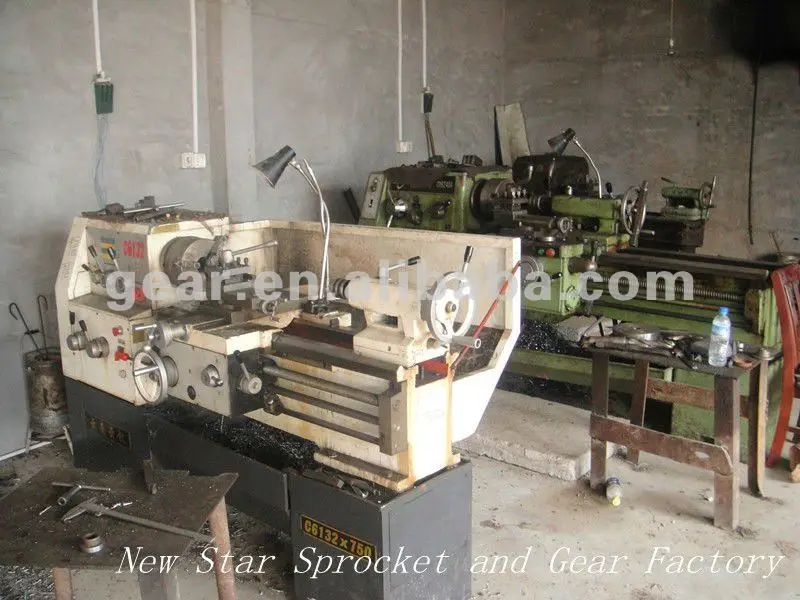

1. Machining

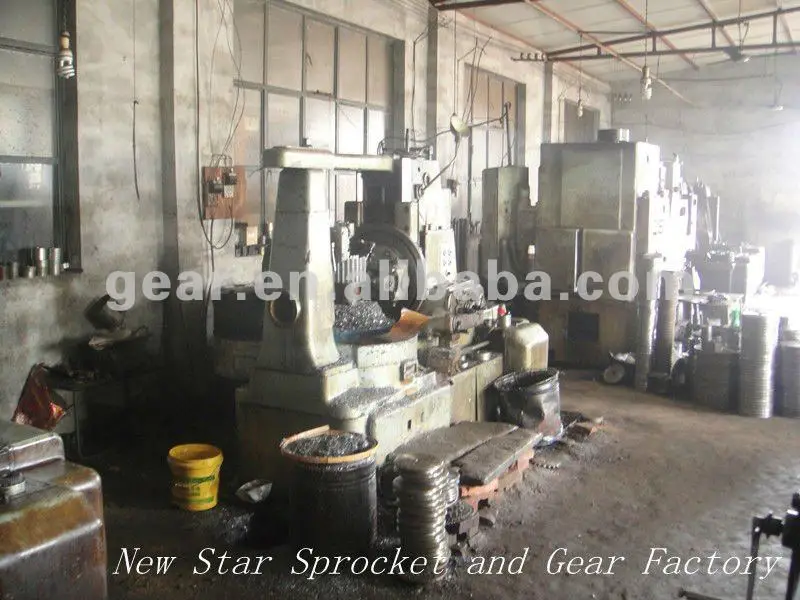

2. Hobbing

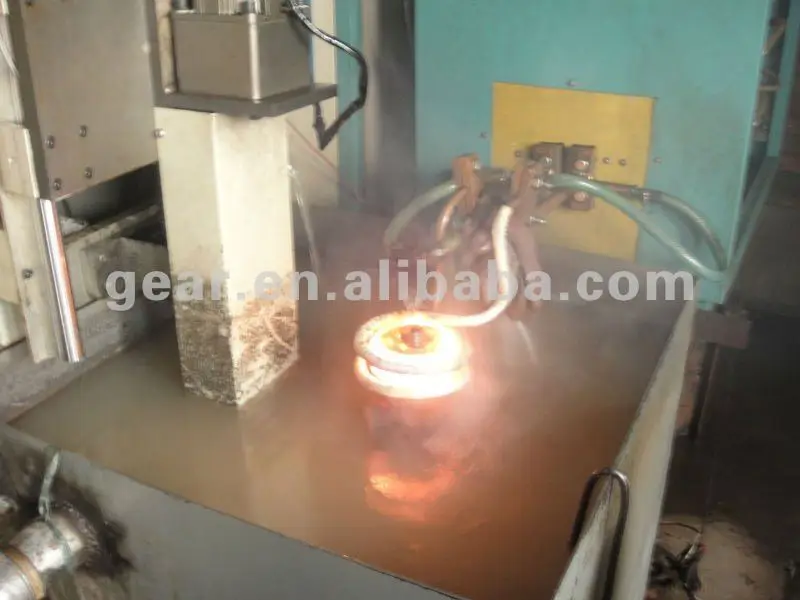

3. Treatment on Quenching

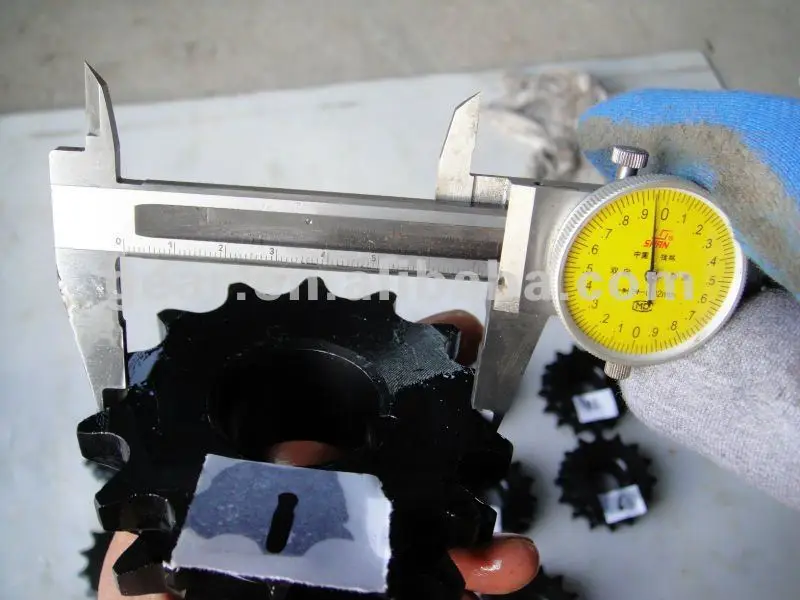

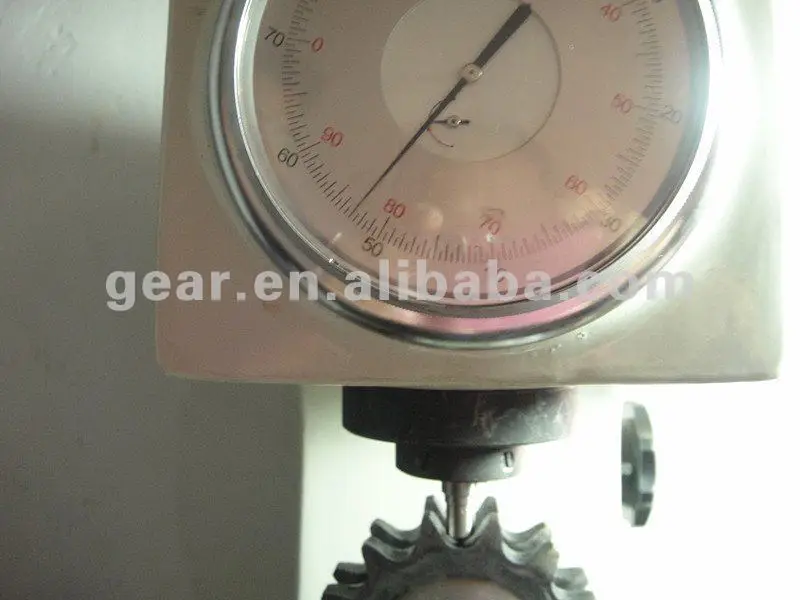

4.Testing
