Coupling Cable Reel Electrical Cable Drum Reel

Product Overview

Description

JQD Coupling Cable Reel Electrical Cable Drum Reel:



--JQD Series Magnetic Coupling Type



Brief Introduction:



 Motorized mangetic couple cable reel JQD series feasture not only the synchronization of the magnetic coupler and cable reel, but also the harmonization of power, cable reel and separate mangetic coupler with small size & weight, easy-installation and much more. It is suitable for cable deploying and retracting vertically long distance as well as horizontally synchronously,large used in traveling equipment such as liftig magnet, electric grab, electric flat car and etc.



• Adopt magnetic coupler as the synchronous differential mechanism with good reliable synchronization of cable deploying and retracting


• Widely used to cables deploying and retracting of different traveling equipment synchronously.


• Long vertical deploying and retracting distance, 150m at most


• Controlling model of cable reel: the motor works when retracting, while stops when deploying


• Simple structure, small weight & size, easy-installation and long-life

Features:

• Permanent magnet technology for the reel drive system is not level, low speed, no heat phenomena;


• Cable tension adjustable, to protect cable;


• No electrical components, using reliable.

Technical Data:

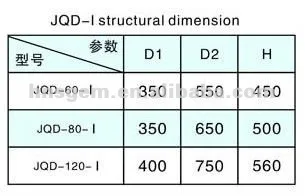

 Overall Dimension Drawing:

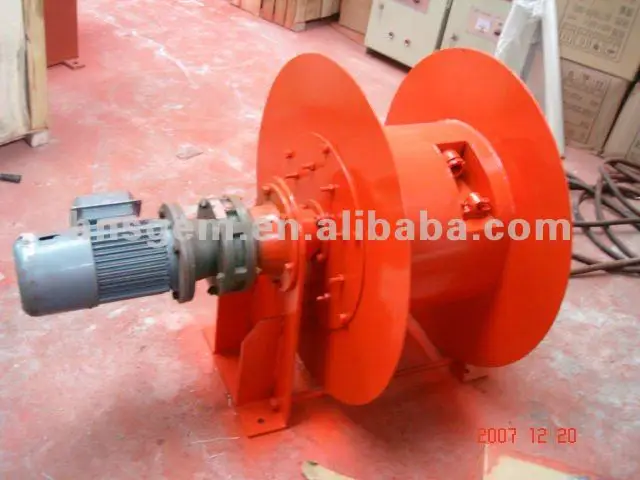

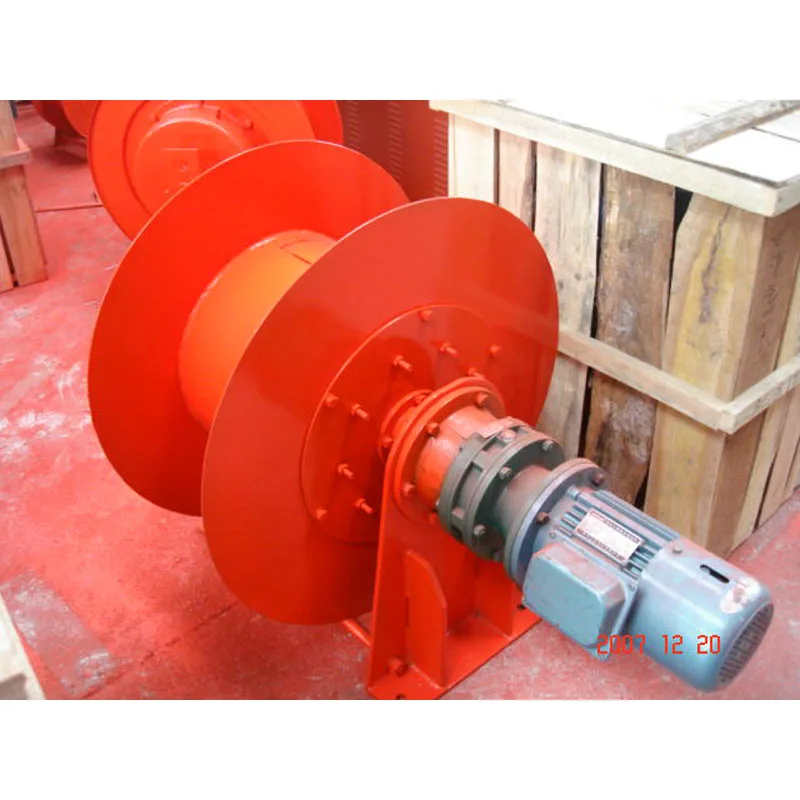

Physical Product Photo:













1.Do you have special requirement about the power types?

spring type / motor powered/hysteresis?



2.What is the cable specification?

cable core number and cross section, coil length of cable, electric current)?



3. What kind of mobile equipment will the cable reel be applied with?

lifting magnet, crane or others



4. What kind of installation patterns you prefer?

Vertical coiling or Horizontal coiling?
