Panel mounted weighing controller for belt scale with MODBUS ASCII and MODBUS RTU
- Category: Indicators >>>
- Supplier: Changsha Supmeter Technological Co. Ltd.
Share on (672215599):
Product Overview
Description
Product Description

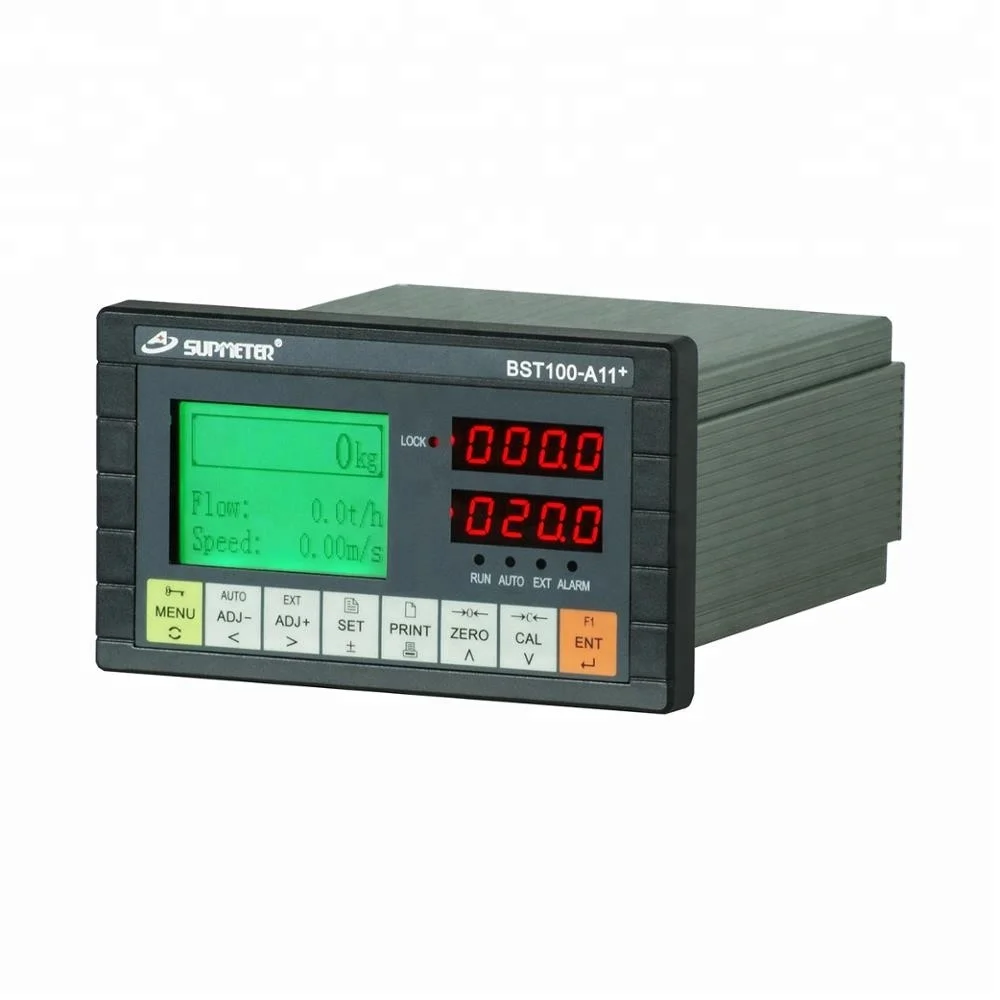

BST100-A11+ is a new products for Belt weighfeeder.
Specification:
| Application | For Ration Belt Weighfeeder with Ration Flow Feeding & Ration Weight Batch Control |
| Power Supply | AC220V±15% |
| Display | 128×64 dots LCD display screen with 7 background colors |
| Keypad | 6 keys for Menu&Shortcut mode operation with key tone |
| Excitation Voltage Output | DC10V |
| Max. Connection Quantity of Loadcell | 8 Loadcells (350Ω) |
| A/D Convert | 24-bit |
| Zero Drift | ±0.1μV/°C RTI (Relative to Input) |
| Gain Drift | ±5ppm/°C |
| Non-linearity | ±0.01%FS |
| Speed Sensor Output Voltage | DC5~12V (adjustable) |
| AO | Fixed 2 AO(4~20mA) |
| DO | 4 Definable Normally Open Relay or Transistor Switch Outputs |
| DI | 3 Definable Normally Open Switch Inputs |
| Communication Port | COM2: RS232 ; COM1: RS232/RS485/RS422/Profibus-DP/CANBUS/Ethernet modules for additional option |
| Connectable | IPC/PLC, Remote Display&Operation Terminal, Serial Printer and Wireless Module |
| Report Print | Weight Records per shift/day/month of a year can be queried and printed |
| Outline Dimension | 160 × 84 × 188 mm (W×H×D) |
| Weight | Approx. 1.5kg |
| Service Temperature | -20°C to +40°C |
| Storage Temperature | -30°C to +60°C |
| Relative Humidity | Max. 85%RH |
| IP Grade | IP50 |
| PO | 1 'Totalized Weight High-speed Pulse' output |
| Cut Dimension | 151 × 76 mm (W×H) |
Packaging & Shipping
Delivery will be arranged according to the weight of good hthat you ordered. And you can arrange the delivery by yourself too.
