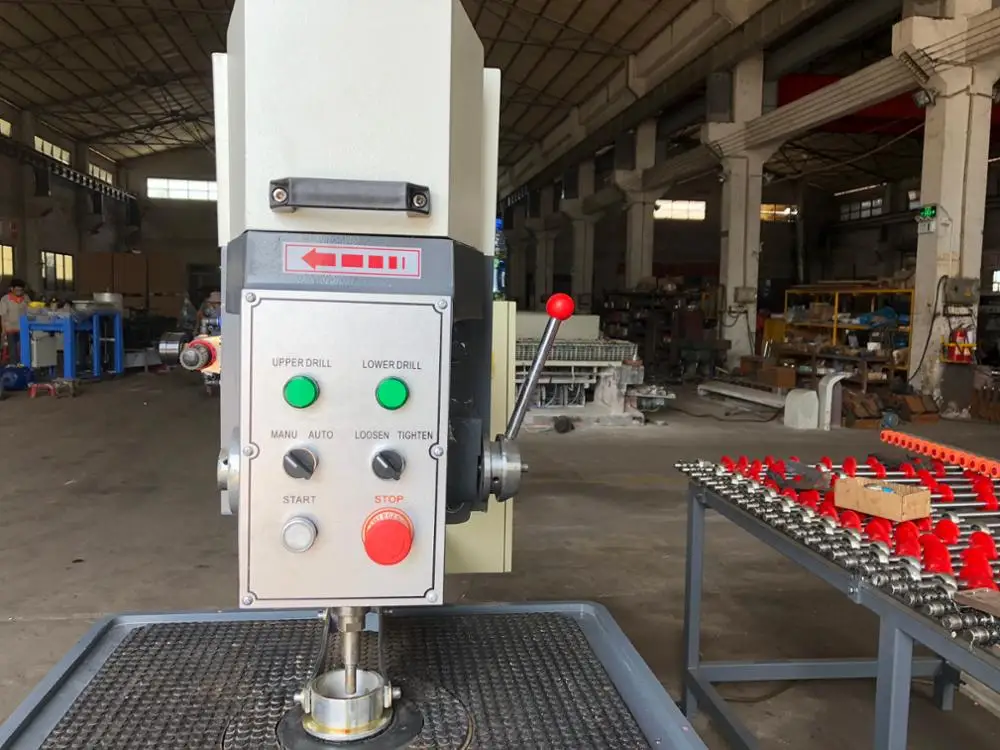

Horizontal electric double head glass drilling machine

Product Overview

Description

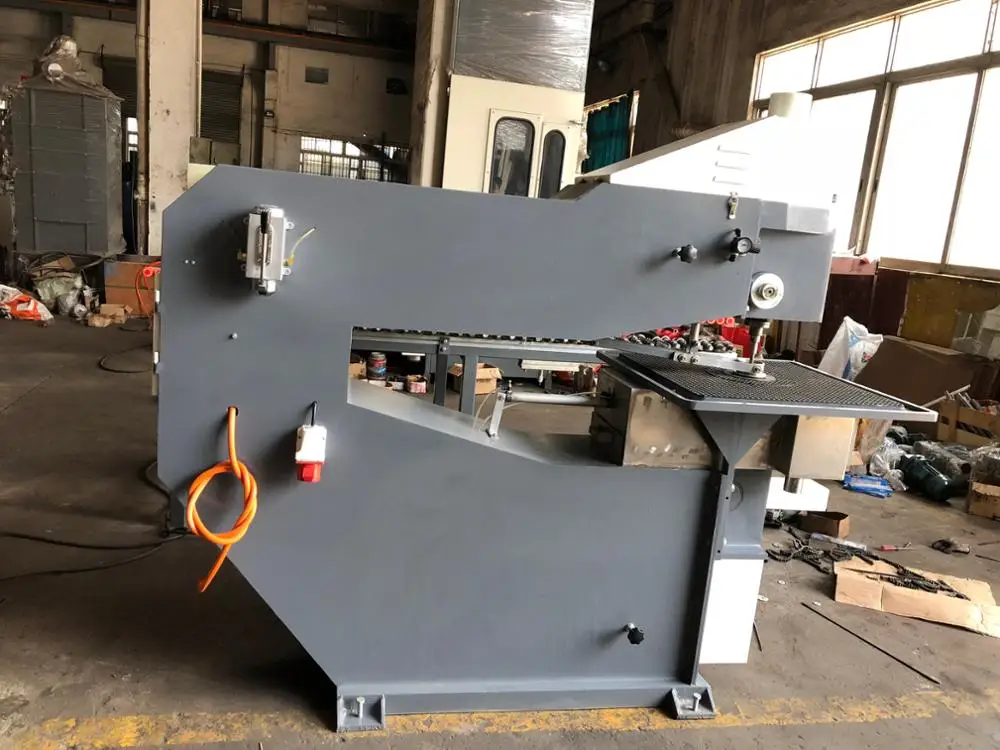

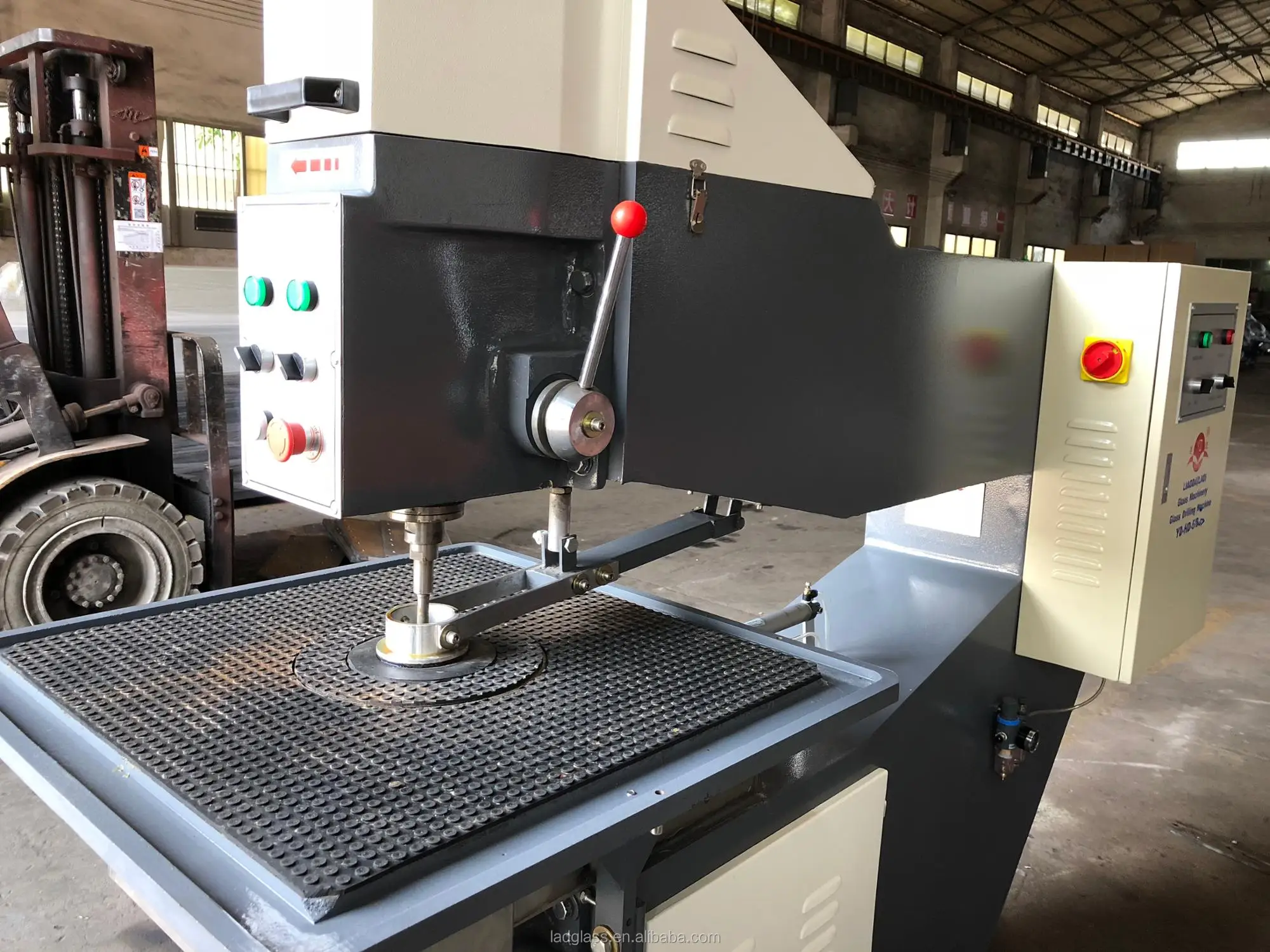

Horizontal electric double head glass drilling machine

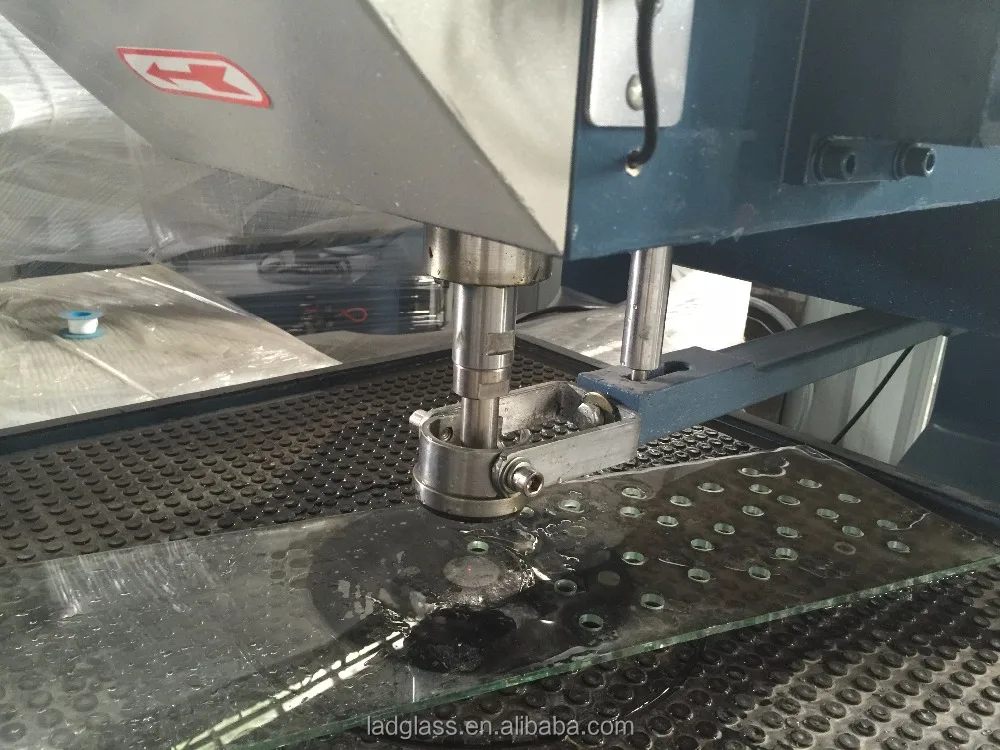

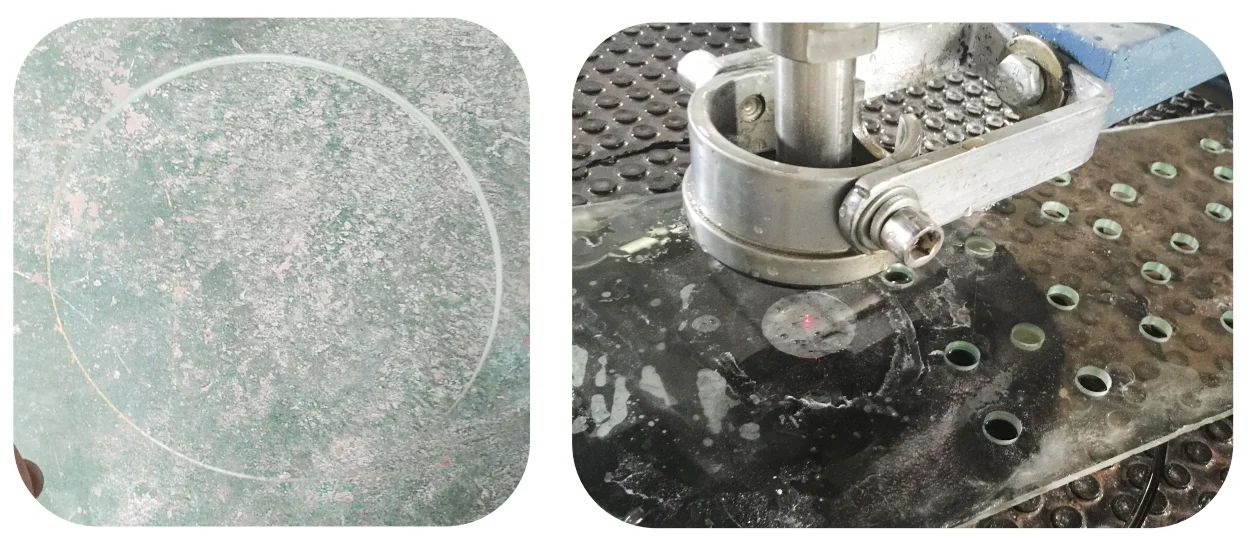

1.  Two drilling spindles, one at the lower side and another upper. When the glass is put on the table, it is fixed pneumatically and the lower spindle will rise up automatically to drill from the bottom side if the glass. Then the upper spindle will drill the top side of the glass and thus, the hole is drilled through.



2.  The cooling water runs inside the core drill so that the cooling effect is directly acted onto the glass without any loss.



3.  Tapping or chamfering can be made on the hole for particularly purpose.



4.  The spindle design is sophisticated such that it is strong enough for 24 hours running a day. The rigid and anticorrosive spindle enables maintenance free.



5. Customer designed drilling machine alvailable. With extra hole diameter, glass size. Also able to drill holes on water sink.







Model Number	YD-HD-5/80
Distance from hole centre to C-stand (mm)	1250
Hole diameter(mm)	5~220
Glass thickness(mm)	3~25
Concentric tolerance(mm)	±0.5
Compressed air consumption (IT/min)	0.3-1
Pressure (kg/cm2)	8
Power (kw)	3
Outer dimention (m)	2.2 x 2 x 1.6
Weight (kg)	600





















 Warranty and Service.



• 1 year warranty for the machine


•  Life time technical support and parts


•  English version machine operation manual, machine operation video and on site service if necessary











We are a factory specialized in manufacturing of glass cold & hot processing machines.

The main products include glass cutting machine, glass double edging machine, glass vertical edging machine, vertical beveling machine, glass drilling machine, glass shape edging machine, glass sandblasting machine and glass flat/bent tempering furnace.

The factory started production of glass processing machines since year 2000.

All of our machines have CE certifications and thousands of our machines are working well all in customer’s factories over the world .

We have our own export team and service team. We are glad to support our high quality glass processing machines and give our instant, sufficient service to you!
