ED330L electric grill thermostat heat temperature controller digital
- Category: >>>
- Supplier: Zhongshan Shangfang Instrument Meter Co. Ltd.
Share on (674104960):
Product Overview
Description
ED330L electric grill thermostat heat temperature controller digital
Product Description
Features
Temperature Control
Heating Control
Value Storing
Self Testing
Technical Data
Range of temperature display:-20~300℃
Range of set temperature:-20~280℃
Accuracy:±1℃

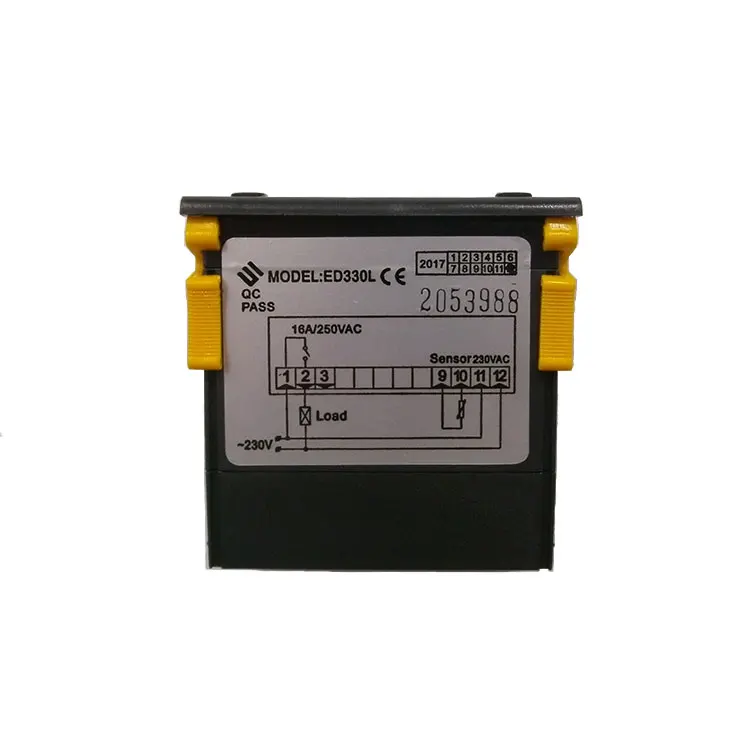

Control output: N.O. 16A/250VAC
Dimension:77(Length)×35(Width)×60(Depth)mm
Mounting hole dimension:71(Length)×29(Width)mm
Parameters
Parameter | Function | Set range | Default |
E1 | Lower setpoint limit | -20℃~Set temp. | 10℃ |
E2 | Higher setpoint limit | Set temp.~280℃ | 200℃ |
E3 | Temp.Hysteresis | 1~100℃ | 6℃ |
E4 | Comp.start delay time | 0~10Min | 2Min |
E5 | Cold-room sensor correction | -50~50℃ | 0 |
Company Information
Our Services
Packaging & Shipping
FAQ
Could the controller change to 110V and Fahrenheit degree?
The voltakge could be 12 VDC/VAC, 110V, 220V,230V etc and in Fahrenheit degree.
How could I get a sample?
Sample for testing is available here, please contact us for more details.
The specification listed is not perfectly for my needs?
We have many customized options, we can provide the suitable ones for you.
Could not understand the description well?
We can provide more detail photos and even videos to presentation.
We do not need as much as MOQ?
Our MOQ is 50 pcs, but small orders less than MOQ is also acceptable.
