Green technology used tire recycling waste plastic pyrolysis plant india
World Market Scenario:
Waste tyre rubber /plastic scrap recycling plant to fuel oil can turn waste tyre /plastic to fuel oil with latest pyrolysis technology. Pyrolysis is the thermal decomposition of materials in the absence of oxygen. In the case of the pyrolysis of rubber tyres, the rubber degrades under high temperatures and long-chain hydrocarbons in rubber are broken down into compounds with shorter carbon chains in the reactor, yielding oil, gas and carbon black.

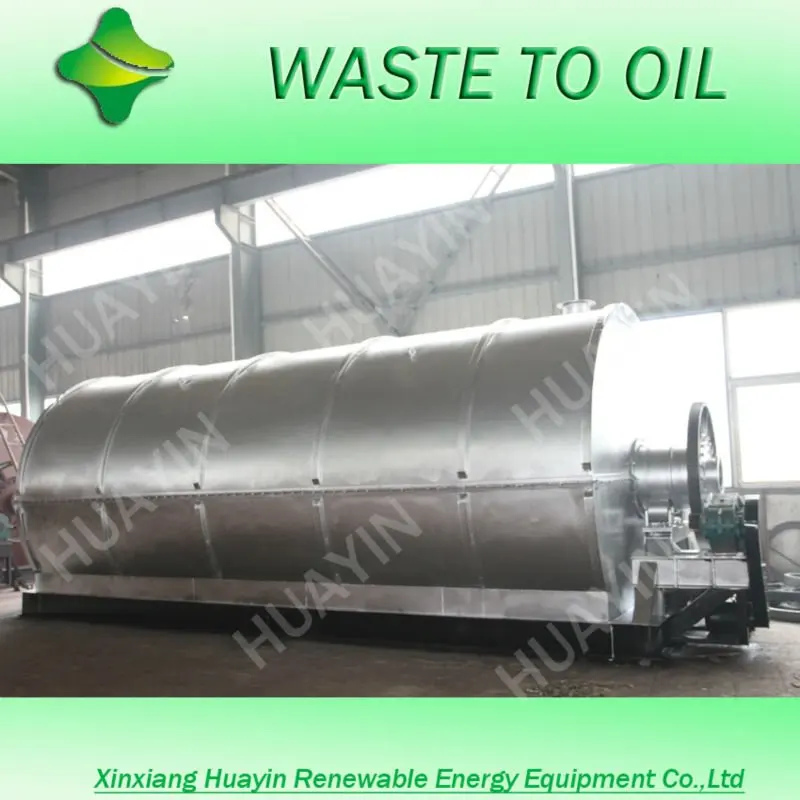

Waste tire/rubber/plastic to oil machine

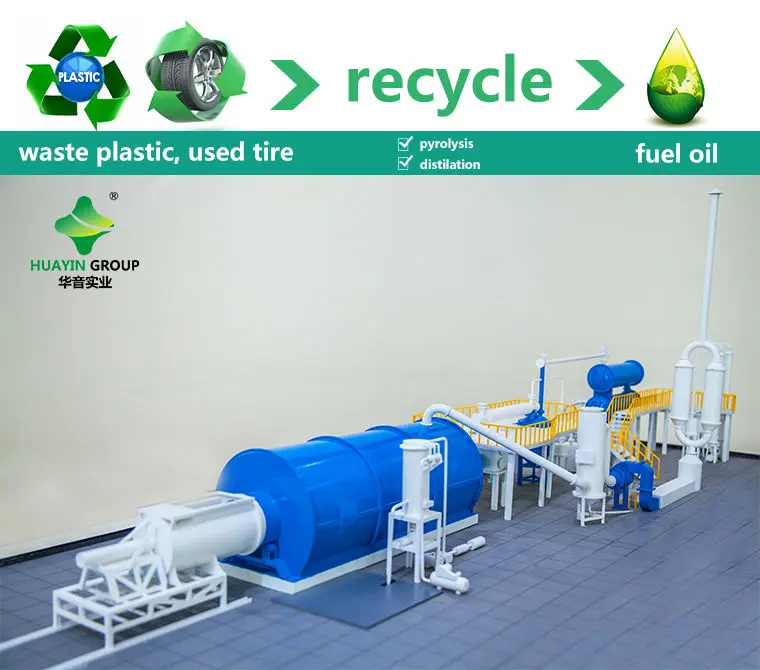

flow chart of waste tire pyrolysis machine
Working process

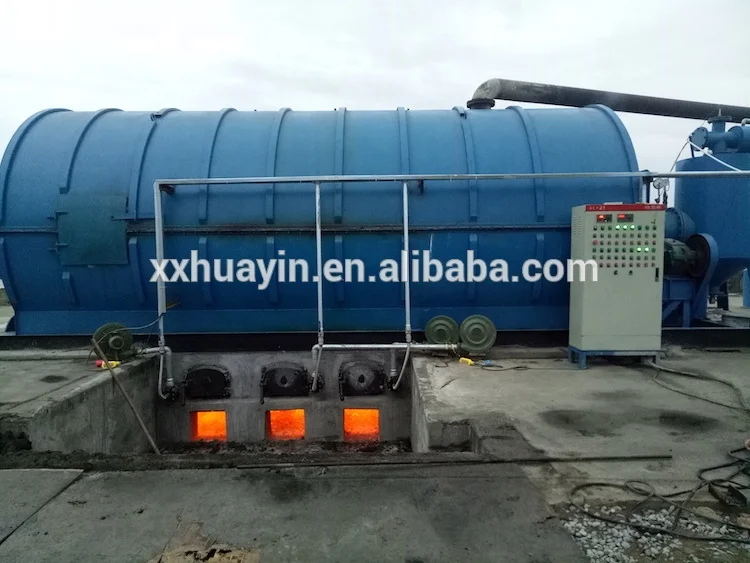

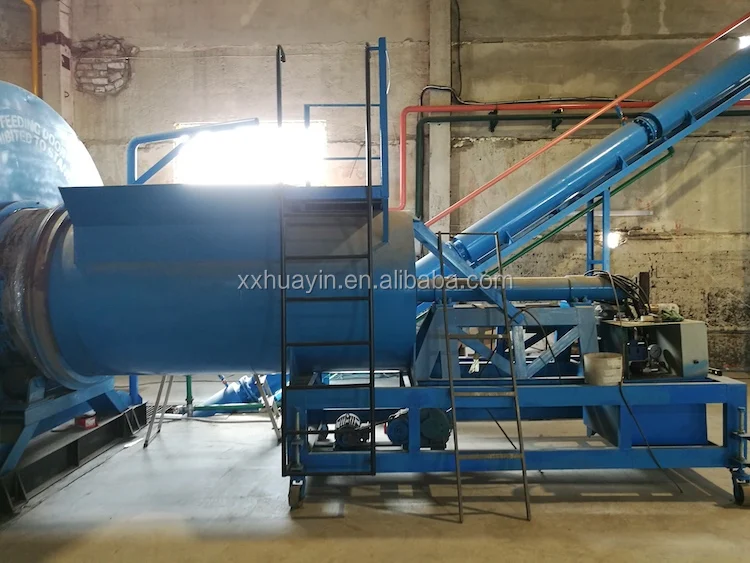

Auto-feeder load the whole waste tires into reactor, seal the reactor and heat the reactor by burning the fuel(coal,wood,natural gas,oil) in the combustion system.there is a thermocouple installed the oil gas outlet to test the oil gas temperature,when thermocouple show certain temperature, the oil gas will come out, then go through the cooling system to become to oil. At same time,there are some gas(CH4,C2H6,C3H8,C4H10 and H2) can not be cooled under normal pressure,they will be recycled back to combustion system to burn as energy.the dust and sulfur gas will be removed by the dust removing system.after the oil gas run out, there are slag(carbon black) inside of the reactor, HUYAYIN use the automatic discharging system to remove it. Then HUAYIN use auto-feeder to remove the tire wire steel. usually the 10 tons capacity need about 20 hours to finish the whole process.
Final product
tire crude oil 45%-50%, 30% carbon black, 15% tire wire steel and the rest is the waste gas.
Product application
1.tire crude oil usage( where need the oil as fuel)
A.power plant factory
B.glass factory
C.cement factory
D.ceramic factory
E.aluminum factory
F.boiler factory
G.central heating factory
H.painting factory
2. Carbon black usage
As the waste tire carbon black there are ash inside so this quality is not so good. Until now our technology can use some ways to make the carbon black to briquette, which can be sold as the industry coal.
3. Tire wire steel usage
This can be sold to the steel making factory
4.the waste gas(CH4,C2H6,C3H8,C4H10 and H2)
As these gas can not be cooled under the normal pressure,besides they are all combustible gas, which is dangerous to storage.after it produce we let the gas back to the combustion system to burn as energy. This will safe and save your fuel cost.
HUAYIN WASTE TIRE PYROLYSIS MACHINE FEATURES:
Technical parameter of waste tire pyrolysis machine
Specification
Item
Contents
Model
HY2200mm*5500mm
5 Ton/Batch
HY2200*7500
7 Ton/Batch
HY2600*6600
8 Ton/Batch
HY2800*6000
9 Ton/Batch
HY2800*6600
10 Ton/Batch
Reactor material
Q345R/Q245R/310S+Boiler plate/Stainless steel
Thickness
14mm/16mm/18mm
Weight
15T-35T
Power
Average 15KW/h
Space needed
300-400 square meters (Width:10m, Length:30m-40m)
Labor needed
3-4 workers
Green technology used tire recycling waste plastic pyrolysis plant india
Safety
1) Two devices to avoid backfire in production: oil-water separator and anti-back fire device.
2) Vacuum device makes reactor working under ordinary pressure or negative pressure.
3) Pressure gage to monitor the pressure will release the pressure automatically.
Security:
1. Adopting automatic submerged-arc welding technology and all of the weldings will be detected by the ultrasonic nondestructive testing method.
2.Vacuum system ensures the whole line working well.
Environmental protection
1) The flue gas and sulphur will be purified and cooled by dust and sulphur removal device.
2) The procedure to remove carbon black is working under closed situation to avoid pollution.
3) The syngas will be recycled to the furnace for second burning ,avoid pollution.
High oil yield:
1. Three stages cooling processes ensure the oil gas liquefied sufficiently.
2. When the oil gas pass through the condensers, it’s divided into several portions by small pipes inside condenser and be cooled separately.
Long service life
1. High temperature and pressure resistant raw material Q245R boiler plate with 16mm/18mm.
2. All cutting, rolling and welding works are finished by automatic machines.
Energy saving:
1. Well sealing for heating system, no gas leak and saving fuel.
2. The exhaust gas will be recycled for reactor heating.
Profit analysis
(This profit analysis is done by one of our customers) (10ton per day)
Cost
Item
Quantity
Unit Price(USD)
Total(USD)
Used tyre
10Ton
42
420
Fuel
Pyrolysis oil
0
0
Electric
200kw
0.2
40
Salary for worker
4 workers
50/ day/ person
200
Total cost
660
Return
Item
Quantity
Unit price (USD)
Total (USD)
Crude oil
4.5Ton
850
3825
Carbon black
3Ton
20
60
Steel wire
1.5Ton
250
375
Total return
4260
Daily Gross profit
3600
Month Gross profit 3600 USD *25 days
90,000USD
Annual profit 90000USD* 12 months
1,080,000USD
Company Information
Since 1993, HUAYIN has been focusing on developing sustainable pyrolysis technology for disposal of waste plastics and tyres and oily sludge. HUAYIN has 20+ years of experience in manufacturing fuels and diesel oil from plastic and tire waste. We have experience of establishing over hundreds of Pyrolysis plants in 50+ countries all over the world. We have our own pyrolysis research facility as well as machinery design and manufacturing facility.
HUAYIN’s Vision Statement: Provide robust engineering, operation and management services in pyrolysis.
HUAYIN’s Mission Statement: Develop and operate the most ‘economically viable, socially appealing and environmentally compliant’ pyrolysis technology.
Packaging & Shipping

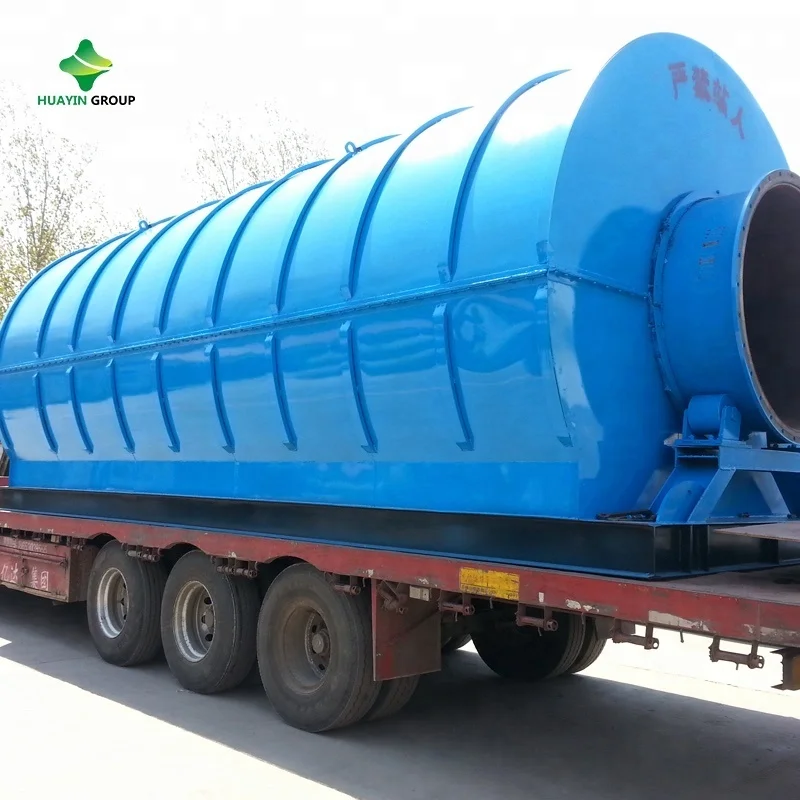

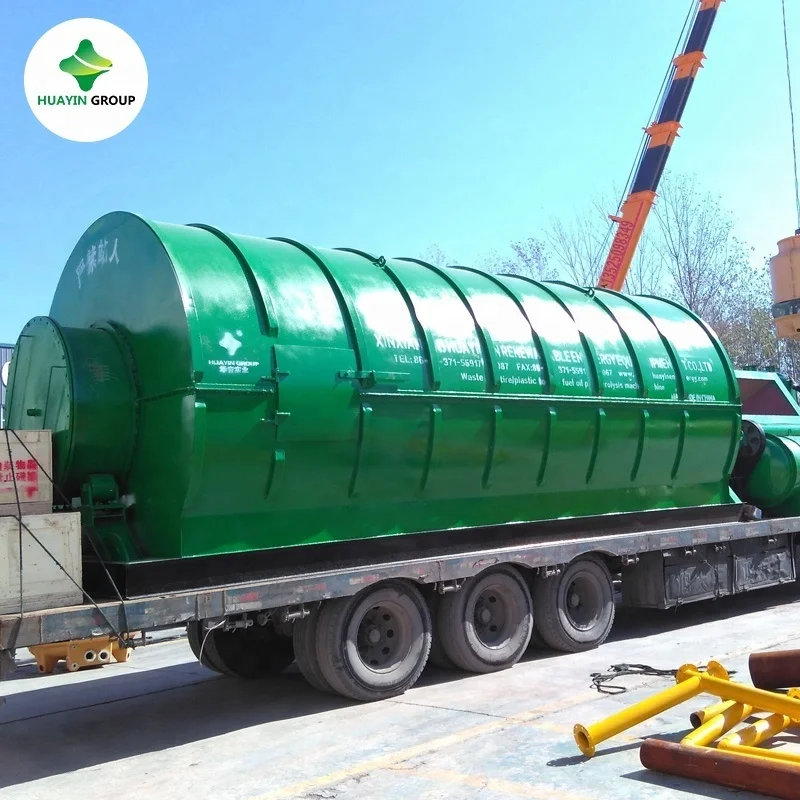

Our 10 tons tire and plastic pyrolysis reactor is about 9200m *33400mm*31700mm. It is doable to take 40FR.
It is over width and over height.
And Our integrity cooling device is designed to meet 40HQ size and it is easy to ship and move the site place.
For more details of Green technology used tire recycling waste plastic pyrolysis plant india, welcome send us inquiry .
