EASCO inch PVC Electrical Conduit

Product Overview

Description

EASCO Flexible Conduit is used where high corrosion resistance and long life for the conduit is required.

CE.ROHS Certified.



FEATURES:



1)Material: (inner layer)Adopting galvanized steel band with special insulation treatment

                (outer layer)Adopting PVC raw material(anti-UV, anti-aging) Color: Black or Grey.



2)Working temperature:-10 °c ~+80°c



3)Long service life



4)Good mechanical protection



5)Good bending flexibility



6)The flexible pipes have extremely good waterproof, insulating and pull resistance.



7)EASCO conduits are used for mechanical protection of cable and wire in tunnels, hospitals, high-rise office blocks and public buildings, airlines, underground and others.



8)PVC coated in order to ensure resistance against corrosion.



EASCO   Flexible Metal Conduit is Used in following applications:



1)Used forwire protction at railways, engines, trafficsystem engineering, air-conditioners, various machineries, power plants, chemical industries, power distribution system, communication system, vessels, mansions, factory buildings as well as the outdoor's exposed locations.



2)Usage:protecting wires and cables and provide insulation and waterproofing performance.



3)How to usd: put the wires and cables through the pipes.

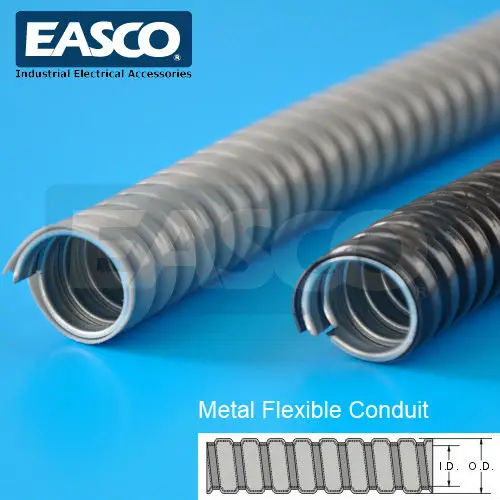

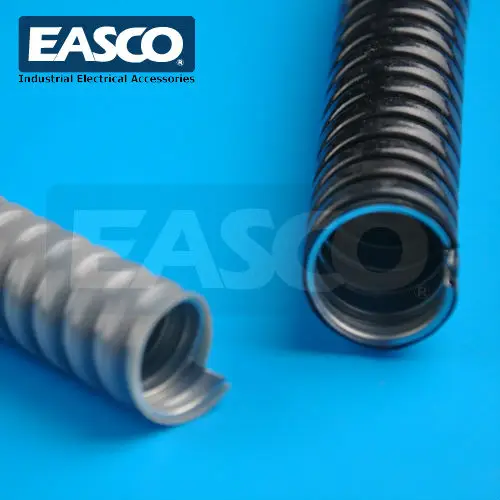

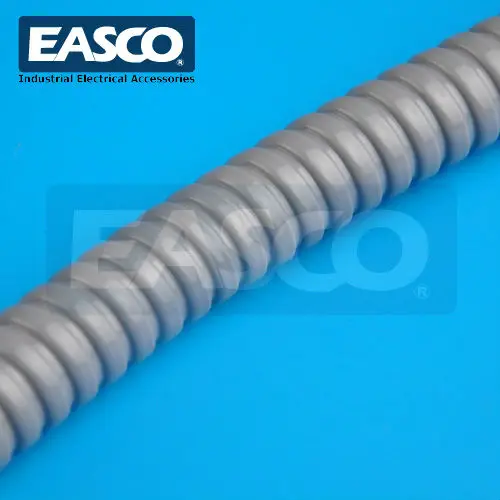

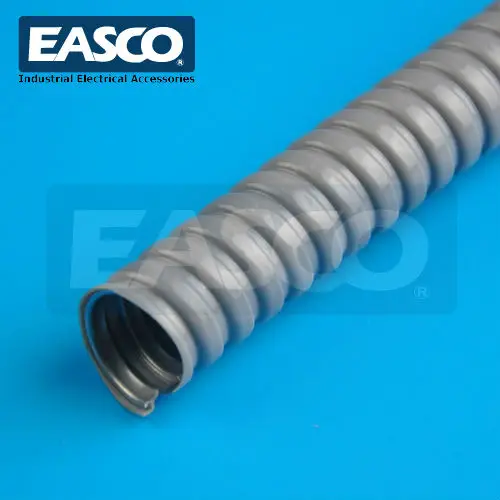

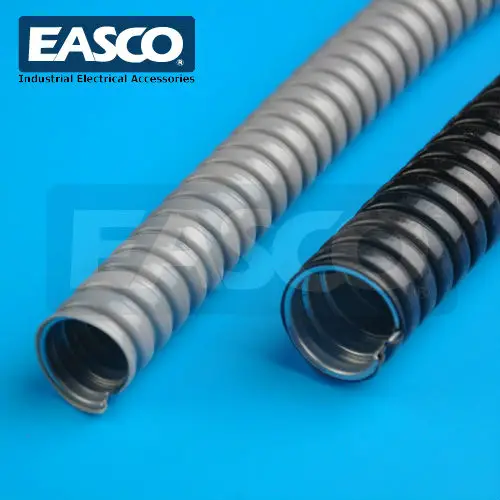

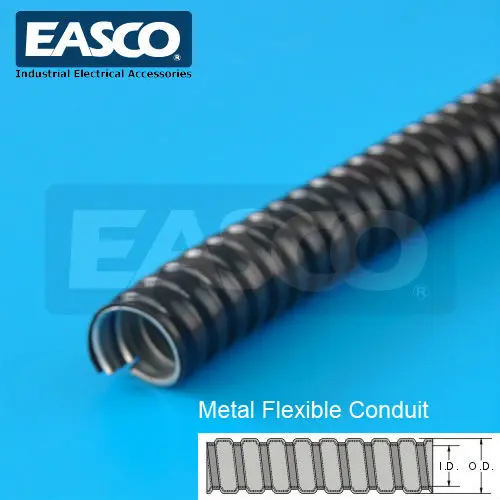

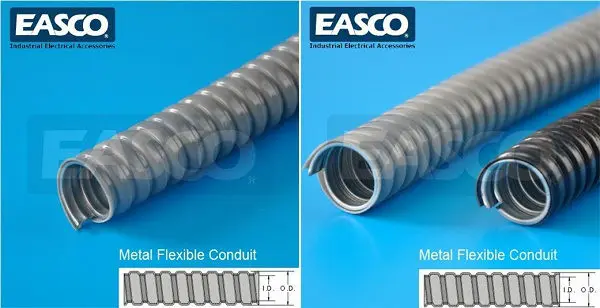

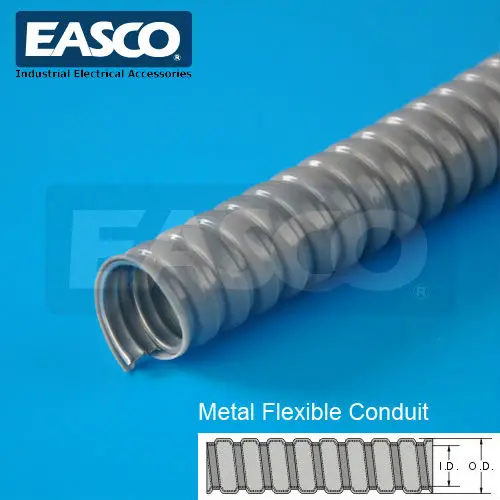

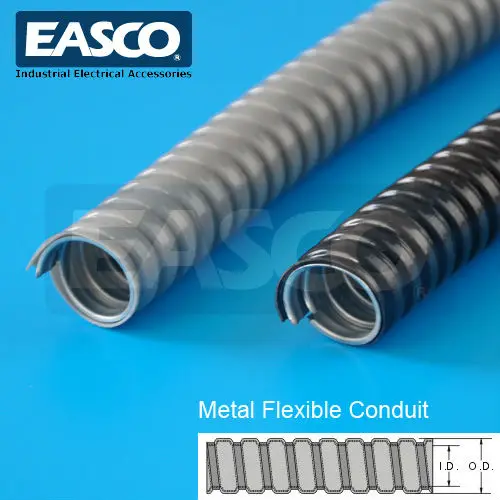

PICTRUES FOR PVC COATED METAL FELEXIBLE CONDUIT:





DRAWINGS FOR PVC COATED METAL FLEXIBLE CONDUIT :







SPECIFICATIONS:



Item No.		Trade Sizes		O.D.	Natural curve	Packing
Black	Gray	(mm)	(inch)	mm		M
MCR-6B	MCR-6G	6	3/16"	9.00±0.25	40	200
MCR-8B	MCR-8G	8	1/4"	11.8±0.30	45	100
MCR-10B	MCR-10G	10	5/16"	14.5±0.30	55	100
MCR-12B	MCR-12G	12		16.5±0.35	60	100
MCR-13B	MCR-13G	13	3/8"	17.5±0.35	65	100
MCR-15B	MCR-15G	15		20.2±0.35	80	100
MCR-16B	MCR-16G	16	1/2"	21.2±0.35	85	100
MCR-19B	MCR-19G	19		24.5±0.40	95	50
MCR-20B	MCR-20G	20	3/4"	25.5±0.40	100	50
MCR-25B	MCR-25G	25	1"	31.7±0.45	120	50
MCR-32B	MCR-32G	32	1 1/4"	39.6±0.50	150	25
MCR-38B	MCR-38G	38	1 1/2"	46.6±0.60	180	25
MCR-51B	MCR-51G	51	2"	59.5±1.00	220	20
MCR-64B	MCR-64G	64	2 1/2"	73.5±1.50	310	10
MCR-75B	MCR-75G	75	3"	84.5±2.00	350	10
MCR-100B	MCR-100G	100	4"	109.0±3.00	410	10
