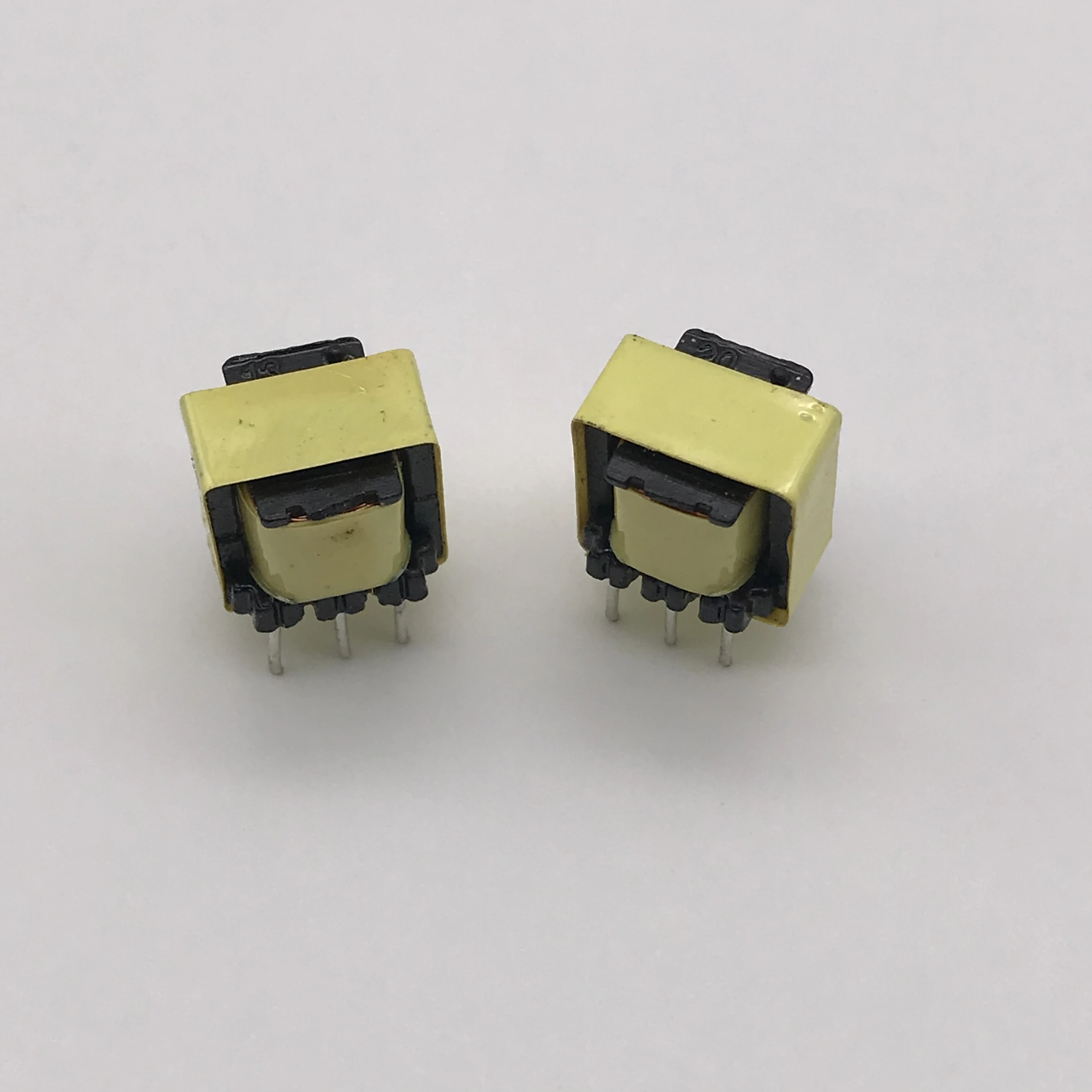

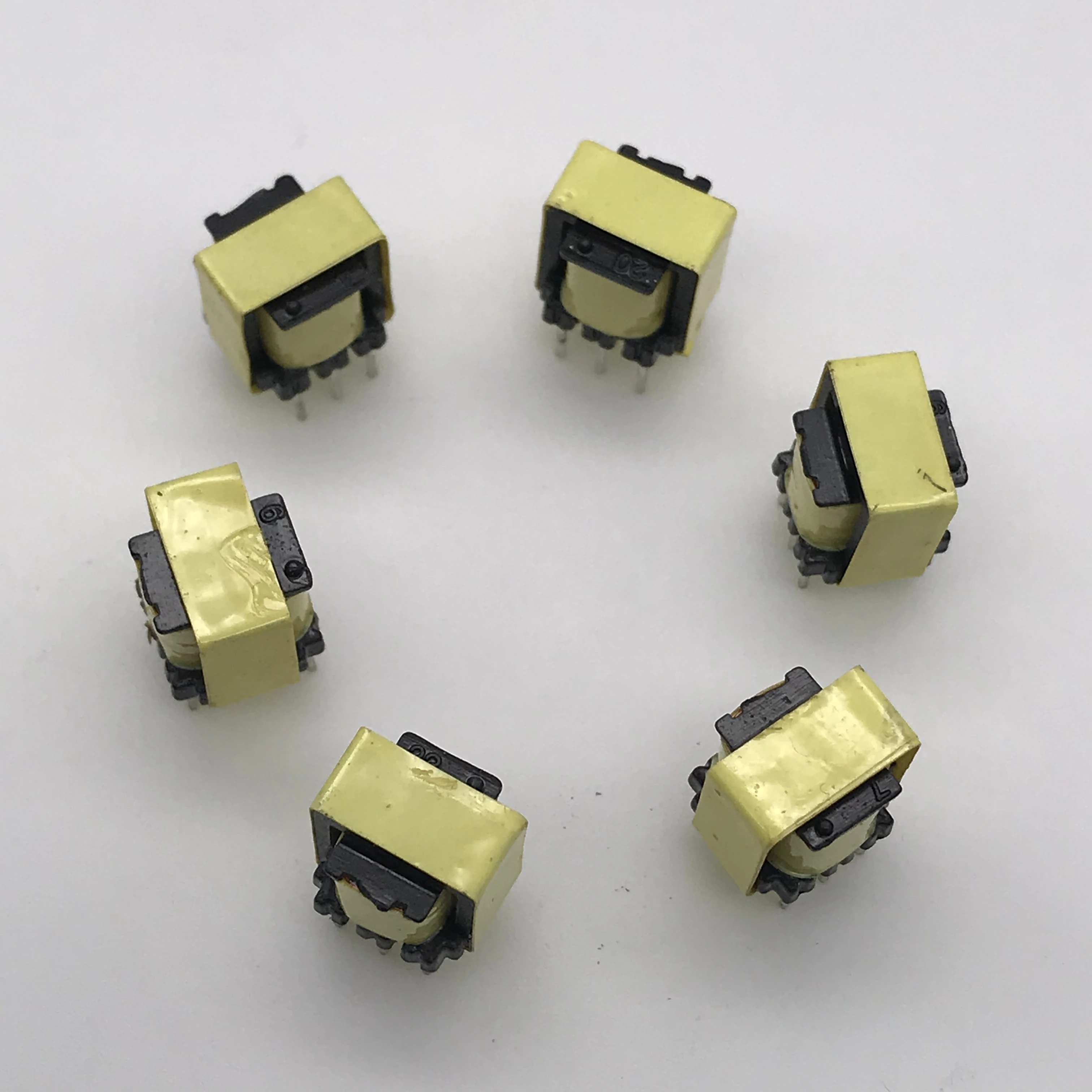

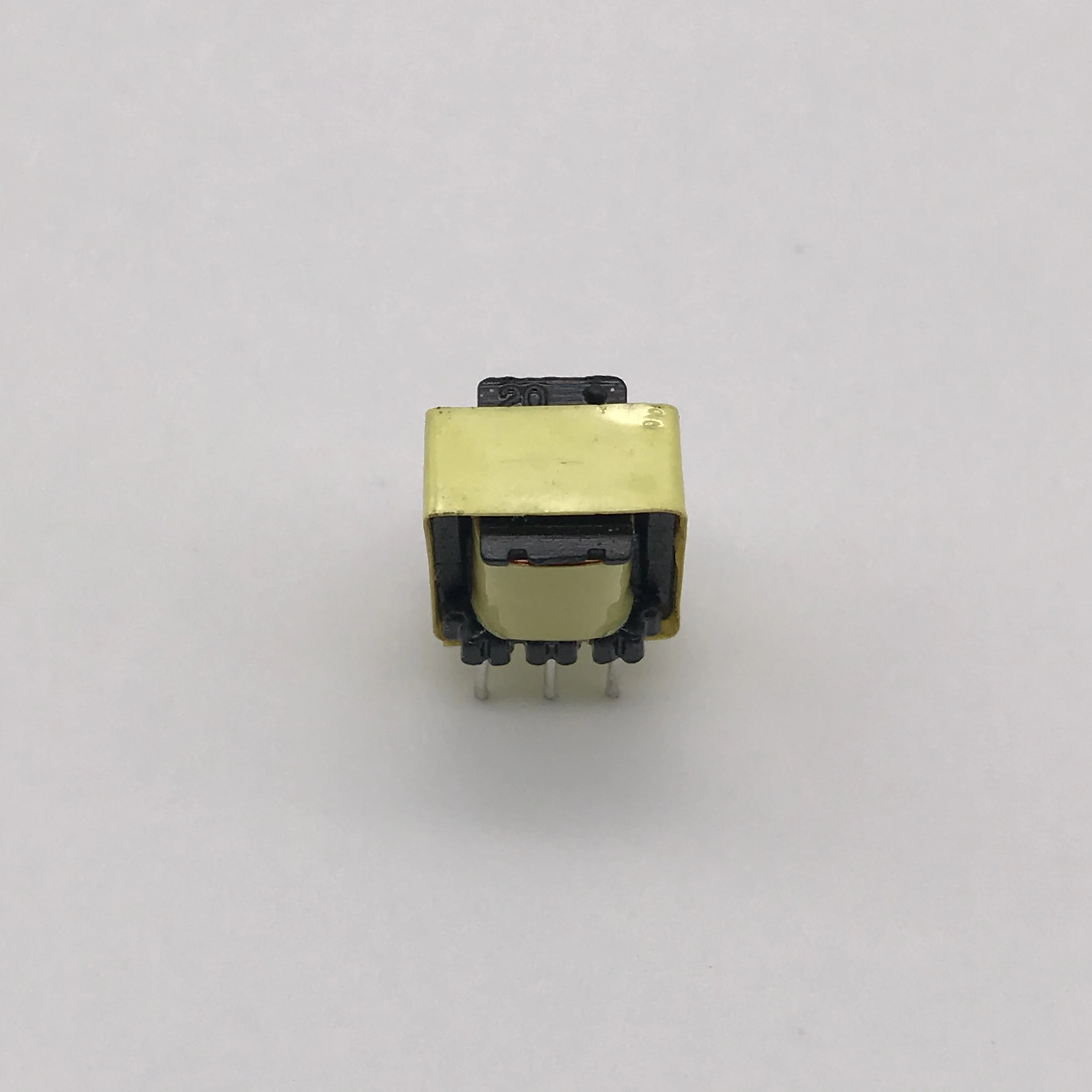

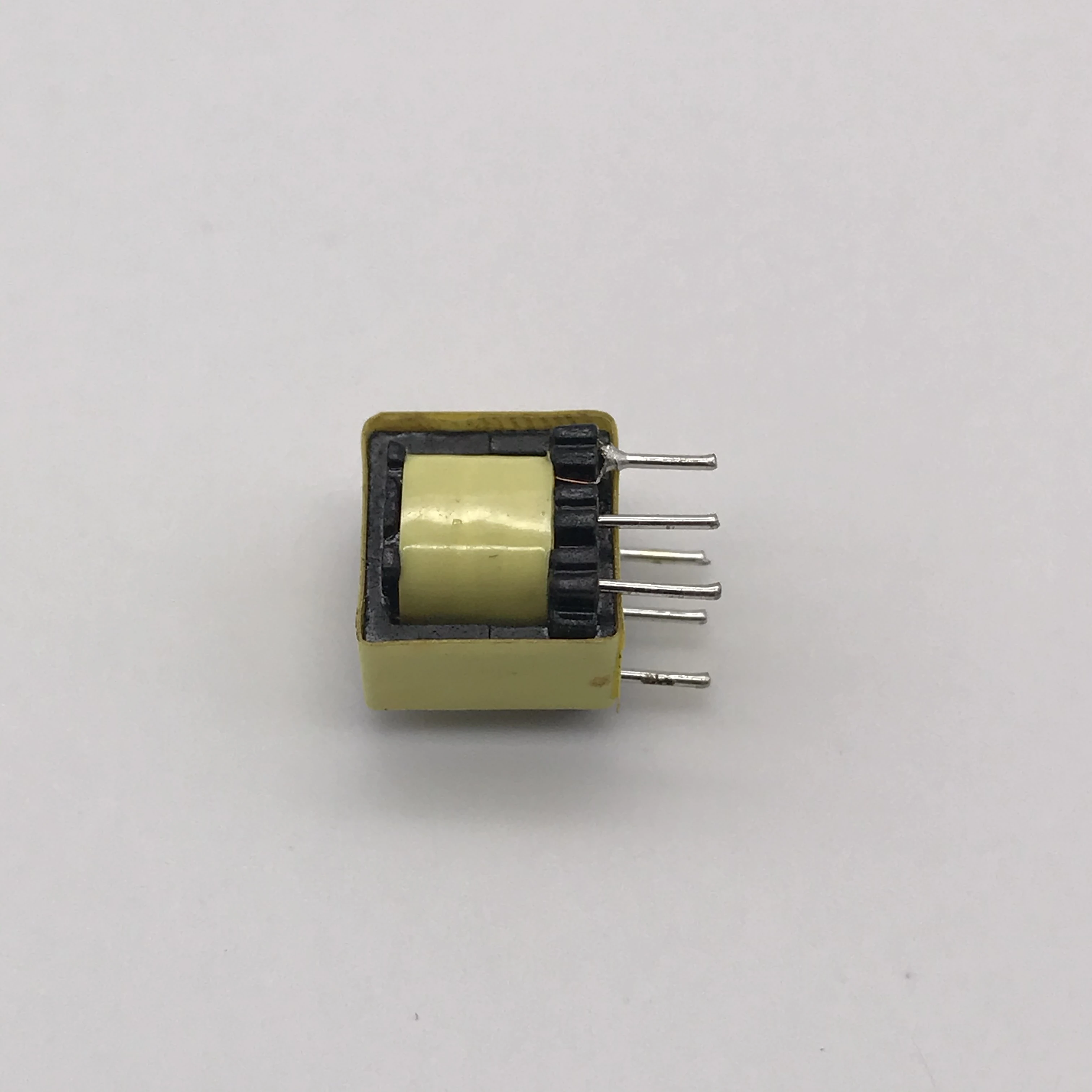

Custom design EE EI EFD series switching power transformer high frequency transformer

Product Overview

Description

Custom design EE EI EFD series switching power transformer high frequency transformer





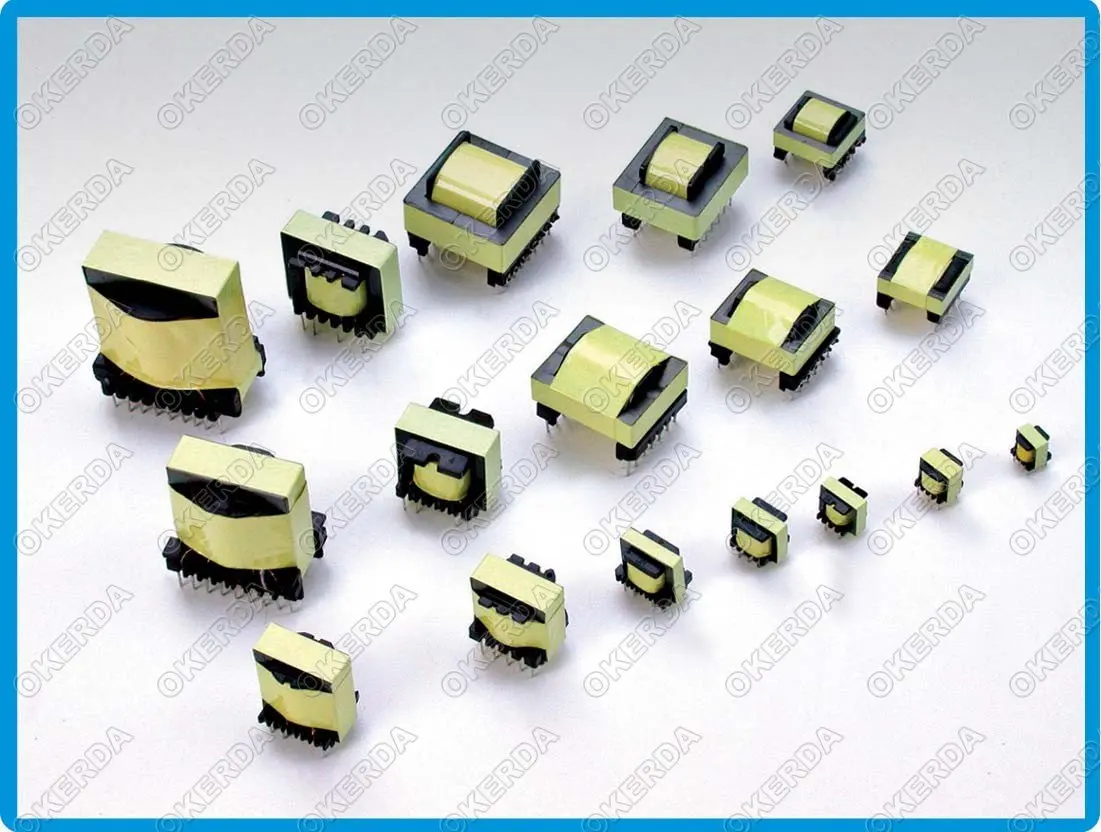

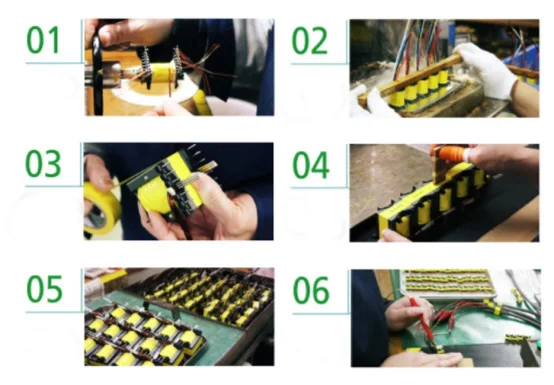

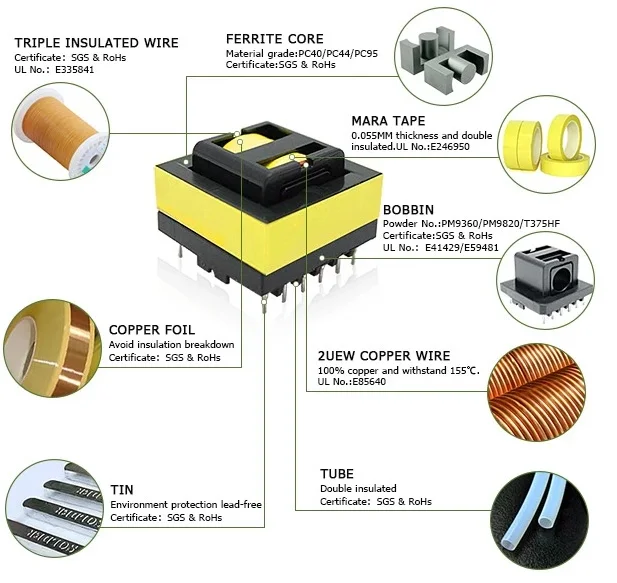

High frequency transformer

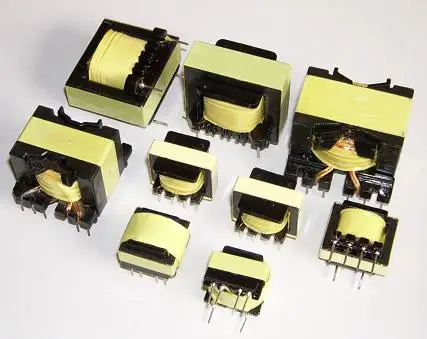

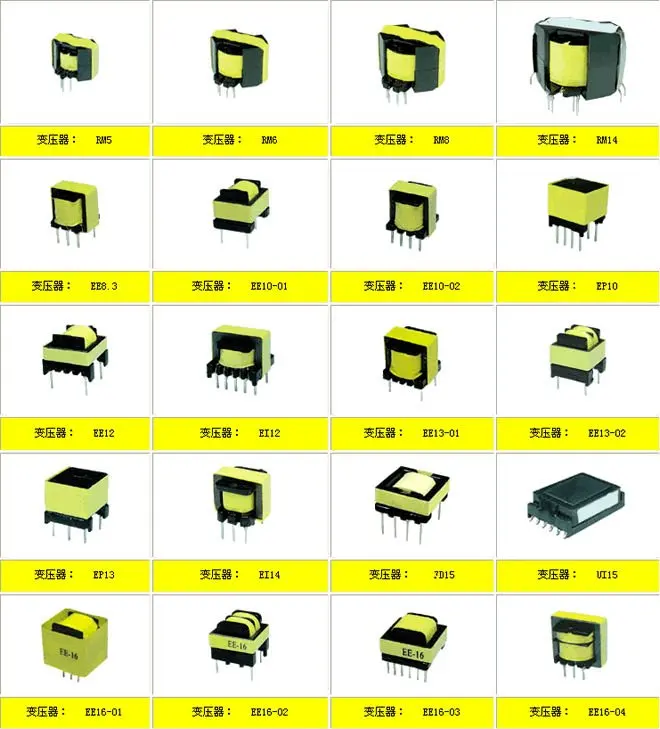

• Various types of transformers available, CI, UI, EFD, EP, ER, EPC, POT, RM, EE


• High Frequency transformer suitable for EL/CCFL Inverter or DC/DC converter


• Customer's designs are welcome







































































































































































  Model Number	Specification	Needle Number Ratio	Length× Width× Height
  EE8.3	Vertical	2/3	8.3×5.4×5.4
  EE10	Vertical	2/3	10×8×8
  EE13	Vertical	2/3	13×12×12
  EE13	Horizontal	2/2	13×12×12
  EE16	Vertical	4/6	16×13×15
  EE16	Horizontal	3/3	16×13×15
  EE19	Vertical	3/4	19×16.5×16.5
  EE19	Vertical	5/5	19×16.5×16.5
  EE19	Horizontal	4/4	19×16.5×16.5
  EE22	Vertical	5/5	22×16×19
  EE25	Vertical	2/2	25.5×17×21
  EE25	Horizontal	4/4	25.5×17×21
  EE28	Vertical	6/6	28×22×20.5
  EE 30	Horizontal	5/5	30×25×22
  EE 30	Vertical	6/6	30×25×22
  EE 33	Vertical	7/7	33×27×25
  EC28	Vertical	6/6	28×22×20.5
  EC28	Horizontal	6/6	28×22×20.5
  EC42	Vertical	7/7	42×30×44
  EC35	Horizontal	7/7	35×28×27
  UF9.8	Horizontal	2/2	16×11×16
  UF10.5	Horizontal	2/2	18.5×17×21.5
  UF16	Horizontal	2/2	22×19×27
  O-type	15×8.5×6	-	9×17
  O-type	36×23×115	-	45×28.5×43
  O-type	40×24×14.5	-	45×24×47





• Any custom-design is available



High Frequency Transformer Features:

1. High efficiency of over 95%
2. High frequency range 10kHz-1MHz
3. High isolation strength
4. Lower profile and weight
5. High power density
6. High-temperature resistant

7. Operating temperature -40°C to +125°C
8. Power range 5w-50w

9. Custom designs available



Applications

1. VCRS, Copy machine, Audio equipment, Game machines.
2. TV sets, Microcomputer equipment, printers, Terminals
3. Communications control equipment
4. Switching power supply, chargers, alarm system
5. UPS, VCD/DVD players, audio and visual equipment
6. OA machines, inverters, chargers, alarm system



Specifications:

1. Low magnetic leakage, low loss

2. Small distributed capacity
3. Fine tuning inductance



Electrical Characteristics:

1. Operating Temperature range:-20 to +45
2. Storage temperature: -40 to +70
3. Switching frequency: 1KHz to 200KHz
4. Withstanding voltage: 1500/3750Vac for 1 minute between primary & secondary
5. Insulation resistance: 500Vdc 100MΩ min between primary & secondary





Related Products

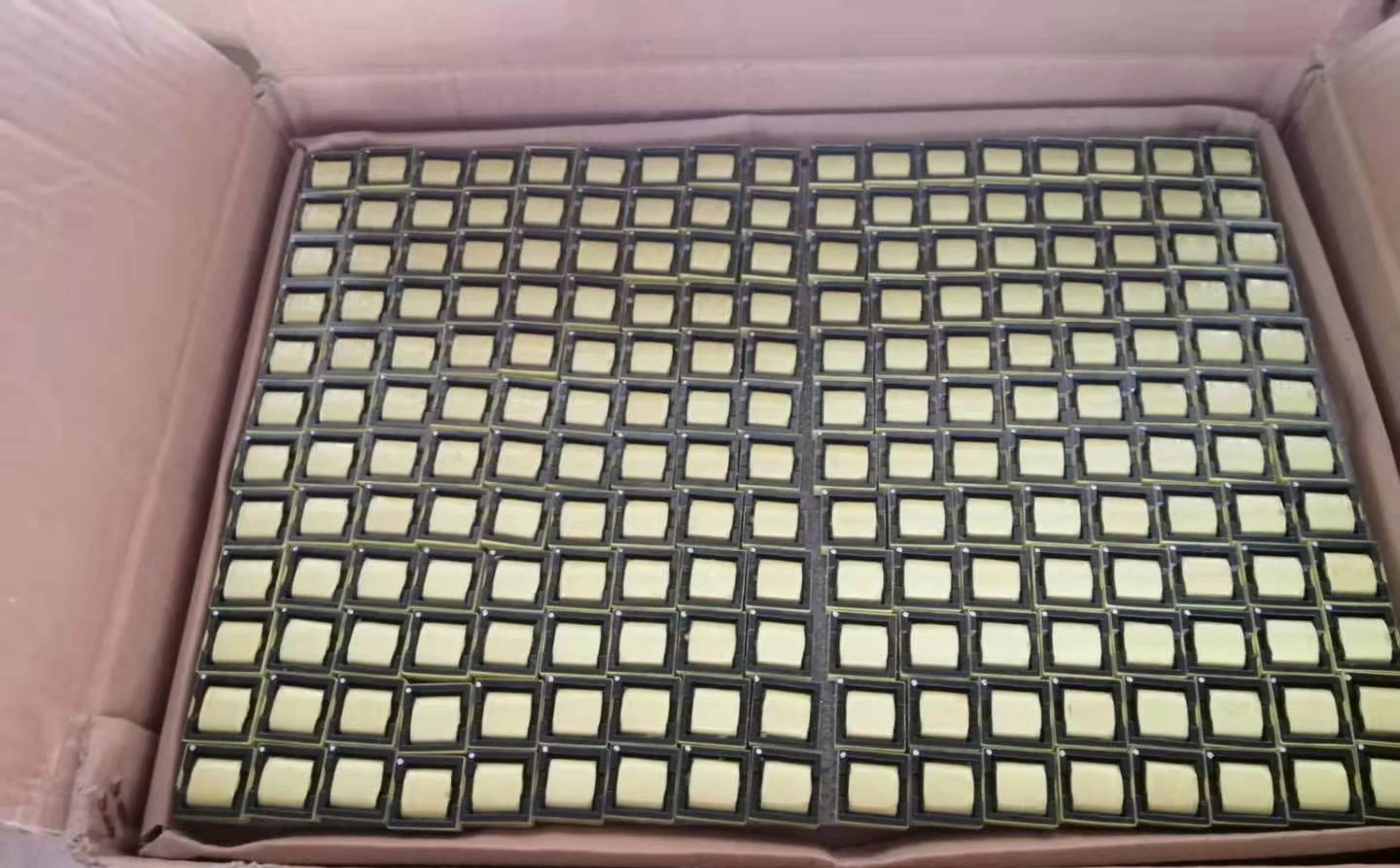

Packing&Shipping
