1. Display current produce speed (pcs/minute) and accumulative total value (pcs);
2. All the data can be saved when power off;
3. Accumulative total value can be cleared;
4. Press ‘switch’ button to display speed or total value.
5. When display total value, press two ‘clear’ buttons at the same time to clear value.
Type
XJC-6Z8
Rating voltage
AC 220V
Installation
Panel-mounted, the recommended panel cutout for the controller is 3.6’’ width (92mm) by 1.8’’ height (46mm).
LED
0.39’’
Count range
0-999999
Coefficient range
1-30
Input signal:
DC24V, PNP or NPN sensor is advised.
Shell size
96*48*120

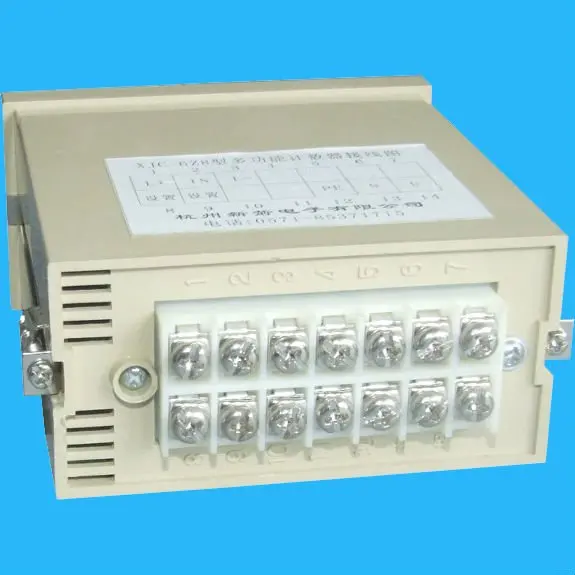

Back of counter
