Hydraulic Reversible Plate Compactor CRP40 with high class quality

Product Overview

Description

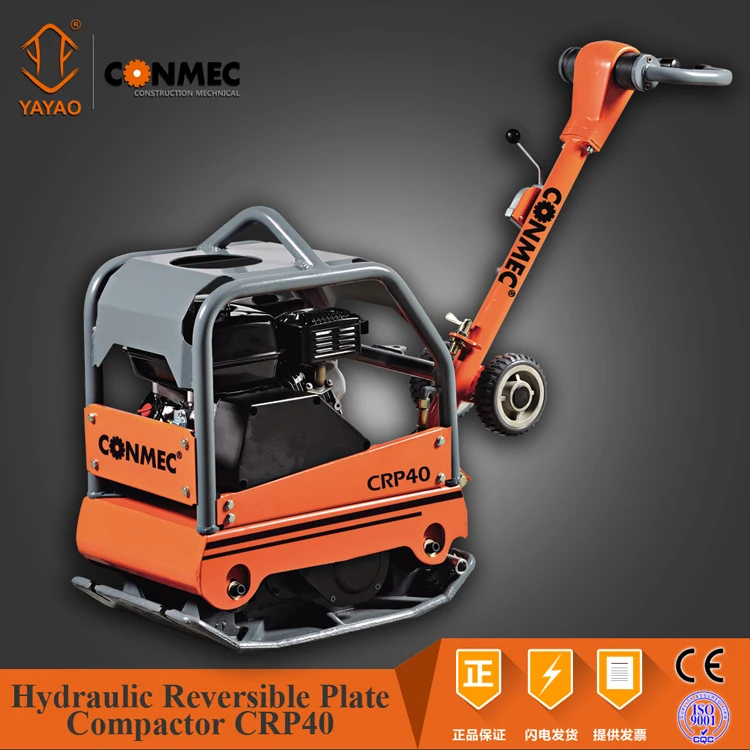

Hydraulic Reversible Plate Compactor CRP40





Technical Specification

Model	CRP40-1	CRP40-2	CRP40-3	CRP40-4
Engine Type	Chinese Diesel KM186F	Chinese Petrol Engine	Robin EX27	Honda GX390
Power kw(hp)	6.6(9.0)	9.6(13.0)	6.6(9.0)	9.6(13.0)
Weight kg(lbs)	324(713)	310(683)	300(661)	310(683)
Frequency rpm	4800
Centrifugal Force kN	40
Travel Speed cm/s (in/s)	30(11.8)
Compaction Depth cm(in)	95(37.5)
Efficiency m2/hr(ft2/hr)	480(5166)
Plate size cm (in)	90*67(35.5*26.4)
Water Tank Capacity L

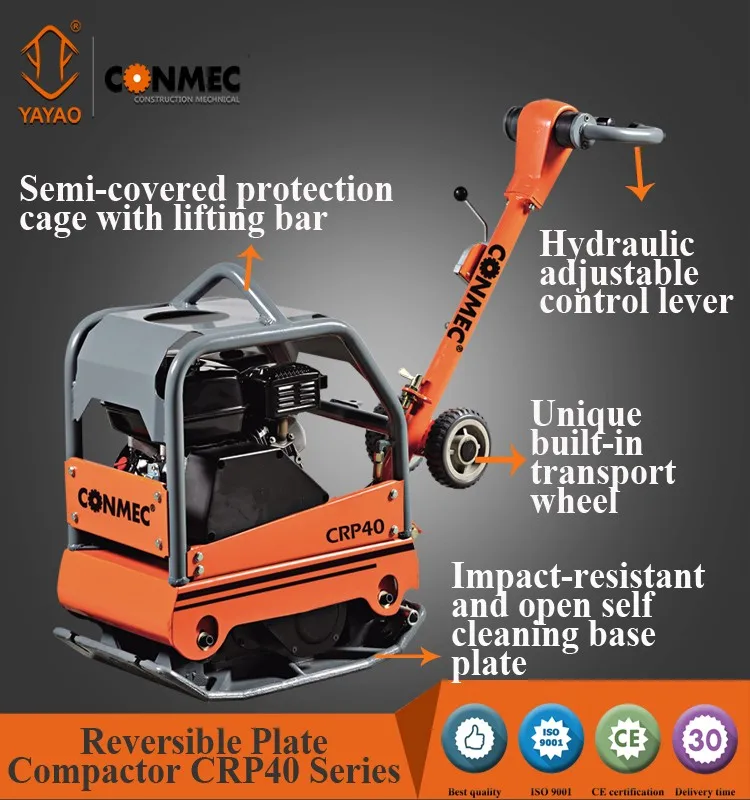

Features:

Hydraulic adjustable control lever for easy direction change
On the spot compaction for problem areas
Easy-to-reach located controls
Large shock mounts reduce vibration to the handle
Heavy-duty shock mounts reduce vibration to the upper deck
Wear-resistant base plates extend life, open design reduces dirt building
Centrally-located lifting bar allows easy transportation in and out of trenches
Semi-covered protection cage protects the plate from accidental job-site damage
Heavy duty industrial throttle control is available as standard
