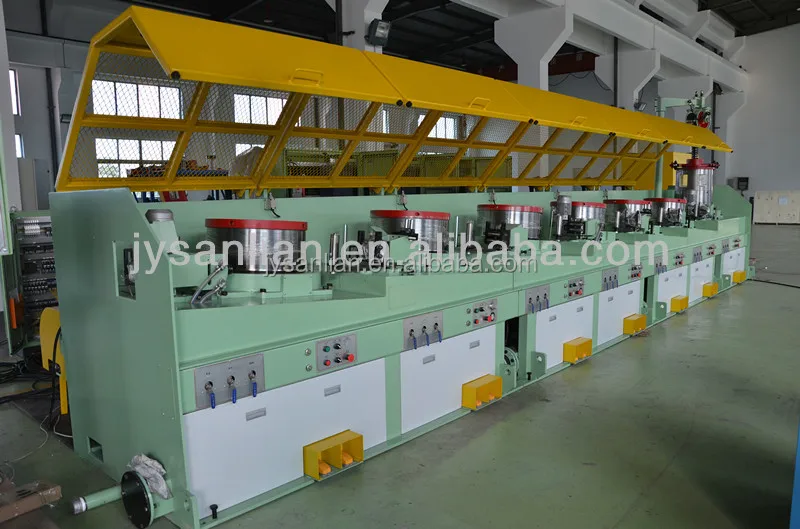

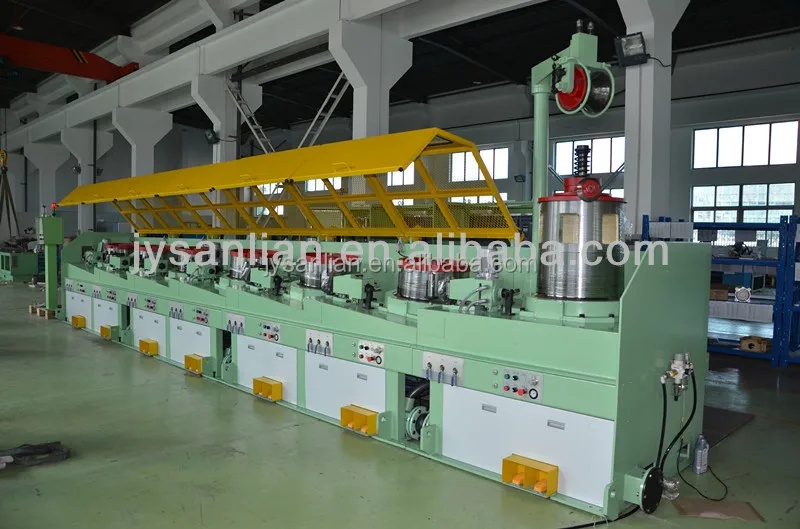

LZ7/560 straight line steel wire drawing machine

No.

Name

Unit

Data

1

Drawing type

 LZ7/560

2

 Straight line tuning

3

dawing passes

 7

4

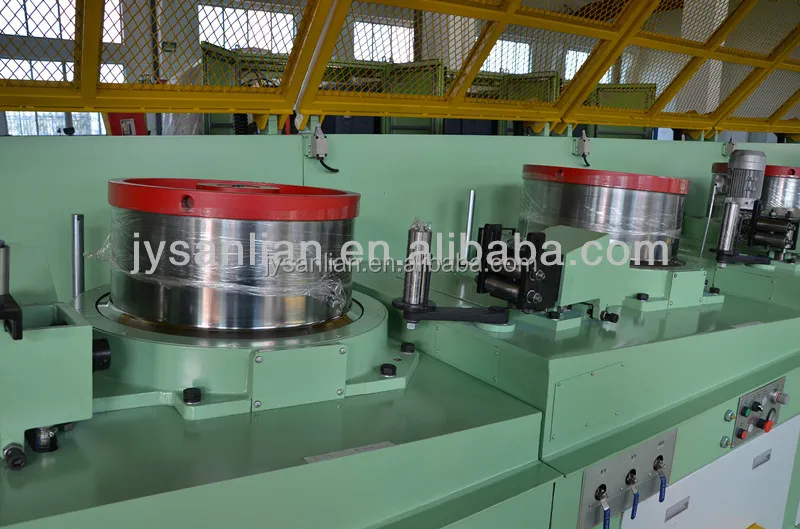

Block diameter

mm

Φ600

5

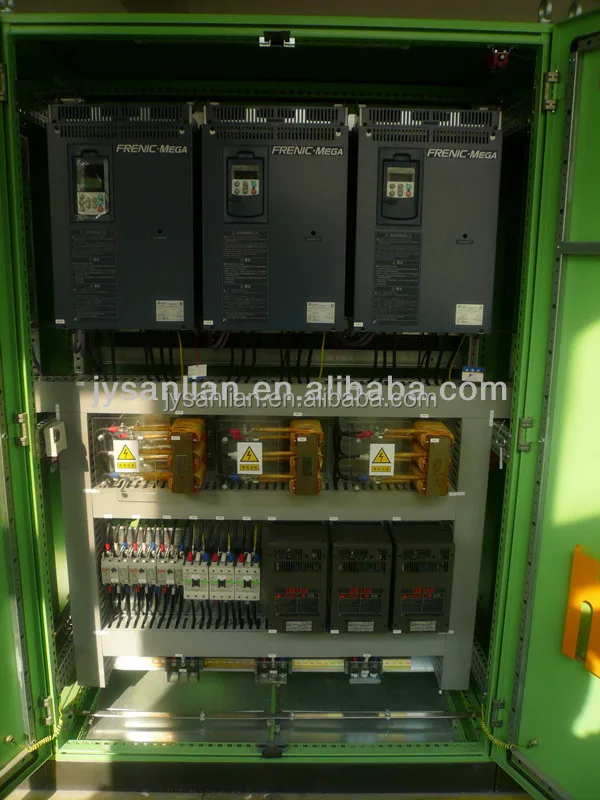

Speed adjustable

 AC freq. Con. Speed Adjustable

6

Motor power

KW

 7×22

7

Inlet wire diameter

mm

 Max               Φ6.5

8

End product diameter

mm

 Min                Φ2.4

9

Average compression

%

 ≤20%

10

Design drawing speed

m/s

Max.16m/s

11

Control mode

Fully digital

12

Logical control

PLC

13

Inlet Wire strength

MPa

≤1250

14

Carbon content in material

Carbon spring wire steel, high carbon steel

15

Drum cooling

Inside using "Narrow-Gap" water cooling,Outside using Forced Air Cooling.

16

Die box

Direct water cooling

17

Cooling water pressure

0.2~0.3Mpa

18

Pneumatic system

Air pressure≥0.5Mpa

19

Stop time

S

Normal stop≤50s,EMG stop≤5s

Model

LZ

200

LZ

280

LZ

350

LZ

400

LZ

450

LZ

500

LZ

560

LZ

600

LZ

700

LZ

800

LZ

900

LZ

1200

Drawing Passes

~14

~12

~12

~12

~12

~12

~12

~10

~9

~9

~9

~9

Max.Inlet Dia.(mm)

1.4

1.8

3.5

4.2

4.6

5.5

6.5

6.5

8

10

14

16

Min.Outlet Dia(mm)

0.2

0.4

0.6

0.7

0.8

1

1.35

1.8

2.5

3

3

3

Drawing speed

Design and determine speed & power according to drawing material strength and customer’s requirements
