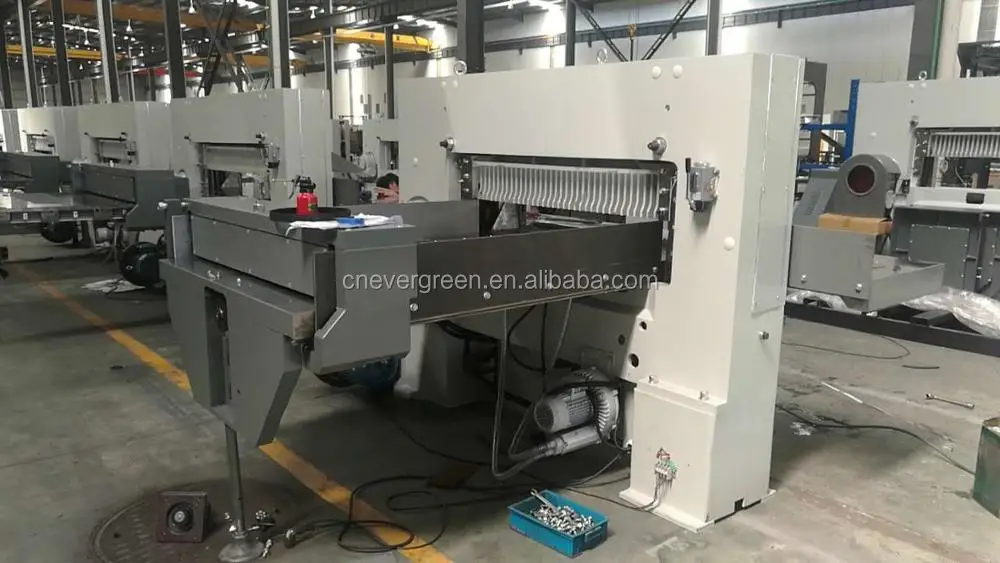

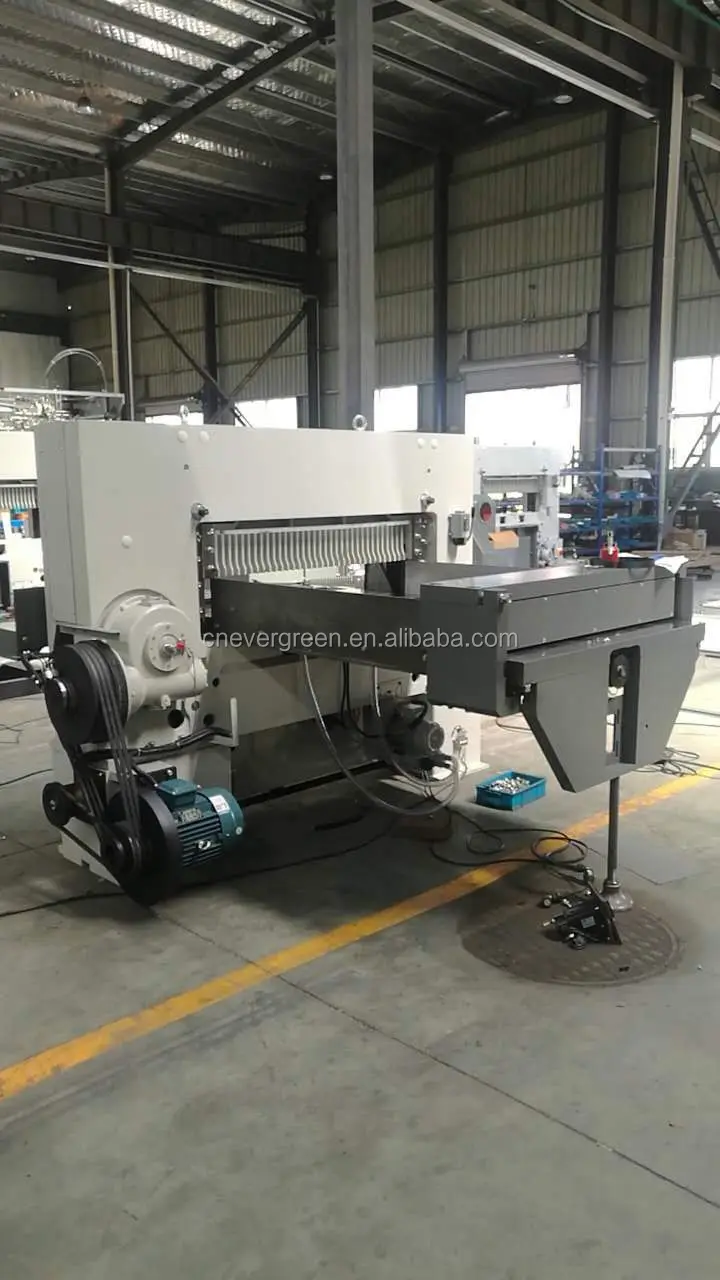

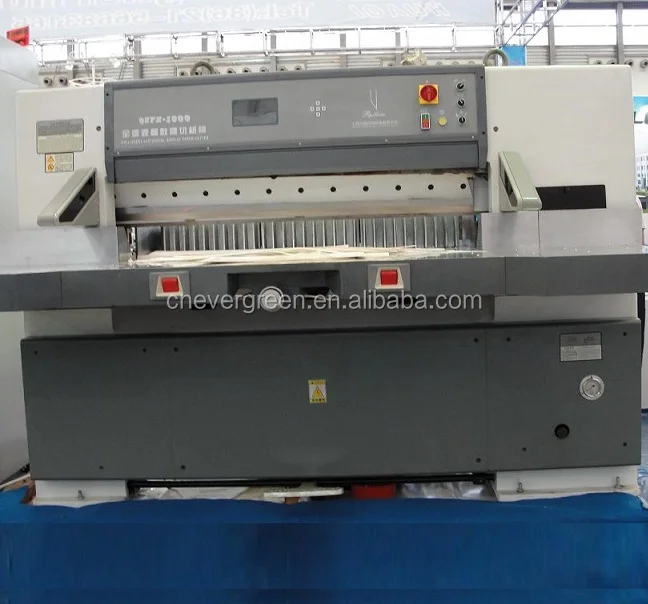

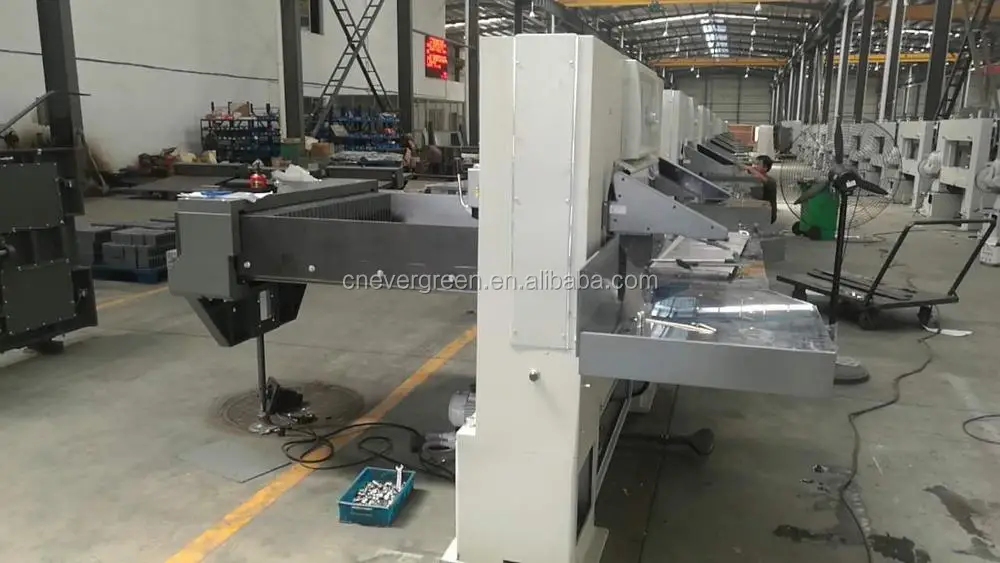

Computer program paper guillotine machine QZYK920CF (paper cutter)

Product Overview

Description

7.8 Inch Computer Program Paper Cutting Machine QZYK920CF

Paper Guillotine Machine

1. LCD screen : industrial environment blue LCD, the precision reached 0.05mm, it can display the dimension of the cutting articles in front of the cut blade and behind the blade, has Chinese and English function of language. The unit can be changed between inch and mm.

2. Hydraulic System: the hydraulic system adopts the Germany advanced technology. Both the paper clamp and paper cutting device adopt hydraulic. The hydraulic device pass CE certificate.

3. Double Guide Device: the paper pusher adopts double imported linear guide and Grinding T shape screw, which make sure cutting precision.

4. Photo cell: it is equipped with a photo cell safety protection device.

5. over load protection device.

6. Convenient knife changing device.

7. Worktable chrome coated: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.

8. Air ball: air balls are installed in the worktable. In this way, the paper sending work will be easy and accurate.

9. Cutting controller: both of the hands of the user operate the machine. It can cut paper one time.

10.Electronic knife lock: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.
Main technical parameters:

Model	QZYK920CF
Max cutting Width	92cm
Max. cutting depth	13cm
Max cutting length	92cm
Length of the front working platform	69cm
Height of the working platform	90cm
Total length of the working palt form	205cm
Machine width (with side working platform )	212cm
Machine height	156cm
Knife thickness	12.7mm
Power	3 kw
Power of paper feeding appliance	0.55kw
Max power of paper press	0.75kw
Max pressure of paper press	8mpa
Cutting speed	45times/min
Machine weight	2500kg
Power	380V, 50Hz
Machine dimension	225*140*191cm
