1. Auto-moving the direction of forward or turn over, speed regulating.
2. Hydraulic pressure drive which is powerful, and highly efficiency.

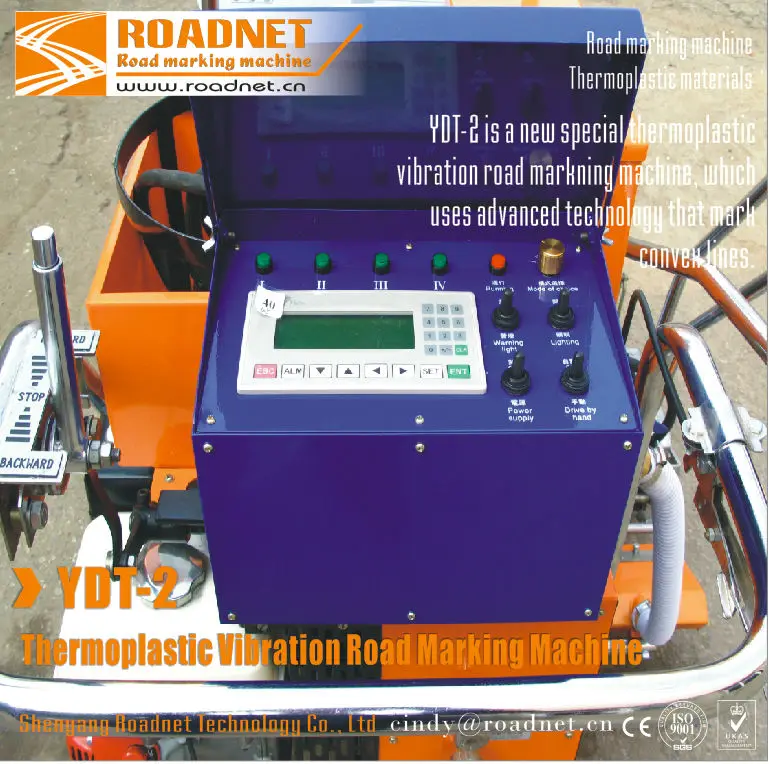

3. Micro-computer control sysytem, touch screen.

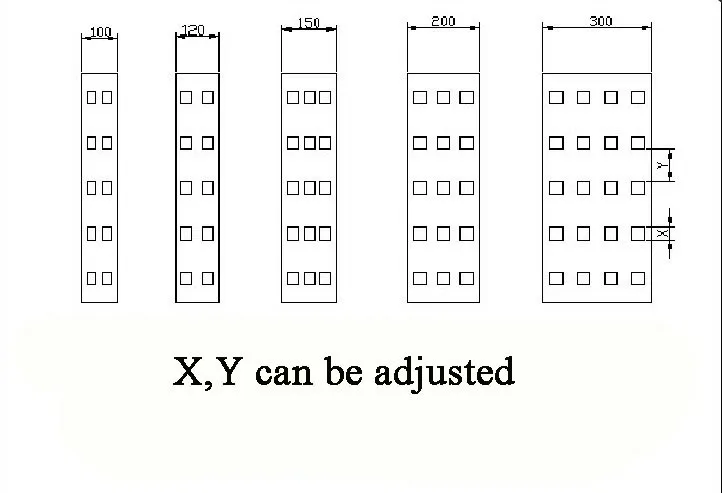

4. protruding spacing can be adjusted freely, it is a machine with several uses and easy to upgrade.
5. safty warning light and lighting for night use.
6. special materials of making bucket, heat-resistance, anti-cauterization, hard metl alloy grounded knife, active design.
Technical parameters:

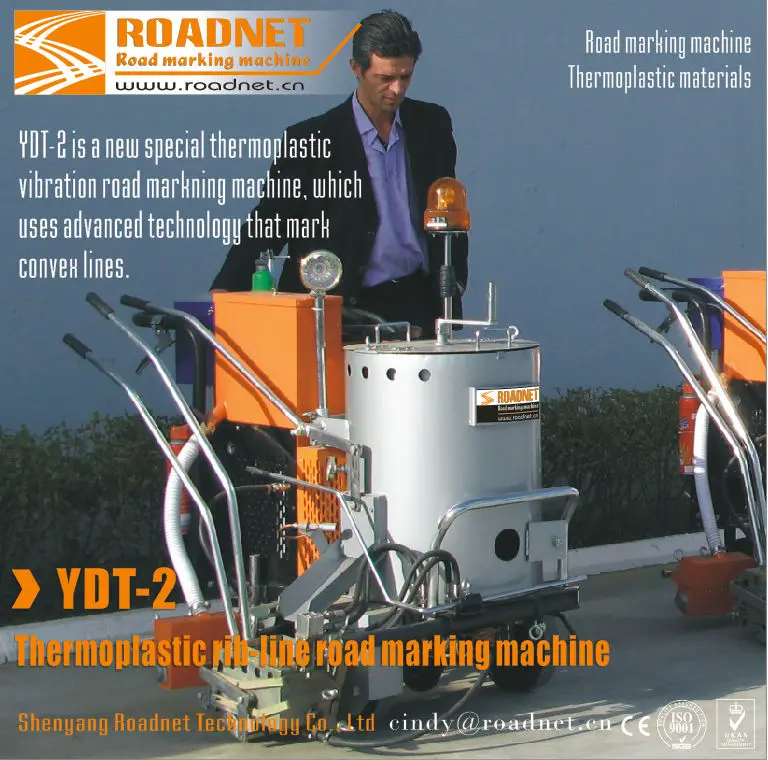

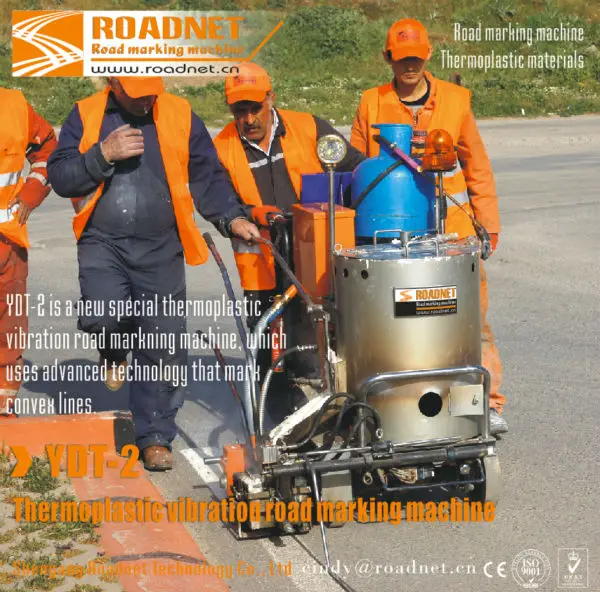

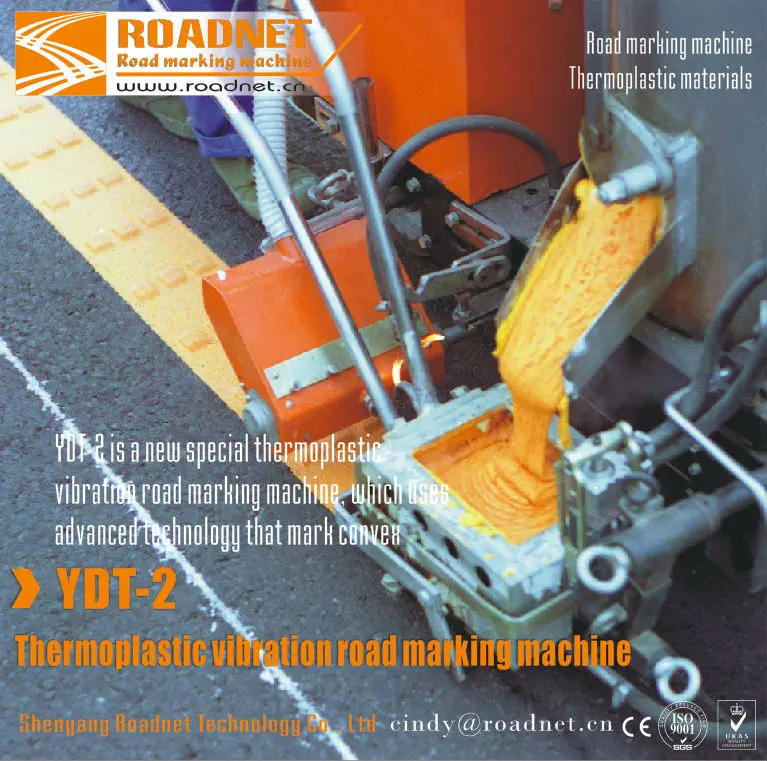

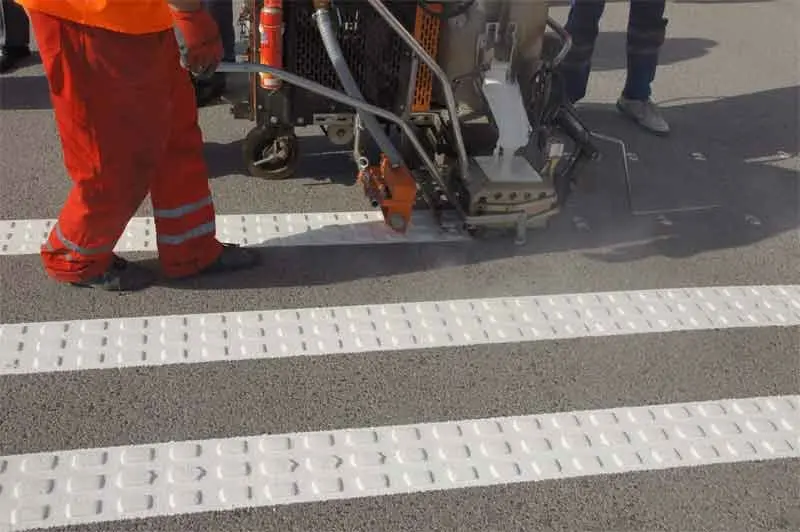

YDT-2 Self-propelled thermoplastic vibration Road marking machine,convex line marking machine for speed pump
Engine
HONDA 5.5HP gasoline engine
Size
1350 × 800 × 1050mm
Weight
245 kgs
Application Width
standard type 150/200/300 mm Option 100/400/450 mm
Insulation tank capacity
90 kgs
Glass beads capacity
10 kgs
Baseline thickness
1 ~ 2.5 mm
protruding height
3-7mm
moving speed
0 ~ 10 Km / h
execution speed
> 400 m / h
The largest climbing
15 °
The direction of control
loced rear wheel, easily and precisely adjust adlighment to your exact requirement.
Heating fuel
liquefied petroleum gas
Line types controlled by computerautomatically
Packaging & Shipping
Packed in plywood case that offers full protection during long term shipment.
Our Services
1. 12 months warranty: Any parts damaged during the warranty period will be offered free of charge
2. Training overseas provieded
Certifications
FAQ
1. Q: Can this machine preheat the thermoplastic paint? A: No. It needs to work with a preheater. The tank on the machine only for preserving the heat of thermoplastic paint.
2. Q: Do you have thermoplastic road marking machine with preheater? A: Yes, we have. It is model YD600 (single tank pre-heater)or YD2400 (single tank pre-heater), which is suitable for small line marking project. For more details,pls check home page.
3.Q: Can I adjust the line thickness? And how? A: Yes, it could be adjusted by edging knife and hanger.

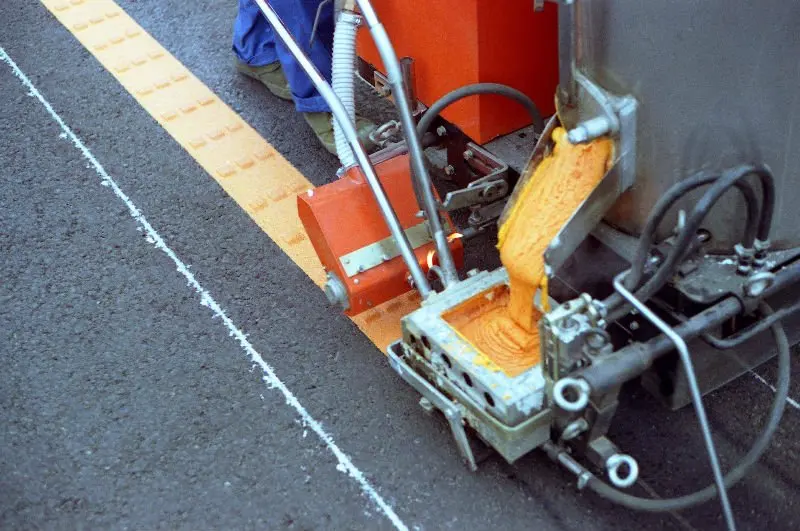

4.Q: How to mark lines in different width? A:Change the marking hopper(buekct shoe), change line width. We have varied sizes, from 50 mm to 450mm. Usually, the standard equipment is 150mm. The other size is optional. Also, we could produce special marking hopper for you.
5. Q: What about the after-sale service? A: We are responsible to provide technical advise in the machine's whole shelf life. We help solving problems via whatsapp, skype,viber and email by sending pictures and videos. and overseas traning provided.
6.Q: Could you produce customized machine?
A: Yes, we could. We are the manufacturer of thermoplastic road marking machine in shenyang City.
7. What about the shipment?
A: It is on your choice. Usually, we recommend sea shipping which provides reasonable prices. Also, for spare parts, it could be sent by TNT,FEDX, DHL and other internatioanl express.
If you have other questions, please feel free to contact us! We shall be glad to answer them.
