CE Certificated invacare power wheelchairs

Product Overview

Description

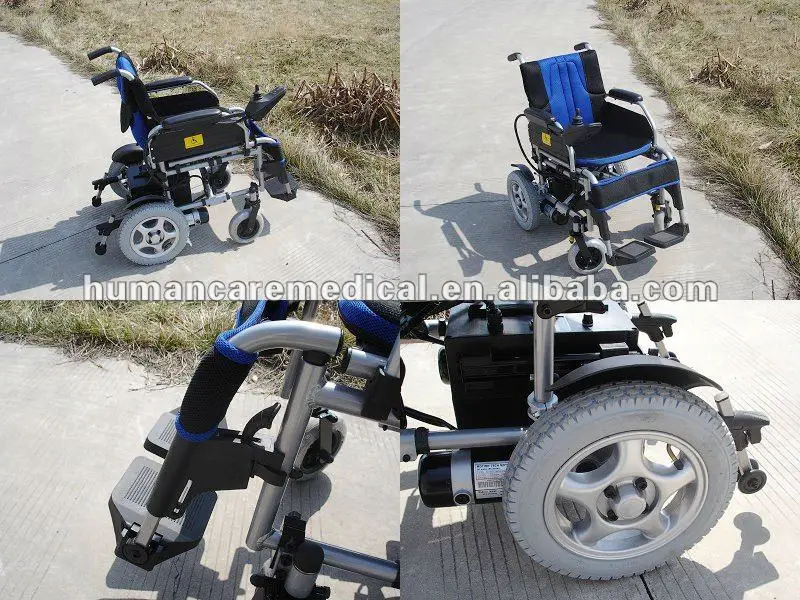

CE Certificated invacare power wheelchairs

Flat Free Solid Tires 12inch option 14 inch
AIR TIRE 12inch 14inch 3.00-8 inch OPTION
Adjustable Rear Anti-tip Bars Swing-Away footrests
Clothing Guard
Adjustable Controller Bar (length)
Strong Plastic Battery Containers
Quick Plug Batter Connections
Charger Pocket
Overall Length: 43.7"
Overall Width: 22.4"
Speed: up to 6 mph
Base Weight: 75 lbs
Footrests: 3 lbs
Weight Capacity: 300lbs
Turning Radius: 38"
Drive Wheels: 12" /3.00-8 /14 inch option
Casters: 8"
Anti-tippers: 1.5"
Seat Dimensions: Width 18"16 inch 20 inch Depth 16"
Controller:VSI PG50A, Programmable
Brakes: Electro-magnetic brake
Drive Train: Rear wheel drive wtih two motors,
Permanent magnet communtator 24 V DC
Battery Type: 2 X 35 AH 40AH LEAD ACID
OPTION : LITHIUM BATTERY 24v 18ah 40ah 50ah





Technical Data

Model #

Width open (mm)

Width closed (mm)

Seat width (mm)

Dia.rear wheel (inch)

Dia.front wheel (inch)

Seat height (mm)

Overall height (mm)

Overall length (mm)

Seat depth (mm)

Back height (mm)

Load (kg)

NW (kg)

GW(kg)

CTNS 20’FCL(PCS)

CTNS 40’(PCS)

Packing (cm)

HC0819

480

275

310

20''

6''

460

840

930

310

380

16

16

18.5

130

360

93*21*87















NNow, Let us take a brief look of our factory

Over view of our facility and workshop

The advanced machines,including machines for cutting,chamfering,bending,adjusting,drilling,puncin and polishing.

Powder coating and automatic robot welding facility

Rear wheel assembly area

Wheel fixing and spoke adjusting process

Our wheelchair aseembly line and well organized stock area

The quality control system for our products

Finished assembly product and loading status

Relative Certifications
