Air cooled 20ft Containerized Complete Flake Ice Plant 10T With Ice Storage

Product Overview

Description

Air cooled 20ft Containerized Flake Ice Plant 10T With Ice Storage





There are 2 20ft containers, one is used as ice storage while the uppper one hold 2 flake ice machine.



 The best feature is it's easy to transport and depoly as the system are hold in 2 ISO 20ft container.

You can start to work while you do need any other speical work.



The upper container we called ice plant container. it holds two 5T flake ice machine. The door of container is made of net, you  can lock the door while the machine is working.



There are holes on the both container through which produced ice will drop into ice storage directly.



Feel free to contact us to get more details, sky-Pe:refriend1018



5T Flake Ice Machine.

ITEMS		Unit	Technical parameter
Power supply		Voltage/Phase/Frequency	380V/3P/50Hz
Refrigerant			R404A
Capacity		Kg/day	5000
Cooling way			Air Cooled
Temperature	Ambient temperature	°C	35
	Water Inlet temperature	°C	20
Compressor	Manufacturer		Bitzer
	Cooling capacity	Kw	35
	Total running power	Kw	21
	Compressor COP/EER	Kw/kw	33
	Horse power	Hp	30HP
Dimensions		L X W X H	1900 X 1400 X 1550
Weight		Kg	1150

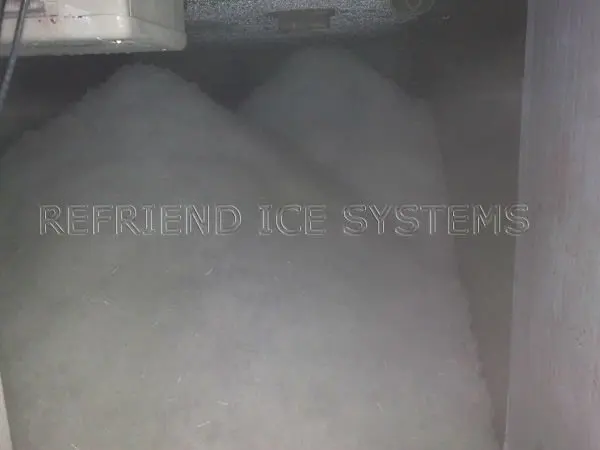

Inside the ice storage





 The are 2 container holding everything inside





The explosive View



The net door can be locked while the system is working
