door hot press/moulded mdf door skin hot press/wood door press machine
door hot press/moulded mdf door skin hot press/wood door press machine

door hot press/moulded mdf door skin hot press/wood door press machine

Share on (678082444):


Price:

Quantity:


Product Overview

Description


Specification

ModelBY21-4*8/80-3
Quantity of Hot platens4 pieces
Quantity and Diameter of Cylinder6 units Φ260mm or 4 units 320mm
Pressure Capacity800Tons
Stroke of Cylinder600 mm
Hydraulic SystemAutomatic controlled
Pressure of Hydraulic System25Mpa
Main Motor11KW
Pressurized Motor5.5KW
Main PumpShanghai Aviation 250 pump
Pressurized Pump10ml/rev
Heating Platen2500*1300*52mm
Separation between Layers200mm
Main Frame Steel Thickness40mm,22mm,12mm
Movable Crossbeam2500*1300*300mm
Top/Bottom/Movable Crossbeam900mm,800mm,400mm
Heating Medium in the hot platenSteam or Heat Transfer Oils
Gross Weight19900KG
Remarks: we can make special design as your needs.

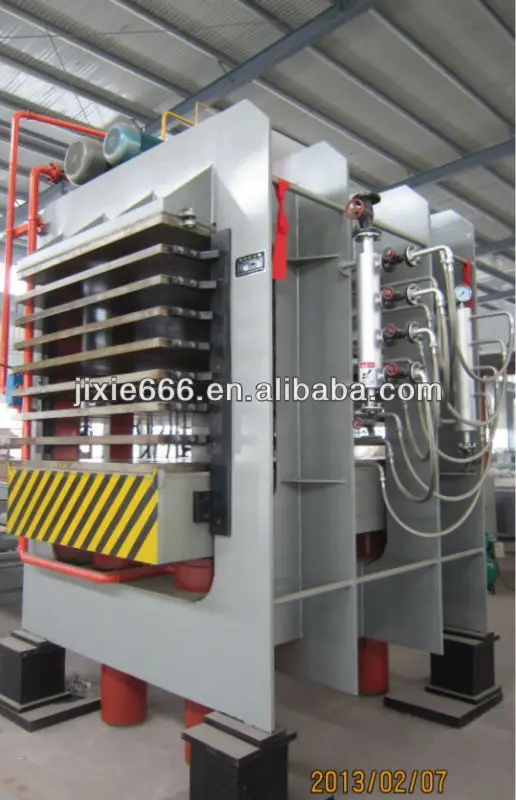

JIN LUN DOOR HOT PRESS MACHINE

6008

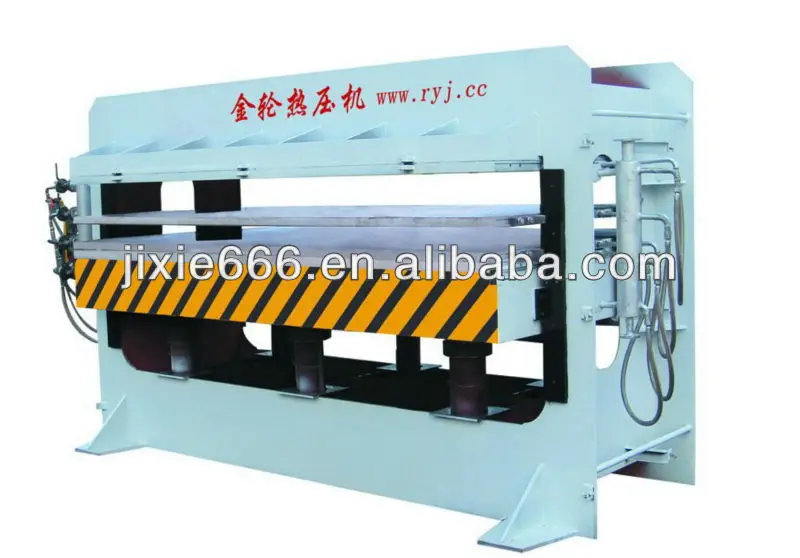

door hot press machine2
