Y 6 Dried tofu hydraulic press machine

Product Overview

Description



Soybean products  equipment

Y-6A tofu hydraulic press machine /Tofu production line equipment

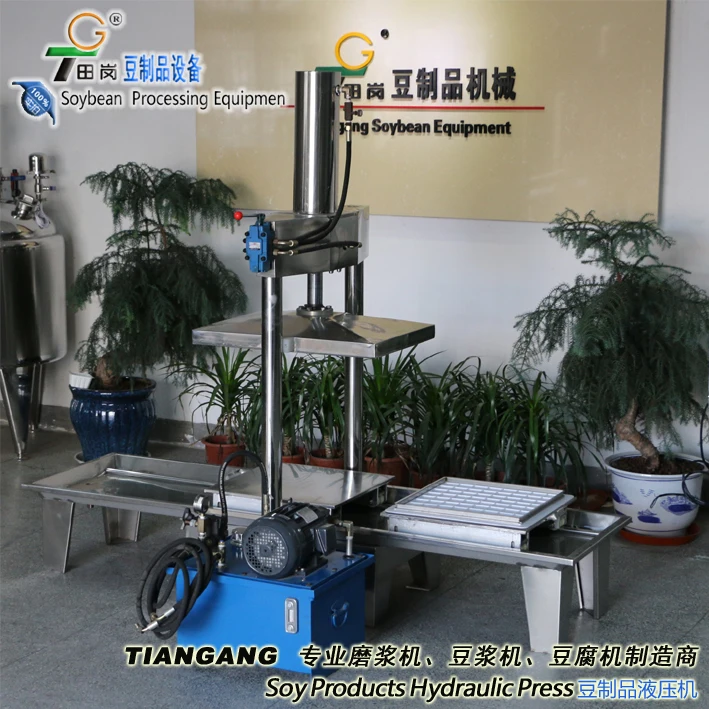

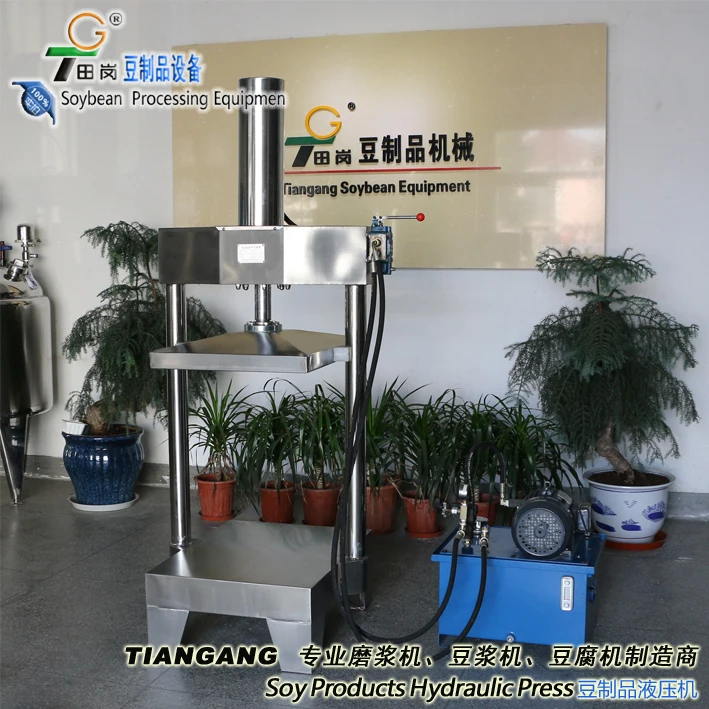

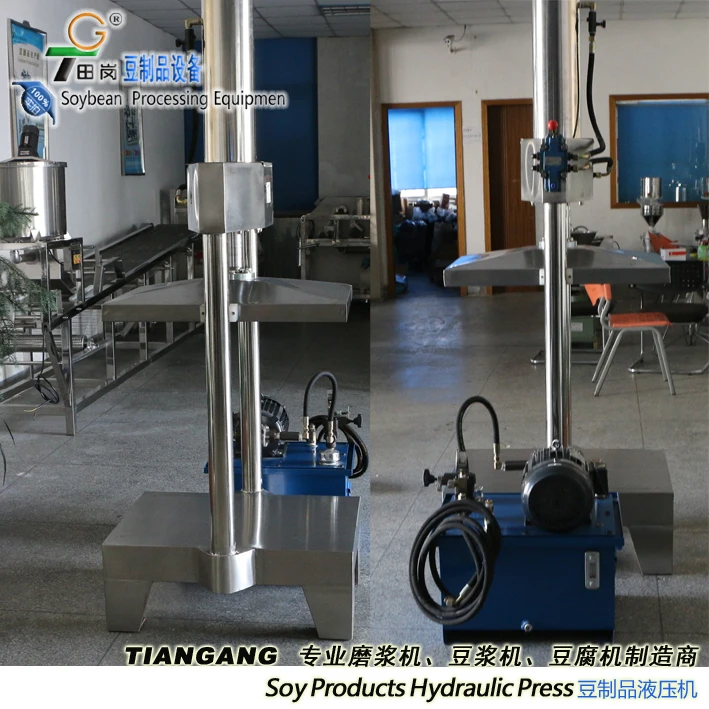

Y-6 Hydraulic Pressure Tofu Press Machine
This machine can through the hydraulic pump offer prussure to the oil hydraulic cylinder ,then the piston rod will put the plate to pressing.
Applicable in beans products to make tofu, dried tofu, skin of tofu and tofu.
The pump is a gear pump, simple structure, Maintenance convenience.
1. User can adjust the flood valve to control the pressure.
2. Adjust the flow value of the pushing hydraulic oil to control the pushing speed.

Voltage:380v/50Hz;Power:2.2kw;Nominal Pressure: 16MPa
Maximum height:600mm;Hydraulic cylinder stroke. :600mm
Press plate size: 550 *750mm
Size:2330*800*1980mm,Weight:650kg
Utility cart size:550*550*100mm
Equipped with water receiving tray and 2 small carts, circulating operation to improve efficiency.

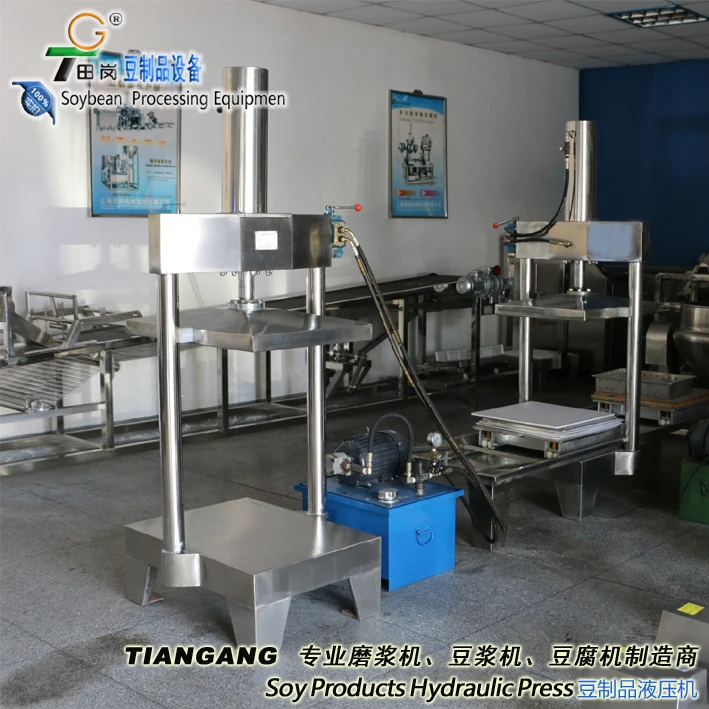

One pump station can be customized to connect two presses.

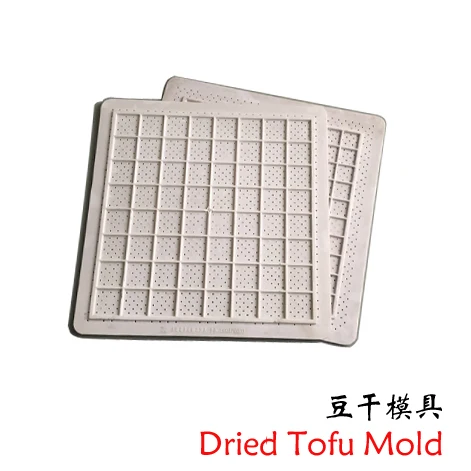

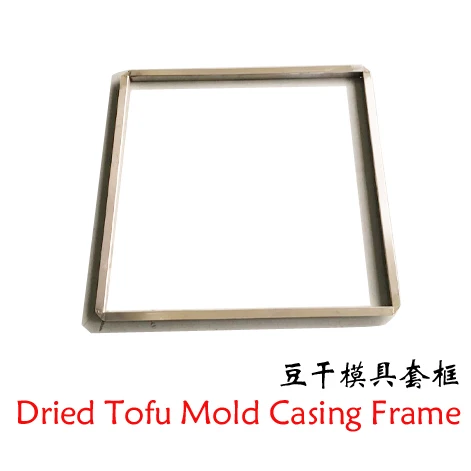

Mould for pressing dried TOFU:

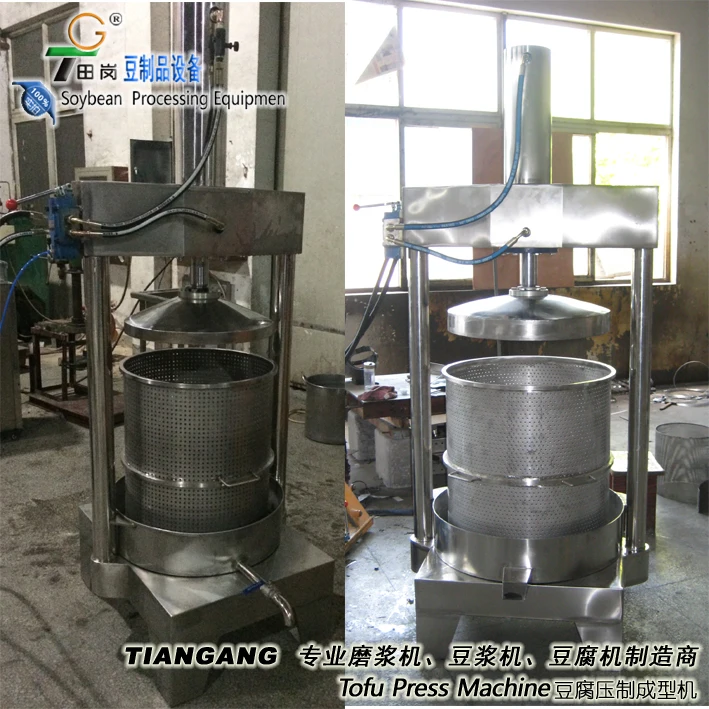

Tofu Pressing Forming Machinery



Technical Data	Pressure mode	Table size	Pressure stroke	Maximum pressure	Weight	Size
Y-4	Hoisting jack	580*600mm	400mm	10T	30Kg	600*680*1300mm
Y-6 / 6A	Hydraulic pump	600*800mm	500mm	16T	50Kg	800*850*1950mm
Y-5 / 7	Air compressor	Customized	500mm	0.8Mpa	120Kg	750*1250*1950mm
Y-8	Hydraulic pump	Customized	500mm	16T	250Kg	850*800*1950mm
