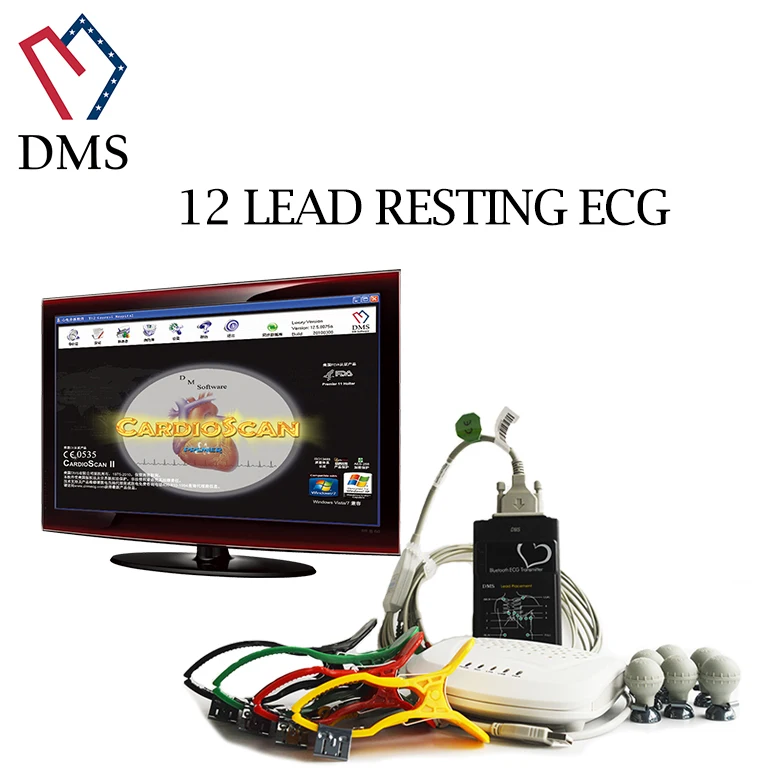

Cardioscan PC Based Resting ECG 12 channel ECG

Product Overview

Description

 Cardioscan PC Based Resting ECG 12 channel ECG

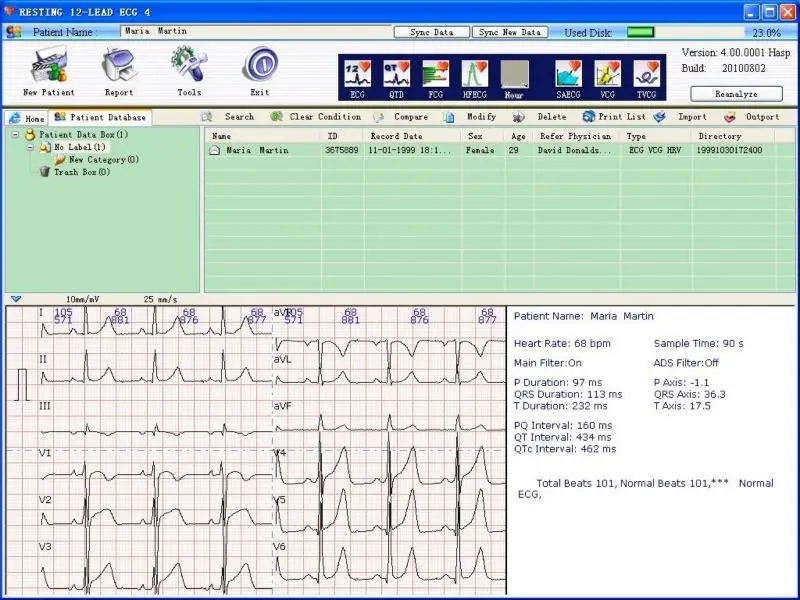

 1.Software:12 leads Resting ECG Software



New Computerized Resting ECG 12-Lead ECG with Interval/Amplitudes/Axis measurements/with or without automatic interpretation developed and made by DM Software, implementing all the advanced holter ECG technology from DM Software, and many unique analysis functions:



Sampling screen Color Customization

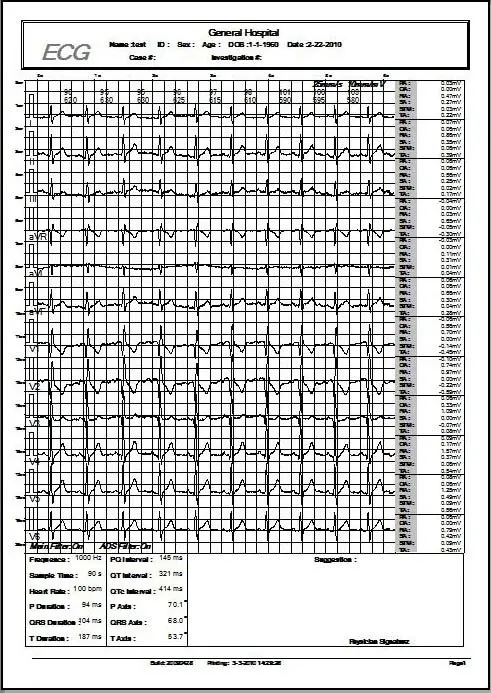

Multi ECG Report Formats

Standard or thermal paper print, B&W or color print

Auto Interpretation On or Off

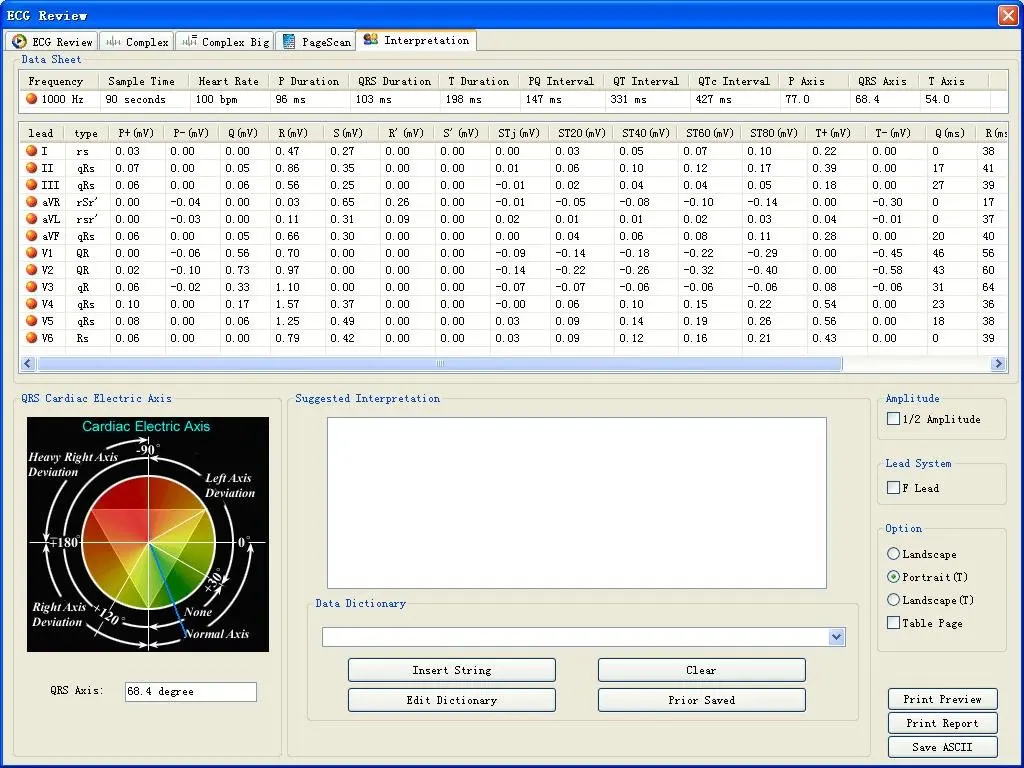

Measurement Table

Tests Comparison

90s Resting ECG full disclosure

Multi Hour ECG Monitoring with holter analysis

Simple Exercise Stress Test with report

E-mail , PDF, ASCII, HL7, Dicom, GDT Interfaces

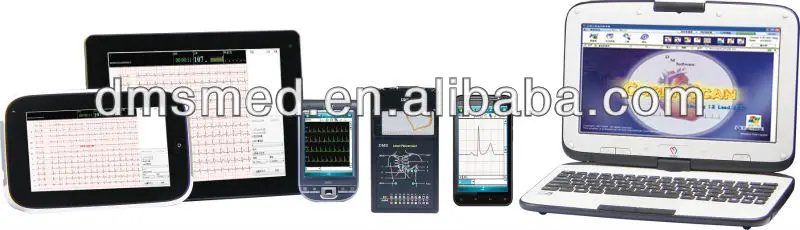

Windows 2000, XP, Vista Compatible, and Mini Laptops running under windows environment…

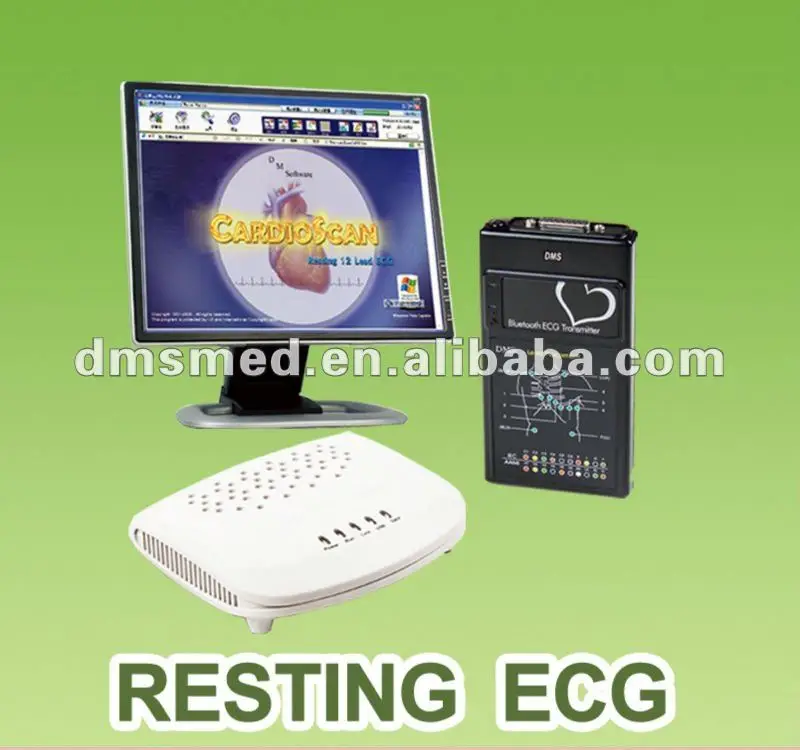

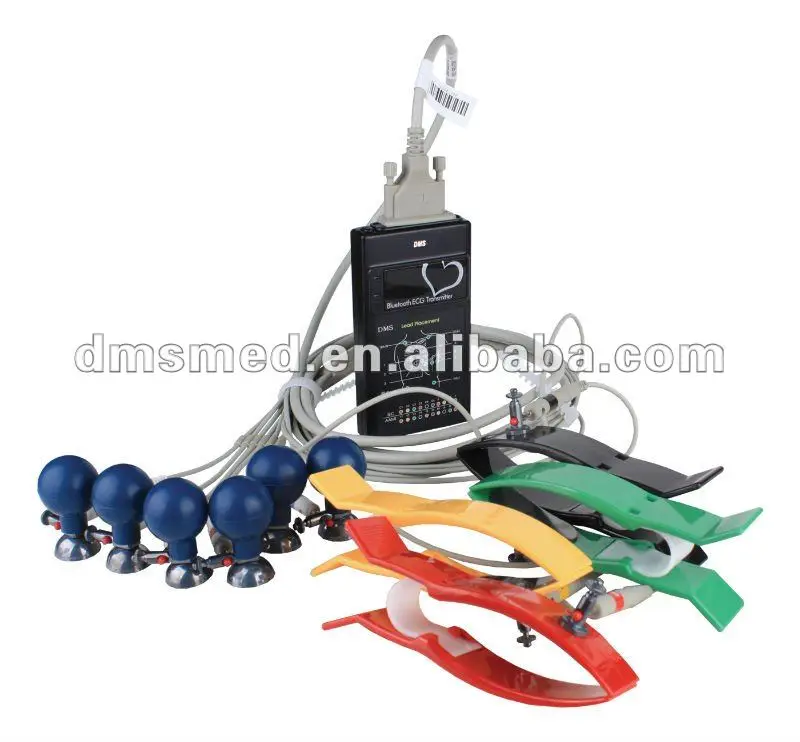

2. Wireless Bluetooth ECG Hardware





Model	12-Lead ECG Blue Tooth Module
Leads	12-Lead, 10 electrodes
Sampling Rate	12 Bits, 4096Hz
Dimension	Trans. 13.5 x 7.5 x 2.4 cm Receiv. 13.9 x 12 x 3 cm
Weight	Emet. 110 g récept. 240 g

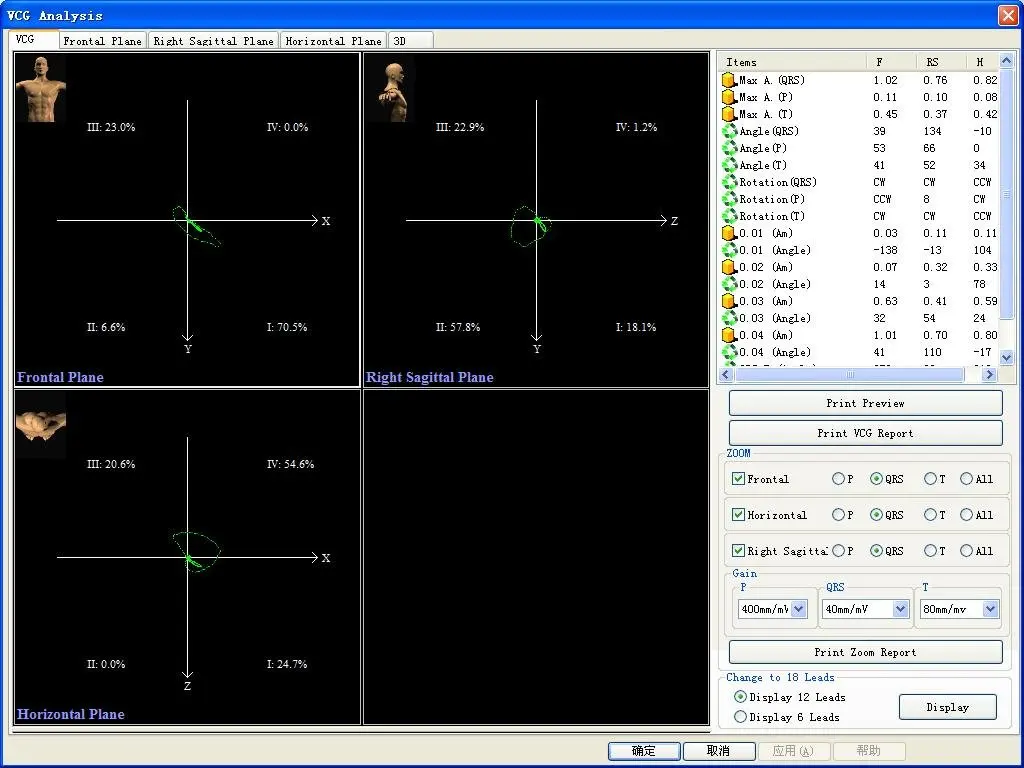

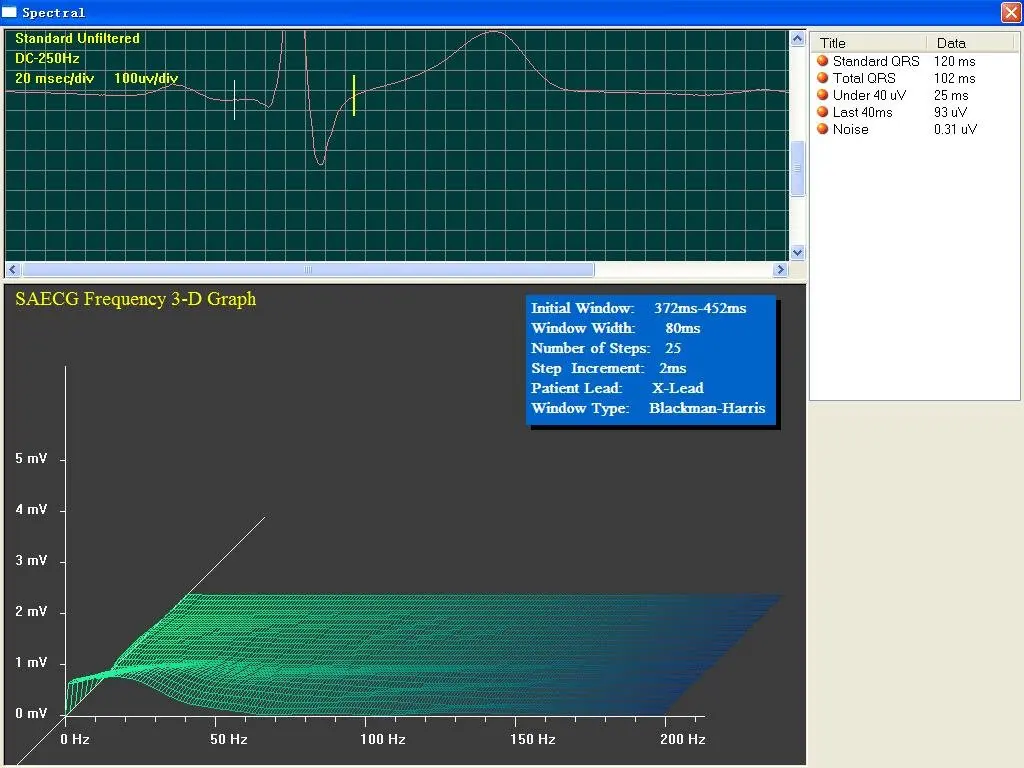

SAECG * & VCG *	Yes
FCG *	Yes
Power	Trans. 4 x AA batt. (6.0V) Receiv. USB Port (5.0V)
ECG Download	Blue Tooth Transmission 2,4 GHz 100 M
Compatibility	CardioScan Resting 12-Lead CardioScan Stress Test



 3. Reference Pictures:















DMS Company History

1975 Founded in California USA
1982 Invented the first computerized Holter System
1990 Entered China market
2009 Took over Beijing Meigaoyi Co., Ltd.
The world famous ECG product manufacturer
The biggest supplier of American ECG Service Center
FDA & CE, ISO13485 certified
