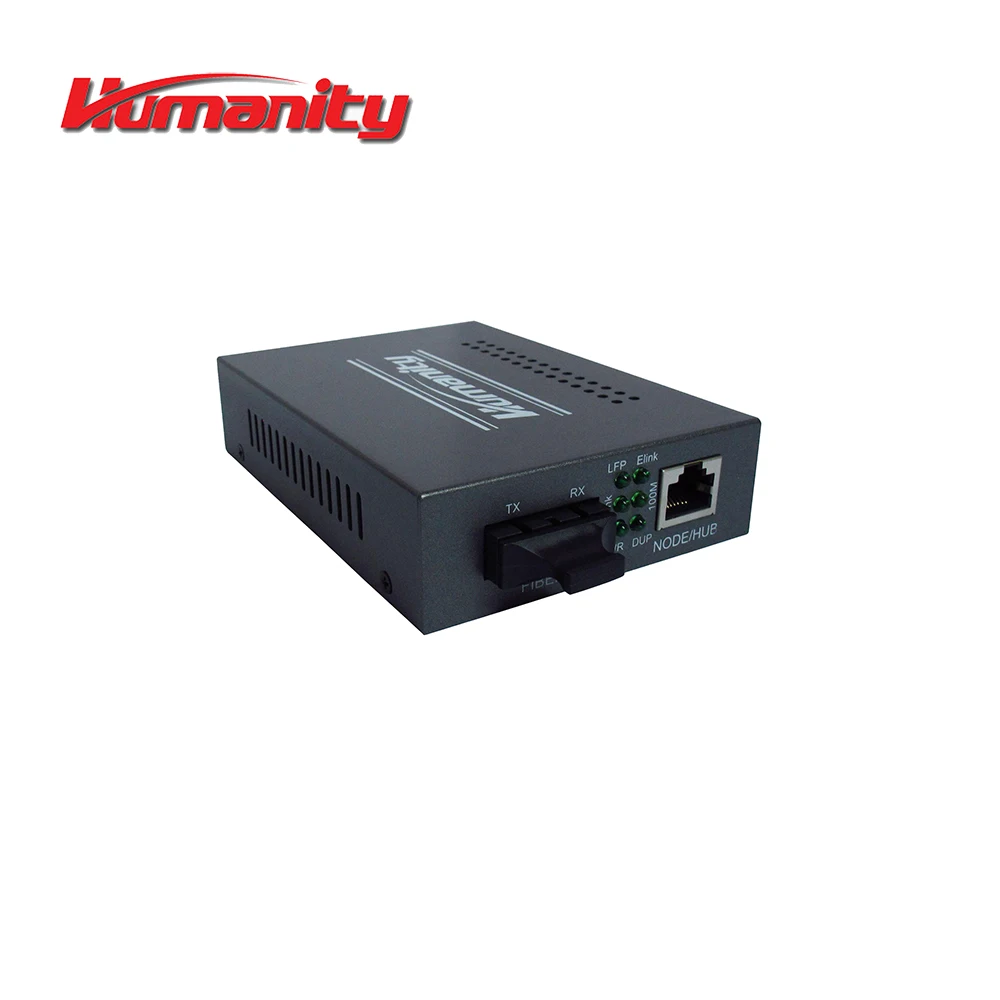

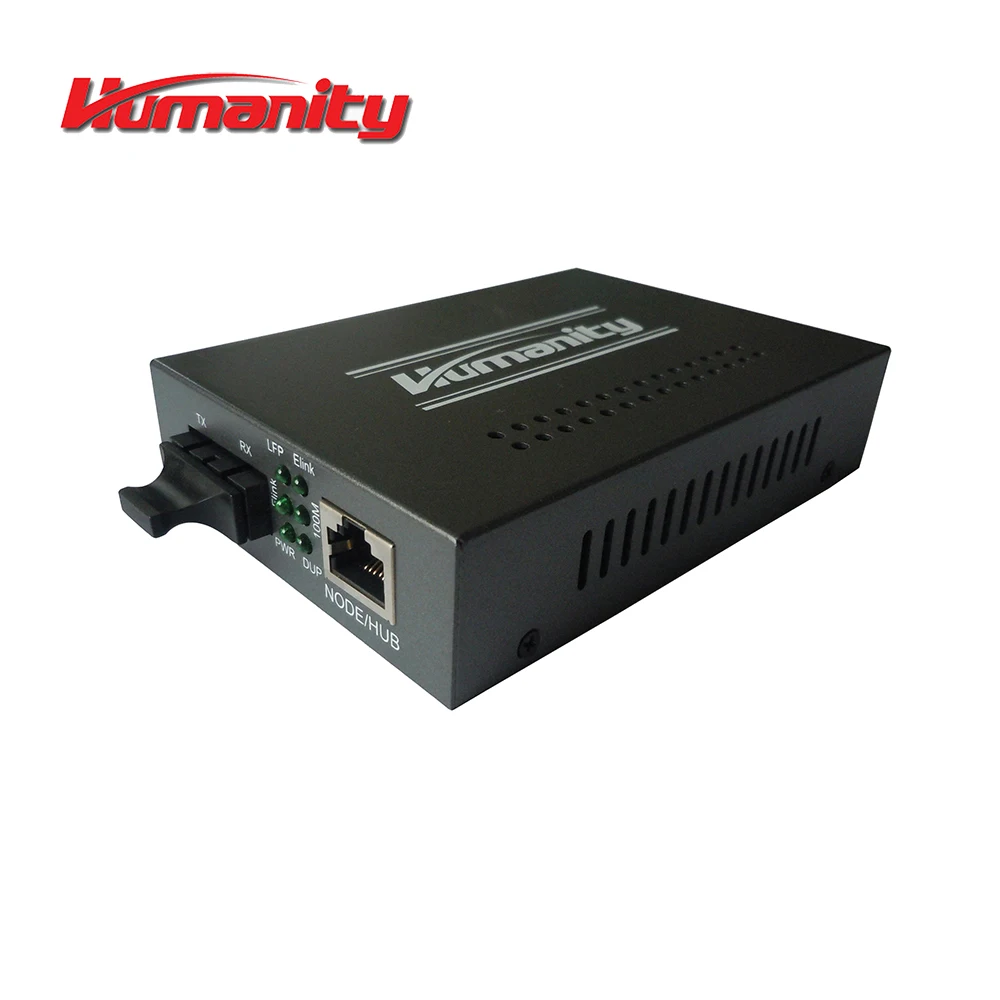

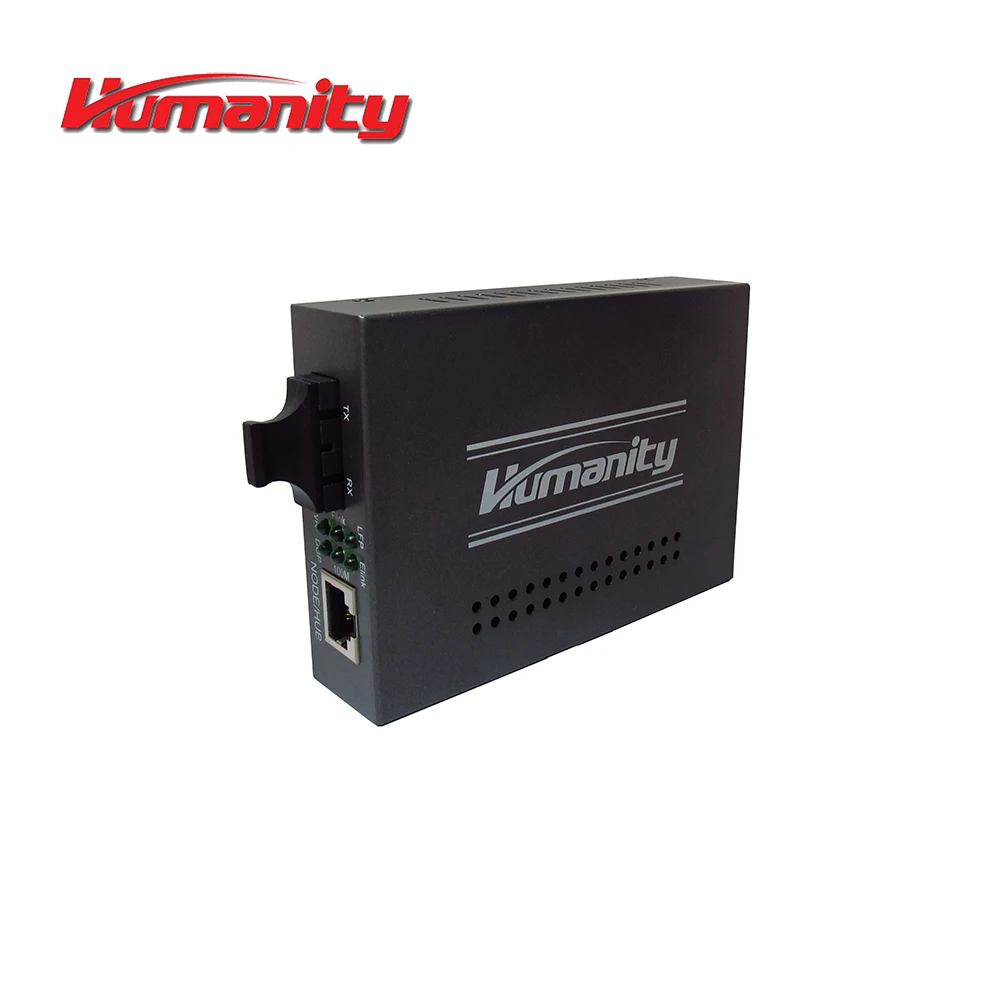

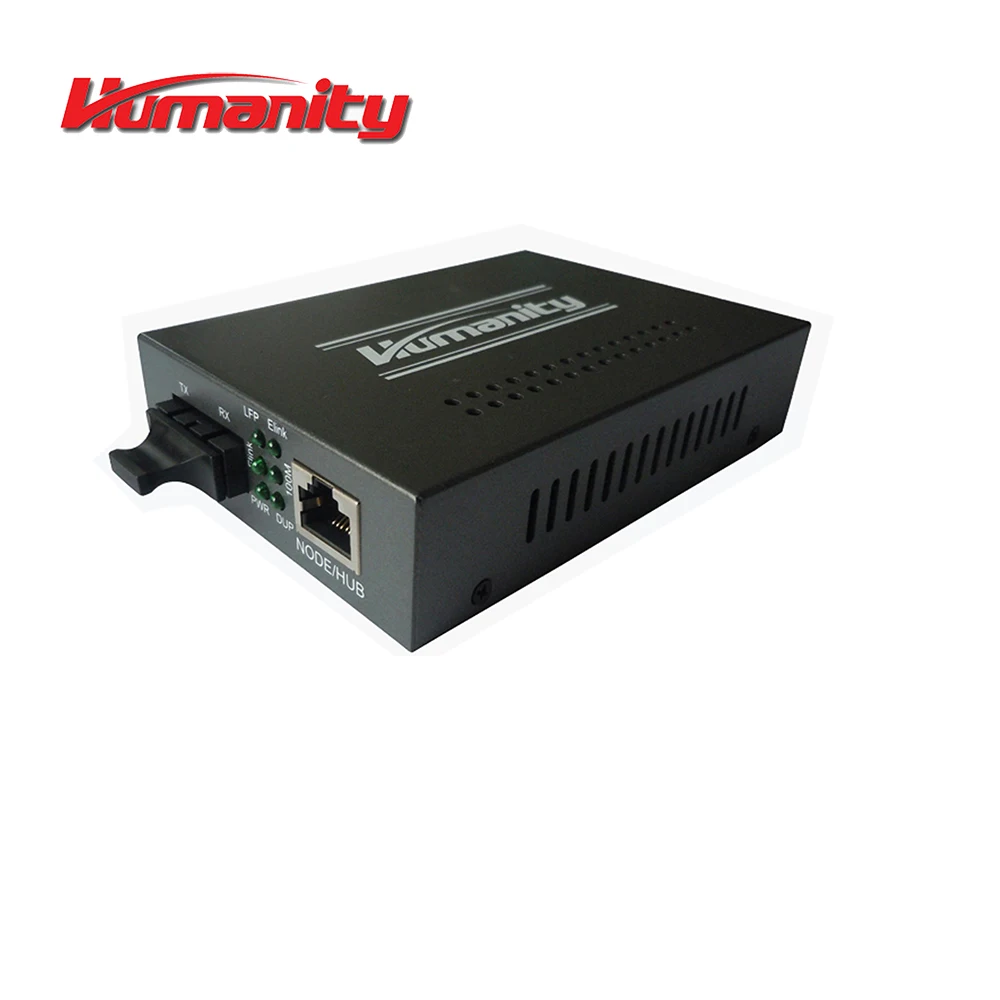

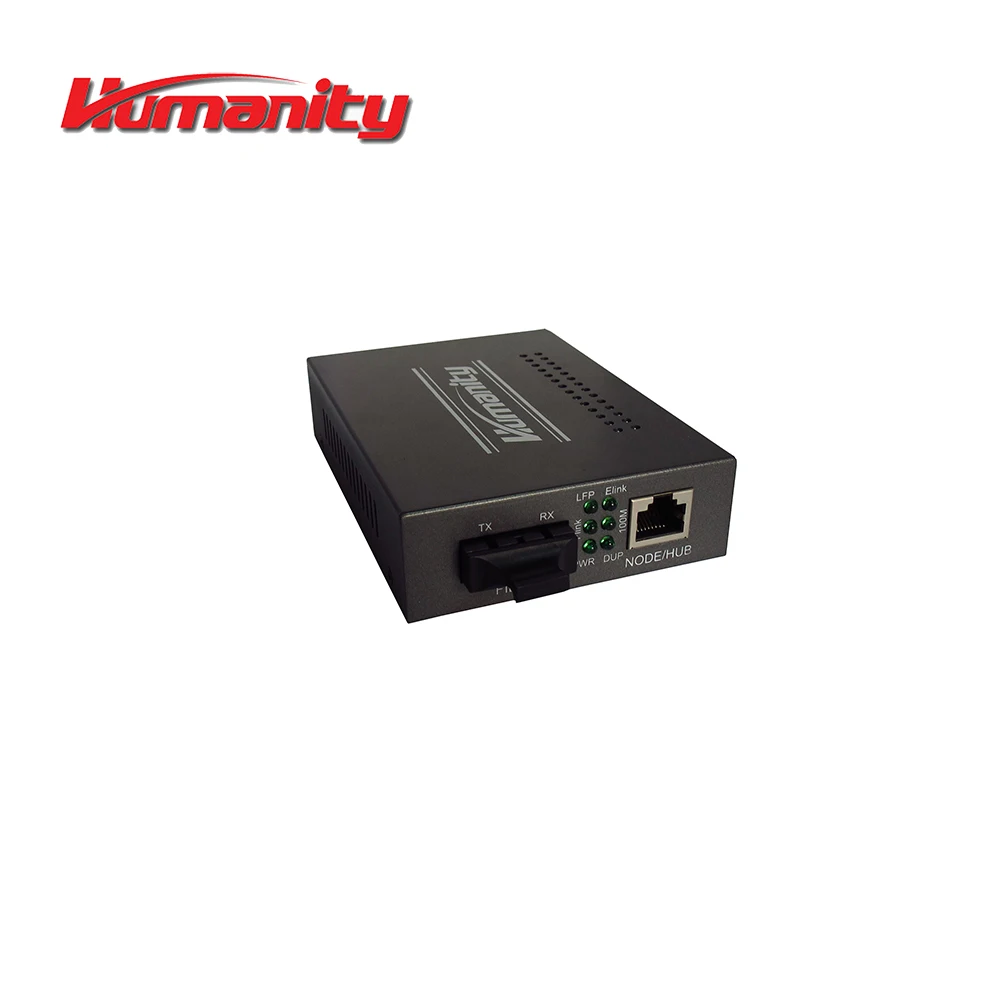

HM T100B Humanity Ethernet over Fiber Optic Converter
- Category: >>>
- Supplier: Beijing Human Information Technology Co. Ltd.
Share on (680585910):
Product Overview
Description
HM-T100 Humanity Ethernet over Fiber Optic Converter
HM-T100 Humanity Ethernet over Fiber Optic Converter can be set into full/half duplex auto-negotiation by manual, and it has two transmission mode: SM and MM, and its interface has many selectable optic fiber connectors and RJ-45 connector.
Main Features
- Complies with IEEE 802.3 10 Base-T standard.
- Complies with IEEE 802.3u 10/100 Base-TX/FX standard
- Complies with IEEE 802.3X standard
- 10/100Mbps port with full/half duplex auto-negotiation
- Back pressure flow control for full duplex
- Twisted-pair connector: NODE/HUB or SWITCH (5 class UTP)
- Back pressure flow control for full/half duplex IEEE802.3X
- Automatic identification of MDI/MDI-X cross-line
- High-performance 155Mbps memory bandwidth
- Complies with FCC, 15 CLASS A, RoHS and CE MARK
Technical Specifications
Standard Protocol | IEEE802.3 10 Base-T standard | ||
IEEE802.3u 10/100Base-TX/FX standard | |||
IEEE 802.3d standard. | |||
IEEE 802.3Q standard. | |||
Band Width | RJ 45 Port: 10/100Mbps | Optical Port: 155Mbps | |
Operation Mode | Full /Half duplex mode | ||
Connectors | UTP: RJ-45 | Fiber connector: SC/ST/FC | |
Operation Mode | Full /Half duplex mode | ||
LED Indicators | POWER, FPL,10/100, FRX, TRX , FDX. | ||
Power Supply | External | DC-48V,DC24V,DC12V,DC5V | |
Internal | AC110-250V/50Hz | ||
DC -32~-72V | |||
Power Consumption | ≤5W | ||
Environmental Parameters | Work Temperature | 0°C~50°C (32 °F ~ 122 °F ) | |
Storage Temperature | -40°C~70°C (-40 °F ~ 158 °F ) | ||
Humidity | 5%~90% non-condensing | ||
TP Cable | Cat5 UTP cable (the max distance up to 100m) | ||
Fiber Cable | 8. 3/125, 8. 7/125, 9/125, 10/125μm(the max distance up to 20 -120km) | ||
50/125, 62. 5/125μm(the max distance up to 2km or 5km) | |||
MTBF (Hours) | >50000 | ||
Dimensions(mm) | External power supply | 94mm*70mm*25mm (3.7 *2.8*0.98 inch) | |
Internal power supply | 140mm*110mm*30mm (5.5 *4.3 *1.2 inch) | ||
Socket Card | 157mm*128mm*31mm (6.2 *5.1 *1.2 inch) | ||
Gross Weight | External power supply | 0.4 kg | |
Internal power supply | 0.8kg | ||
Socket Card | 1.0kg | ||
Emission/Safety | FCC Part 15 , Class A, RoHS and CE Mark | ||
Application Diagram
