Малая литейная машина с холодной камерой на 25 тонн

Product Overview

Description

About us

In Ningbo Dongfang Die-casting machine Tool Co.,Ltd.,  the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 37 years, we always have perisitently pursue to provide perfect cold and hot chamber die castingmachine and sincere service. We are devoted and sincere service. We are devoted ourselves to higher and better die c asing techbology in die casting area in China and even the world.

 Features and applications of 25Ton cold chamber die casting machine

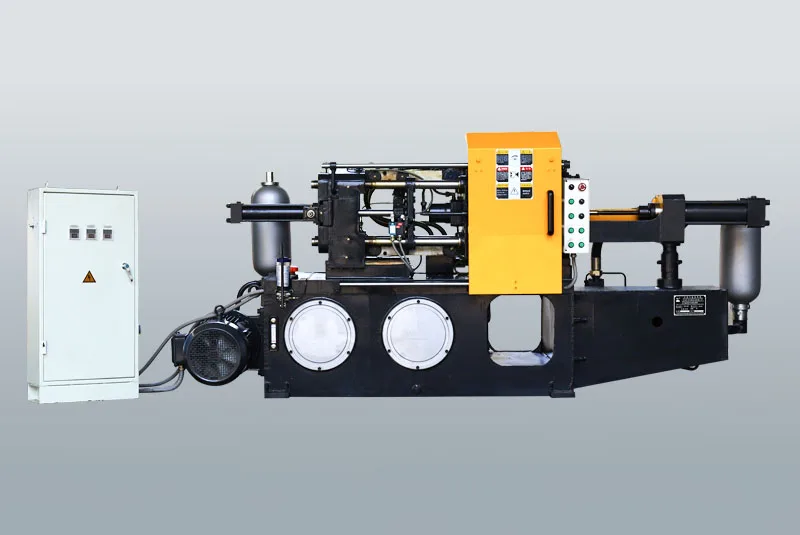

• 25Ton small cold chamber Die-casting Machine
• Suitable for aluminum , zinc and brass alloy
• 3 kinds management methods---Manual, Semi-auto and Auto operation mode.
• PC program controlled.
• J113B type is one kind of samll die casting machine, which could process colored alloy parts from higher melting point metal as aluminum and brass  which are used widely in automobile and motorcycle parts, instruments, household hardware and home appliances industry.
•
  Though J113B die casting machine is in small size, we also design 3 kinds of driving methods as manual, singly circulating and automatic circulating. The operator could manage several machines at the same time in automatic mode.

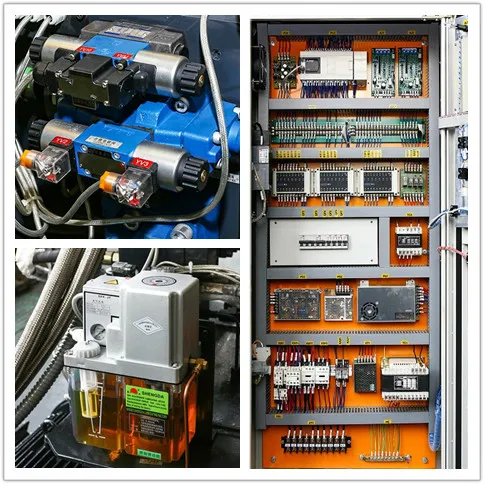

• J113B macgube is an effective machine which could send up 0.3g of aluminum alloy in 2.5 seconds.J113B  cold chamber aluminum  die casting machine is equipped with electronics and hydraulic pressed parts of high grade. The electronics are controlled by PC program which is stable and reliable.

The specification of the 25T aluminum /brass die casting machine

SUBJECT	UNIT	J113B
Die lock force	kN	250
Size of moving platen (HXV)	mm	400X400
Inner space between bars(HXV)	mm	240X240
Thickness of die block(Min./Max.)	mm	120/320
Stroke of moving platen	mm	200
Ejection stroke	mm	50
Ejection force	kN	26.9
Injection force	kN	35
Injection stroke	mm	250
Diameter of shot sleeve	mm	25	30	/
Fluid metal dosage per shot(AL)	kg	0.3
Injection pressure (Min.~Max.)	MPa	49.5~71.3
projecting area of casting	cm2	50.5
Dry cycle	s	4
Pipe line pressure	MPa	7
Motor power	kW	7.5
Machine weight	kg	2000
Overall dimensions(LXWXH)	mm	3030X1060X1300



FAQ:



1.Q:If we don't know how many tons machine will be suitable for our products ,what we should do ?

A:It 's no problem.You can send us the the weight ,size and the materials of your products and our professional master will recommend the most suitable machine with you .



2.Q:Are you make the mould?

A:Yes ,we can not only help to make the mould but also help to design the mould according to your request .



3.Q:Are you only sale the die casting machine ?

A:pls kindly note the mail products of us is die casting machine ,but we can also provide the one-stop service.So if you will want some other assisting equipments of the machine ,we all help to provide them .



4.Q:How is your delivery time?

A:Generally ,we can delivery the machine within 7-10 days after receiving your advance payment.

But it also depends on the iterm and the quantity of your order.



5.Q:How about the payment terms?

A:Generally ,the 30% T/T deposit ,the balance 70% T/T before delivering the goods.



6.Q:How about your warranty and after-sales services?

A:We have one one year warranty for the machine .Our professional masters could overseas to help to install and debug the machine also providing free training until you have got the skill.
