Geomembrane co extruder

Product Overview

Description

 Geomembrane co extruder



• Feeding systems with pneumatic or helix loaders

• Extruder with screen changer

• Co-extrusion feedblocks for adjustment of layer ratio and layer distribution

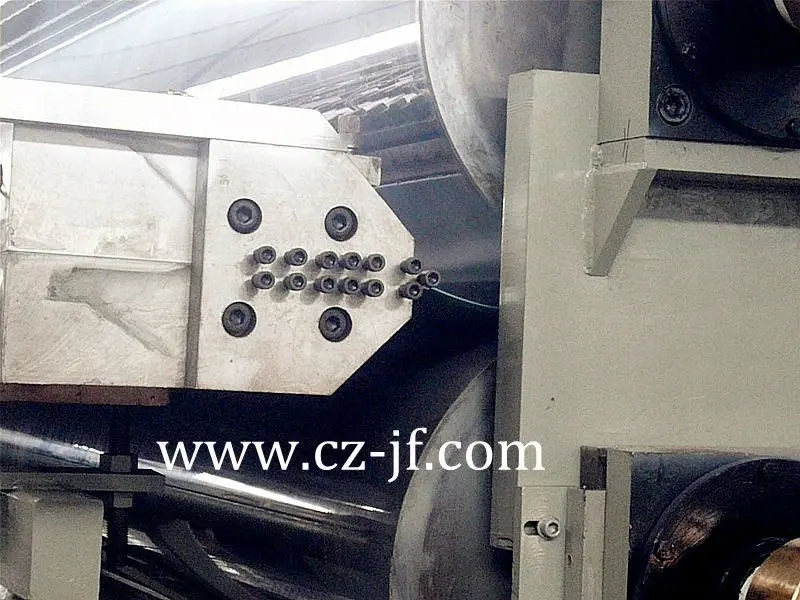

• Flat Extrusion Die-heads

• Chill rolls where extruded melt is transformed into a film and quickly cooled down

• In-line triming equipment

• Sheet guiding system

• Surface winding unit

• Edge trim recycling system



Geomembrane co extruder can also be desinged to make lamination on top of many kinds of geotextiles, non-woven fabrics, woven fabrics.



Raw Materials & Finished Product Applications

Polymers of LDPE, LLDPE, HDPE, EVA can be efficiently extruded on DL series of geomembrane extrusion line.

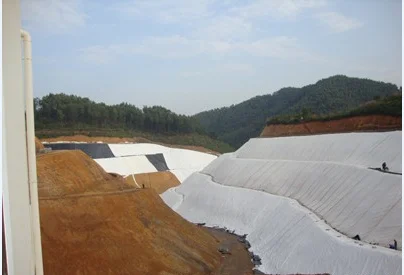

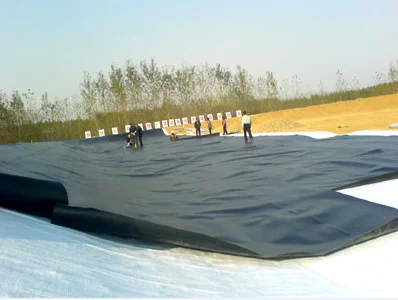

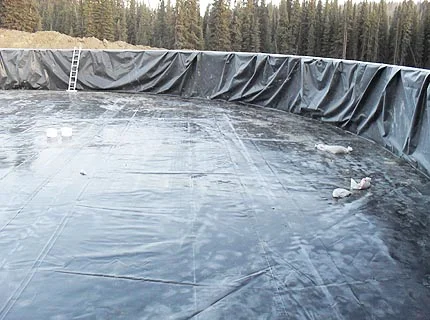

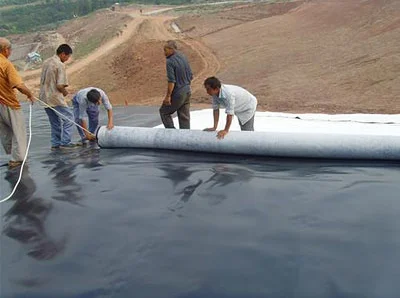

Geomembrane applications:

• Sanitary project(Landfill,sewage treament,toxic and hazardous compounds disposal)

• Water conservancy(river,lakes water reservior dam seepage control)

• Construction projects(subway construction, roof garden, sewage pipe liner)

• Landscape Works(artificial lake, pool)

• Agriculture engineering(reservior, drinking water tanks, water storage pond, irrigation system)

• Transportation(railway,highway)



Main technical parameters of Geomembrane co extruder :

Model and specifications	3300	5300	6300	7300	8300
Suitable fabrics	Geotextile, Non-woven fabrics, Plastic woven fabrics
Laminate layers	Three layers, Two layers
Thickness of compound film (mm)	0.2-2.5
Main machine power(kw)	75-200
Max. compound width	3000	5000	6000	7000	8000
Heating power (kW)	90	280	300	400	500
Cooling method	Circulating water cooling

Geomembrane co extruder can be designed and manufactured according to the customer's requirement.
