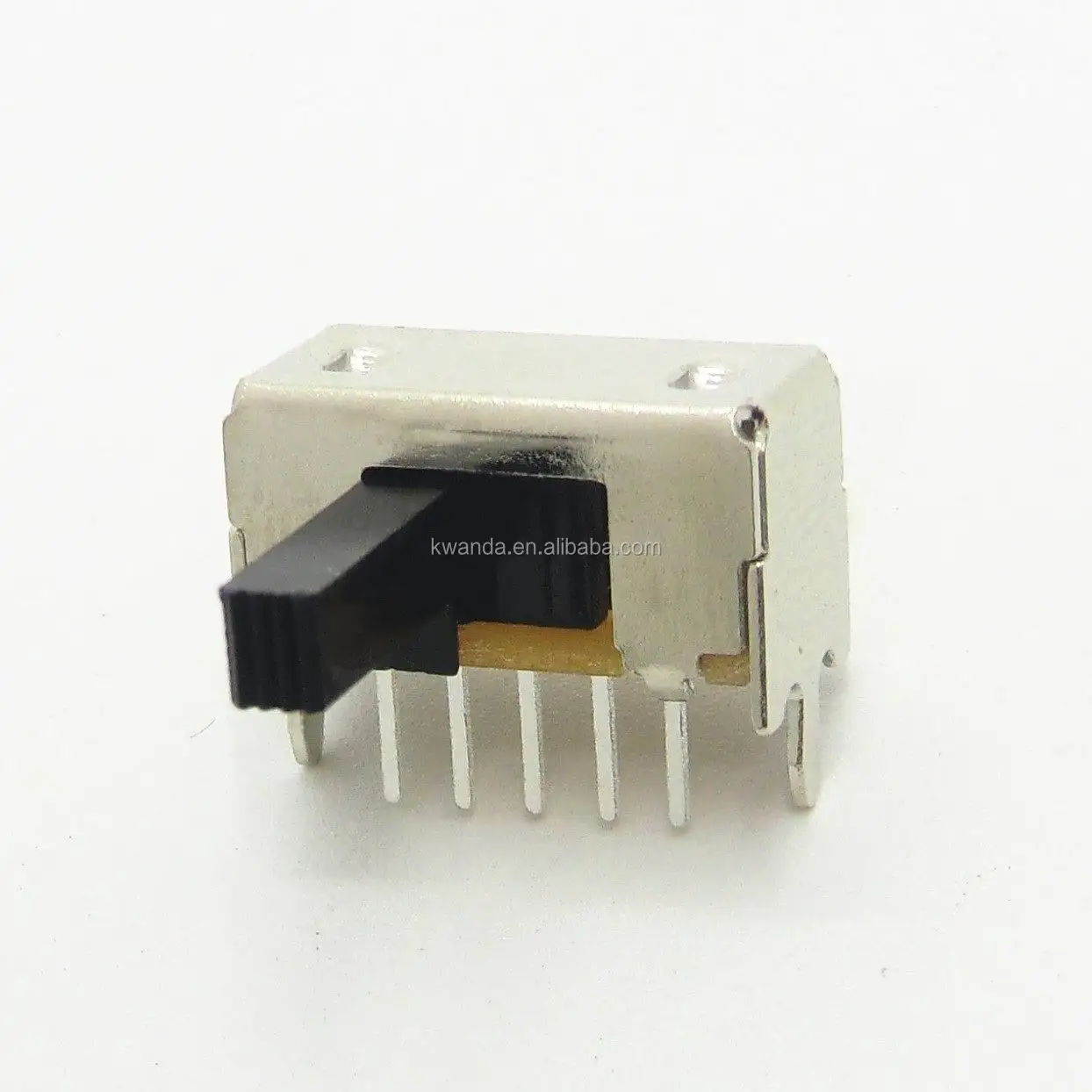

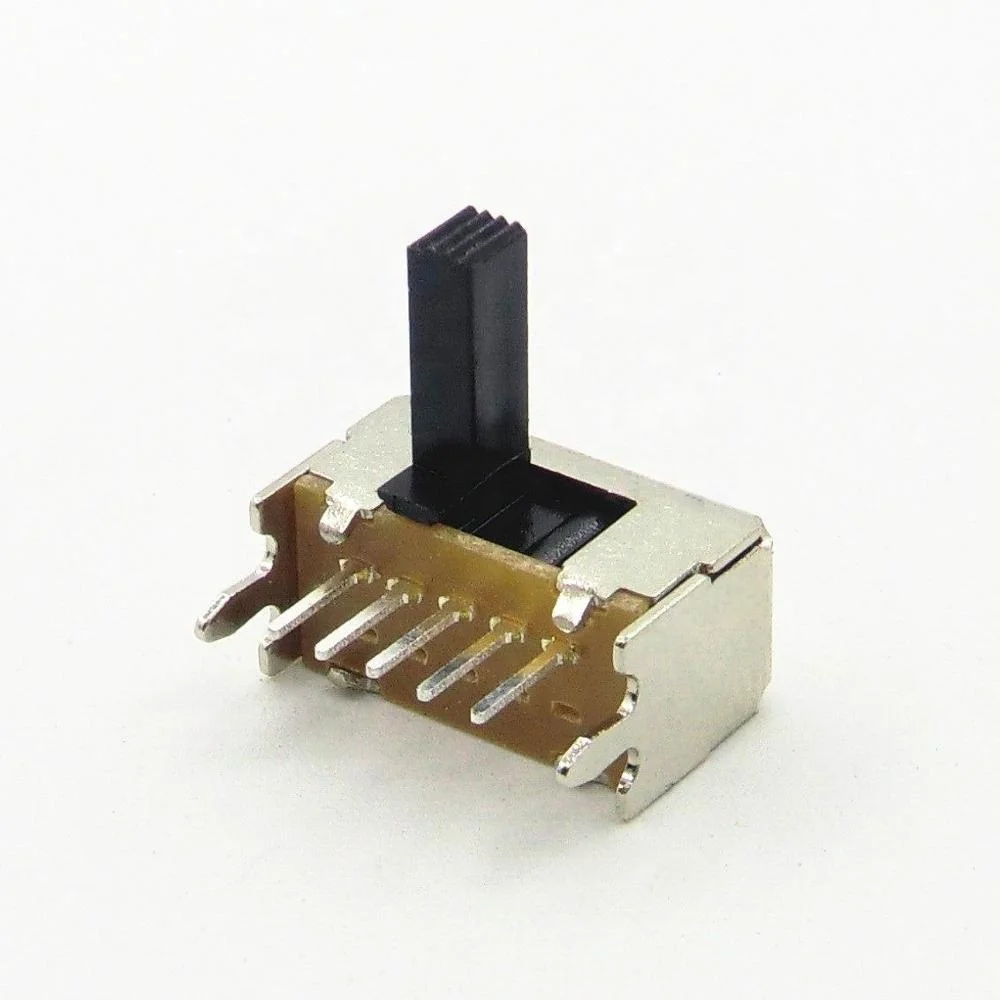

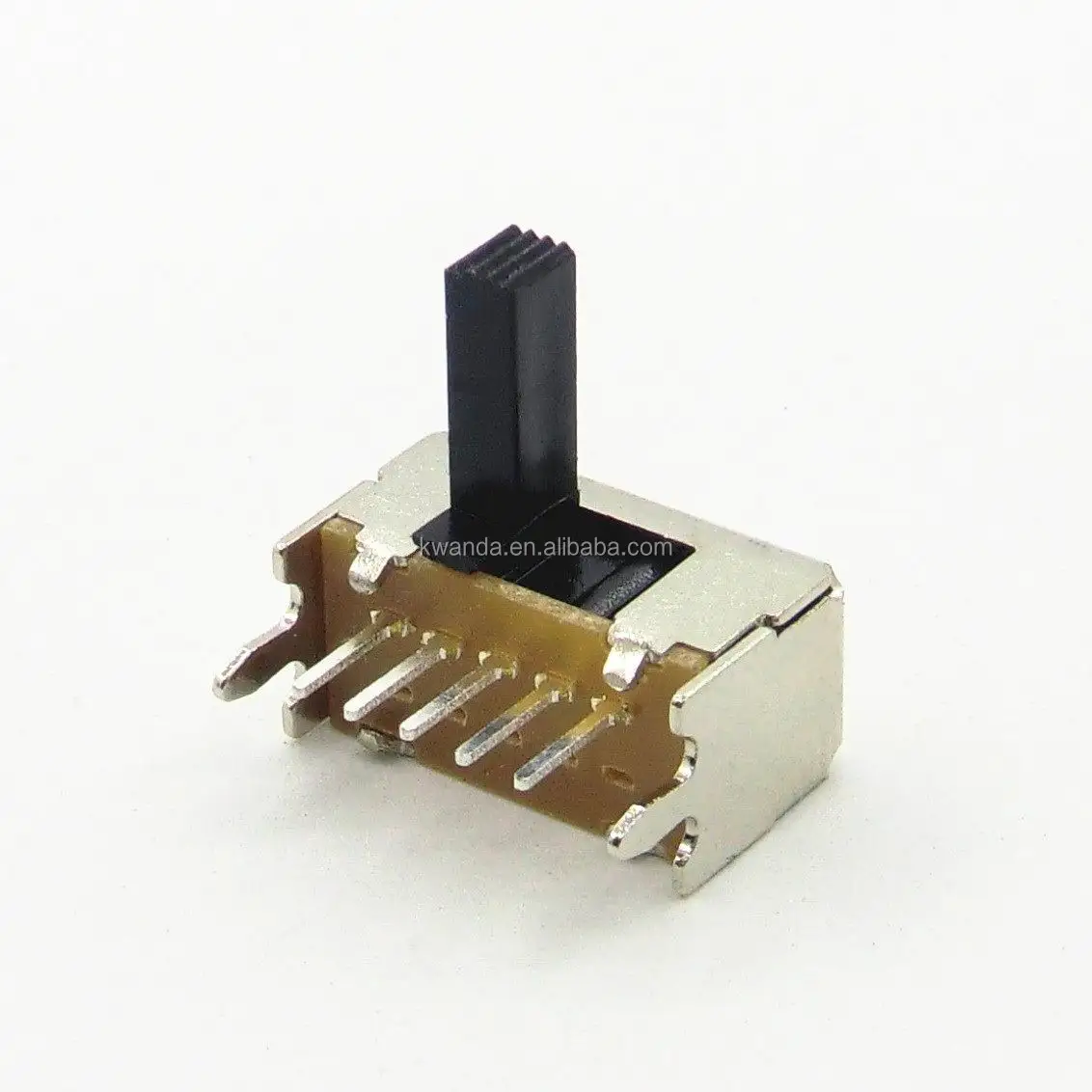

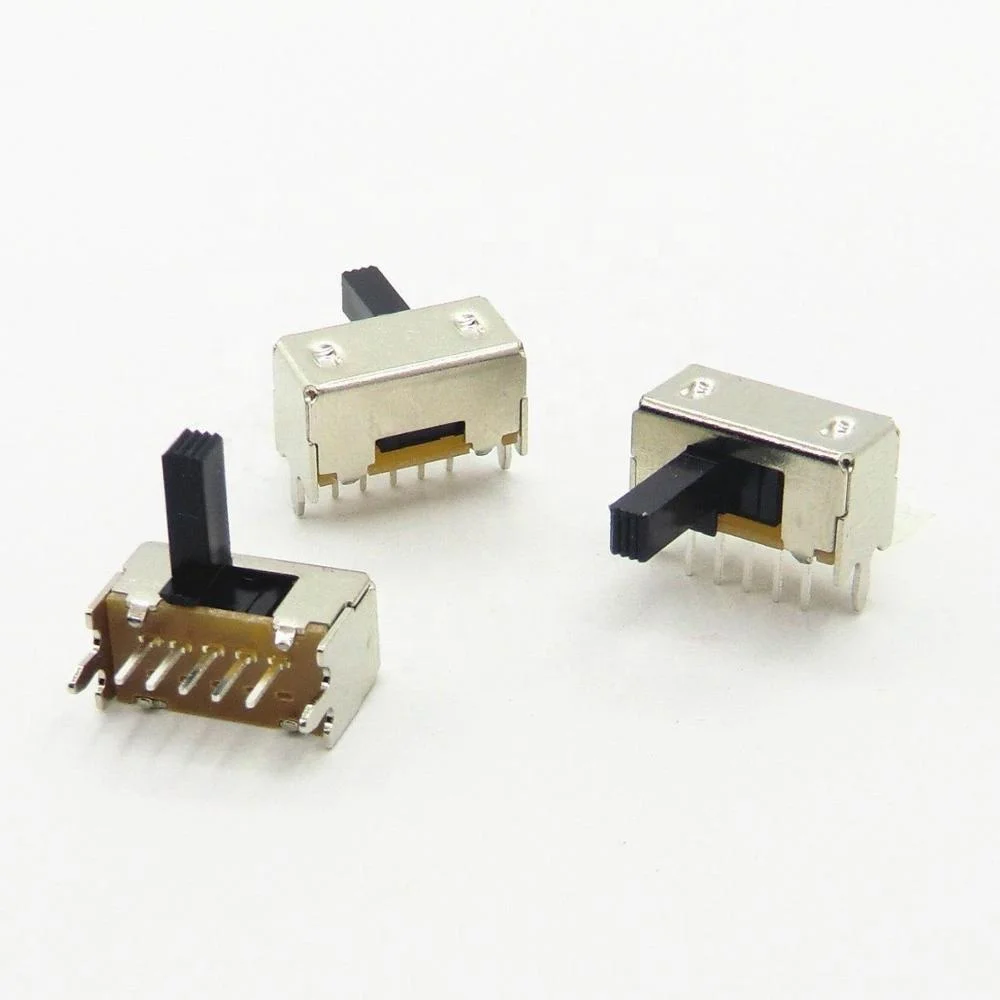

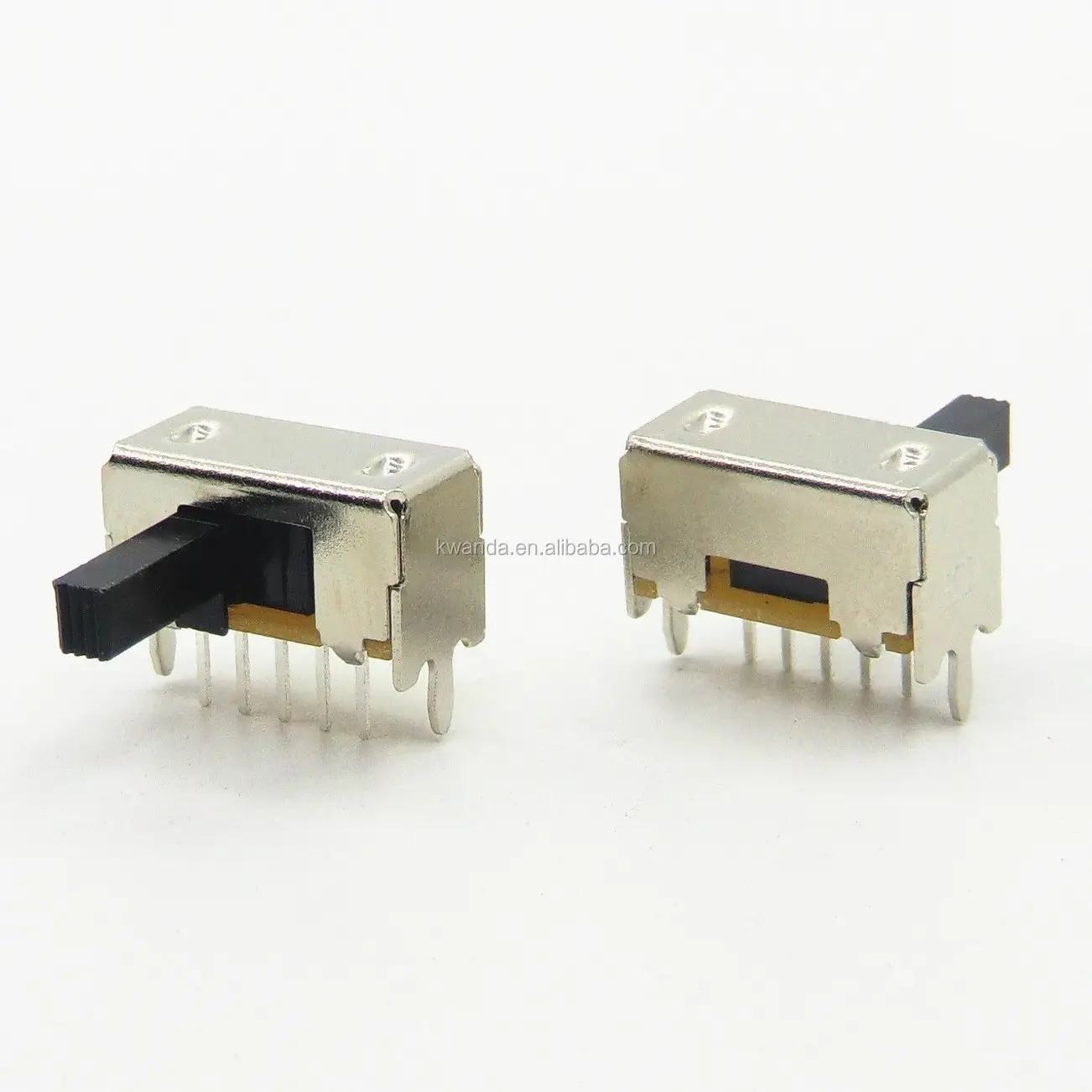

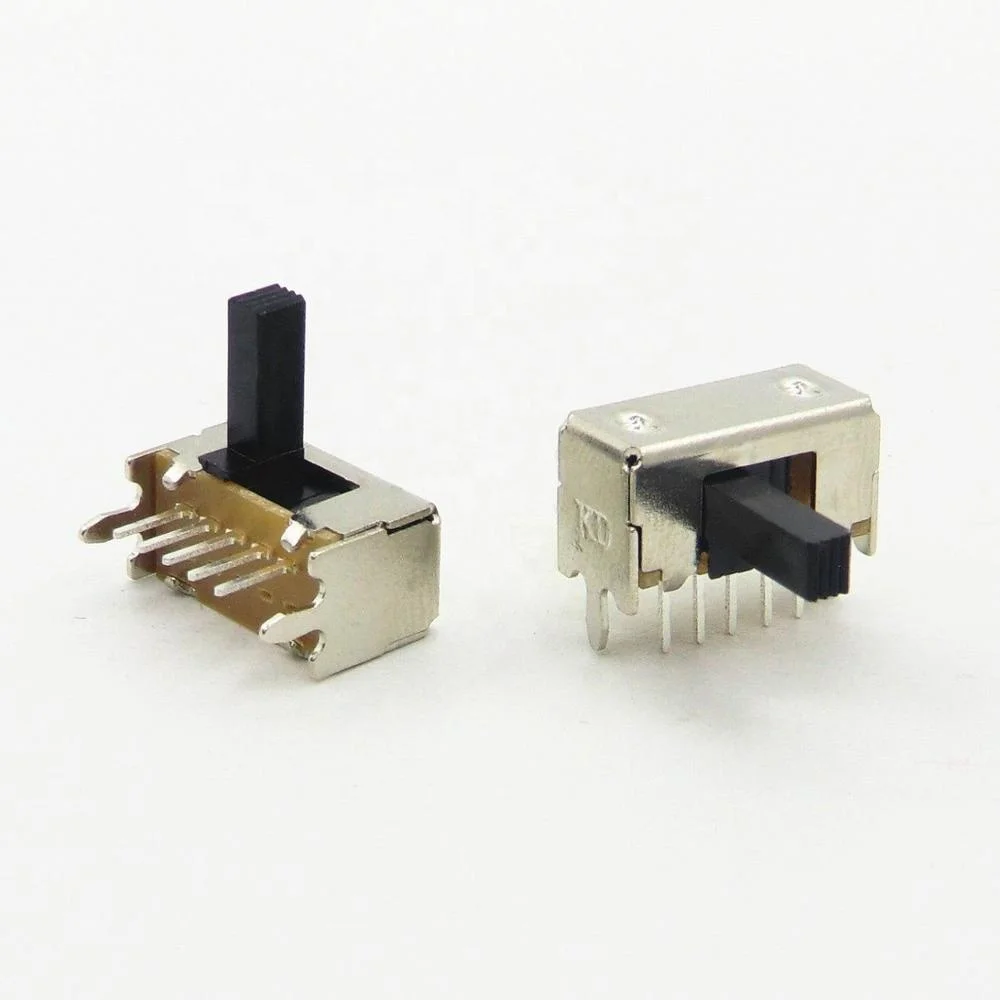

electronic slide switch 5 pin 3 position

Product Overview

Description

Specification:
·Rating	0.3A 50V DC
·Contact resistance	30MΩ max
·Insulation resistance	100MΩ min at 500V DC
·Dielectric strength	500V AC for 1 min
·Lifespan	10,000Cycles
·Practical temperature range	-16 to 60 degrees Celsius
·RoHS	Yes



√Our products’ Advantages:



u        More than 2,000 models of switches and jacks.

u        Monthly production capacity: 30 million pieces.

u        MOQ: 5,000pcs, it’s negotiable.

u        Import Raw Materials with factory price.

u        Offer freesamples.

u        Various of operation force, height, and color for your choice.

u        More order quantities, more discounts!

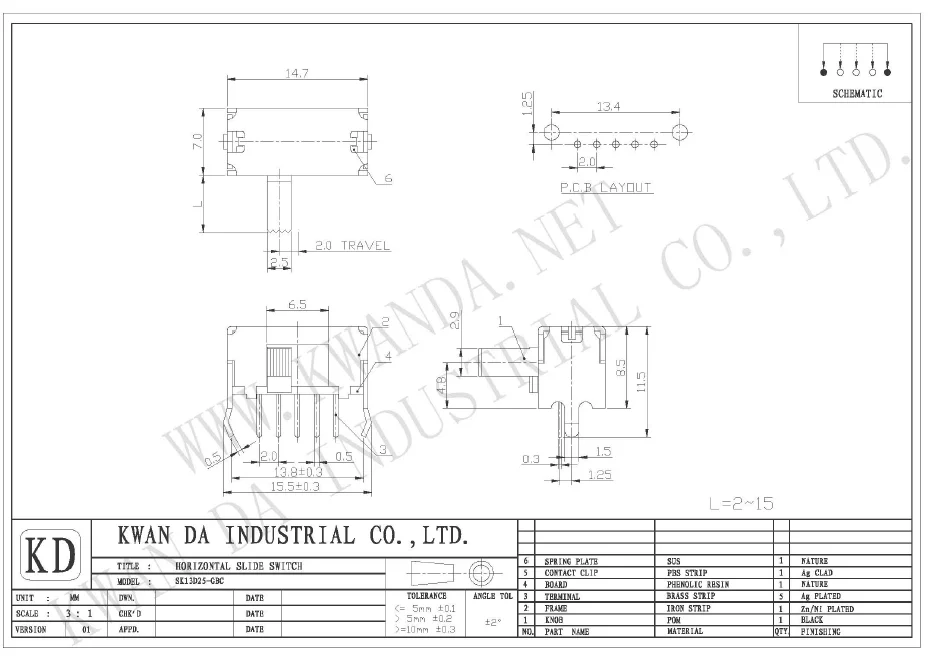

---Drawing---
