Полностью автоматическая машина для термоформовки пластиковых колец
- Category: Plastic Thermoforming Machines >>>
- Supplier: Ruian Litai Machinery Co. Ltd.
Share on (685308510):
Product Overview
Description
Product Paramenters
Model | TQA-520/580 |
Material | BOPS/OPS/PVC/HIPS/PET/PS |
Max. Forming Area | 520mm x 580mm |
Max. Forming Depth | 100mm |
Sheet Thickness Range | 0.12-0.8mm |
Max. Forming Speed | 25times/min |
Air Pressure | 0.6-0.8mpa |
Air Consumption | 3.0 m³/min |
Rated Power | 21kw |
Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
Dimension | L5200*W1500*H2350mm |
Weight | About 2.5T |
MACHINE MAIN PARTS | TQA-520/580 | |
Emergency Switch、Knob Switch、Button Switch With Light | Schneider, France | |
Mini-Type Control Button | Onpow, Taiwan | |
Proximity Switch | Rockwell, USA | |
PLC | Siemens, Germany | |
TEMPERATURE MOUDLE | Delta, Taiwan | |
Man-Machine Interface | Hitech, Japan | |
Servo Motor | Delta, Taiwan | |
Safety Valve, Filtrate Reducing Valve, Reducing Valve, Solenoid Valve | FESTO, Germany | |
Panel Setting Pressure, One-Way Throttle Valve, Filtrate muffler | AC 380V, 50Hz, Three-phase, Four-wire | |
Vacuum generator, Air-Controlled One-Way Valve, Logic Element | L5200*W1500*H2350mm | |
Rapid Escape Valve、Solenoid Valve Coil、Air-Controlled Valve | About 2.5T | |
Products Description
Application:

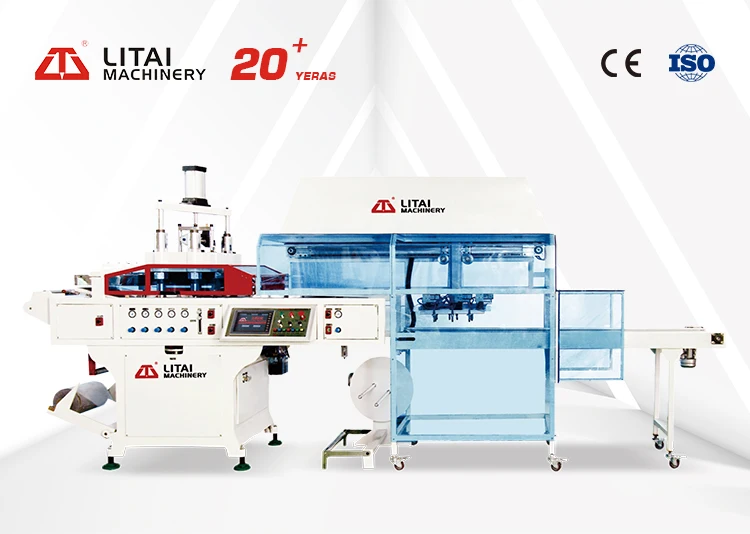

Full automatic BOPS thermoforming machine TQA-520/580 is a high tech manual equipment integrated electromechanic pneumatic integration design, suitable for producing different kinds of disposable plastic products, such as fast food containers, dishes, trays, bowls, lids, boxes for preserved fruits, pickles, candies, cakes, chocolates, snacks, fast food, package for vegetables, fruits, freezed products, toys, hardware, etc.

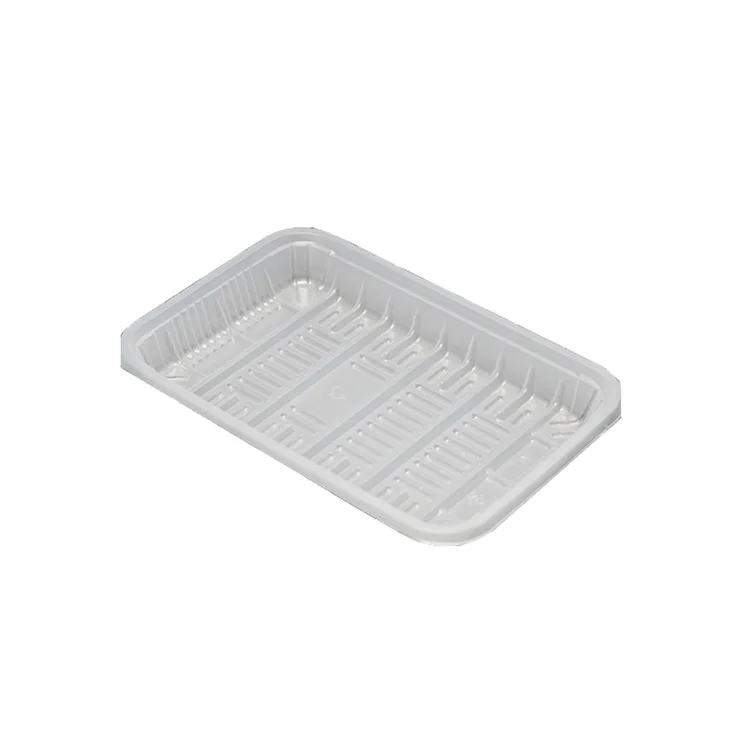

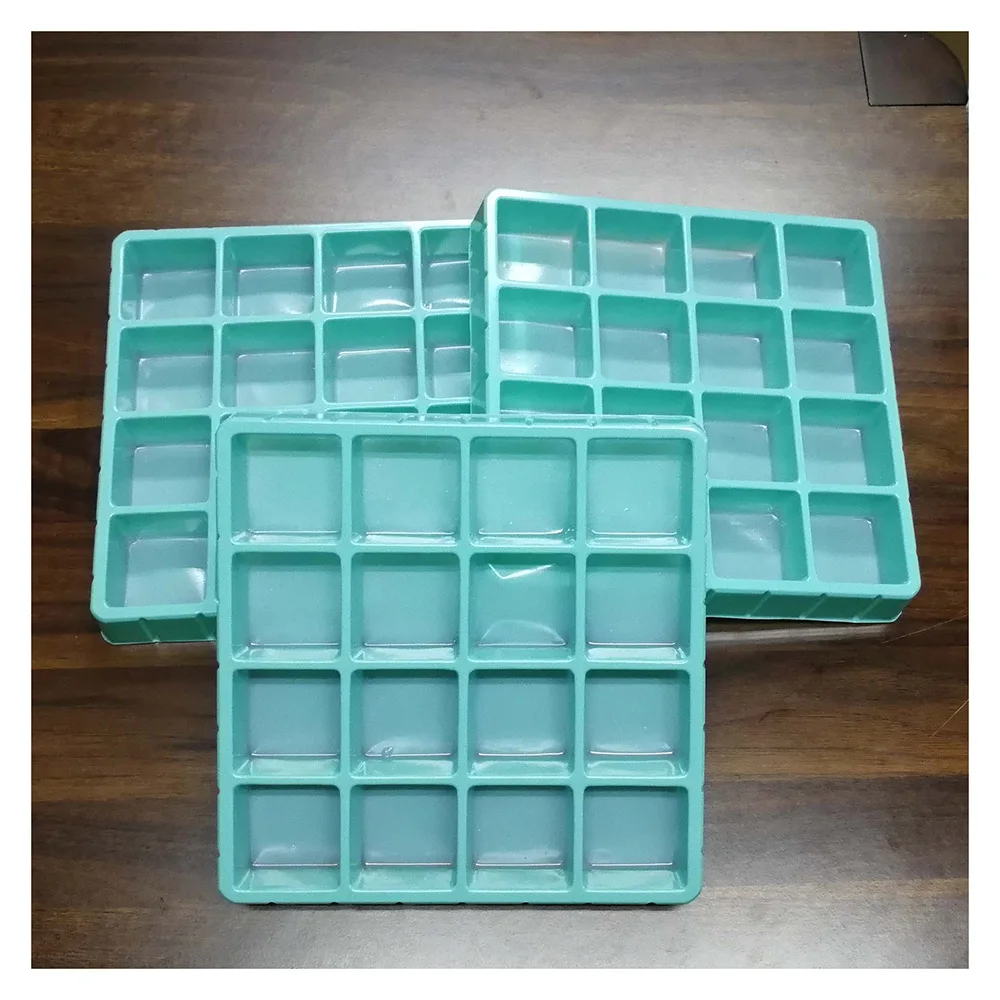

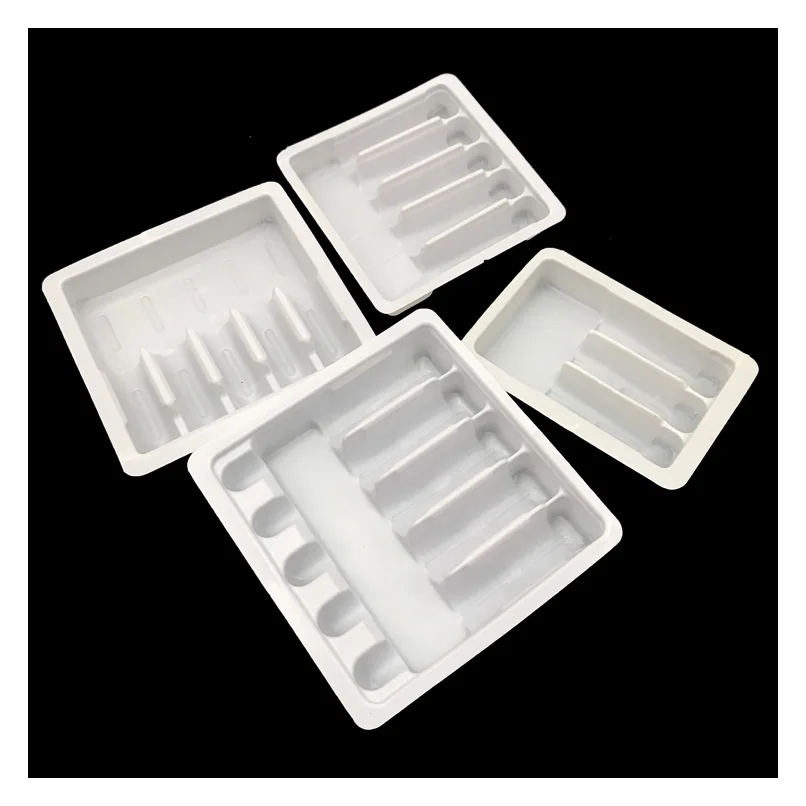

Cosmetic tray
Common uses for a plastic thermoformed tray include packaging inserts or shipping trays. Depending on the end use, plastic materials used to manufacture a tray can vary. For shipping, storage, and material handling trays, less costly materials can be used to provide a durable and protective tray without the need for clarity.
Egg tray
The egg tray can be made PET or PVC plastic material. There are 4,6,8,9,10,12,15,30 cells tray. The diameter of it is 4 cm , 4.3 cm, 4.6 cm. It can be printed as your requirement.

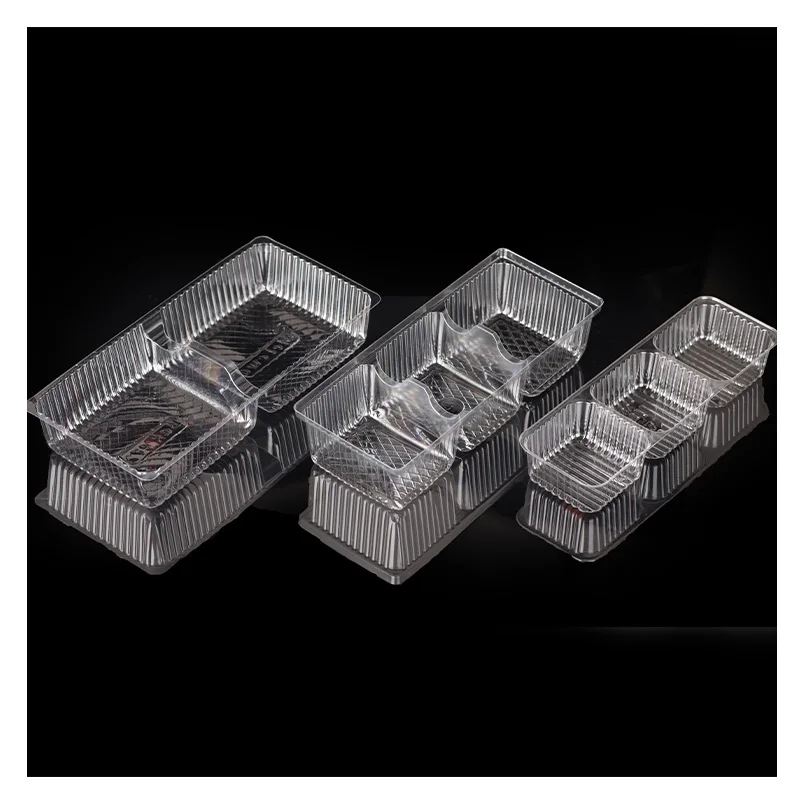

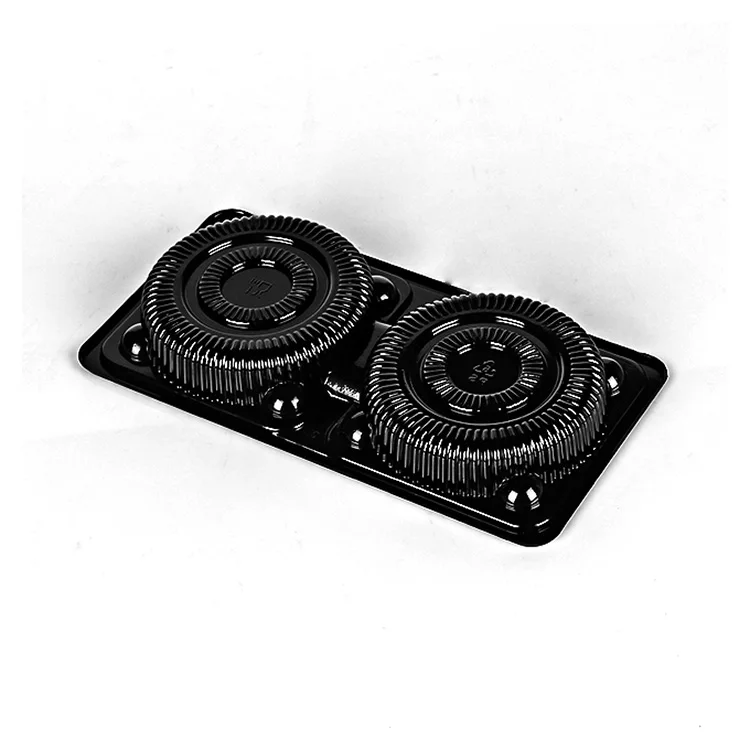

Plastic fruit box / Pastry box
Our machine can manufacture 100% new food grade non-toxic and odorless material, which has high transparency and environmental bfriendliness.
Accurate lid makes our products lock tightly,which is not loose,leakage,strict and fresh.The thicker material box
shape does not change when stacking up.
shape does not change when stacking up.

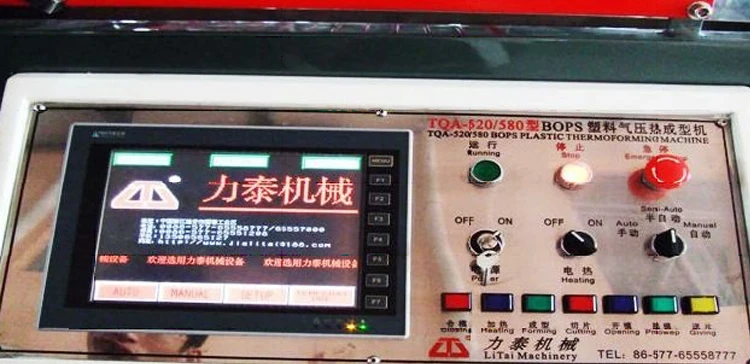

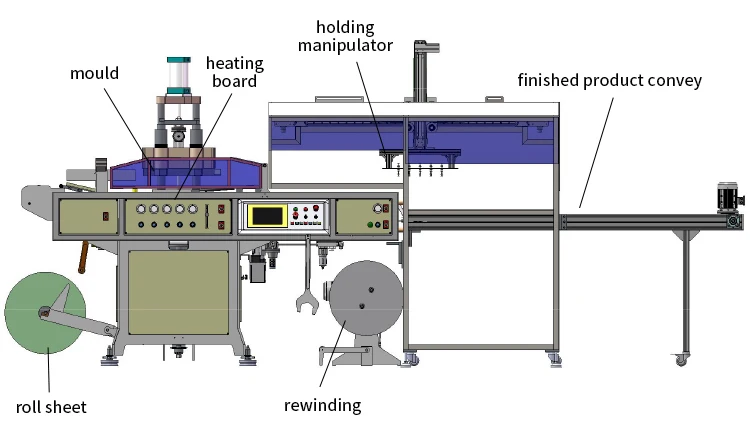

Touch Screen for operation, HITECH brand, made in Taiwan.

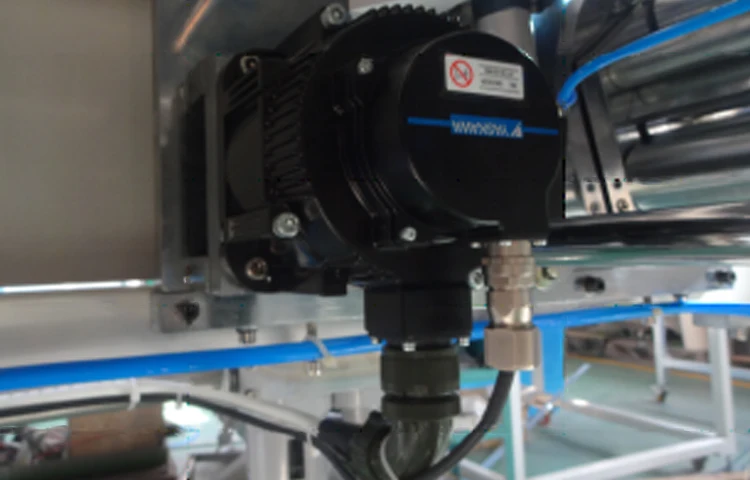

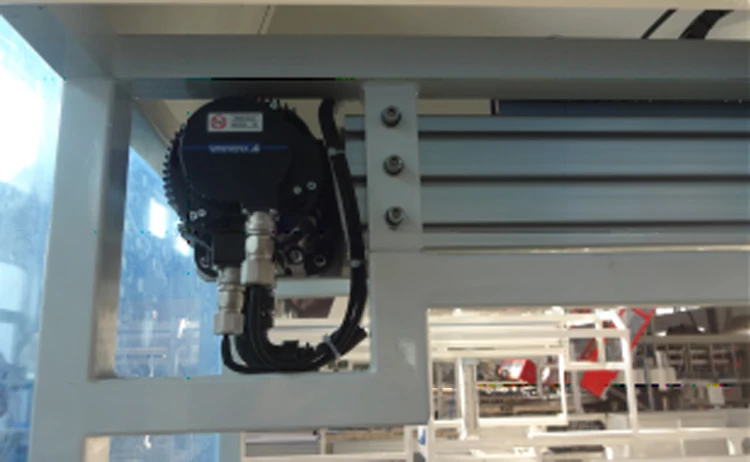

Double servo motors (Delta, Taiwan brand) control the transport of grippers.

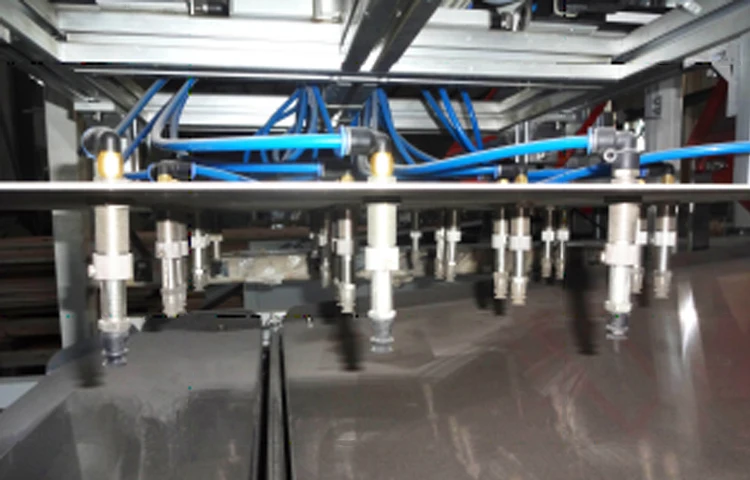

Robot stacking unit with adjustable grippers, Automatic stacking process.

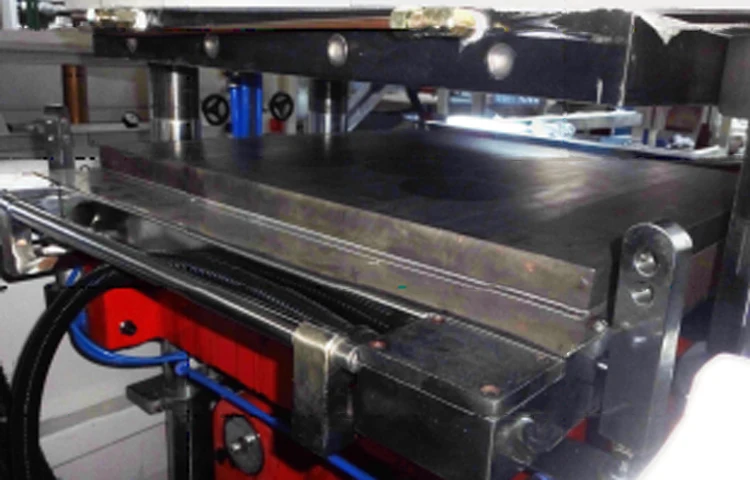

Heating Plate use 38 CrMoAlA with High hardness. It can be used with machine for whole life.

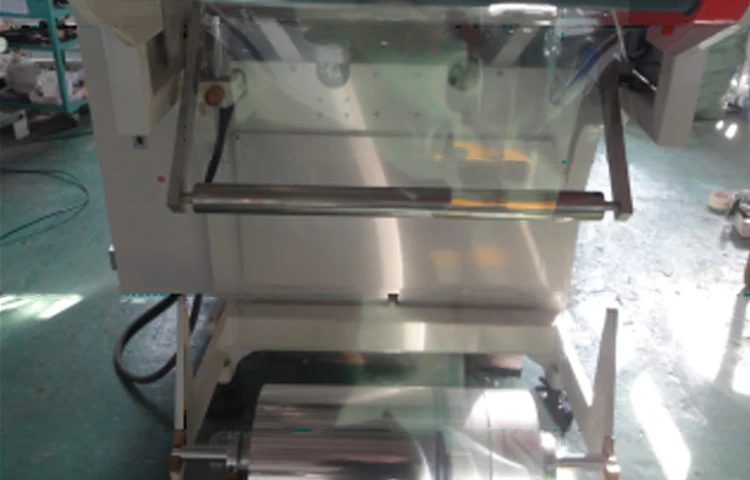

Sheet feeding part height can be adjusted, easy to change the sheet rollers.

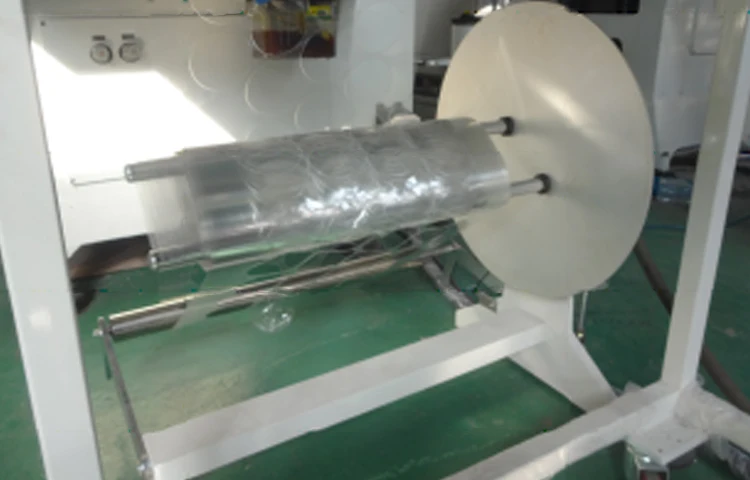

Waste material rewinder part is under the machine, saving space.

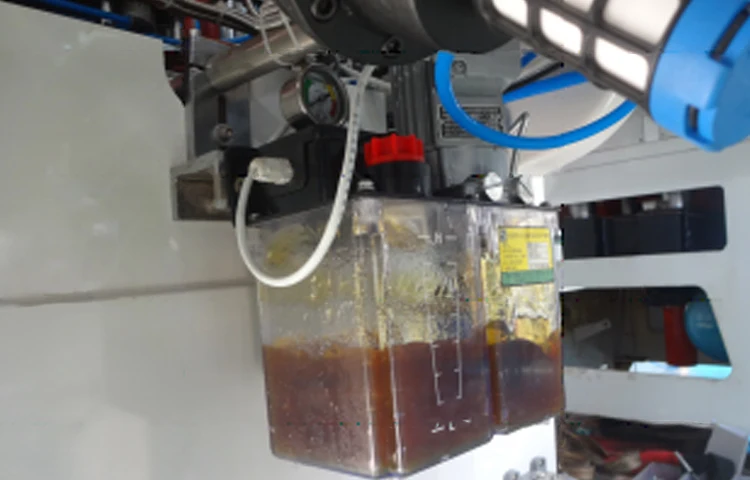

Machine can be lubricated by oil automatically at certain time.
Servo motor (Delta, Taiwan brand) control the sheet feeding.
Company Profile
About us
Rui‘’An Litai Machinery Co., Ltd. (formerly named as Rui'an Litai Factory which was established in 2000) is a professional manufacturer of a full complete production line of full-automatic plastic thermoforming machine, cup thermoforming machine, cup printing machine, sheet extruder, plastic vacuum forming machine, packing machine, plastic machine and other industrial machinery.
Having been involved in designing and manufacturing machines for several years (beginning from the year of 2000), we have employed experienced designers and have built a high-qualified technical team. We are one of the enterprises that have passed ISO9001 international quality management system in China. Now we are handling production strictly conforming to these standards and supplying high quality products at competitive prices.
We have established several branch offices in main cities in China. Meanwhile, our products are exported to Southeast Asia and other countries and regions and have won a good reputation.
Aiming at becoming a modernized enterprise and supplying the best products and services, we are looking forward to cooperating with you in the near future.
Having been involved in designing and manufacturing machines for several years (beginning from the year of 2000), we have employed experienced designers and have built a high-qualified technical team. We are one of the enterprises that have passed ISO9001 international quality management system in China. Now we are handling production strictly conforming to these standards and supplying high quality products at competitive prices.
We have established several branch offices in main cities in China. Meanwhile, our products are exported to Southeast Asia and other countries and regions and have won a good reputation.
Aiming at becoming a modernized enterprise and supplying the best products and services, we are looking forward to cooperating with you in the near future.
Certifications
Exhibition
Product packaging
FAQ
Q: Are you a factory or trading company?
A：We are a factory, and we export our machines to more than 80 countries since 2001.
Q: How does your factory do regarding quality control?
A: We have a professional QC department in charge of products' quality.
Q: How long is the warranty period?
A: 13months calculated from the date of shipment from our factory.During warranty period,
except the artificial factor, the spares are free to maintenance, beyond the warranty time, the
buyer needs to pay the spare charge and shipping cost.
except the artificial factor, the spares are free to maintenance, beyond the warranty time, the
buyer needs to pay the spare charge and shipping cost.
Q: How to install the machine?
A: We will send technician to your factory to install the machine, and teach your workers to use
it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and
technician salary.
it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and
technician salary.
Q: Where is your factory located? How can we visit there?
A: Our factory is located in Ruian city, near to Wenzhou airport, about 40minutes to our factory by car. We will provide transporation service during your visit at our factory.
