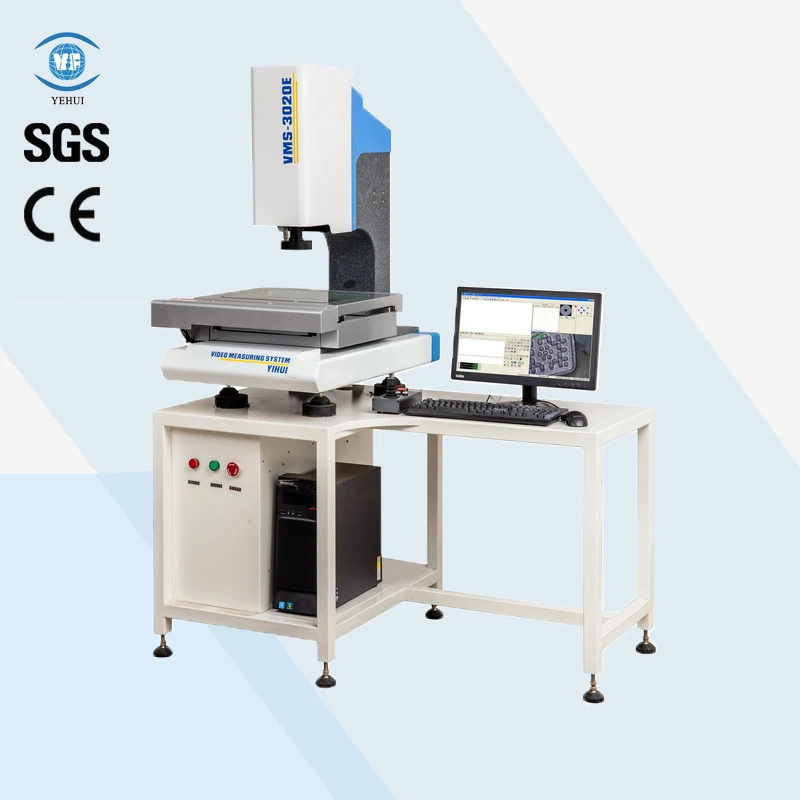

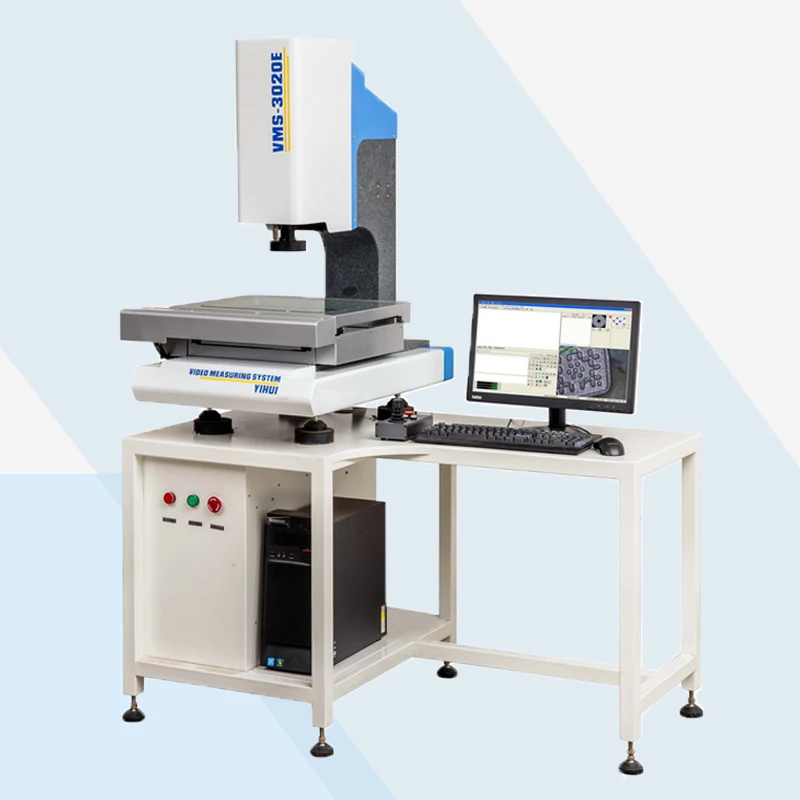

Professional CNC Optical Instruments VMS 3020E
- Category: >>>
- Supplier: Dongguan Yihui Optoelectronics Technology Co. Ltd.
Share on (685464827):
Product Overview
Description
Product Description
CNC Video Measuring System VMS Series
I. Usage
VMS Series is an universal type of CNC Video Measuring System developed by Yihui.
It has been widely applied in machinery, electronics, aerospace, automotive, military, mold, and other industries for precision automatic measurement.
Designed for rapid precision measurement & batch test in machinery, electronics, mould, etc
1. To measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function with clear observation.
2. Coordinate measurement, translation and coordinates straighten out.
3. Make measurement data directly into AutoCAD drafting
4. Record user program, editing and execute command.
5. In metrology terms, the machine can test width, length, height, thickness, straightness, flatness, perpendicularity, circular degree, coaxiality, etc.
6. The machine can test products as below:
1) Machinery: sheet, mould & die, gear, turning parts like bearings, shaft.
2) Electronics: phone& tablet sheet, PCB, watch parts, etc.
3) Plastics: mobile phone camera plate, cover, front bezel, slide plate, etc.
II. Features
1. Double closed-loop motion control performs micron-level precision motion

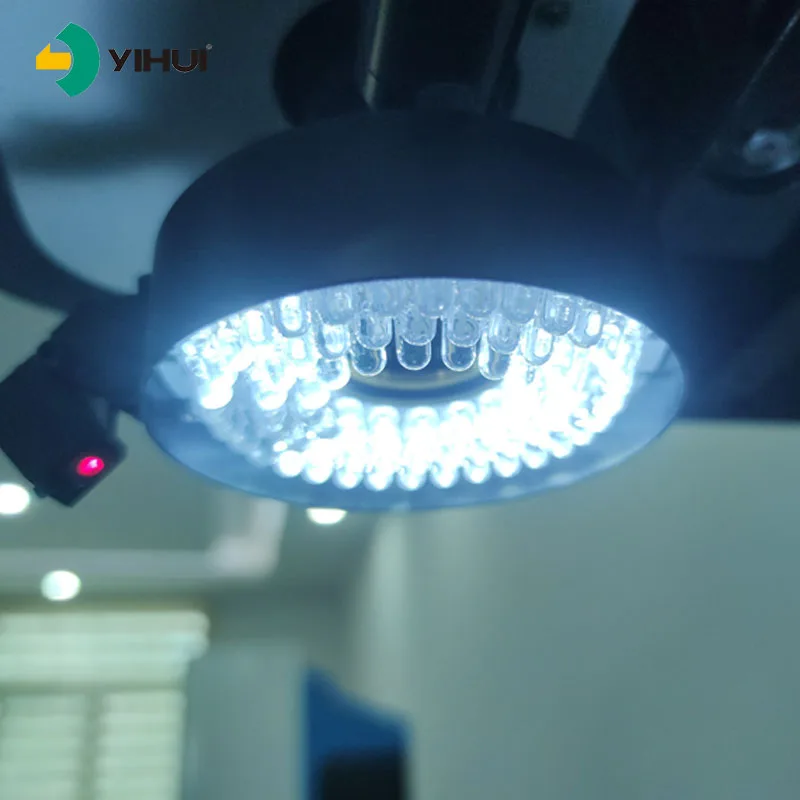

2. 8 regional LED surface light source
3. Grade 00 JINANQING granite base, column, high stability
4. Specific CNC software has wonderful measurement efficiency.
It has been widely applied in machinery, electronics, aerospace, automotive, military, mold, and other industries for precision automatic measurement.
Designed for rapid precision measurement & batch test in machinery, electronics, mould, etc
1. To measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function with clear observation.
2. Coordinate measurement, translation and coordinates straighten out.
3. Make measurement data directly into AutoCAD drafting
4. Record user program, editing and execute command.
5. In metrology terms, the machine can test width, length, height, thickness, straightness, flatness, perpendicularity, circular degree, coaxiality, etc.
6. The machine can test products as below:
1) Machinery: sheet, mould & die, gear, turning parts like bearings, shaft.
2) Electronics: phone& tablet sheet, PCB, watch parts, etc.
3) Plastics: mobile phone camera plate, cover, front bezel, slide plate, etc.
II. Features
1. Double closed-loop motion control performs micron-level precision motion
2. 8 regional LED surface light source
3. Grade 00 JINANQING granite base, column, high stability
4. Specific CNC software has wonderful measurement efficiency.
Structure
Specification

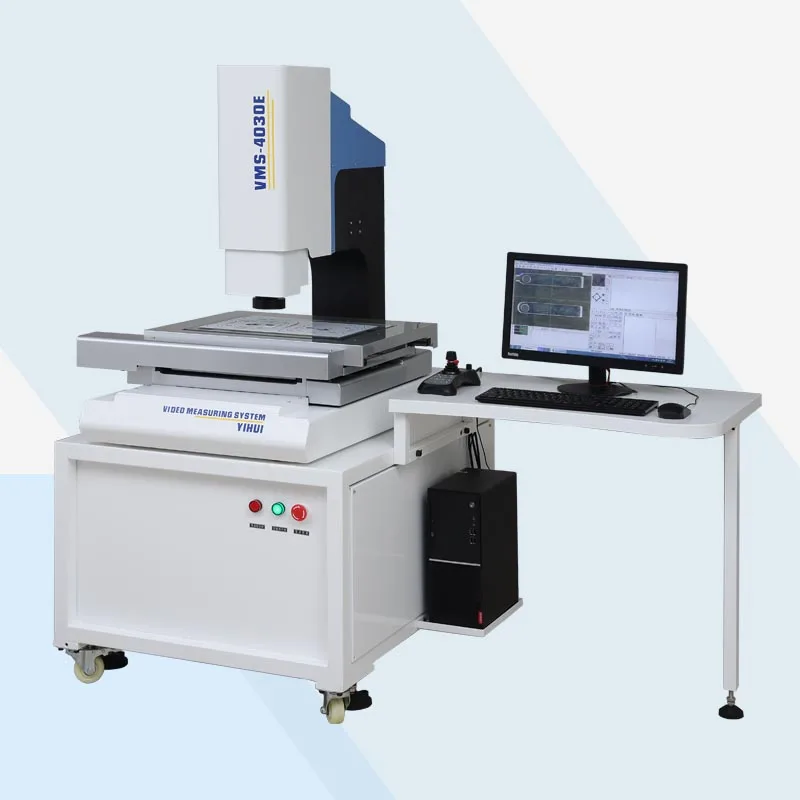

Model | VMS-3020E | VMS-4030E | VMS-5040E | ||||

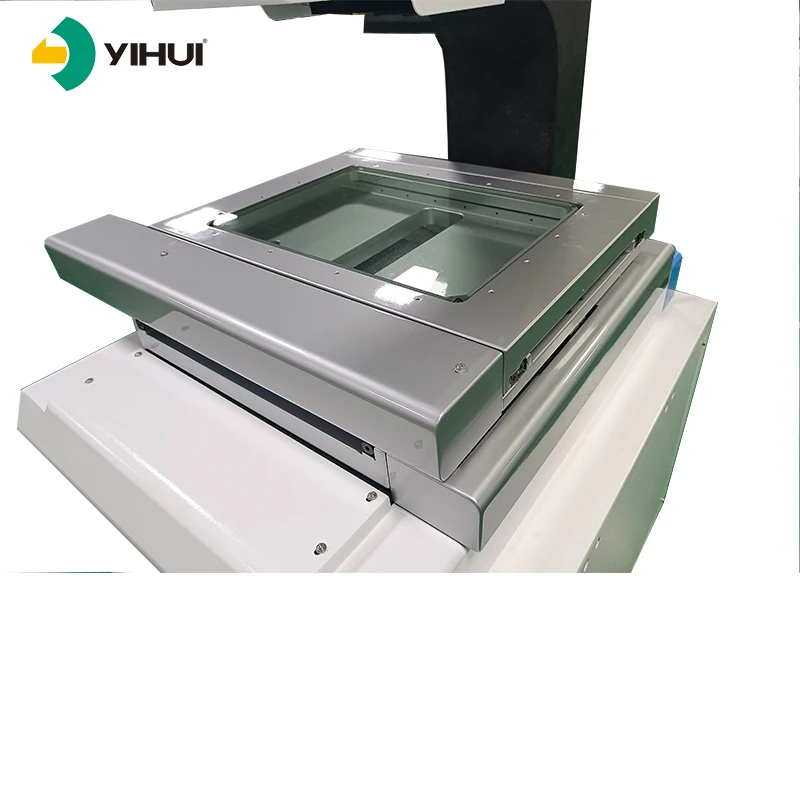

Worktable | Worktable D(mm) | 500*330 | 606*466 | 706*566 | |||
Glass Table Size(mm) | 350*280 | 450*350 | 550*450 | ||||
X,Y Stroke(mm) | 300*200 | 400*300 | 500*400 | ||||
Load Capacity | approx. 20 kg | approx. 30 kg | approx. 35 kg | ||||
Resolution | 0.5μm | 0.5μm | 0.5μm | ||||
Accuracy E1* | Ex, y ≤ (3.0+L/200) μm | ||||||
Accuracy E2* | Exy ≤ (3.5+L/300) μm | ||||||
Accuracy E3* | Ez ≤ (3.5+L/150) μm | ||||||
Z Stroke (mm) | Standard | 200 | |||||
Instrument Weight (kg) | 250 | 325 | 500 | ||||
Dimension (mm) | 610*764*992 | 720*950*1020 | 800*1040*1020 | ||||
Motor | Three-axis Max. Velocity | X,Y: 400mm/s Z: 200mm/s | X,Y: 400mm/s Z: 200mm/s | ||||
Three-Axis Positioning Accuracy | 0.001mm | ||||||
Imaging System | Camera | 2 MP Color Camera | |||||

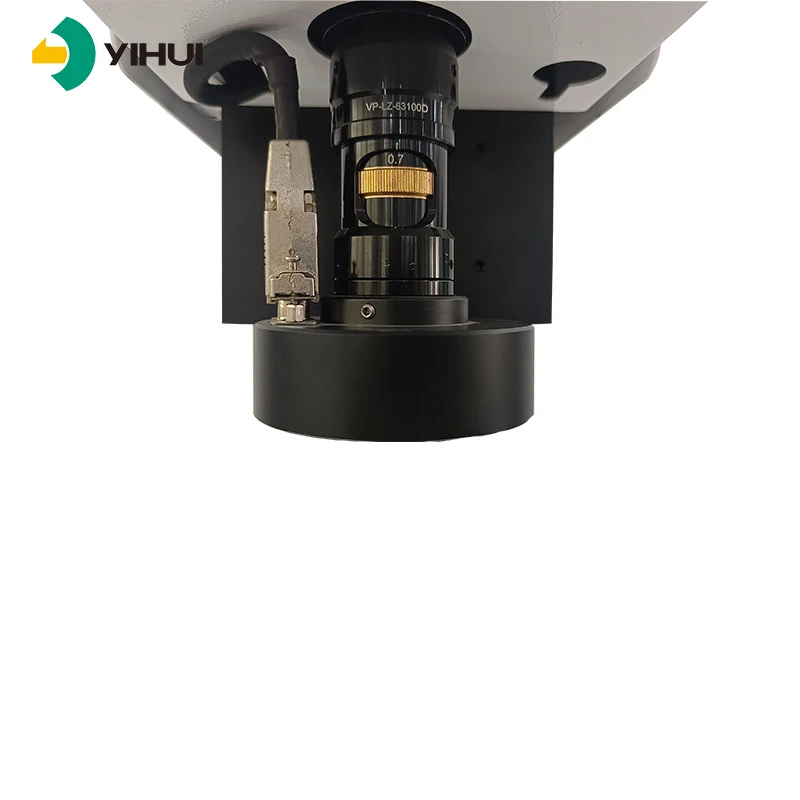

Zoom Lens | optical manual zoom lens | ||||||
Zoom Lens Magnification | 0.7-4.5X | ||||||
Video Magnification | 28-186X | ||||||
FOV | 11.1-1.7mm | ||||||
Power Consumption | 600W | ||||||
Instrument Accessories | 1X Tube (standard) | 0.5X Tube (optional) | WD | ||||
Zoom Lens | 0.7-4.5X | 0.7-4.5X | |||||
Software
Packing & Delivery
Company Profile
Dongguan Yihui Optoelectronics Technology Co., Ltd.
Established in 2003, has 18-year experience in manufacturing optical instrument and 13-year experience in trading overseas. It is a high-tech enterprise with the precision detection equipment R&D, production and sales. Our main products are: video measurement system, measurement profile projector, CMM, tool microscope, grating sensor, tensile testing machine, environmental testing machine ect. It is including 100 kinds of testing instrument. They are widely used in electronics, plastics, mold, machinery,hardware, clocks, connectors, mobile and other industries.
Established in 2003, has 18-year experience in manufacturing optical instrument and 13-year experience in trading overseas. It is a high-tech enterprise with the precision detection equipment R&D, production and sales. Our main products are: video measurement system, measurement profile projector, CMM, tool microscope, grating sensor, tensile testing machine, environmental testing machine ect. It is including 100 kinds of testing instrument. They are widely used in electronics, plastics, mold, machinery,hardware, clocks, connectors, mobile and other industries.
Until 2022, our products have been exporting to 54 countries over the world, and we have formal distributors in TAIWAN, KOREA,IRAN, GERMANY and MALAYSIA.Customers from all over the world have been satisfied with our low cost, high efficiency, high quality metrology solutions.
Welcome to contact us for cooperation.
Certifications
FAQ
Q: We don't know much about the machine but we need it, how to decide which model is the best?
A: Please send inquiry to our Sales telling what you need the machine to do.And then our team will work out best solutions for you by sending catalogues, demonstration video or testing of your sample.
Q: We want to protect our payment better, T/T is not accepted.Is there better way for business?
A: L/C, Paypal, Alipay etc. are available, we have many options for safe payment.
Q: After machine arrival, what will be the service for installation and training?
A: If you are close to our local agent, you can contact them directly for spot service.Usually we will send our engineer for overseas spot service to finish installation of the machine and operation training, which will take extra cost like air-ticket and accomodation.If spot service is not feasible, we will arrange online instruction of installation and online training by means of e-mail,phone,remote control, meeting software etc.
A: Please send inquiry to our Sales telling what you need the machine to do.And then our team will work out best solutions for you by sending catalogues, demonstration video or testing of your sample.
Q: We want to protect our payment better, T/T is not accepted.Is there better way for business?
A: L/C, Paypal, Alipay etc. are available, we have many options for safe payment.
Q: After machine arrival, what will be the service for installation and training?
A: If you are close to our local agent, you can contact them directly for spot service.Usually we will send our engineer for overseas spot service to finish installation of the machine and operation training, which will take extra cost like air-ticket and accomodation.If spot service is not feasible, we will arrange online instruction of installation and online training by means of e-mail,phone,remote control, meeting software etc.
