barrel blow molding machine

ZK-120B extrusion blow molding machine   220L max.

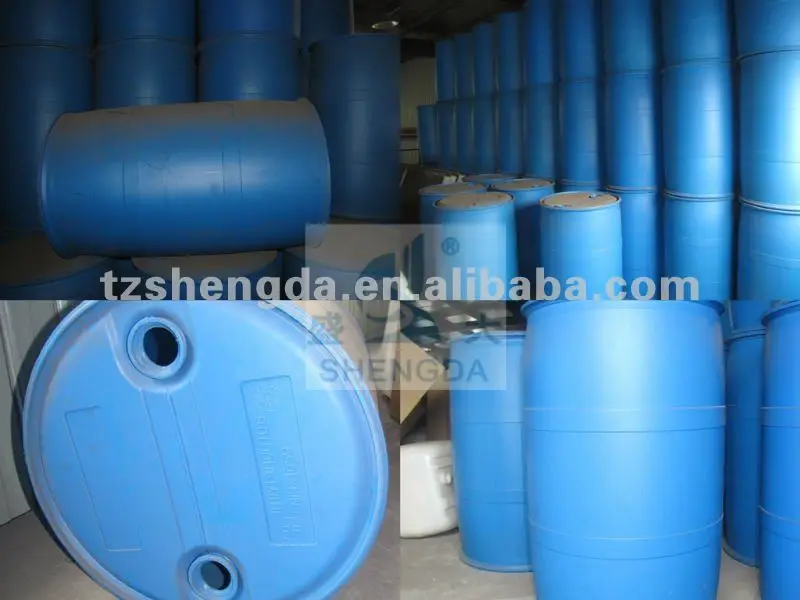

ZK-120Model automatic large extrusion blow molding machine---This model adopts accumulator die. Parison programmer is available to control thickness.This  model is  automatic  process  with  low  noise, saving  energy, high efficiency,safe operation, easy maintenance  and  other  benefits. This model  is  widely used to  produce  chemical  barrel, auto parts ( water box, oil box, air-condition pipe,aoto tail), toys(wheel,hollow autobike, basketball  stands,baby castle), tool box,vacuum  cleaner  pipe,  chairs  for bus and gymnasium,etc.This model can produce max 230L hollow plastic product.

HDPE,PP,,ABS,EVA etc .

Features:

1) Controlled by Taiwan PLC

2) Temperature controlled model

3) Interactive monitor with machine-human interface

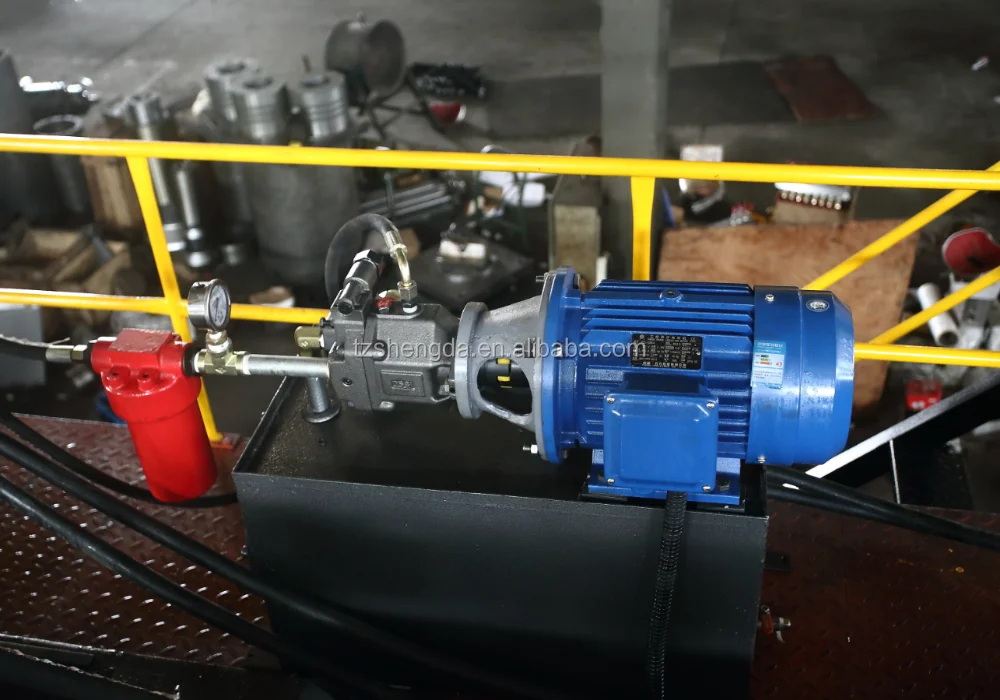

4) Imported hydraulic elements

5) Hydraulic Proportional control

6) Imported electric elements

7) Hard gear surface reducer

8) Accumulator head with special steel

9) Vicker hydraulic valve, seal and proportional control

10) Taiwan  PLC+ Taiwan human machine interface +software in touch type +famous brand electric elements.

following is the technical specifications:



technical parameters		ZK-120
specification	unit
max container capacity	L	220
machine dimension	M	7.5*3.2*5.1
total weight	ton	22
clamping system
clamping force	KN	1200
plate opening stroke	mm	600-1600
max mould size(W*H)	mm	1200*1600
mould thickness	mm	610-850
power
max drive	KW	22
total power	KW	175

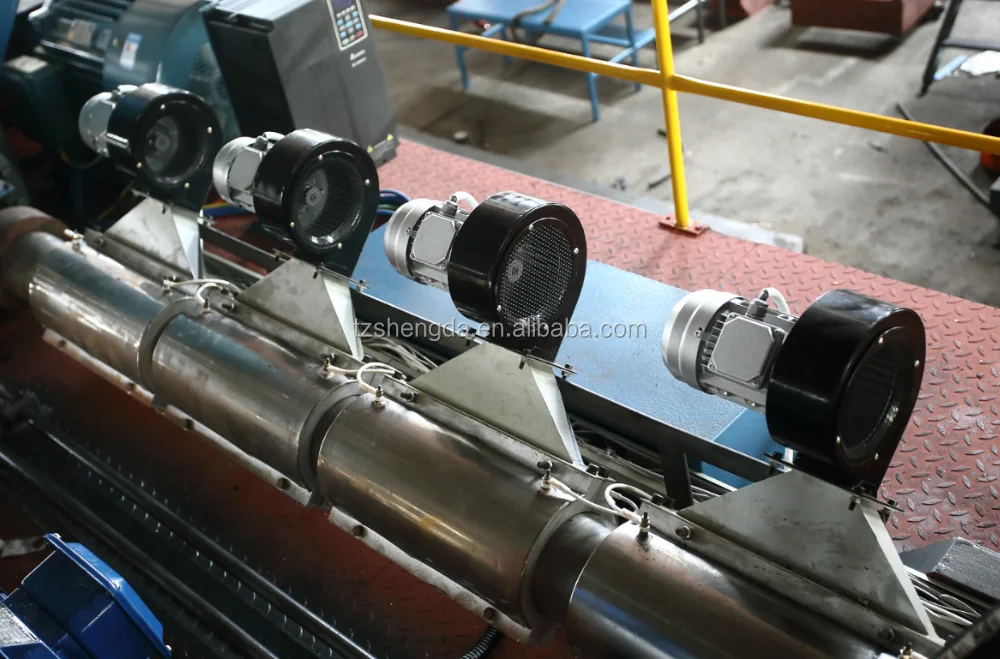

fan power for screw	KW	0.72
air pressure	Mpa	0.7
air consumption	m3/min	0.9
average energy consumption	KW	55
extruder unit
screw diameter	mm	120
screw L/D ratio	L/D	28:1
plasticizing capacity	kg/hr	280
number of heating zone	zone	6
extruder heating power	KW	35
extruder driving power	KW	75
accumulator head
number of heating zone	zone	6
power of die heating	KW	50
max die-pin diameter	mm	600
accumulator volume	L	30
