YX31125CNC6 6 axes cnc gear hobbing machine
Recommended Hobbing
Y31125(Ø1250mm) PLC Gear Hobbing Machine
YX3132(Ø320mm) 5-axis CNC Gear Hobbing Machine
YD31135(Ø1350mm) 30M Gear Hobbing Machine with PLC
Main Features
Such cnc gear hobbing machine has following features:
1. it is 6- axis CNC gear hobbing machines working by the continuous indexing method.
2. the following are the 6 CNC- controlled axes:
the radial feed (X- axis),
the axial feed (Z- axis) ,
the tangential movement (y -axis),
the worktable revolving movement (C- axis),
the hob running motion (B- axis)
and the swiveling motion of the hob head (A- axis).
3. It is possible to complete the swiveling motion of the hob head (A- axis).
4. It possible to complete the simultaneous movement of four axes.
An electronic gearbox is used on the machines to replace the conventional change gears, thus enabling them to be good in the rigid transmission, high in the working accuracy and easy to operate.
5. for more features, pls contact me or send inquiry to me.
Main Technical Data
Specifications | Unit | Ykx31125 cnc gear hobbing machine |
Max. workpiece dia. | mm | Φ1250 |
Max. module | mm | 24 |
Max.helix angle to be cut |
| ±45° |
Max diameter of hob | mm | 350 |
Max. length of hob | mm | 375 |
Max. axial movement of hob | mm | 300 |
Cone of the hob spindle bore |
| HSK-B160 |
Horizontal distance from hob center to worktable center | mm | 75~980 |
Vertical distance from the hob center to the worktable | mm | 450~1175 |
Distance from column center to the worktable | mm | 695~1630 |
Diameter of worktable | mm | 1000 |
Distance from the worktable surface to the bottom of the machine bed | mm | 1000 |
Hob spindle speed | rpm | 26~265(infinite) |
Max. worktable speed | mm | 10 |
Axial federates | mm/min | 1~3000 |
Radial federates | mm/min | 1~3000 |
Tangential travel speeds | mm/min | 1~3000 |
Max. load of worktable | N | 140000 |
Power of spindle motor | kW | 30 |
Total power consumption | kW | 79.98 |
Overall dimensions(LxWxH) | mm | 6070x4500x3900 |
Net weight of machine | kg | 33000 |
Free Std Accessories
S.N | Name | Remark |
1 | Main machine | 1 set |
2 | CNC controller | Siemens 840Dsl |
3 | Hydraulic system | 1 set |
4 | Hydraulic oil temperature controller | 1 set |
5 | Coolant unit | 1 set |
6 | Auto chip conveyor | 1 set |
7 | Lubrication system | 1 set |
8 | External and independent electrical cabinet | 1 set |
9 | Full cover | 1 set |
10 | Oil mister separator | 1 set |
11 | Dead center | 1 pc |
12 | Hob arbor | 1 set |
13 | Documents in English | 1 set |
Optional Accessories
Pls send inquiry to me for optioanl accessories and other further information about such cnc gear hobbing machine.

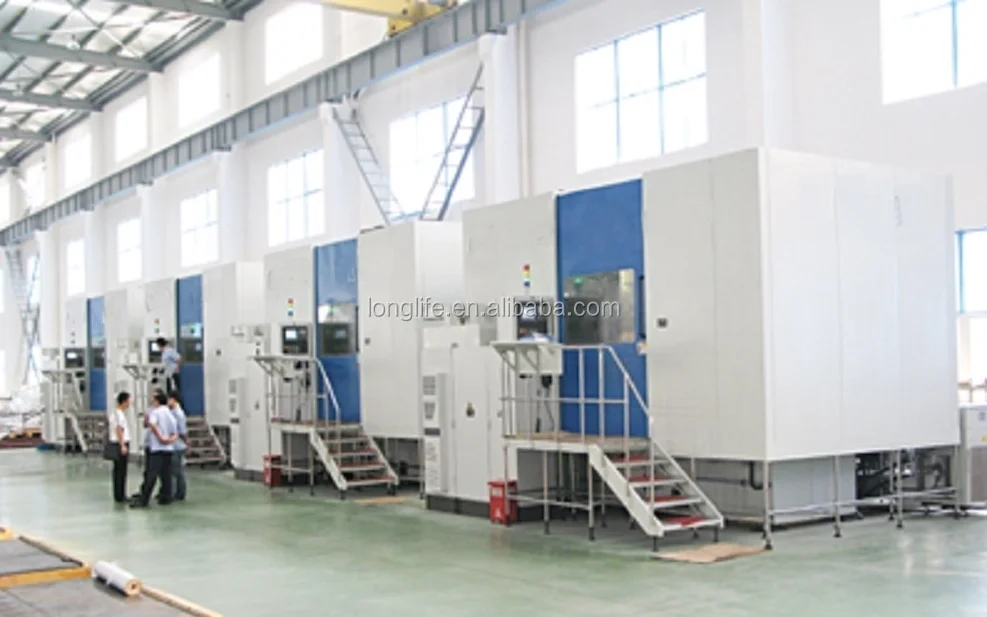

Factory Overview
