Shako Cylinder SC50

Product Overview

Description

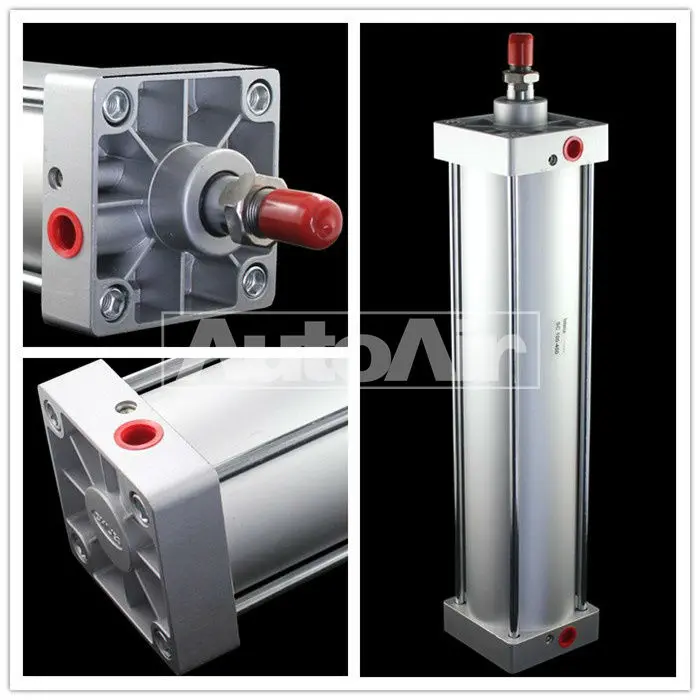

Shako Cylinder

1.Introduce

We’re professional manufacturer of pneumatic components, such as Solenoid Valve, Cylinder, FRL unit, fittings and other hydraulic valve.

Our company also can provide other pneumatic cylinders as below,
1. ISO Standard cylinder: DNC(ISO 6431&VDMA24562),DNG(ISO 15552),SI(ISO 6431),MA(ISO 6432)
2.Standard cylinder:SC/SU,MB,CA1
3.Mini cylinder:MA,MAL,CJ2,CM2,CJP Needle cylinder
4.Double-shaft cylinder:TN,CXS
5.Free installation cylinder:CU
6.Slide bearing cylinder:STM
7.Three-shaft cylinder:MGP
8.Stopper cylinder:RSQ
9.ADVU, SDA,CQ2B compact cylinder
10.Rotary cylinder:MSQ
11.Rodless cylinder:CY1
12.Air gripper:MHC Series Pneumatic Parrallel Gripper, MHC point type Gripper
Parallel Style Wide Opening Air Gripper

2.Processing

The manufacturing process include : die-casting, aluminum profile precision draw, machining, castings shot blasting, air tightness assurance through the impregnation by vacuum pressure process and passivation treatment, aluminum profile surface oxidation treatment, assembling and testing, for better quality control.
The cylinder covers, piston and piston rods are CNC machined, use high quality seals, to ensure the cylinders work stably and safely.

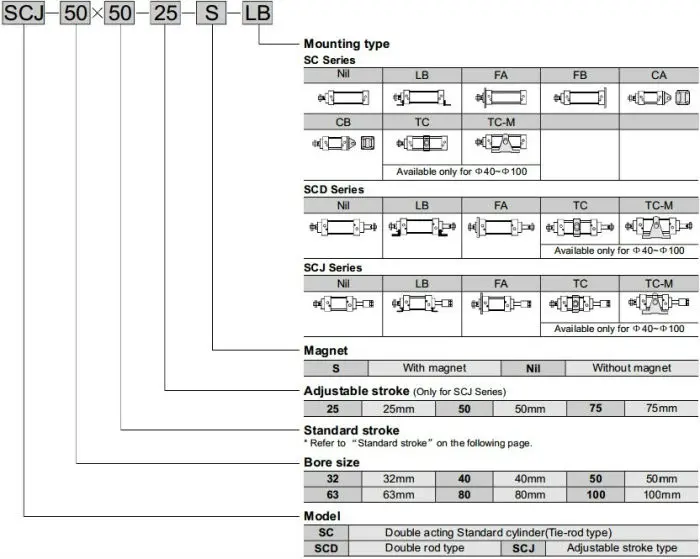

3.Ordering Code

4.Specification



Bore size (mm)	32	40	50	63	80	100	125	160	200	250
Fluid	Air
Action	Double acting, Single/Double rod
Minimum operating pressure	0.1 MPa
Maximum operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Ambient and fluid temperature	-20 to 80°C (No freezing)
Cushion	Adjustable air cushion at both ends
Lubrication	Non-lube
Piston rod dia.	12 mm	16 mm	20 mm		25 mm		32 mm	40 mm		50 mm
Piston rod thread	M10x1.25	M12x1.25	M16x1.5		M20x1.5		M27x2.0	M32x2.0		M42x2.0
Port size	1/8	1/4		3/8		1/2		3/4		1

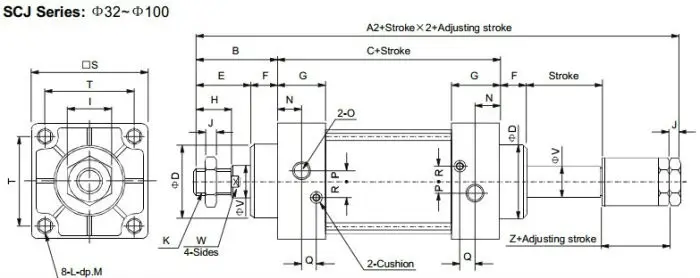

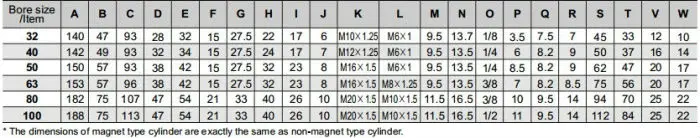

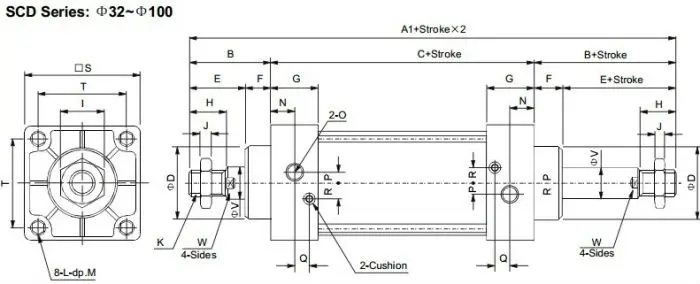

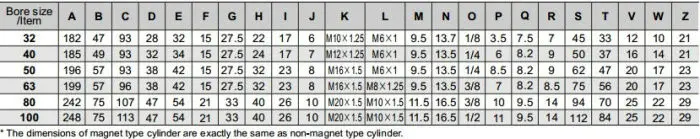

5.Drawing and Sheet





6.Photos





7. Cylinder Assembly

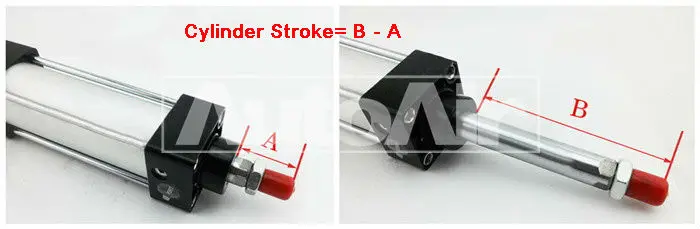

8.Cylinder Stroke
