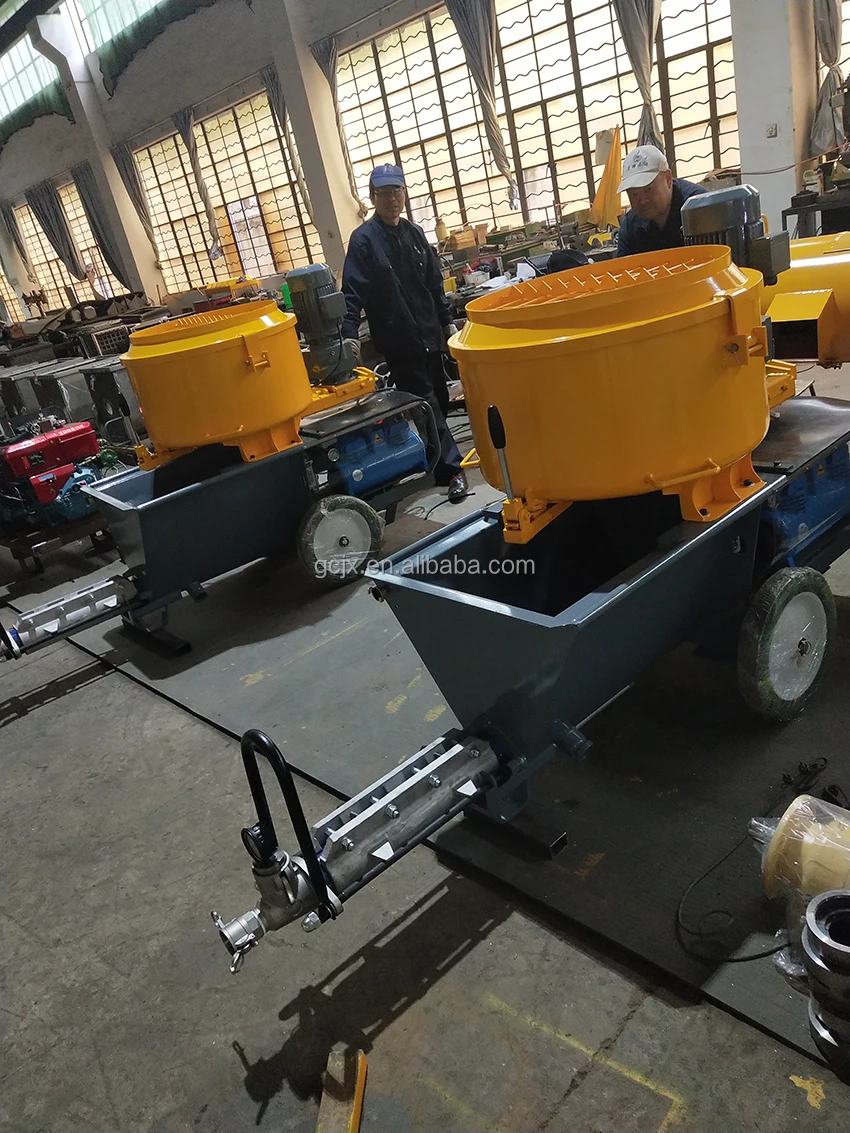

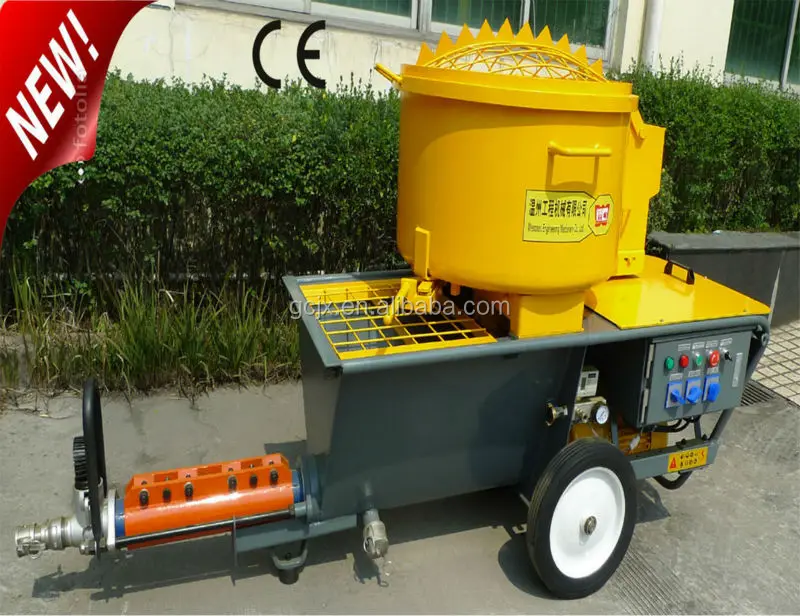

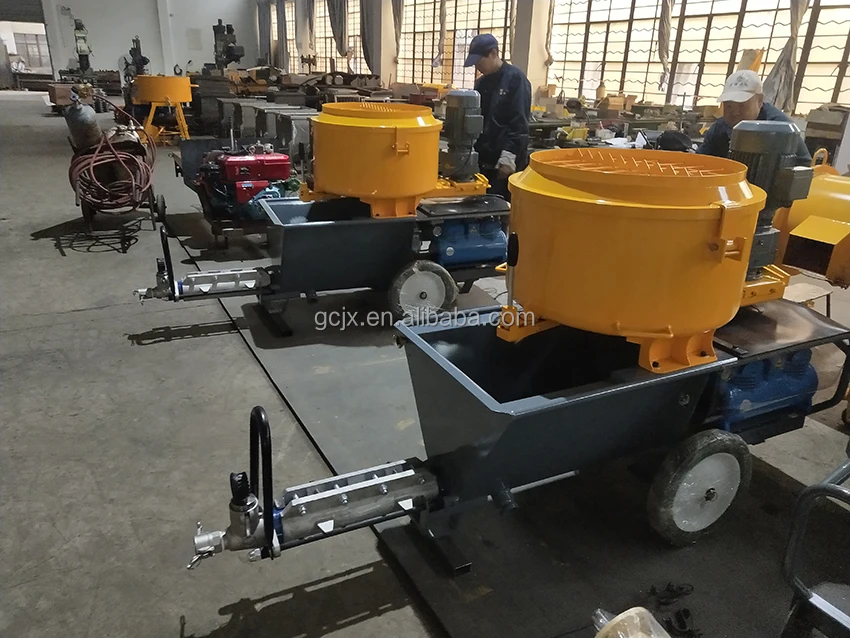

1. JP60-L, JP60-P plastering machine is high cost-effective machine introduced German technology. Adopt 2L6 stator and rotor putzmeister design.
2. It’s applicable to spray of plastering mortar, Plaster,Stucco,EIFS,Fireproofing,Cementitious Coatings .
3. There are two options for air comprssor and various speed of pumping motor including made in China or made in Germany. The above main compnents are same as PFT and Putzmeister! But the whole price is half of PFT and Putzmeister!
4. JP60-L is very suitable for large heavy duty plastering, it can plaster about 1000-1200m2 per 7hours. JP60-L is most suitable for longer distance pumping.
Technical parameters of JP60-L Mortar plastering machine
Model
—
JP60-L
JP60-P
Supply power
—
400V 50Hz
400V 50Hz
Motor power
kw
4.0/7.5
4.0/7.5
Maximum grain size
mm
6
6
Output
l/min
40
40
Delivery pressure
bar
30
30
Horizontal delivery distance
m
60
60
Vertical delivery distance
m
40
40
Mixer power
kw
1.1
—
Mixer volume
l
120
—
Hopper volume
L
100
100
Net weight
kg
400
280
Dimension (L×W×H)
mm
2290×680×1220
2290×680×660
1. JP60-L always is exported to PHILIPPINES each month, it always is used for fireproofing mortar and stucco spraying for construction.
2. It's optional to choose air compressor and pumping motor made in German or made in China. JP60-P the main components are same as JP70-P as below shown:
JP70

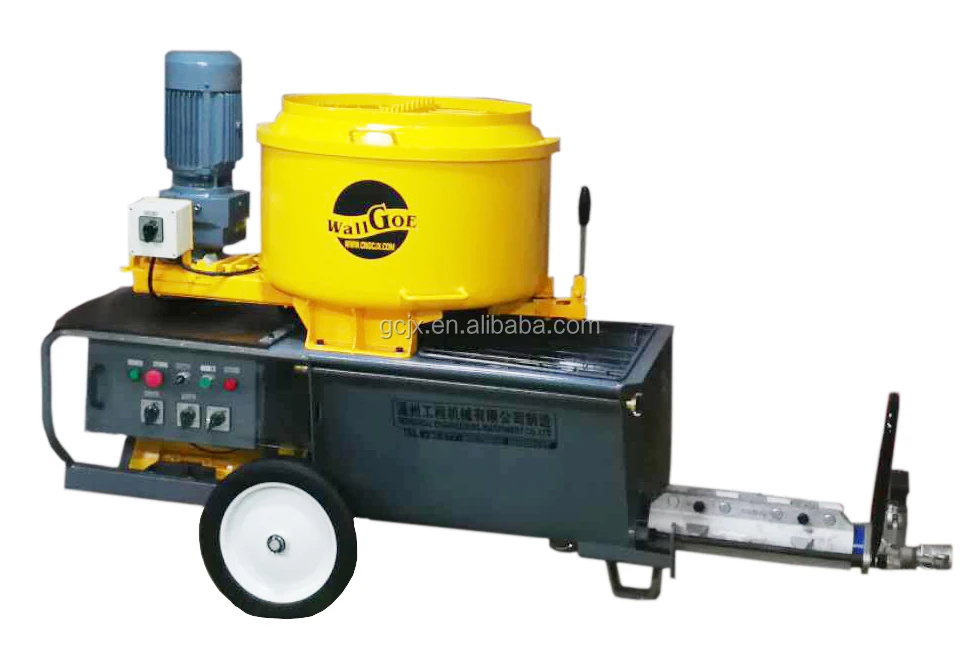

JP70 mortar spraying machine

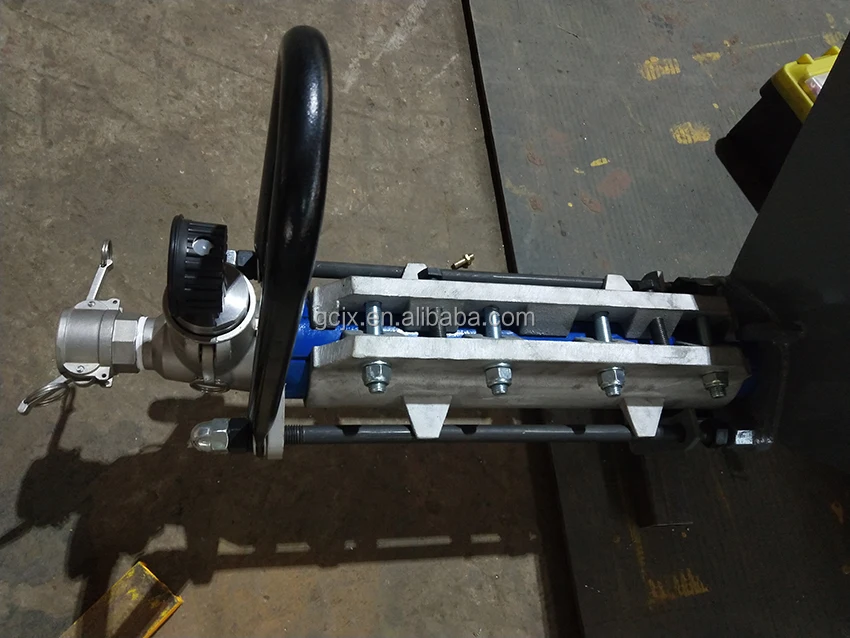

JP70 is the application of modern technology - a large capacity mortar spraying machine, which has pump conveying, bonding, spraying functions. High conveying efficiency, long pumping distance, easiness of pumping large particles of material, these can be used for spraying already-mixed mortar and field mixing mortar. Set the screw pump anti-wear control mechanism; with a direct separation of the screw rotor and stator on machine; adjust the displacement and remote control functions, pressure sensor control. It is suitable for conveying and spraying variable kinds of plastering mortar, insulation mortar, bonded mortar, fiber mortar, facing mortar, interface mortar, floor mortar, fire mortar, refractory mortar, self-leveling mortar, masonry mortar, reinforced mortar, fill mortar and pouring mortar.
**The modular system of the JP70 is based on a worm pump with a powerful 5.5 kW drive.The basic version is particularly suitable for users who pump and spray pumpable wet mortars with grain sizes of up to 6 mm.
Model
—
JP70-P
JP70-S
Supply power
—
400V 50Hz
400V 50Hz
Motor power
kw
4.0/5.1
4.0/5.1
Compressor power
kw
2
—
Maximum grain size
mm
6
6
Output
l/min
70
70
Delivery pressure
bar
30
30
Horizontal delivery distance
m
60
60
Vertical delivery distance
m
25
25
Hopper volume
L
100
100
Net weight
kg
280
210
Dimension (L×W×H)
mm
2290×680×660
2290×680×660
**JP70 works with Continuous mixer machine:
**JP70 works with SWJ-160 mixer machine:
**JP70 works with pan mixer machine:
(could be seperatedly also)

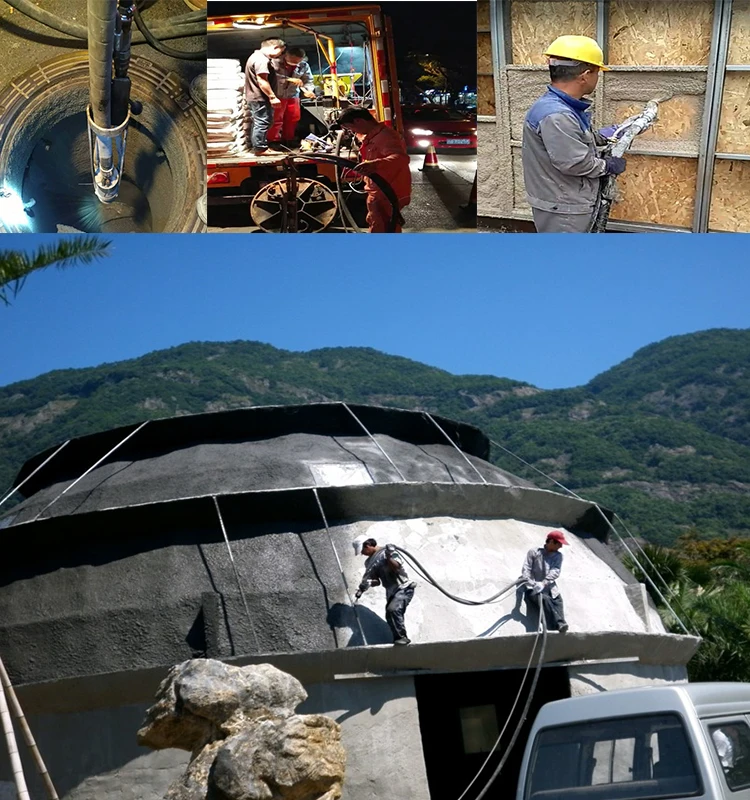

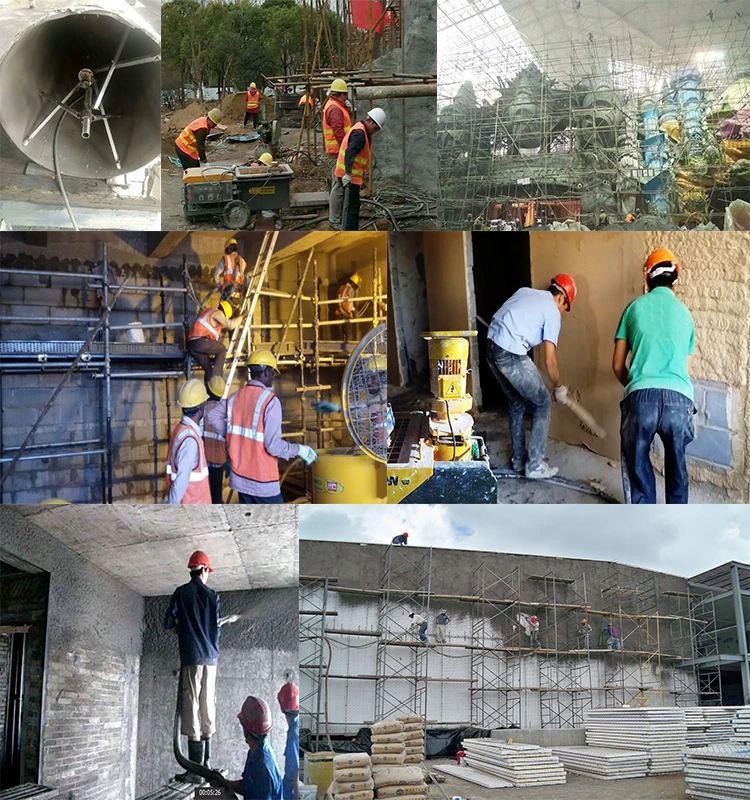

Function&Application
Infinite number of possible applications
**Base coat plaster (interior and exterior) **Scraped and floating render **Sprayed and textured render **Rough trowel finish render and **bonding layers **Masonry mortar **Fire proofing
**Sealing slurry **Injection mortar and filling mortar **Dispersion plaster **Glass-fibre-reinforced concrete **Cementitious adhesive **Repair mortar and Insulating plaster **Loam rendering **and much more
company information
Wenzhou Engineering Machinery Co., Ltd. is a member of China Construction Machinery Association, China Bulk Cement Association of Popularization & Development, is the first batch of key enterprises in Zhejiang Province. It is leader of China's mortar spraying technology, and recognized as one of the scale of strong enterprises for the manufacture of mortar spraying machine.
Wenzhou Engineering Machinery Co., Ltd. has been committed to the manufacture of concrete machinery for such a long time, based on the domestic leading technology, relying on international cooperation R & D advantages, together with Germany NORD, CELLMANN and other famous companies to import advanced management concepts and management models, improved product quality management system. Following the ISO9001 quality management system, and with full implementation and effective operation of it, we are able to ensure product’s quality and stability.
Our products are renowned because of high quality and a famous brand at home and abroad. In the 1970s, our company introduced the German plunger type, squeeze type, Screw concrete transportation, Mortar spraying technology into China. And nowadays the continuation of the current concrete pump, mortar spraying machine products from the Chinese market has expanded to Europe, South America, North America, Australia, the Middle East, Southeast Asia, Africa and other regions and countries. Our products with high quality and reliable performance services are popular with the trust of users around the world. Now we have been formed the ability that our annual output of various types of mortar spraying machine reaches 12000 sets.
Exhibition & Visitng
Welcome to our factory!!!
It would be our great honor to show & test our machine for you.
***Clients from AUE/Saudi Arabia/Franch/ Chile/ India visited our factory.
