KV 168A/F 0 формовочная машина для нижнего белья, бюстгальтеров, чашек

Product Overview

Description









Function:  It is mainly used for molding different bra cups, foam pads, shoulder pads, panty pads and other similar products by loading different matched moulds.



Features:

(1) It is delicate and exquisite in appearance and compact in structure. The upper moulds can be easily coincided with the lower moulds so as to operate steadily.



(2) Equipped with the internal heating pipes, imported time meters and thermal insulation material to control temperature.



(3) To direct at the specific temperature control system in the development of bra cups production, we utilize silicon controlled phase shifting triggering current to control heating. So, it can make the temperature more even and steady with remarkable energy-saving efficiency and it will prolong the heating tube's service life.



(4) It adopts independent thermostatic controllers in both sides and upper and lower moulds bi-directional driver, which can balance the temperature of left and right moulds and make effective use of the whole space, overcoming the chromatic aberration caused by the difference in temperature.



Technical parameter:



Power supply / power	220V/8KW
Heating tube size	Φ 12×220mm×500W/200V
Moulding table size	450mm×220mm
Machine size	1450mm×700mm×1850mm
Suitable material	foam sheet

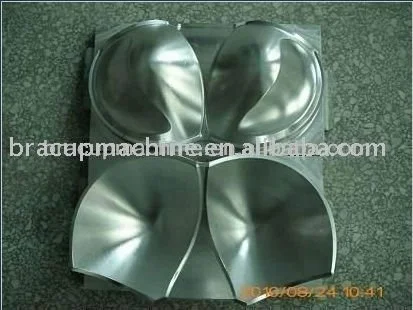

Moulds	bra cup moulds ( to be made as per samples)
Weight	350KG

We are the 1st professional manufacturer & supplier of underwear machinery in Shantou, China Mainland.  Besides, we also have own bra cup factories located in Xiamen City and Dong Guan City. We can supply 400~500 sets of machinery monthly, and 1.5~2.0 million pairs of bra cups/ bra pads in each factory.



1.  MOQ: 1 set



2.  OEM & ODM can be acceptable.



3.  We own all the original R & D Technology and Proficient Experience in this field over 13 years.



4.  All the Moulds can be customized according to your supplied samples.

     CNC Made or Manual Made to be Optical.



5.  The Molding Table Size can be bigger customized if required.



6.  The Molding time and temperature can be preset and adjusted freely through the timers and temperature controllers when we mold / press different materials.



7.  All the digital meters are easy to operate.



8.  All the spare parts can be matched to supply.



9.  All the electric fittings and pneumatic parts used in our machinery are with high-quality.



10. All the raw materials (machine frame, machine fittings and etc) are processed by our own factory.



11. We guarantee there is absolutely without jerry-built.



12. Good & Timely After-Sale Services.







If above details are still not clear for you, kindly please contact me without delay!



Looking forward to cooperating with you for long term!
