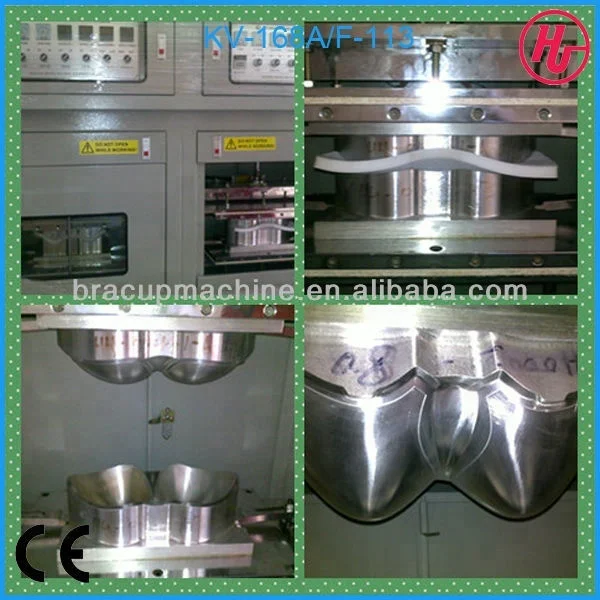

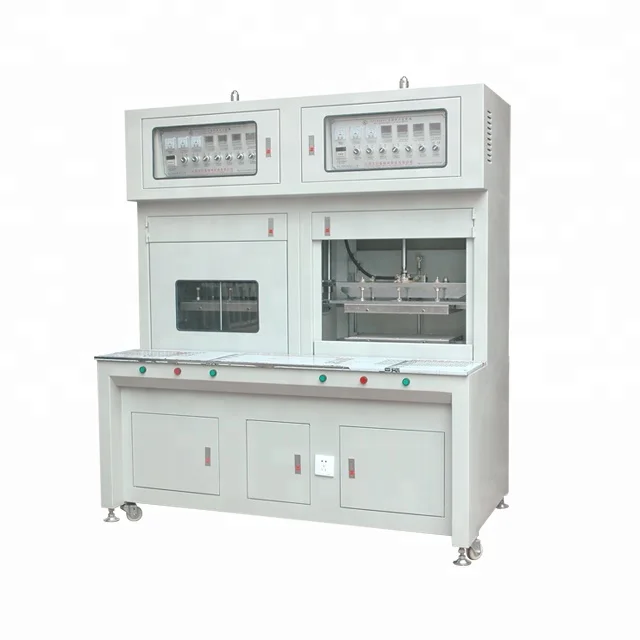

KV 168A/F 113, формовочная машина с большой платформой для бюстгальтеров и чашек роскошного дизайна

Product Overview

Description



Function:



Foam bra cup molding machine is mainly used for molding foam bra cups, foam bra pads, foam shoulder pads, hip/butt /panty pads and other similar products in different styles and sizes by loading different matched moulds.



Features:



1. It adopts four guide rods with a high accuracy in guiding, which saves working time and helps the upper and lower moulds matched steadily.

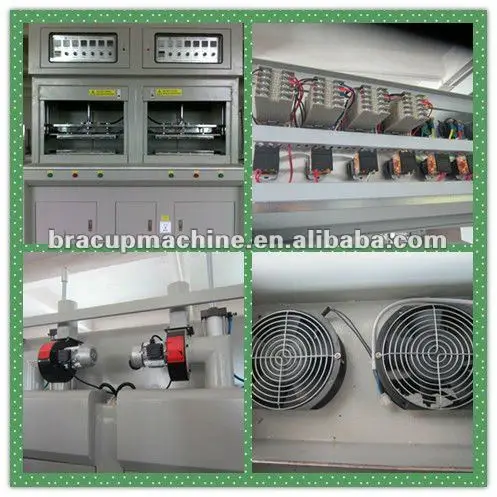

2.  With whole-sealed structure, it has strong pumping installation. Equipped with external cooling fans on the molding table, it is useful for heat dissipation and prolonging discoloring period.

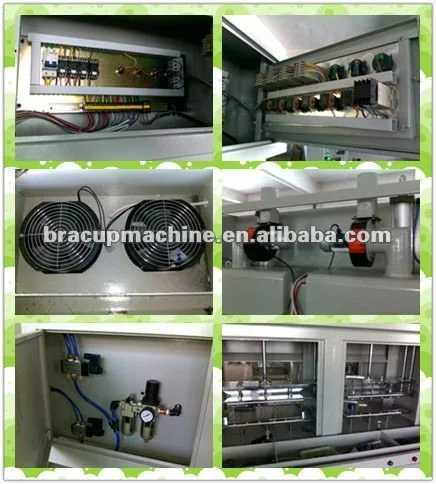

3.  The electric box is two-doubled door, which can protect electrical appliance. The outdoor has equipped with toughened glass window. The temperature controller is of good vision which can help operator view directly the temperature in each part and it is handy to be adjusted.



4. To direct at the specific temperature control system in the development of bra cups production, we utilize silicon controlled phase shifting triggering current to control heating. So, it can make the temperature more even and steady with remarkable energy-saving efficiency and it will prolong the heating tube’s service life.



5. Equipped with automatic elevating device for material support, which is handy for worker to fetch and put materials and save much space.



Technical parameter:



Power supply / power	220V/9.6KW
Heating tube size	Φ 12×300mm×400W / 200V
Moulding table size	500mm×300mm (L*W)  or 450 ×220mm ( L*W )
Machine size	1700mm×820mm×2100mm / 1450mm×700mm×1850mm
Suitable material	pure foam sheet or laminated foam-fabric sheet

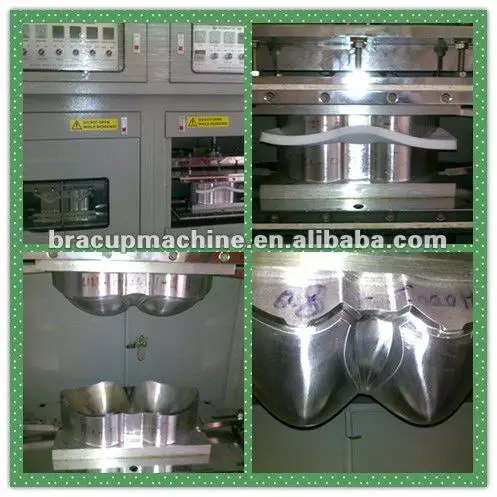

Moulds	Aluminum moulds ( to be made as per samples)
Weight	550KG

1.  MOQ: 1 set



2.  OEM & ODM can be acceptable.



3.  We own all the original R & D Technology and Proficient Experience in this field over 13 years.



4.  All the Moulds can be customized according to your supplied samples.

     CNC Made or Manual Made to be Optical.



5.  The Molding Table Size can be bigger customized if required.



6.  The Molding time and temperature can be preset and adjusted freely through the timers and temperature controllers when we mold / press different materials.



7.  All the digital meters are easy to operate.



8.  All the spare parts can be matched to supply.



9.  All the electric fittings and pneumatic parts used in our machinery are with high-quality.



10. All the raw materials (machine frame, machine fittings and etc) are processed by our own factory.



11. We guarantee there is absolutely without jerry-built.



12. Good & Timely After-Sale Services.



We are the 1st professional manufacturer & supplier of underwear machinery in Shantou, China Mainland.  Besides, we also have own bra cup factories located in Xiamen City and Dong Guan City. We can supply 400~500 sets of machinery monthly, and 1.5~2.0 million pairs of bra cups/ bra pads in each factory.





If above details are still not clear for you, kindly please contact me without delay !



Looking forward to cooperating with you for long term!
