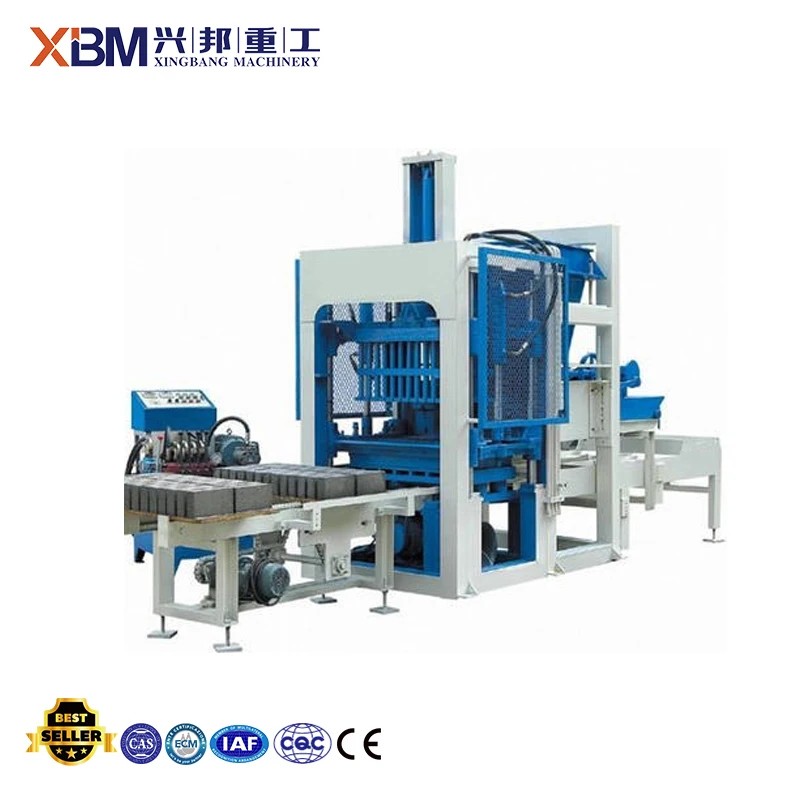

Fully Automatic cement Concrete Brick Making Machine for paving construction

Product Overview

Description

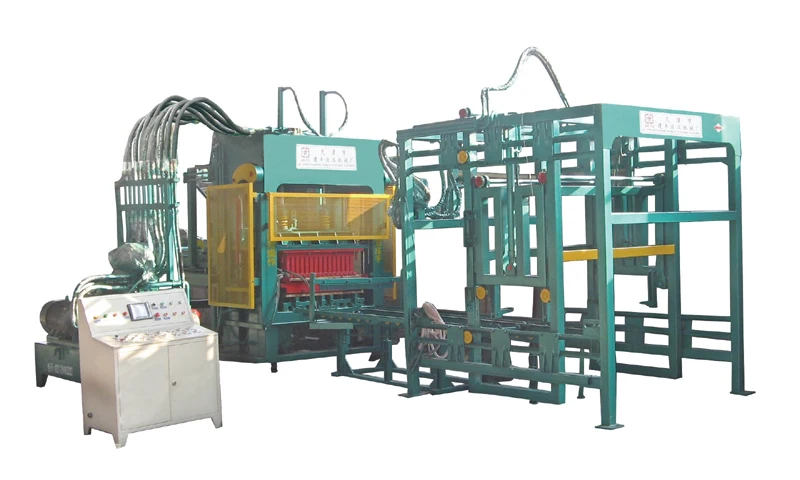

  Fully Automatic Small Clay Brick Making Machine



Fully Automatic Brick Making Machine Introduction:



More info please contact us.



Fully Automatic Brick Making Machine Advantages:

Fully Automatic Brick Making Machine, Large Capacity and Energy Saving
1. Wide use of raw material. The industrial wastes, such as coal ash, gangue, slag, smelting slag and the end of raw materials can be made into blocks. More environmentally friendly, energy saving, waste recycling and reuse.
2. The body using high-precision, high-strength castings and special welding techniques and materials, rigid, and resistant to vibration, long life.
3. A multi-purpose machine, through the replacement of mold can produce different specifications of brick, hollow block, curb stone etc.
4. The whole process with PLC intelligent control system and the human-machine interface dialogue, easy to ensure the effectiveness of the best machines.



Brief intruduction of fully automatic brick making machine:

a) Oil hydraulic machine according to the standard of intenational.

b) The vibration system contains platform vibration and mould vibration, so the products is very close-grained and produced quickly.

c) Machine frame: Maganese steel with China national standard.



Control system



a) PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function.

b) The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.



 Available raw materials



crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite and other industrial wastes.



Applied Products



concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.



Technical Specifications



Overall Dimension :	7100×1500×3000 (mm)
Rated Pressure :	16 MPa
Main Vibration Form :	Hydraulic Platform vibration
Cycle Time :	15~25 seconds
Vibrating Frequency :	4500-5100 rolls/minute
Motors Power :	31.25 KW
Pallet Size :	850*680 (mm)



 Productivity(can change moulds)



Block	Size	Cycle time	Qty/mould	Qty/hour
Hollow Block	390*190*190mm	16-20s	6pcs	1080 pcs
Hollow Block	240*115*90 mm	15-18s	14pcs	2800 pcs
Solid Block	240*115*53 mm	14-17s	30pcs	6800 pcs



   Hydraulic Cement Brick Making Machine, One Machine can make more than 20 different types of brick making mahcine, just need to change the mould.

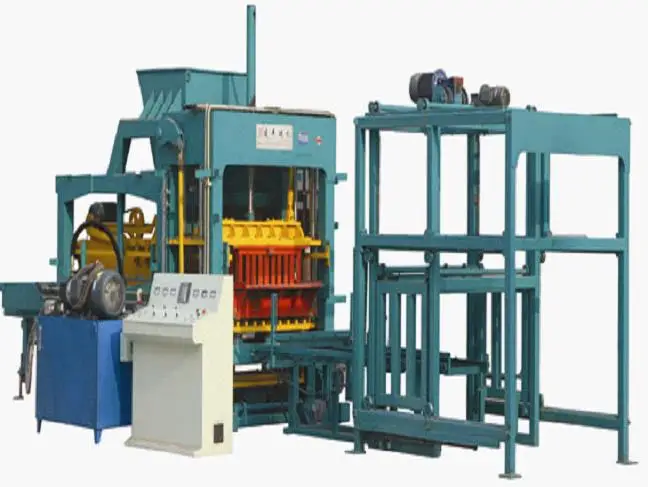

   Fully Automatic Small Clay Brick Making Machine

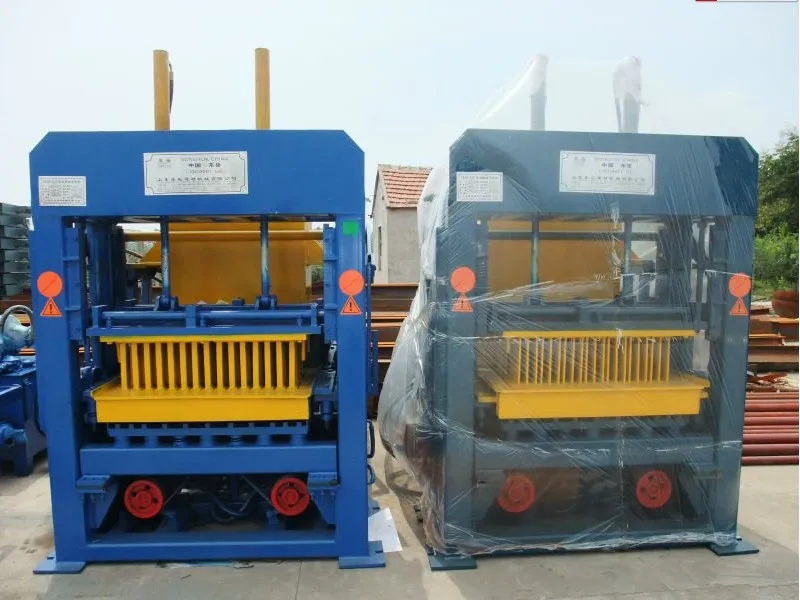

Fully Automatic Brick Making Machine in our Factory:









  Thank you for taking the time to go through our fully automatic brick making machine, If you habe any question, inquiry or comments, please feel free to contact us.
