CE SHD160 plastic pipe butt welding machine

Product Overview

Description

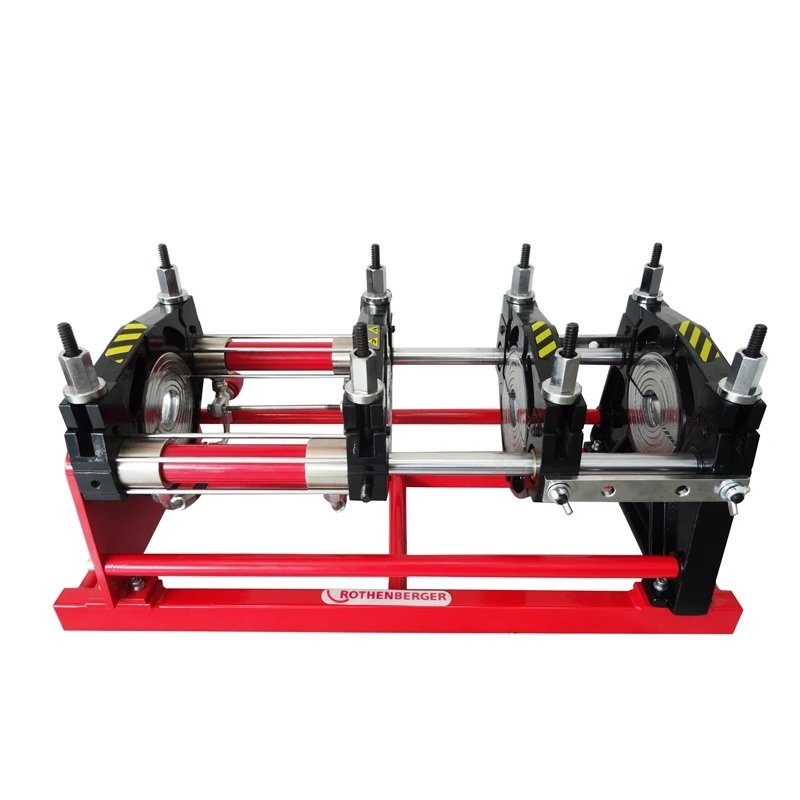

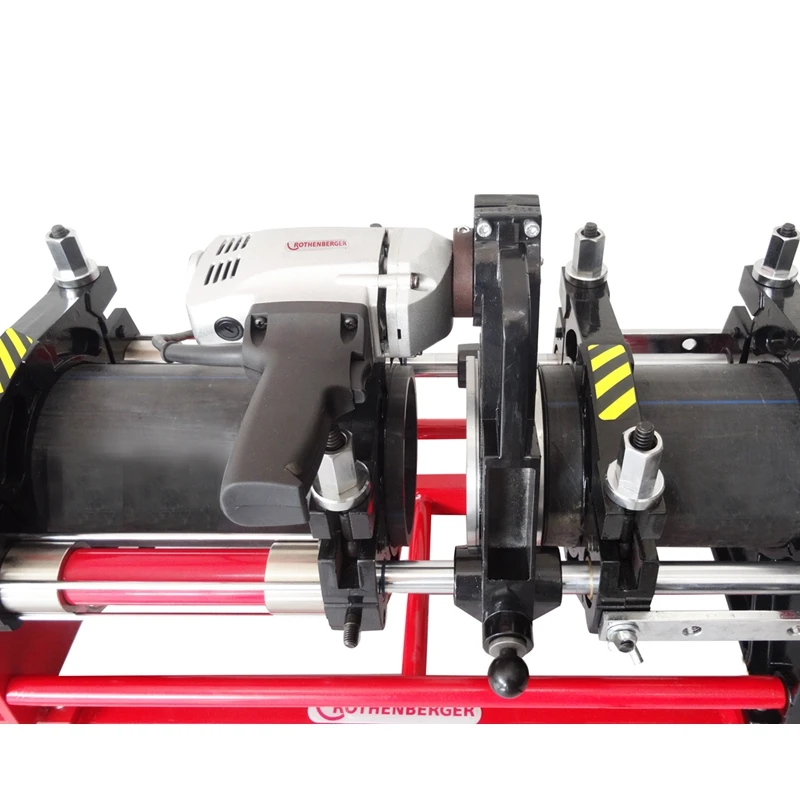

CE SHD160 plastic pipe butt welding machine



Application and features:
> SHD160/63  field butt fusion welding machine suitable for butt welding of plastic pipes and / or fittings made of PE, PP, and PVDF in a ditch in worksite or workshop.

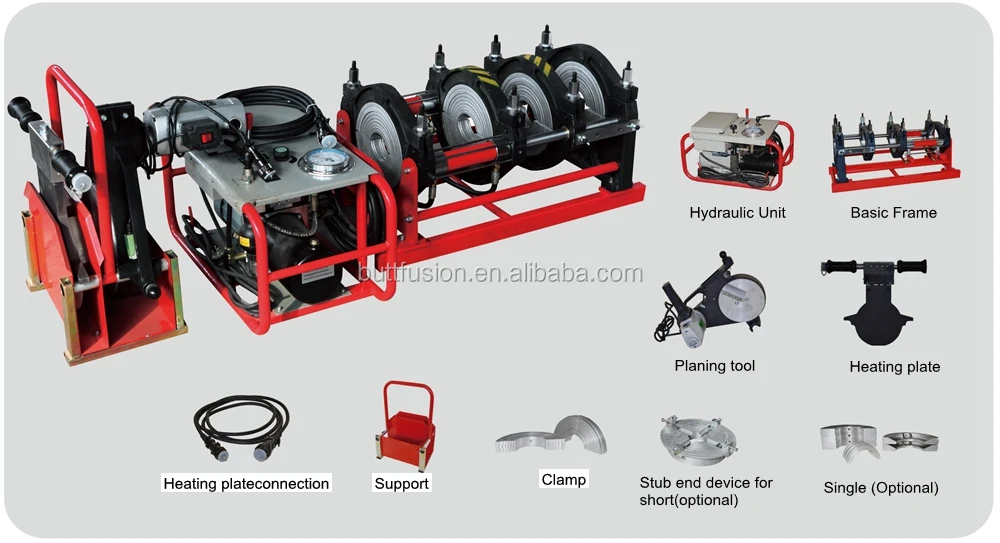

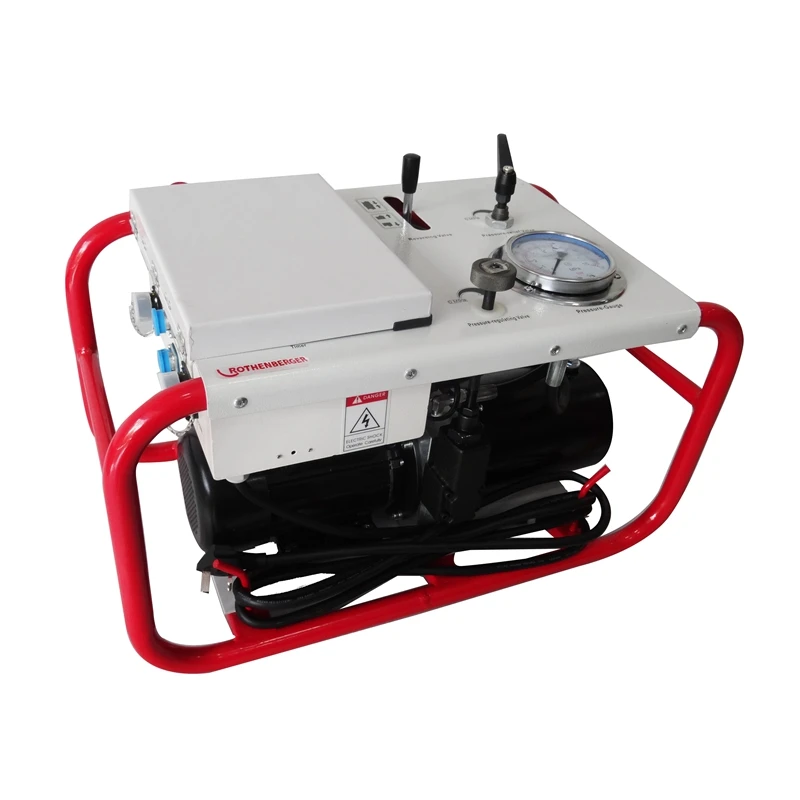

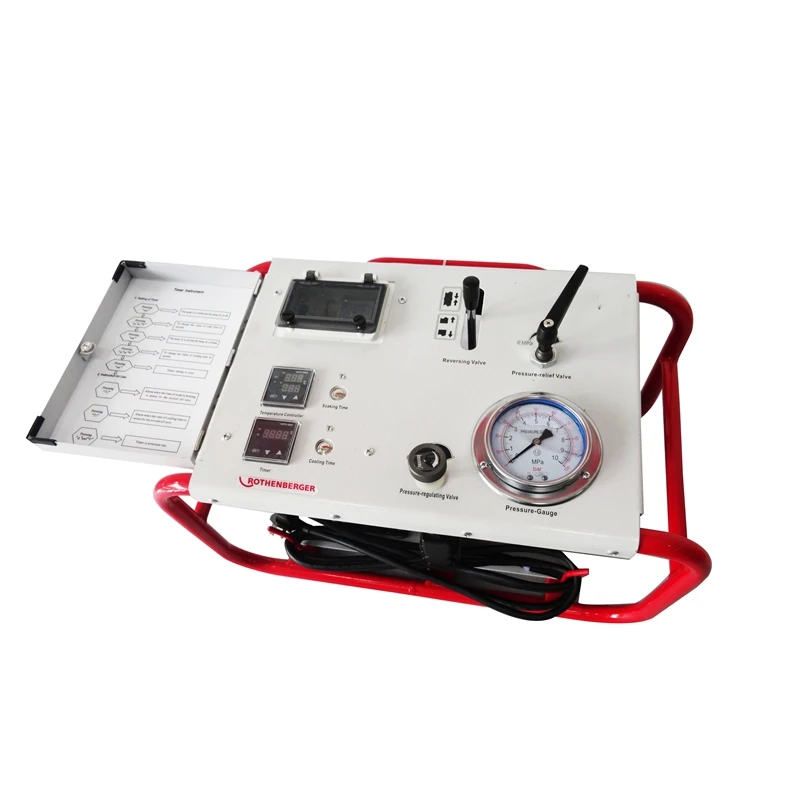

> SHD160/63  field butt fusion welding machine consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
> Removable PTFE coated heating plate with high accurate temperature control system;

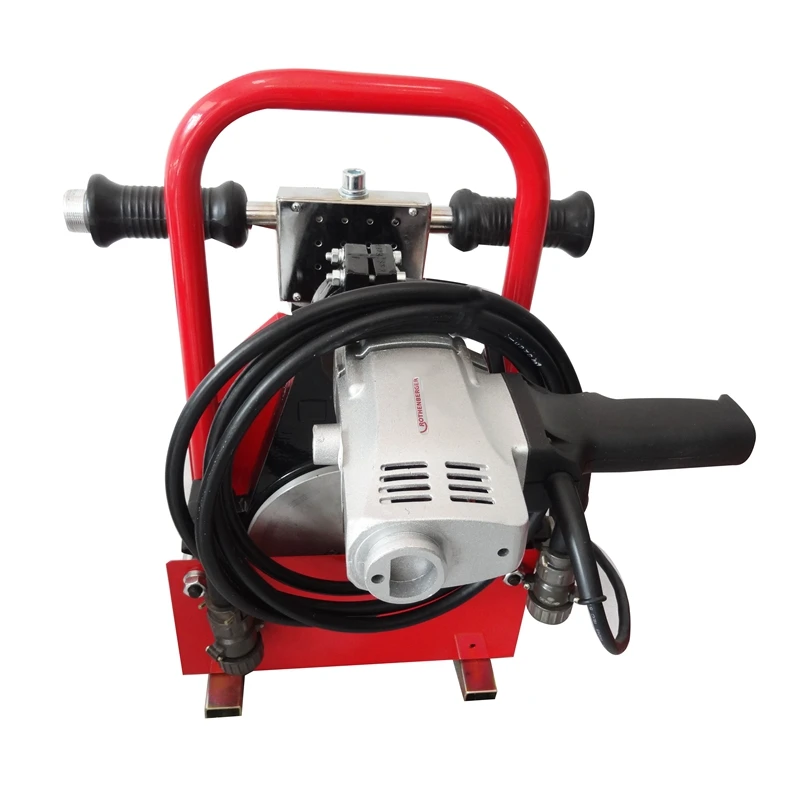

> Electrical planing tool.
> Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.
> Low starting pressure ensures reliable welding quality of small pipes.
> Changeable welding position enables to weld various fittings more easily

> High accurate and shockproof pressure meter indicates clearer readings.

> Separate two-channel timer records time in soaking and cooling phases.



SHD160/63  field butt fusion welding machine optional parts:

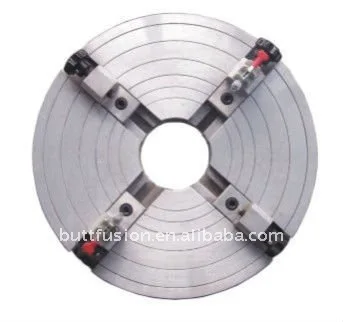

♦ Stub end device for short flange stub

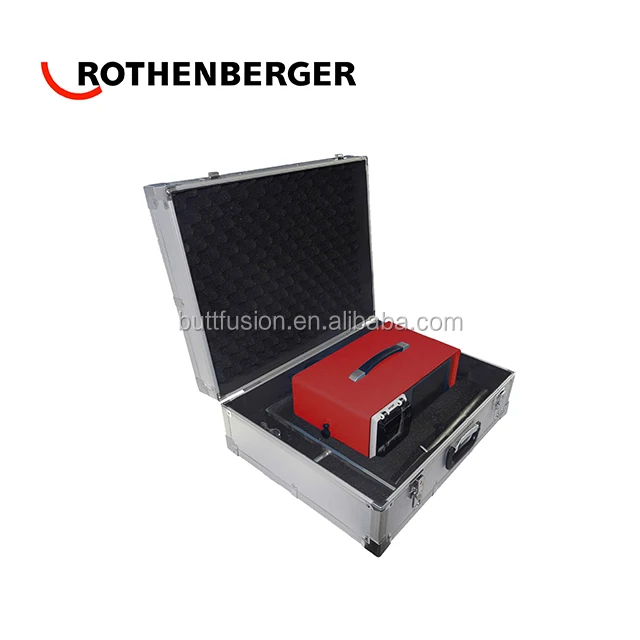

♦ Data logger





The main parameters:



Model		SHD160  field butt fusion welding machine
Pipe Size(mm)		63,75,90,110,125,140,160
Heating Plate Max. Temp		270°C
Temp. deviation in surface(170~250°C)		<±7°C
Pressure adjustable Ranges		0-6.3Mpa
Working Voltage		220V,50Hz
Heating plate power		1.5KW
Planing tool r Power		1.1KW
Hydraulic unit power		0.75KW
Total power		3.35KW
Weight		106Kg
Packing	Cases	3 Plywood Cases
	Volume	0.58CBM



Packing list:



Item	Dimension with packing(mm)	N.W(kg)	G.W(kg)	Remark
1	1000×470×520	40	66	Basic frame (include liner 140~63mm)
2	500×450×580	25	38	Heating plate,planing tool, support, attachments and fittings
3	730×480×600	46	64	Hydraulic unit
Total	0.585CBM	111	168
