Тандемные оси закрытый грузовой прицеп 10x6x7

Product Overview

Description

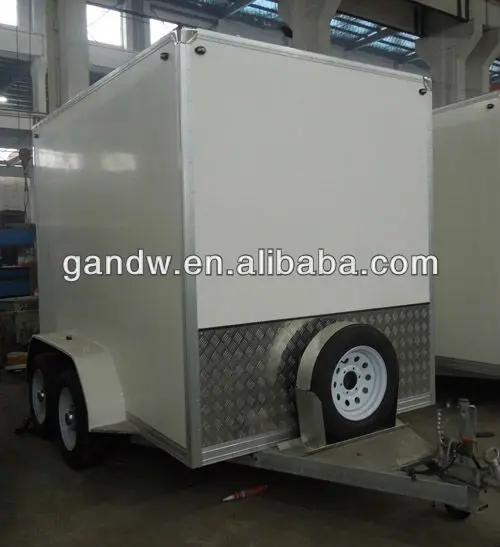

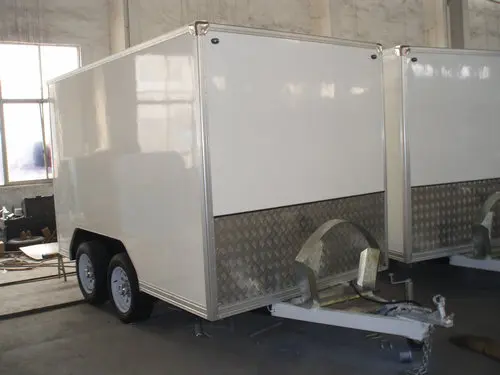

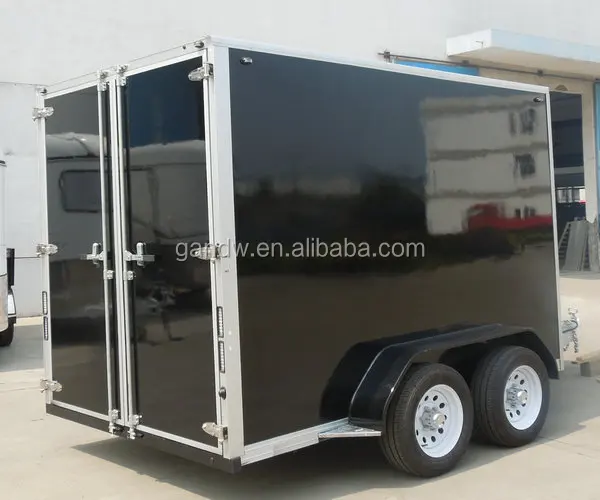

Tandem  Axles Enclosed Cargo Trailer 10x6x7





Over Dimension	(LxWxH:mm):4248x2230x2544
External Dimension	(LxWxH:mm):3048x1829x2184
Inner Dimension	(LxWxH:mm):2988x1769x2099
Trailer Weight	650 KGS
Max Payload	850 KGS
Chassis	Hot dipped galvanised chassis ,  50x50x2.5mm,   70x50x3mm
Safety chain	Safety chain D-ring,   d=10mm,    weled chain 2500kgs,   550mm length
Coupler	D= 50mm load 3000kg ,   with hand brake lockable
Brake	Hydraulic Disc brake both axle with hand brake
	Hand brake with soft axle function
Suspension	6 leaf spring,  60x6x700or 80x80x5=d=25 rubber bar
Body frame	Tube 30x30x1.5mm
Drawbar	100x50x5mm,  1300mm
Body material	1.5mm outer fiberglass,    middle 31mm sponge,  inner 1.2 fiberglass moulded in one pc with steel tube inside
Rim	5hole /6hole 15X6J
Tire	5pcs 195/70R15C , load 850kgs,  tire is outside the box
Axle	2pcs 20#square steel 40x40mm,
Axle distance	840mm
Mudguard	Fiberglass mudguard
Jocket	BD-03A2
Door	Rear ramp door with high quality spring assist
Floor	3mm checker plate or 18mm plywood +1.5-3mm checker alu
Light	LED light, rear lights 2pcs,    internal roof light 1pc
	Outer view width lights 2pcs,   licence board light 1pc
Plug	7 pin plug round or flat
Spare wheel bracket	1pc galvanised with lock in front
Alu decoration	Stainless steel wrapped corner,   aluminum wrapped round corner and downside
Packing	1x40'hq container can load 3pcs
Option	Alu roller shutter door
	Rear ramp door with high quality spring assist
	Side door
	Square shape or V shape
	Break away switch with 12v battery
	Alloy wheel
	Gas strut for rear door
	Electric drum brake
