MPEG2/4 H.264 HD 4 channel HDMI to DVB T/C/ATSC encoder modulator
- Category: >>>
- Supplier: Dexin Digital Technology Corp. Ltd. (Chengdu)
Share on (692460799):
Product Overview
Description
NDS3542 MPEG2 HD/MPEG4 HD Encoder Modulator
Product Overview
NDS3542A series products are DEXIN’s new breakthrough all-in-one devices which integrate encoding (MPEG-2 HD, MPEG-4/AVC H.264) and modulation (DVB-C, DVB-T, ISDB-T, or ATSC) to convert V/A signals into RF output. It has equipped with 4 HDMI channels input and 1 ASI input and output with 2 ASI ports and 1 UDP IP port.
It adopts inner drawer-type structural design which greatly facilitates the change of encoding modules (HDMI/CVBS/SDI/YPbPr/…) as needed.
The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signals are to be received by TVs, STB and etc with corresponding standard.
With its various inputs available, our NDS3542A series products are wildly used in public places such as metro, market hall, theatre, hotels, resorts, and etc for advertising, monitoring, training and educating in company, schools, campuses, hospital… It’s a good choice to offer HD channels and more.

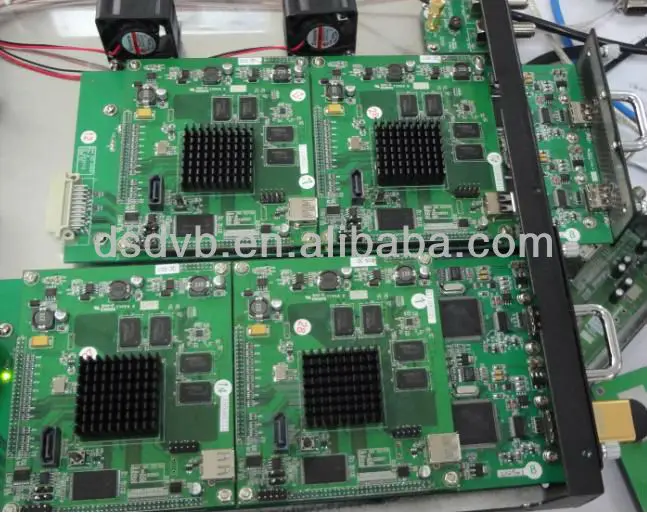

4 HDMI channels HD encoding---------inner structure
Key Features
- Up to 1920*1080@50I/60I supported
- MPEG2 HD/MPEG4 HD video encoding
- 2* HDMI in (2 for backup), 1*ASI in
- 2*RF DVB-C out (2 carriers combined output) available, double output bandwidth available
- Simultaneously encoding each channel more than 18Mbps supported
- LCN support (Logical Channel Number)

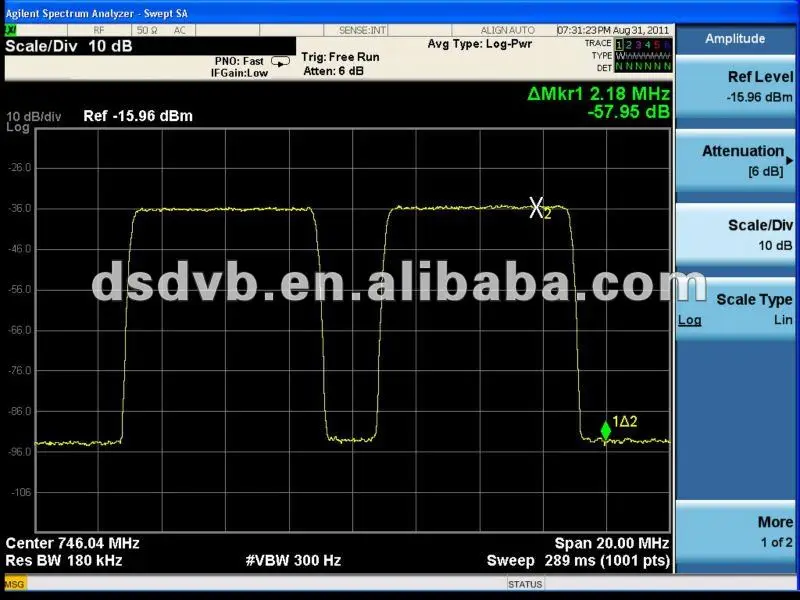

- Excellent modulation quality MER≥42dB
- RF Frequency range 30Mhz~960Mhz
- LCD display, Remote control and firmware
- Updates via web/Ethernet
- Lowest cost per channel - breakthrough price

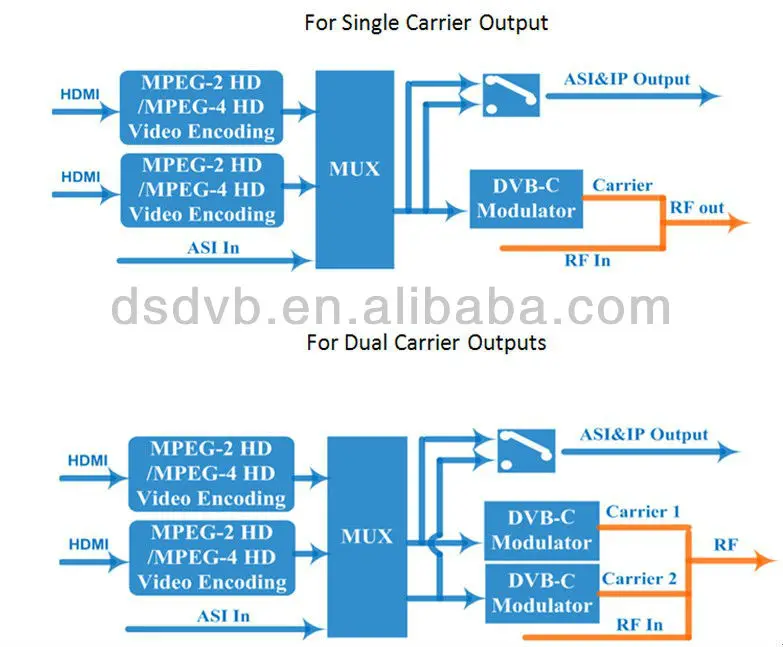

Principle chart

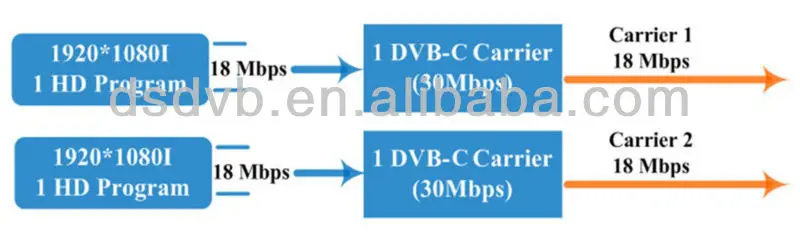

Typical Applicationof Dual Carrier Outputs
Specification
Encoding Section
Video
Encoding | MPEG2 HD/MPEG4 HD |
Input | HDMI*1 (1 for backup) |
Resolution | 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P |
Audio
encoding | MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC |
Sample rate | 48KHz |
Bit rate | 64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |
DVB-C Modulator Section
Standard | J.83A , J.83B, J.83C |
MER | ≥42dB |
RF frequency | 30~860MHz, 1KHz step |
RF output level | -30~ -10dbm(81~97 dbµV), 0.1db step |
J.83A |
|
Constellation | 16/32/64/128/256QAM |
Symbol rate | 5.000~9.000Msps adjustable |
bandwidth | 8M |
J.83B |
|
Constellation | 64QAM/ 256QAM |
bandwidth | 6M |
J.83C |
|
Constellation | 64QAM/ 256QAM |
bandwidth | 6M |
System
Local interface | LCD + control buttons |
Remote management | Web NMS |
output | ASI out (BNC type); IP out (RJ45, 100M) |
NMS interface | RJ45, 100M |
Language | English |
General
Power supply | AC 100V~240V |
Dimensions | 482*300*44mm |
Weight | 4.5 kgs |
Operation temperature | 0~45°C |
