Fully Automatic Power Car Antenna 12V with ISO DIN Plug
Fully Automatic Power Car Antenna 12V with ISO DIN Plug

Fully Automatic Power Car Antenna 12V with ISO DIN Plug

Share on (693808546):


Price:

Quantity:


Product Overview

Description

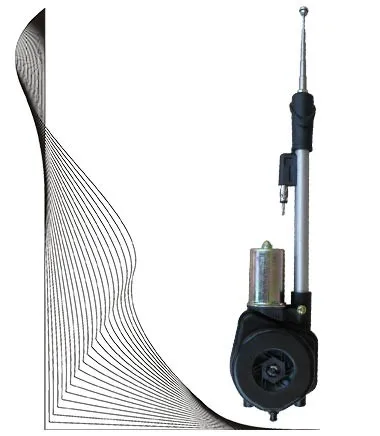

Fully Automatic Power Car Antenna 12V with ISO DIN Plug











1. Voltage Range: DC10-14V;Cable length: 1.5m;Extend Around: 850mm;Under fender: 325mm;Cable: 75ohms cables,line length 1.5m
2. Built-in import micro relays, 3C-2V coaxial cable.Long life time--the service life of more than 50,000 times greater than the top edge 4KG.
3. Fully Automatic when you connect it to the power cable.Signal receive--Stainless steel mast.
4. A good AM/FM acceptable performance.Waterproof performance, low noise; Easy to install.
5. Material:Stainless Steel;Current: 0.7±0.2A;Working Voltage : DC12V;Plug: ISO DIN plugs.









Specification










TLA1070


1.Assemble Location: A piller
2.Working principle: switch control
3.Rod length: 850mm
4.Sections: 5
5.Material: SUS304
6.Coaxial Cable: 75ohms, Length: 1200mm
7.Radio connector: Motorola plug
8.Multi-mounting base interchangeable
9.Fits car:Case for most car

Basic Parameters
1.Rated Voltage:DC 12V
2.Operation voltage: 10-16V
3.Cable model: 3C-2V
4.Characteristic impendance: 75Ω±3Ω
5.Electrostatic capacity: 69PF/m±5PF/m
6.Max workong voltage: 16V
7.Working temperature range: -40°C~80°C






Use
