hot chamber die casting machine zamak moulding injection machine
US $23850-$29270
Hot zinc alloy continuous die casting machine
- Category: Die Casting Machine >>>
- Supplier: Ningbo Dongfang Die-Casting Machine Tool Co. Ltd.
Share on (694318089):
Product Overview
Description
Our factory
In Ningbo Dongfan Die-casting machine Tool Co.,Ltd., the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 30 years, we always have perisistently pursue to provide perfect cold/ hot chamber die cast machine and sincere service. We are devoted ourselves to higher and better die cast technology in die casting are in China.
* With a history of over 37 years * Factory Area : 40,000 square meters
*Employees : More than 500 *Production Capacity : 10,00-sets yearly capacity
*Company owed Tech & Research center * Main Machines: 100sets

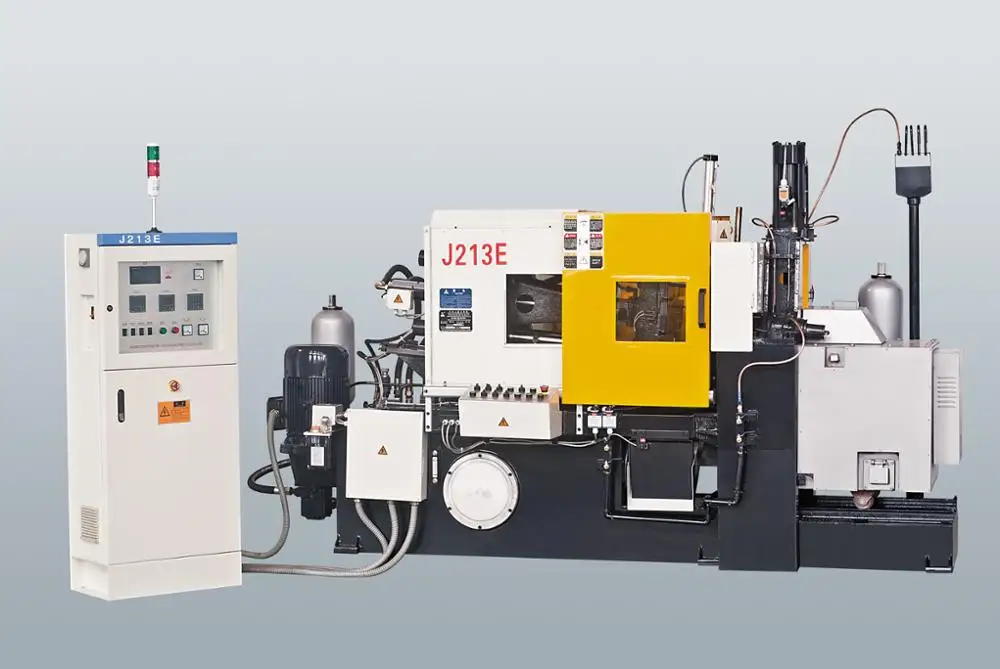

Hot chamber die cast machine
We can supply hot chamber die casting machine with the die locking force from 160kN to 1900kN. We do best in the manufacturing process from the material,including forging steel and iron plates, to manchining, japanning and assembly.
Features and applications
1.38Ton Hot Die-casting Machine
2.Suitable for zinc and lead alloy
3.PLC and person-machine interface

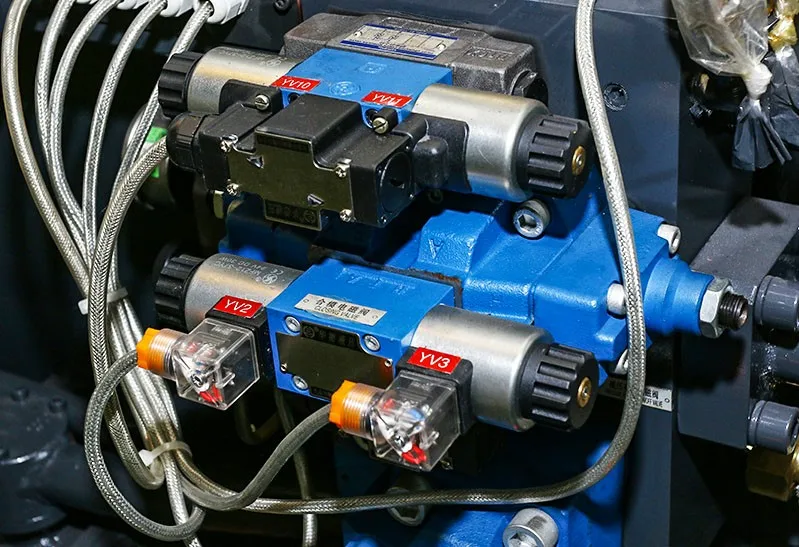

4.Large-directional control valve for high quality
5.Remote machine control and trouble locating functions
This hot chamber die casting machine is suitable for die casting of non-ferrous metal with low melting point, such as Zn, Pb and its alloy. It is widely applied for die casting of fittings of automobile and motorcycle, and parts for instrument and meter, and household appliance hardware of daily necessities.

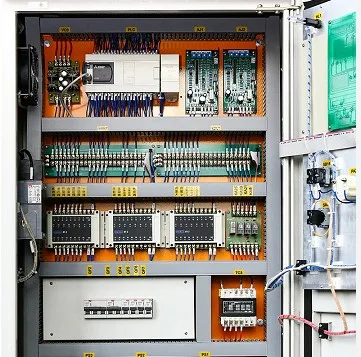

The machine is controlled by industrial level microcomputer. The die casting process parameters can be set up through the person-machine interface and import pressure control valve ensure easy operation of parameter and program setup. The injection system uses large-directional control valve, ensuring die casting parts have high quality. The machine has remote machine control and trouble locating functions.
The machine is equipment with imported electronics and hydraulic parts, ensuring a reliable and safe whole-machine performance, it is an advanced typed of die casting machine within our country at present.

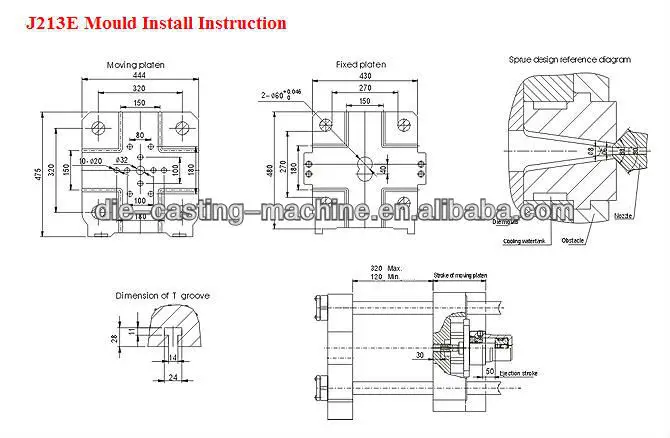

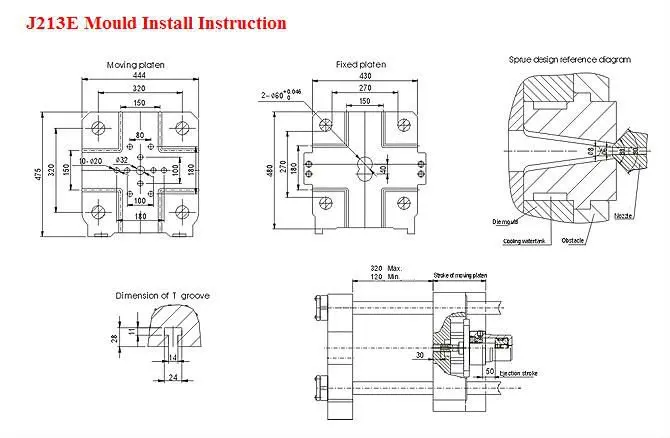

SUBJECT | UNIT | J213E |
Die lock force | kN | 380 |
Inner space between bars(HXV) | mm | 270 X270 |
Thickness of die block (Min./Max.) | mm | 120/320 |
Stroke of moving platen | mm | 210 |
Ejection stroke | mm | 50 |
Ejection force | kN | 45 |
Injection force | kN | 45 |
Injection stroke | mm | 110 |
Diameter of shot sleeve | mm | 50 |

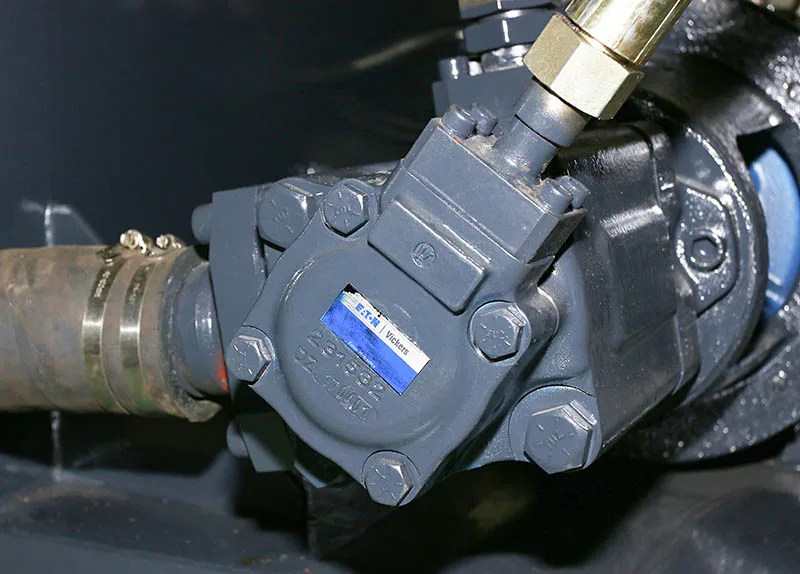

Working pressure of vane pump | MPa | 9 |
Fluid metal dosage per shot(Zinc) | kg | 1.1 |
Effective volume of crucible(Zinc) | kg | 160 |
Max. projecting area of casting | cm2 | 134 |
Oil consumption of burner | Kg/h | 1.5~6.0 |
Volume of oil tank | kg | 320 |
Motor power | kW | 7.5 |
Machine weight | kg | 3300 |
Overall dimensions(L X W X H) | mm | 3500X1450 X 2100 |
FAQ
Q:Are you a manufacturer of a trade company?
A:We are a manufacturer.And we have our own Export rights.
Q:If we don't know how many tons machine will be suitable for our products ,what we should do ?
A:It 's no proplem.You can send us the the weight ,size and the materials of your products and our professional master will recommend the most suitable machine with you .
Q:How is your delivery time?
A:Generally ,we can dilivery the machine within 7-10 days after receiving your advance payment.
But it also depends on the iterm and the quantity of your order.
Q:How about the payment terms?
A:Generally ,the 30% T/Tdeposite ,the balance 70% T/T before delivering the goods.
Q:How about your warranty and after-sales services?
A:We have one one year warranty for the machine .Our professional masters could overseas to help to install and debug the machine also providing free training until you have got the skill.
Q:How about your packing ?
A:Generally ,the machines are in nude packing and the spare parts are in wooden cases.
Q:What is your annual production capacity?
A:About 500 sets per year.
