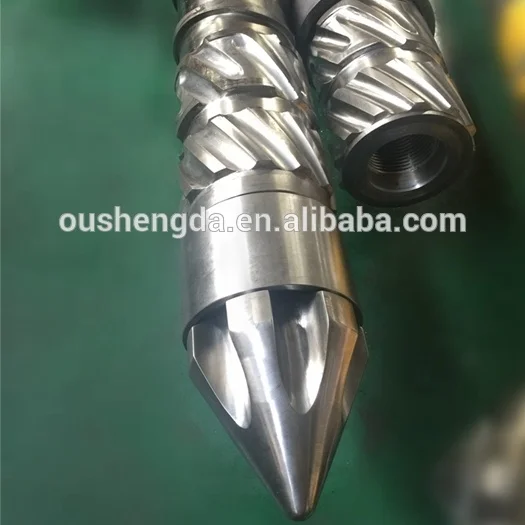

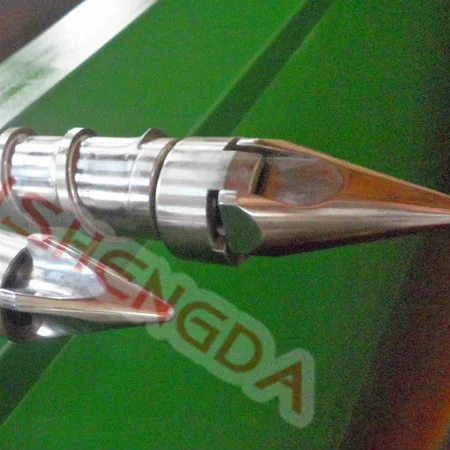

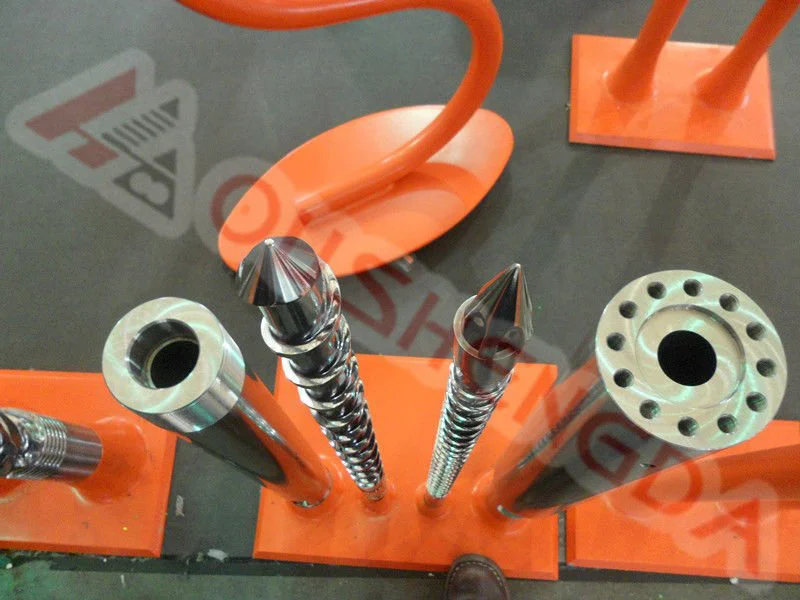

bimetallic injection screw and barrel for Fully automatic Machinery

Product Overview

Description

Hello friends~

We manufacture and offer the best quality of screws and barrels for INJECTION machines.

We provide professional CAD drawing design and dimensional mapping. Provide you with as much service as possible.

Our bimetallic screws and barrels could let you use more time for processing.

We can offer with these models and others models, please just contact with us for confirming the details :)





Ningbo Fully Machinery

GH210, GH250,GH280,GH320,GH380

FL110,FL140,FL170,FL220,FL260,FL300,FL360,FL400,FL520,FL620



DEMARK INJECTION MACHINE

iTP600, iTP800, iTP1000, iTP1200, iTP1400, iTP1600, iTP1800



NINGBO ONGO FRUIT FRAME SPECIAL INJECTION MACHINE ZF360, ZF400, ZF450, ZF500, ZF550.



ACMEPLAS INJECTION MACHINES..





China zhejiang Zhoushan OSD Centrifugal casting bimetallic injection screw and barrel
Diameter	Φ15mm-Φ350mm	Designing	Screw structure and compression ratio can be designed according  to different products  & different clamping force requirement.
Materials	38CrMoAlA  (JIS SACM645) SKD61	Application	All kinds plastic & rubber and All kinds of glass fiber,  the PPA ,PPS ,PA6T ,LCP, electric wood powder,  magnetic powder ,iron powder and other special  engineering plastics
Nitride Case Depth	0.5mm-0.8mm	Technology	1)Longer time Gas Nitriding treatment  2)special anti-wear & abrasion alloy (bimetallic) 3)tungsten carbide 4)cobalt base alloy 5)stainless steel  6)Gh113 nickel based alloy

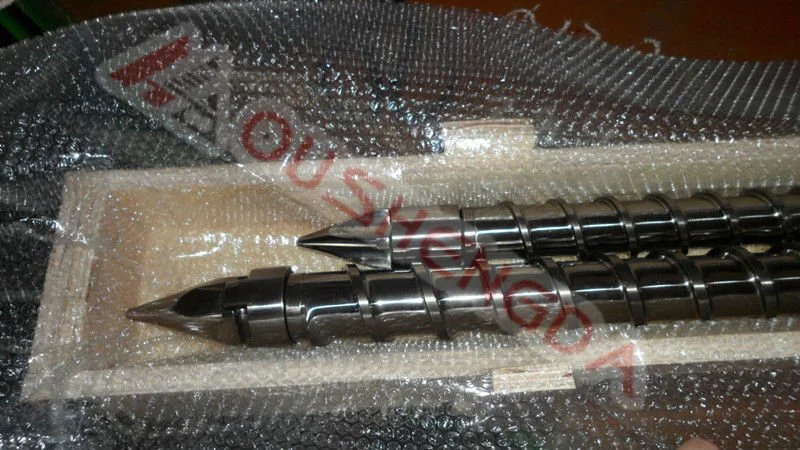

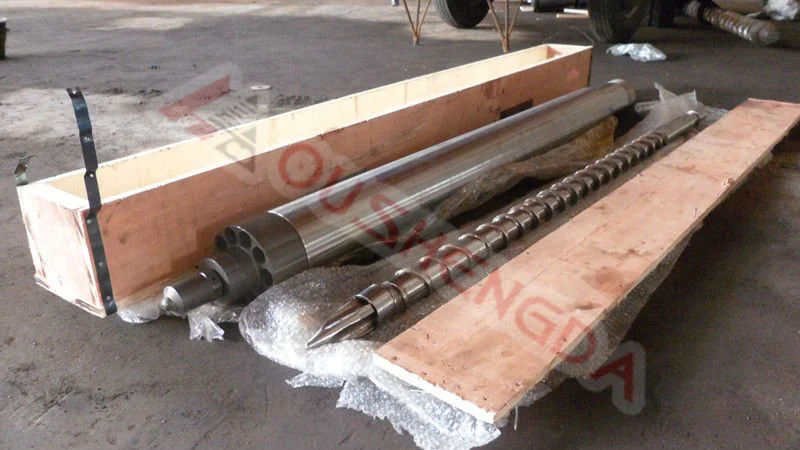

Nitride Hardness	950-1020HV	Packing	Wrapped up by film in wooden
Nitride Brittleness	≤Grade One	Payment Term	T/T , L/C
Surface Roughness	Ra0.4um	Delivery Term	25 working days
Screw Straightness	0.015mm	Port Departure	Shanghai/Ningbo
Alloy Hardness	HRC58-62	Min. Order	1 set
Alloy Depth	0.5mm-0.8mm	Common Nitrided:2.5-4years Bimetallic: much longer lifetime.
Guarantee

If the screw diameter or l/d ratio is not fixed, please feel free to inform the products and injection weight or clamping fource you need we can select & design the matching cylinder screw by your requirement.







Offer Centrifugal casting bimetallic injection screw and barrel
Production scope:
Screw diameter	Φ15~Φ500
Maximum screw length	10,000mm
Barrel inner bore diameter	Φ500mm
Mould Clamping Force	100KN-35000KN
Shot Weight	30-30000g

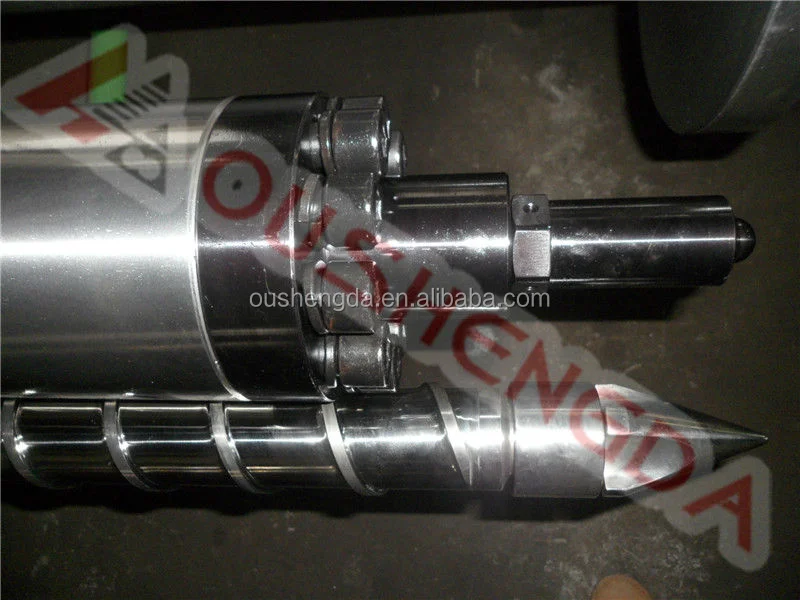

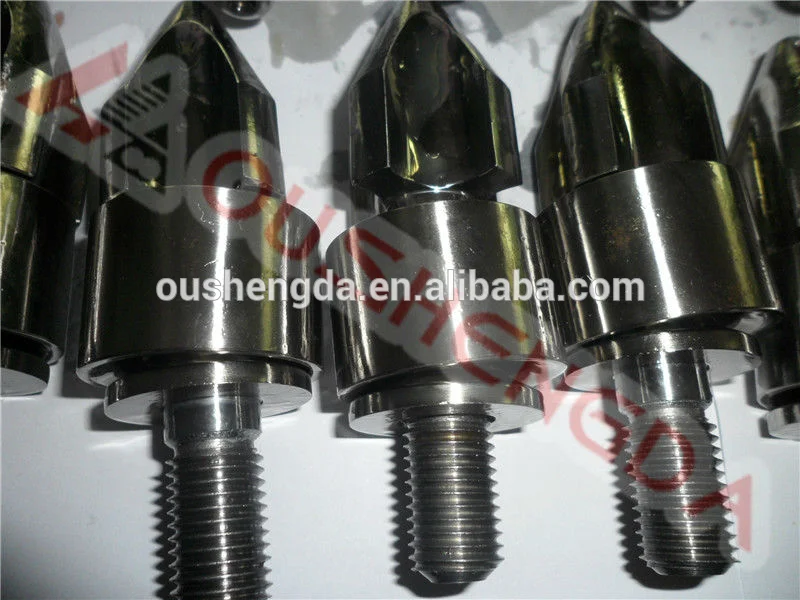

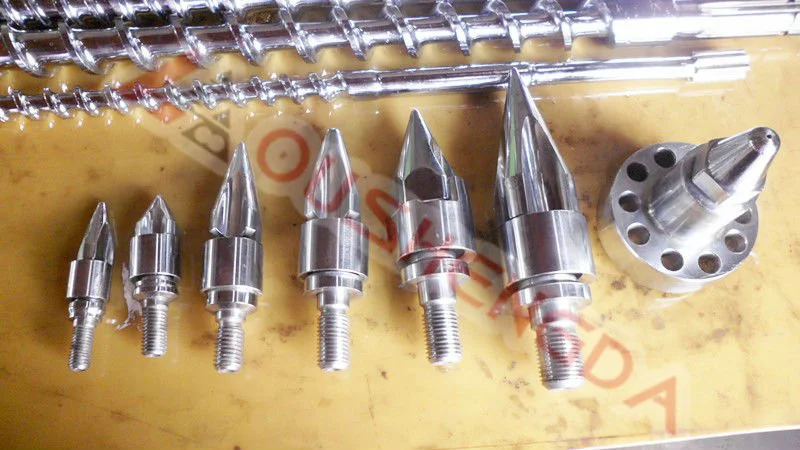

Screw can be mated with different heads.	Barrel can be mated with different nozzles.
The compression ratio of the screw can be designed according to different products and mixtures.
Technical Parameter:
Nitride Case Depth	0.6mm-0.9mm
Nitride Hardness	960-1150HV
Nitride Brittleness	≤Grade One
Surface Roughness	Ra0.4um
Screw Straightness	0.015mm
Duplex Alloy Depth	1.5mm-3.5mm
Duplex Alloy Hardness	HRC60-75
Chromium Coating Thickness	0.025~0.10mm















Final Products Application:









we can make any specification of extruder screw barrel and injection screw barrel for Haitian, Demag, Engle, Nigro bossi, arburg,NPM, BOY, Husky, Fanuc, billion, Sumitomo, Nippon Steel, Toshiba, Nissei, Mitsubishi and etc. We also can supply all types of screw and barrel according to your different requirements.

About O.S.D :

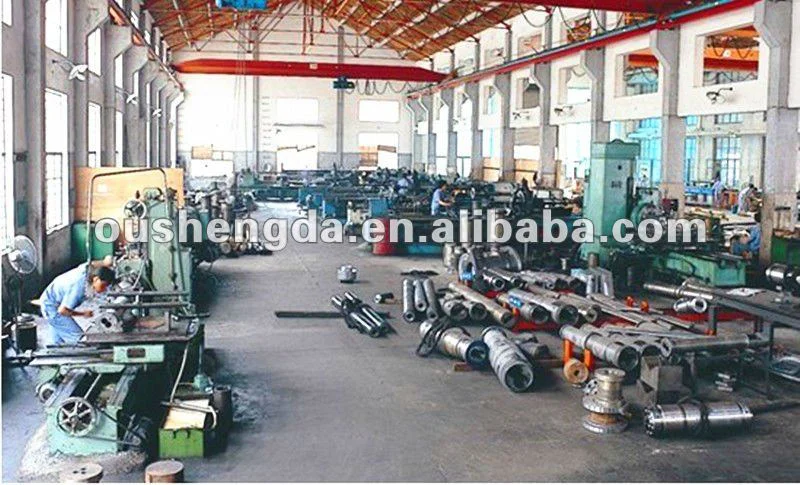

1. Our Strength: We have an experience of more than 20 year of manufacturing and designing Plastic machines, varied Screws and Barrels and spares.  We concentrate on improving quality, updating design and enhancing service.


2. Our products: Screws Barrels for Injection, Extrusion, and Blow Molding applications; relevant accessories(such as die head, gearbox, filter screen changer and so on); plastic processing  machinery.


3. Location advantage: located in China's Screw Town - Jintang Town in Zhoushan City, near to Ningbo Port and Shanghai Port.


4. Market areas: global sales network reaching South America, Eastern Europe, Southeast Asia, Africa, Oceania and the Middle East.


5. We promise: We assure the customer benefits, We provide competitive price, We Emphasis On Cooperation.



Want to know more information about our products ?
