Heat resistance thermal insulation fireproof ceramic fiber cloth

Product Overview

Description

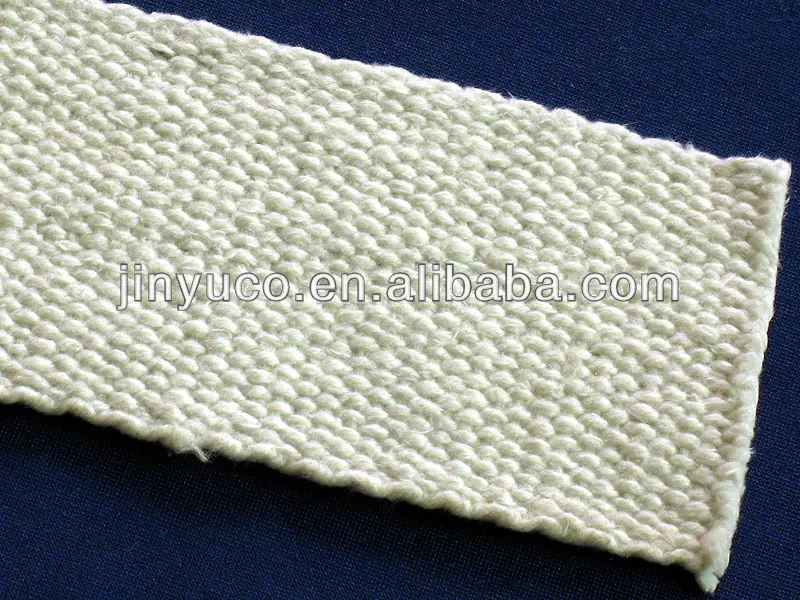

Heat resistance thermal insulation fireproof ceramic fiber cloth is a woven fabric made from our high quality ceramic fiber yarn. It can be used for high temperature applications up to 1260-1430 celsius. The cloth is reinforced with fiberglass filament, and optional Inconel/alloy steel wire. Ceramic fiber textiles (cloth, tape and rope) contain a certain amount of binder material which is normally burned at lower temperature and does not affect the insulation property.  Insert material of metal wire and fiberglass filament are incorporated into the yarn. To increase tensile strength of the fabrics both before and after exposure to heat. Typical applications of cloth, tapes include gaskets, seals, furnace and welding curtains or pipe wrapping.



JINYU 1260 Ceramic Fiber Cloth is a cost-effective industrial cloth manufactured from ceramic fiber yarn, reinforced by a core of glass filament or stainless steel wire for high strength retention at elevated temperatures, ideal for most high temperature applications up to 1260C.



JINYU 1430 Ceramic Fiber Cloth is a high performance industrial cloth made from zirconia grade ceramic fiber yarn, reinforced by high temperature alloy wire. It is durable, long-lasting product, ideal for high temperature applications up to 1430C. JINYU Cloth contains approximately 18% organic fiber which burns out at high temperatures, causing some smoking and outgassing, but the cloth retains enough strength to be used as effective insulating cloth at high temperatures.



Characteristic

  Excellent Chemical Stability

  Excellent Thermal Stability

  Excellent Tensile Strength

  Low Thermal Conductivity

  Low Heat Storage



Ceramic Fiber Cloth Product Characteristics:



1. Excellent insulating performance
2.Low thermal conductivity
3. Excellent tensile performance
4. Excellent high-temperature resistance
5. Non-toxic, harmless and no bad influence on environment;
6. Excellent electric insulation
7. Excellent anti-corrosion of acid, oil and vapor



Availabilities

1. Thickness: 1.5, 2, 3, 5, 6mm
2. Width:1000mm, 1200mm

3. Length: 30m, 50m or according to customer's requirement



Ceramic Fiber Cloth Technical Index:

Type	1260
Name	ceramic fiber cloth		ceramic fiber belt
Code	YRGX-208A1	YRGX-208A2	YRGX-208B1 |YRGX-208B2
Theoretical density(kg/m3)	500	400/500	500
Specification (mm)	30000×1000/2200×2/3		30000×50/75/100×2/3
Name	ceramic fiber round braided rope		ceramic fiber square braided rope
Code	YRGX-208C1	YRGX-208C2	YRGX-208E1	YRGX-208E2
Theoretical density (kg/m3)	500--650
Specification (mm)	20--50,5/10 ladder No.		20×20
Organic content (%)	≤ 15 (cloth, belt, rope)
Packaging	Woven bag (cloth, belt, rope)
Quality environment system certification	ISO9001-2000,



 Ceramic Fiber Cloth Applications:

--Seal of curtain and furnace door of furnace in high-temperature industry
-- Insulation of high-temperature pipe and container
--Soft seal of furnace pipe in petrochemical industry
--Protection for cable and fuel pipe
-- High-temperature protection and compound material manufacture
--Fireproofing rolling shutters

--Furnace curtains
--Protection against high temperature
--High temperature electrical insulation
-- Welding curtains and blankets
-- Insulation of industrial chimney



Package:

30M/ROLL, OR 50KGS/ROLL Or as customers requested, packed in plastic woven bag

The product is featured with low thermal conductivity and sound heat insulation.
