2022 Guaranteed quality Rccn blue white gray black pvc cable trunking HVDRF

Product Overview

Description

   >>Conduit     >>wiring duct             >>cable terminals        >>cable gland     >>cable tie



Top Design, Professional Process, High-Quality Service



KEY FEATURES

• Wide slot/finger design provides greater sidewall rigidity and can be used with a wide range of wire bundle sizes.


• Certificates:UL:E306674 CE:EN50085 RoHS,REACH.


• Made of Low-halogen rigid PVC, environmental friendly, lead-free


• Work temperature:-40 °c to 65 °c


• UL94 Flammability Rating of V-0, low smoke and halogen, inflaming retarding, insulated.


• Provided with mounting holes

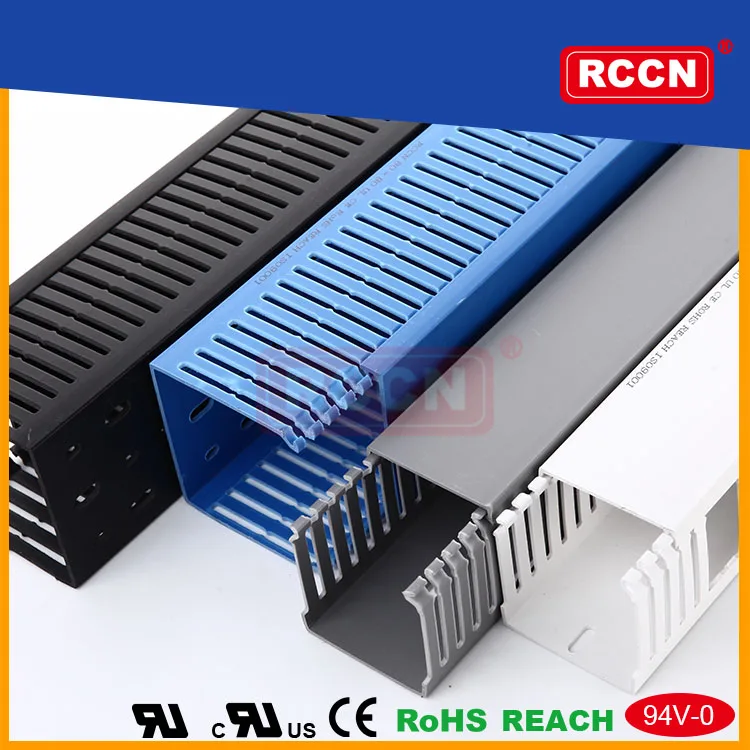

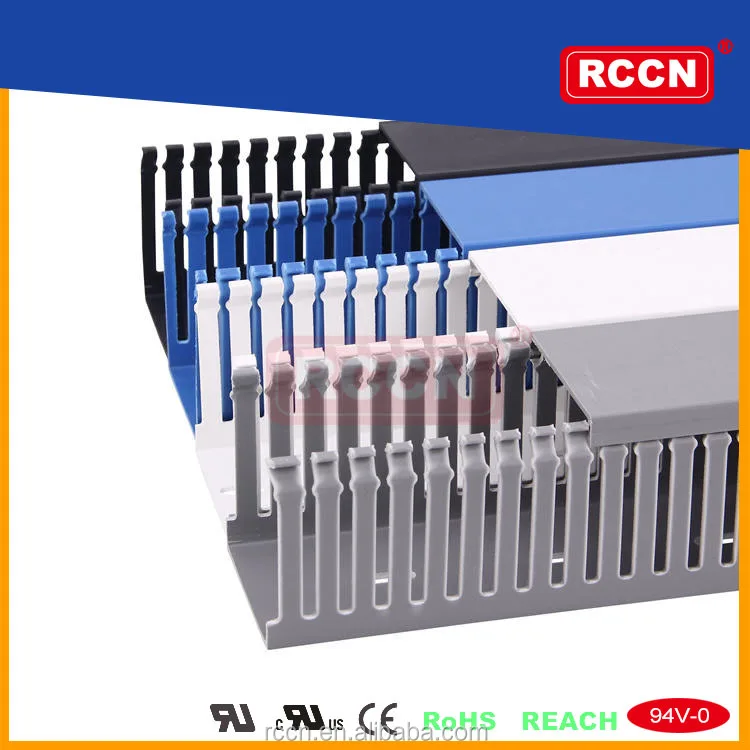

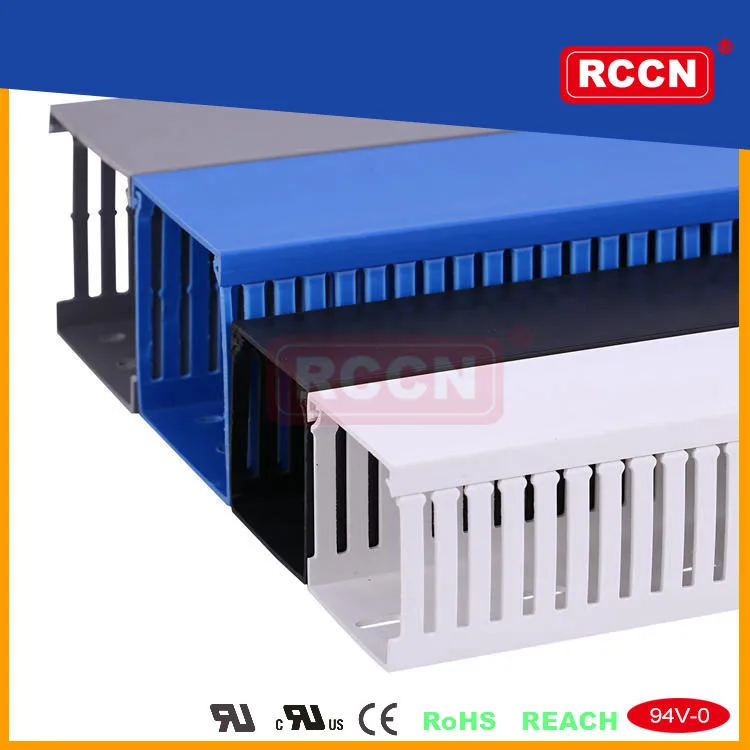

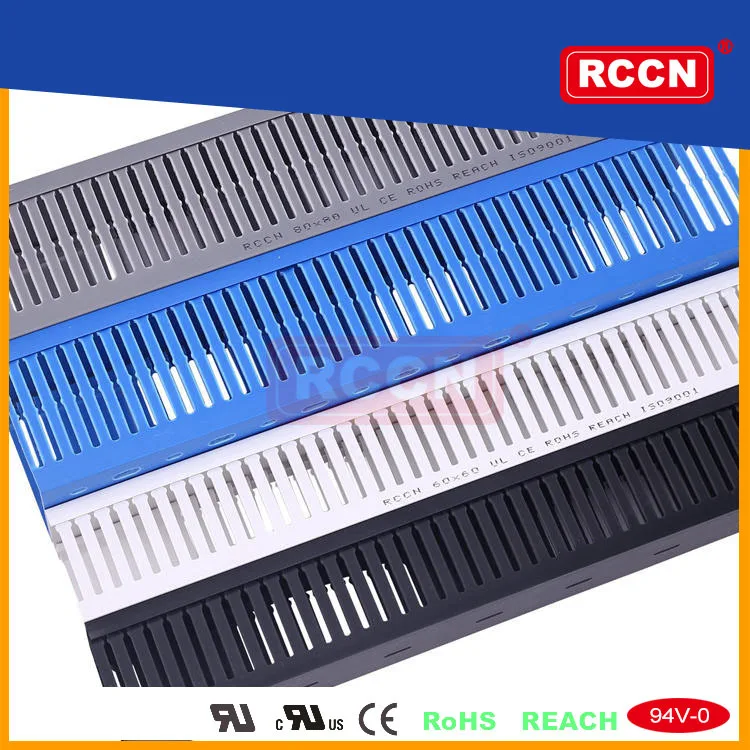

• Available color:gray.white.blue.black and other special colors


• Special length come with MOQ request



Features	Advantages	Benefits
Wide finger and slot design Can be used with a wide range of wire	Finger 12mm Slot 8 mm,Rigid fingers	bundle sizes
Rohs approved Enviroment-friendly Material	Approved by EU Rohs,Compliant with  US UL 94V-0,good inflaming	Eliminates health concerns associated with PVC that contains lead
Smooth rounded edges	Smooth edges in duct slots and  at top of duct fingers	Protects hands and  wiring/cabling from abrasion
non-slip liner inside duct covers	Will not slide easily when installed  on duct base	Cover stays in place during shipment, vibration and when in a vertical  orientation,eliminating rework
Flush cover design Greater capacity than traditional duct designs	Cover sits flush with sidewall	Can potentially use a smaller size wiring duct for same number of wires Provides a neat and finished appearance
Slot smooth	Smooth edge after punching	No need to get offer abrasion, save time
V-shaped slot lead-in V-shape funnels wires into slot for	Easier insertion	Speeds wire installation
Restricted slot design  Once inserted wires are  retained in the slot	with or without the cover being installed	Eliminates hassle and saves time during installation and maintenance
Four different colors	Suitable to different environments using	Can meet different customers'request  in different project
Approved by many certificates	America UL,Canada CULUS,  EuropeCE ,ROHS,REACH, Flamility and low smoking certificate	Can provide related certificates of  the projects or parts need



SPECIFICATIONS



Item No.				W*H	Slot	Finger	Wire	PACK
					width	width	capability
Gray	White	Blue	Black		Q	P	/2.0sp
HVDR6060F	HVDR6060W	HVDR6060E	HVDR6060B	60*60	4	6	120~135pcs	48M
HVDR8060F	HVDR8060W	HVDR8060E	HVDR8060B	80*60	4	6	180~210pcs	36M
HVDR10060F	HVDR10060W	HVDR10060E	HVDR10060B	100*60	4	6	240~290pcs	28M
HVDR11060F	HVDR11060W	HVDR11060E	HVDR11060B	110*60	4	6	250~300pcs	48M
*HVDR12060F	HVDR12060W	HVDR12060E	HVDR12060B	120*60	4	6	260~320pcs	48M
HVDR15060F	HVDR15060W	HVDR15060E	HVDR15060B	150*60	4	6	300~360pcs	16M
HVDR2565F	HVDR2565W	HVDR2565E	HVDR2565B	25*65	4	6	40~50pcs	88M
HVDR3365F	HVDR3365W	HVDR3365E	HVDR3365B	33*65	4	6	40~70pcs	80M
HVDR4565F	HVDR4565W	HVDR4565E	HVDR4565B	45*65	4	6	110~120pcs	52M
HVDR6565F	HVDR6565W	HVDR6565E	HVDR6565B	65*65	4	6	180~200pcs	44M
HVDR7265F	HVDR7265W	HVDR7265E	HVDR7265B	72*65	4	6	180~230pcs	42M
HVDR5075F	HVDR5075W	HVDR5075E	HVDR5075B	50*75	4	6	180~210pcs	42M
HVDR7575F	HVDR7575W	HVDR7575E	HVDR7575B	75*75	4	6	200~240pcs	40M
HVDR2580F	HVDR2580W	HVDR2580E	HVDR2580B	25*80	4	6	100~120pcs	72M
HVDR3080F	HVDR3080W	HVDR3080E	HVDR3080B	30*80	4	6	110~125pcs	56M
HVDR3580F	HVDR3580W	HVDR3580E	HVDR3580B	35*80	4	6	110~130pcs	56M
HVDR4080F	HVDR4080W	HVDR4080E	HVDR4080B	40*80	4	6	140~160pcs	48M
HVDR4580F	HVDR4580W	HVDR4580E	HVDR4580B	45*80	4	6	140~160pcs	40M
HVDR5080F	HVDR5080W	HVDR5080E	HVDR5080B	50*80	4	6	160~180pcs	40M
HVDR5580F	HVDR5580W	HVDR5580E	HVDR5580B	55*80	4	6	160~180pcs	32M
HVDR6080F	HVDR6080W	HVDR6080E	HVDR6080B	60*80	4	6	180~210pcs	32M
HVDR8080F	HVDR8080W	HVDR8080E	HVDR8080B	80*80	4	6	240~290pcs	24M
HVDR10080F	HVDR10080W	HVDR10080E	HVDR10080B	100*80	4	6	260~350pcs	24M
HVDR12080F	HVDR12080W	HVDR12080E	HVDR12080B	120*80	4	6	280~380pcs	16M
HVDR14080F	HVDR14080W	HVDR14080E	HVDR14080B	140*80	4	6	350~450pcs	16M
HVDR25100F	HVDR25100W	HVDR25100E	HVDR25100B	25*100	4	6	110~160pcs	60M
HVDR33100F	HVDR33100W	HVDR33100E	HVDR33100B	33*100	4	6	130~175pcs	44M
HVDR40100F	HVDR40100W	HVDR40100E	HVDR40100B	40*100	4	6	130~175pcs	40M
HVDR50100F	HVDR50100W	HVDR50100E	HVDR50100B	50*100	4	6	220~250pcs	40M
HVDR60100F	HVDR60100W	HVDR60100E	HVDR60100B	60*100	4	6	240~290pcs	32M
HVDR70100F	HVDR70100W	HVDR70100E	HVDR70100B	70*100	4	6	250~310pcs	24M
HVDR75100F	HVDR75100W	HVDR75100E	HVDR75100B	75*100	4	6	260~350pcs	24M
HVDR80100F	HVDR80100W	HVDR80100E	HVDR80100B	80*100	4	6	260~350pcs	24M
HVDR100100F	HVDR100100W	HVDR100100E	HVDR100100B	100*100	4	6	300~400pcs	24M
HVDR120100F	HVDR120100W	HVDR120100E	HVDR120100B	120*100	4	6	350~450pcs	16M
HVDR150100F	HVDR150100W	HVDR150100E	HVDR150100B	150*100	4	6	400~650pcs	16M
*HVDR200100F	HVDR200100W	HVDR200100E	HVDR200100B	200*100	4	6	600~800pcs	16M
HVDR100130F	HVDR100130W	HVDR100130E	HVDR100130B	100*130	4	6	350~450pcs	16M
*HVDR200150F	HVDR200150W	HVDR200150E	HVDR200150B	200*150	4	6	900~1200pcs	16M

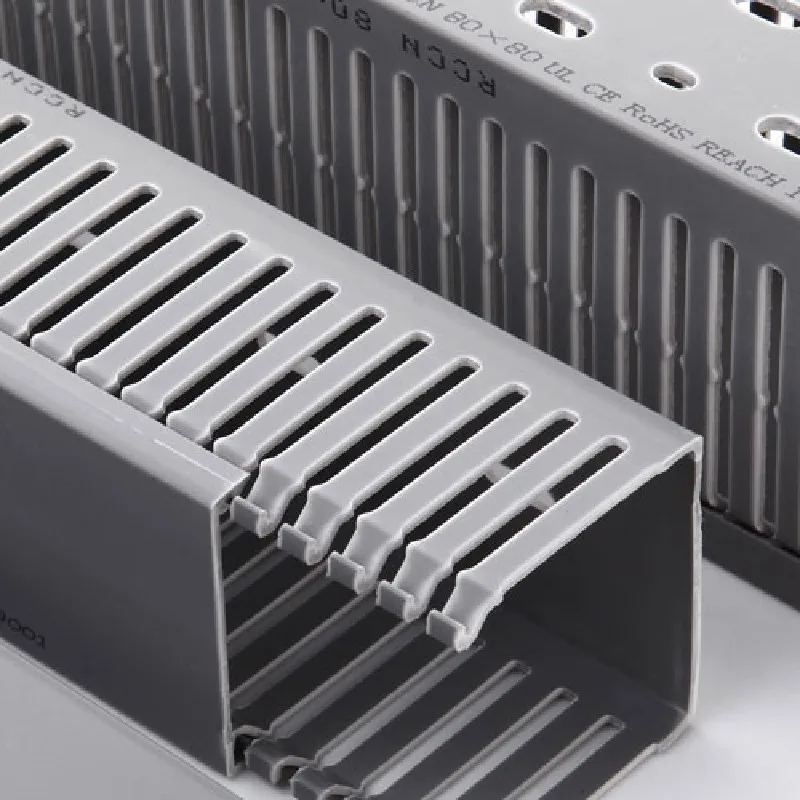

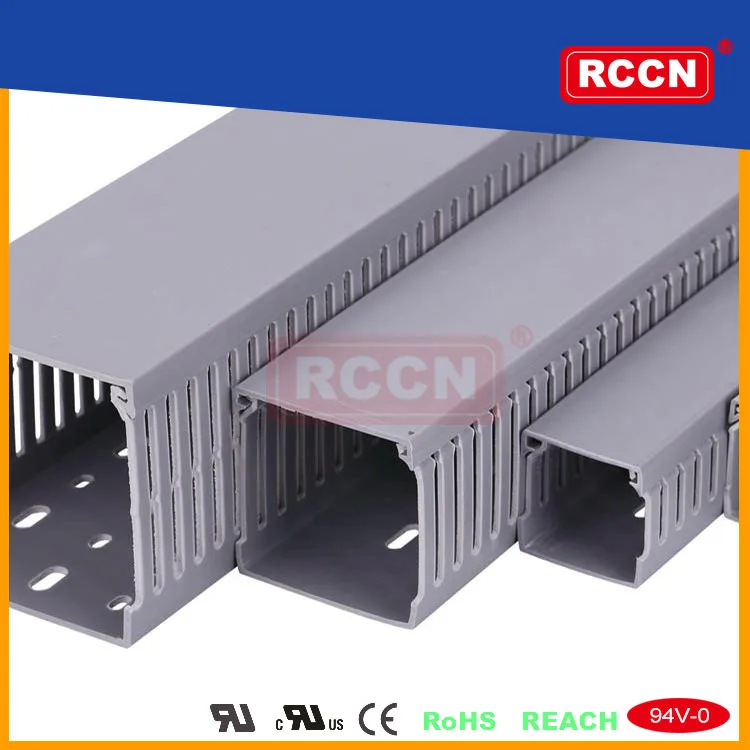

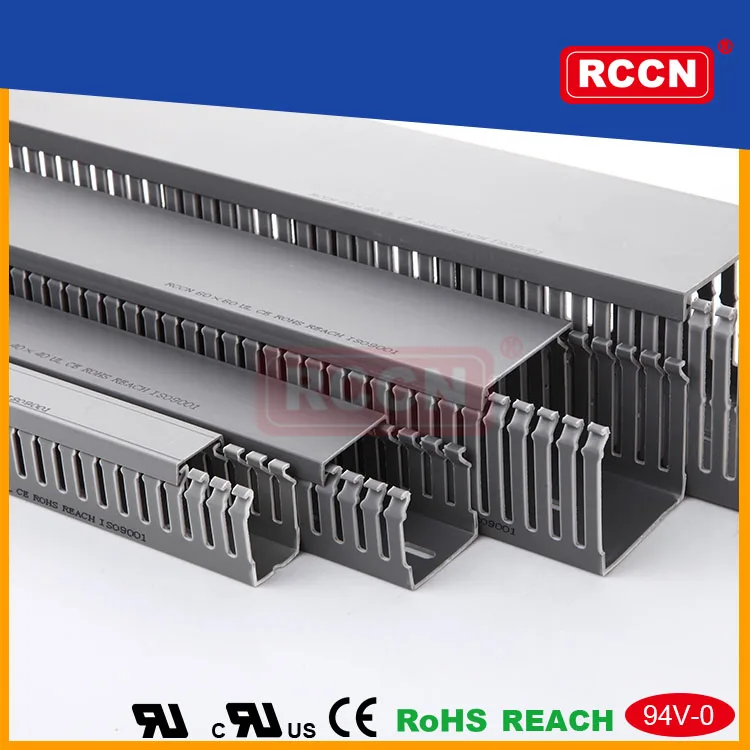

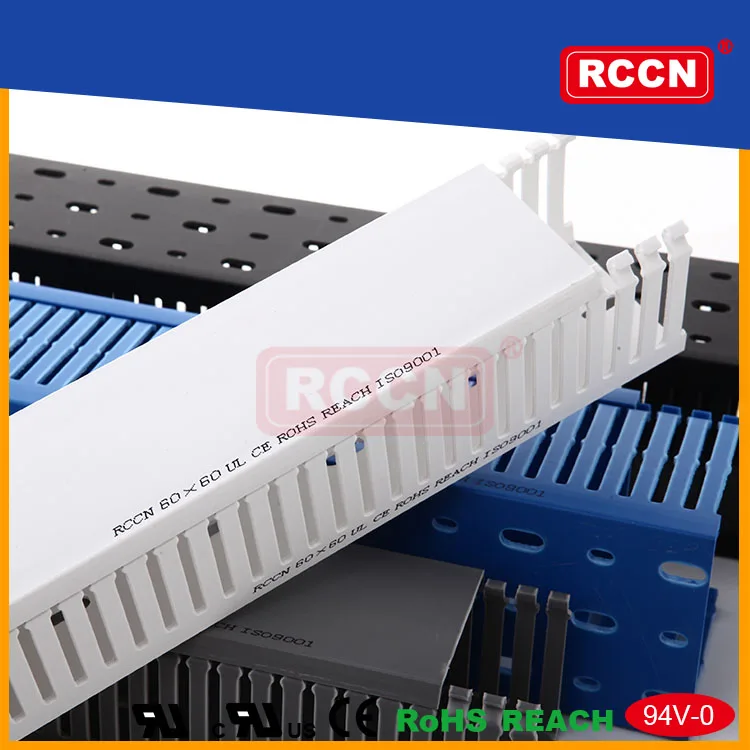

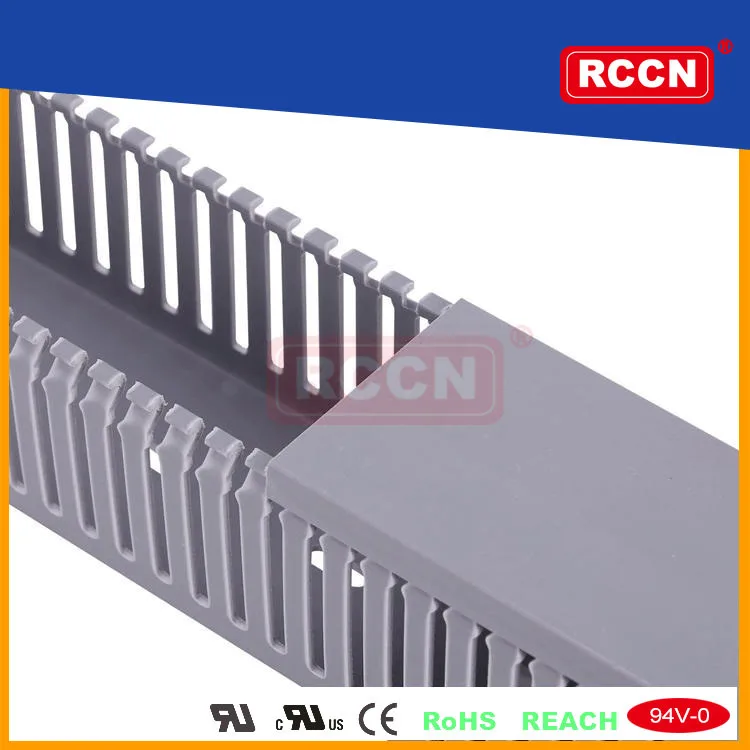

PICTURE OF PRODUCT





















RCCN  GDRF Wide Slot Wiring Duct



 FAQ



1 Q:Do you have your own factory or just a trading company?



A: We have our R&D, producing, marketing and trading team, more than 200 employees in total. With 12 years manufacturing and selling experience in wiring accessories, we can provide you products with best quality, competitive price, satisfying pre-sale and after-sale service.







2 Q: Could you change the size for the customer?



A: Yes, sizes can be customized, for more details please contact us.







3 Q: How many days delivery the order?



A: Normally after deposit or L/C 15 days,In case of urgent need, delivery date can be advanced depends on your request.







4 Q: Do you provide free sample?



A:Yes, Sample can be provided with freight charge to be collected.











5 Q: Do you accept OEM or ODM?



A:Yes, OEM and ODM are available, any legal logo can be printed on the product.







6 Q:How about the after-sale service?



A: Any feedback or comments are welcomed. We have engineers available to solve your application problems.









For more information of Wiring Duct, please feel free to contact us! We provide 7*24 hours service.
