Product Overview
Description

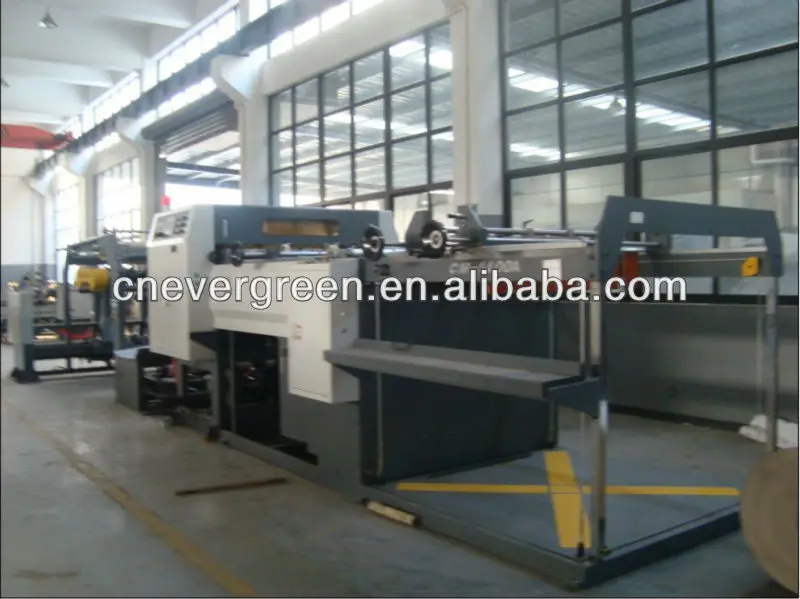

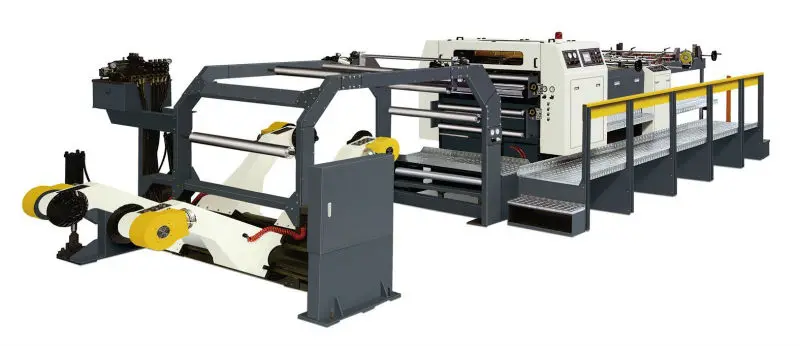

GM 1400/1700/1900 paper roll to sheet cutting machine
paper guillotine, rotary sheet cutter

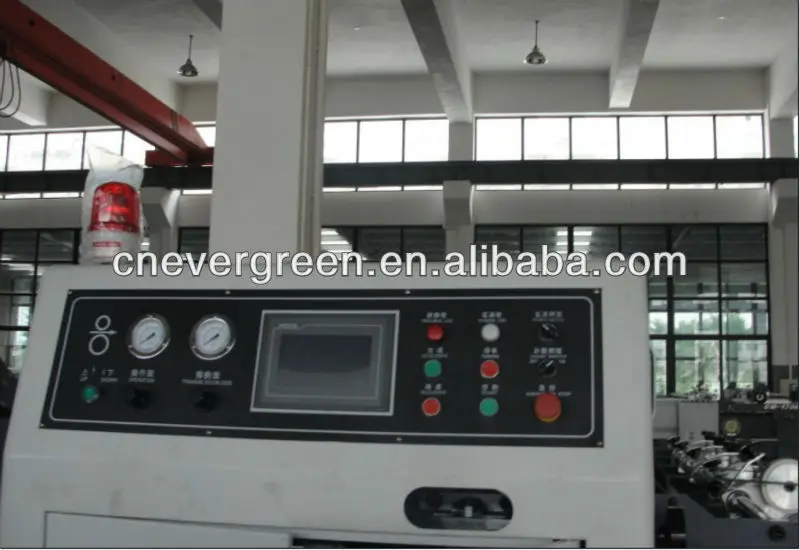

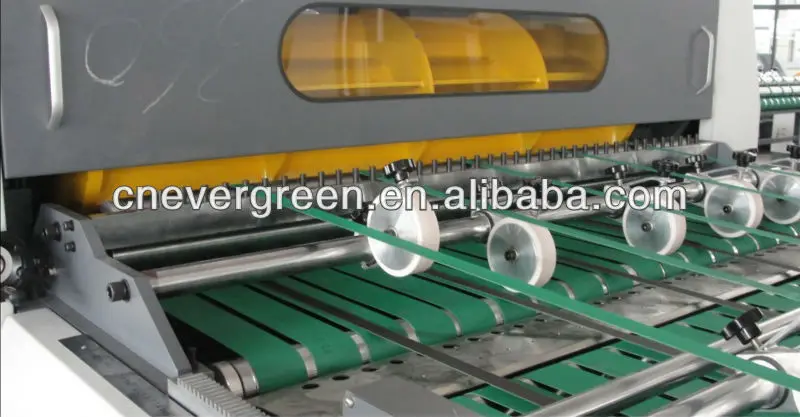

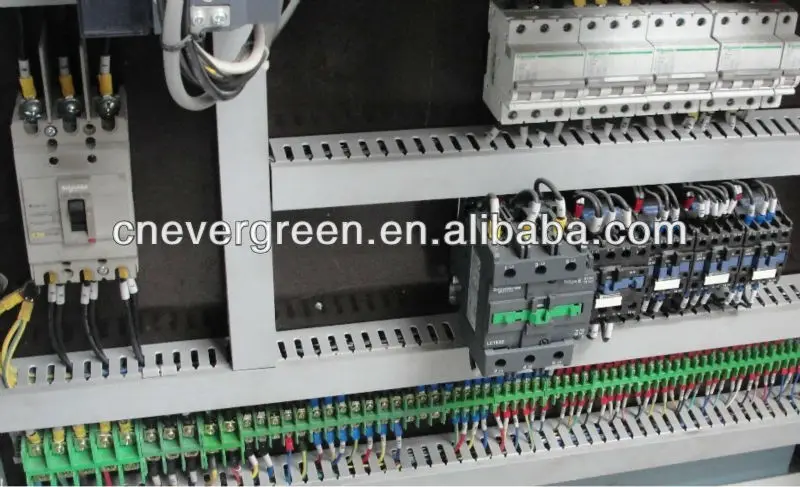

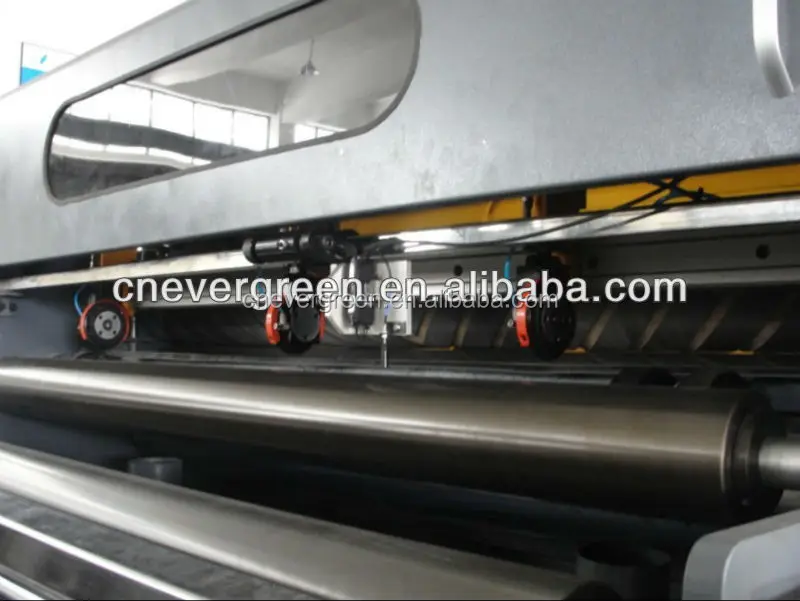

Servo Precision high speed sheet cutter apply the advanced technique of Germany and England, the machine computer control system apply Servo motor and AC transducer which are both international of Top brand ,the conveyer belt apply NITTA from Japan ,The pneumatic vibrator apply FINDEVA form Switzerland, the electrical system adopts Schneider& Omron. It leads to the speed of cutting paper is so fast and stable. Germany precise bearing and cutting knife assure the high cutting precision, the controller of soft-touch computer screen is simple and convenient by operation, the anti-curve rack assure the paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry.
Model | GM-1400/1700/1900 | Model | GM-1400/1700/1900 |
Model of cutting Paper | The up knife cut reciprocally and down knife is fixed | Max cutting line speed
| 300cuts/min
|
Thickness of cutting paper | 60-550g | Cutting length range | 450--1450mm |
Cutting precision | The cutting length 1000mm is ±0.5mm | Paper piling height | 1300mm |
Max cutting speed | 300cuts/min

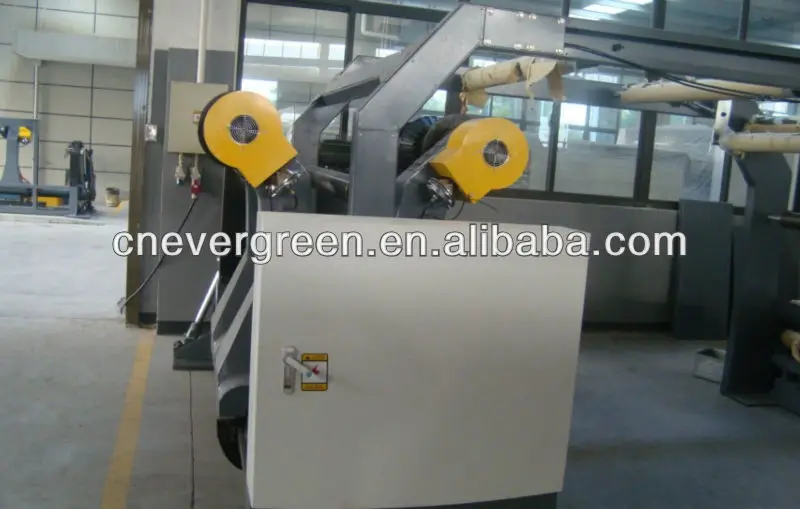

| Max. scroll diameter | 1800mm Max |
Gross Weight | 1300Kgs/ 1500Kgs/ 1700kgs | Max. paper cutting width | 1400mm/ 1700mm/ 1900mm |
Power Supply | 380V/ 220V ± 10% 50 Hz, 60Hz | (The format of slitting) | 2 sheets |
|
|
| |
|
| The requirement of air compressor | 0.8 Mpa |
