Automatic And Semi Automatic Potato Chips Making Line Potato Chips Cutting Machine
This is semi automatic processing line with washing, peeling, cutting, blanching, dehydrator, frying, de-oiling, packing macihne.
capacity is optional with 80kg/h, 120kg/h, 160kg/h.
Machine name | Voltage | Power | Capacity | Dimensions | Weight |

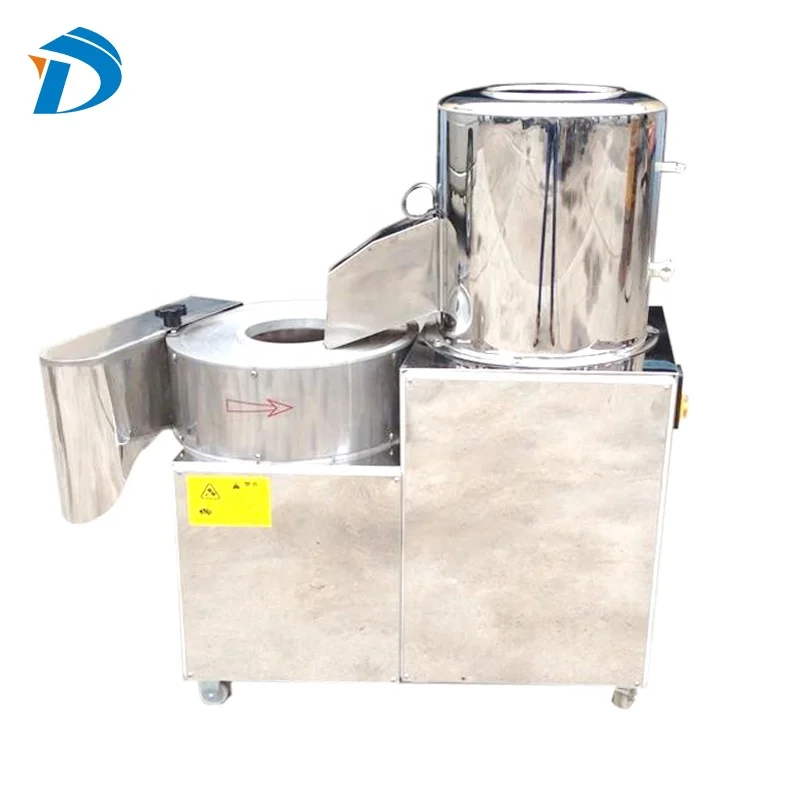

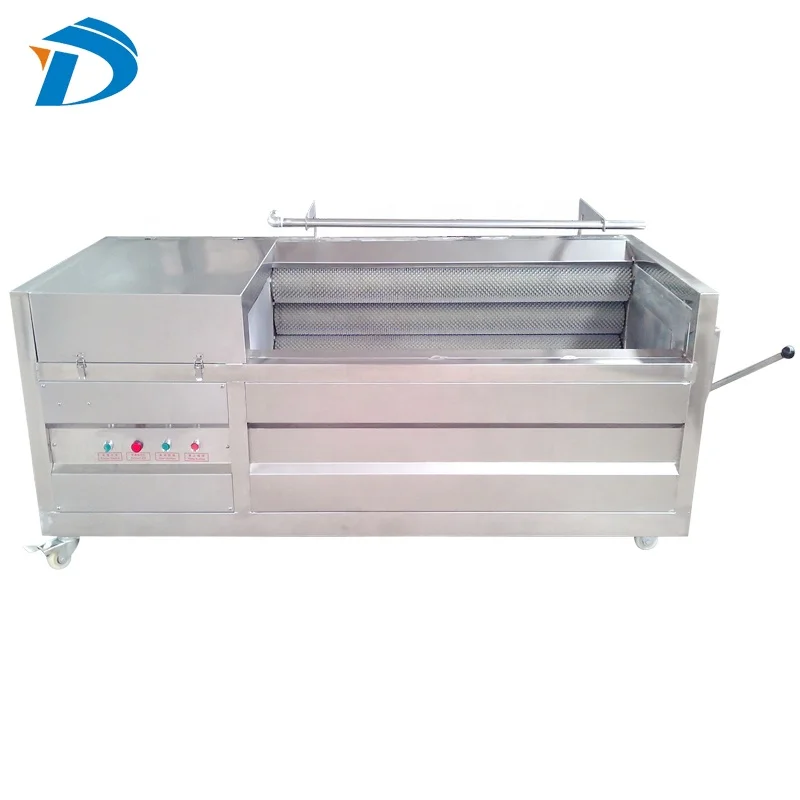

Washing and peeling machine | 220v | 0.55kw | 100kg/h | 700*400*800mm | 60kg |

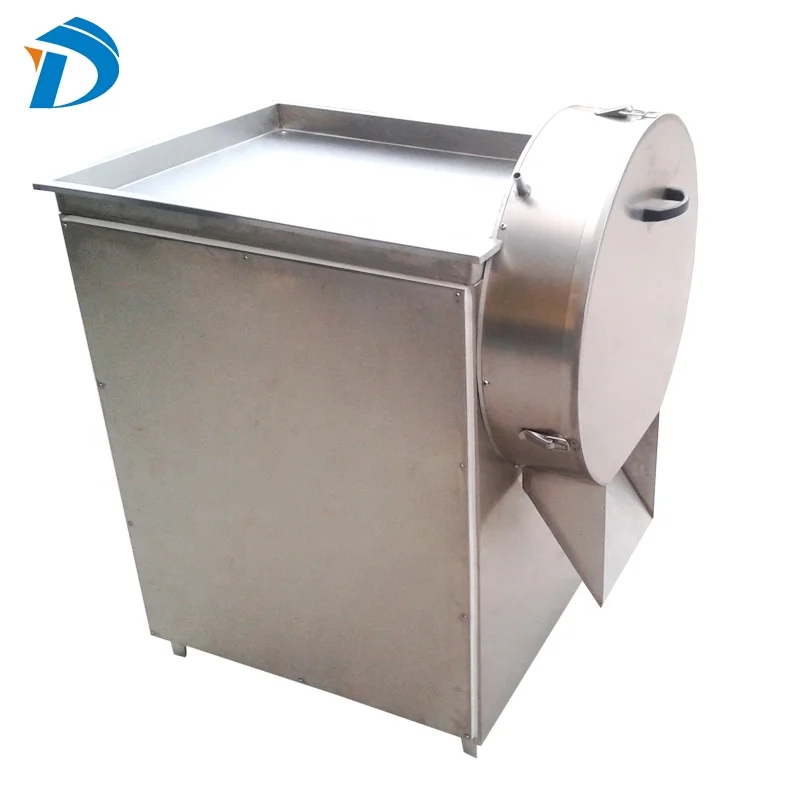

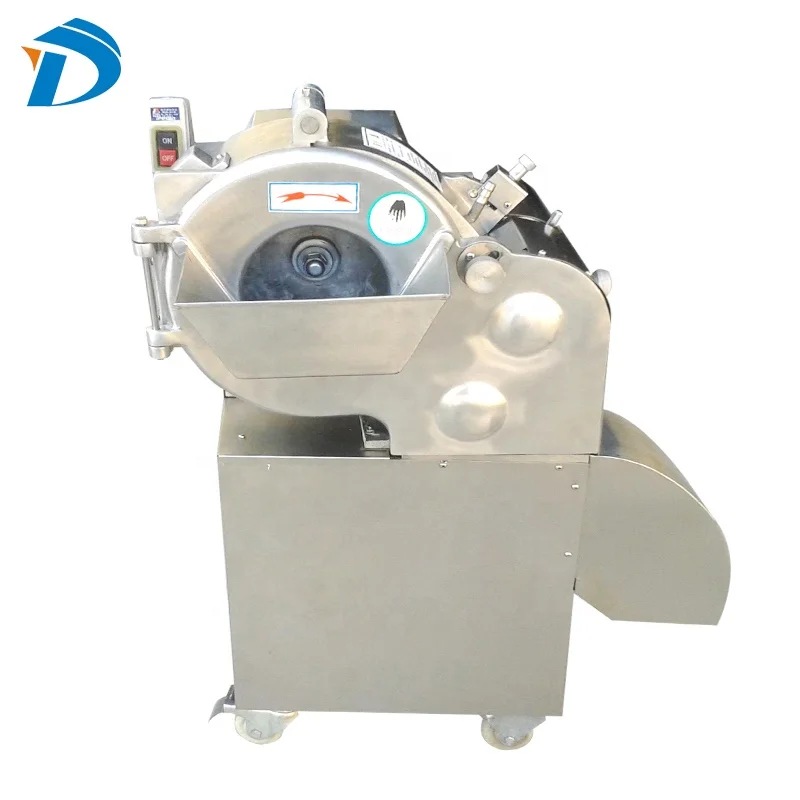

Cutting machine | 220v | 1.5kw | 500kg/h | 850*650*1050mm | 80kg |
Blaching machine | 380v | 24kw | 150kg/h | 1120*710*1000mm | 100kg |
Dehydrator | 380v | 1.1kw | 150kg/h | 900*500*740mm | 80kg |
Frying machine | 380v | 24kw | 150kg/h | 1170*750*1050mm | 100kg |

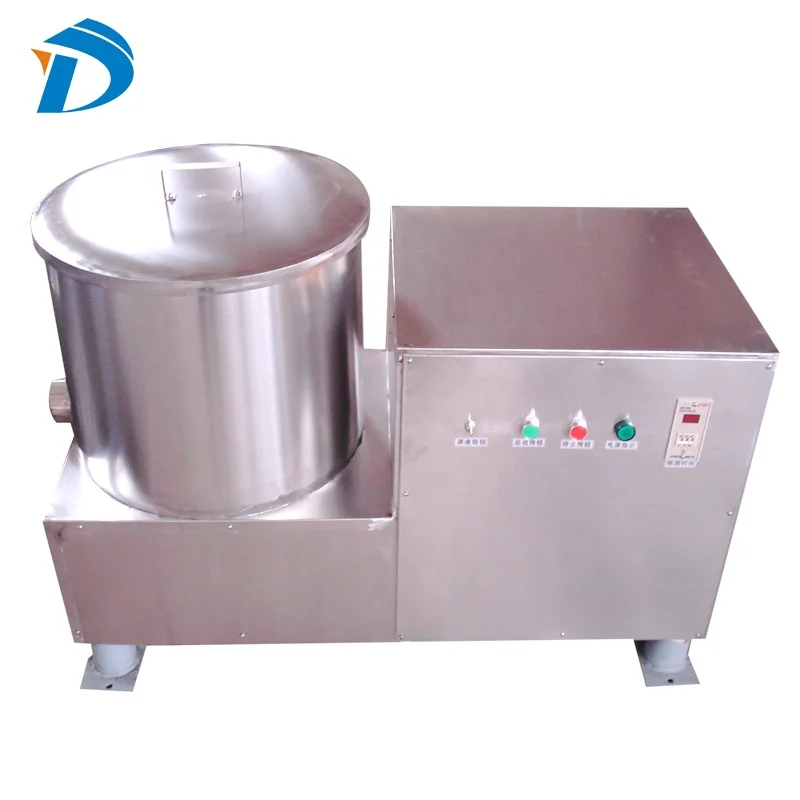

De-oiling machine | 380v | 1.1kw | 150kg/h | 900*500*740mm | 80kg |
Flavoring machine | 220v | 0.75kw | 150kg/h | 1660*1050*1680mm | 120kg |
packing machine | 220v | 0.75kw | 2-3/min | 1060*640*970mm | 65kg |
Projects Cases
automatic cutting machine with double cutting systems for Argentina in 2018
Semi automatic potato chips making line for Egypt in 2017
Multifunctional automatic cutting machine for France in 2020
Packing & Delivery
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Accurate quotation and technology analysis.
* Suggestions for related products and projects.
* View our Factory.
After-Sales Service
* Help installation and training.
* Technical support online all the time
* Repair or change new spare parts
* Employee working at factory long term
* Improve technology and equipment design for buyers
Certificates
Drawing and layout of some systems
complete layout of workshop
complete processing line:
cleaning-grading and steaming-shelling-drying and humdifier-peeling and grading-sorting-cleaning-picking-sterilizing-flavoring and packing machine
layout of automatic shelling line
automatic shelling and separating line are composed of more than 20sets of single machines and accessories. elevators, shelling, vibrator sieve, centrifual separator, blowing separator, rolling separator, etc.
layout of automatic peeling line
automatic peeling line is composed of hopper, elevator, brushing, peeling ,drum grading and rolling grading machine. peeling rate and whole kernels rate are 90-95%. work with screw air compressor.
Customer Photos
Client from Pakistan
Client from Senegal
Client from Cameroon
FAQ
What would be the min. And max. Lifetime of the production lines and do they have examples from the past?
at least 10 years. Some Client for Kenya brought 12 sets machine in 2010, including semi- automatic shelling machine, and other single machines. Except for supply of spare parts with the initial shipment, there were only extra 2 shipments by DHL for spare parts during their usage till now.
What package can be provide, e.g. besides the sole equipment supply also things like installation/supervision, staff training, service & maintenance?
We shall send two-three technicians to the site to provide guidance on installation and debugging and the training of operators. The technicians’ round-trip air tickets, visa application fees and personal insurance are paid by the customer. Besides, the customer should provide free accommodation for the technicians while they are abroad. The customer should pay each technician 100usd/day.
What is the spare part supply and how long will spare parts be available? Would a supply of parts that have a higher wear & tear (according to their experience) be possible already with the initial shipment?
Lead time of spare parts: 7-15 days
Transportation way: By DHL.
We would have a supply for the parts of higher ware & tear with the initial shipment for free, the quantity as per corresponding sets of equipment.
Transportation way: By DHL.
We would have a supply for the parts of higher ware & tear with the initial shipment for free, the quantity as per corresponding sets of equipment.
