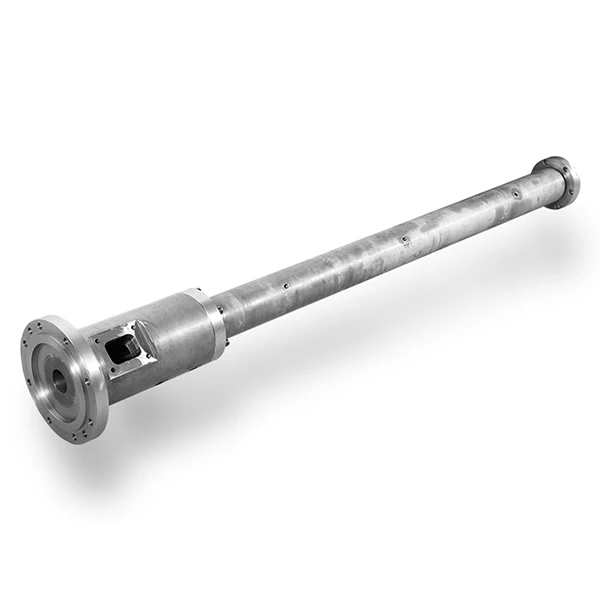

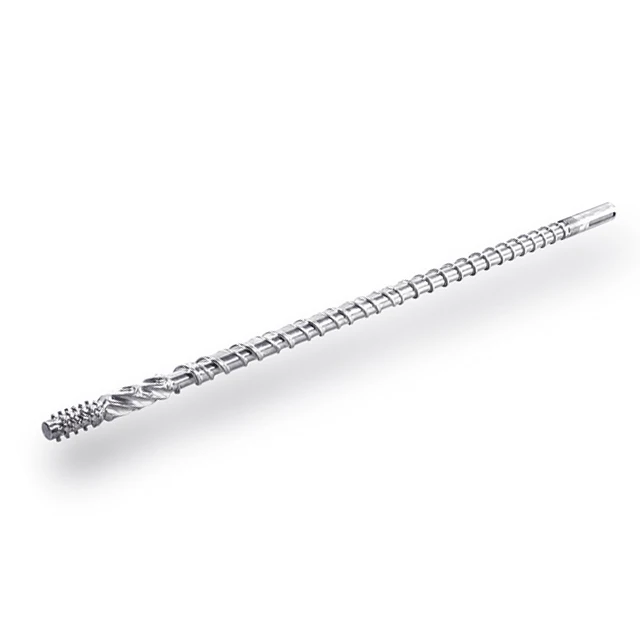

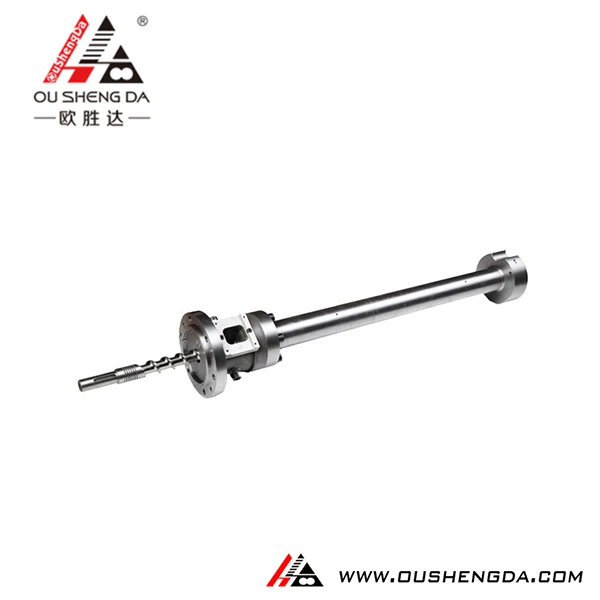

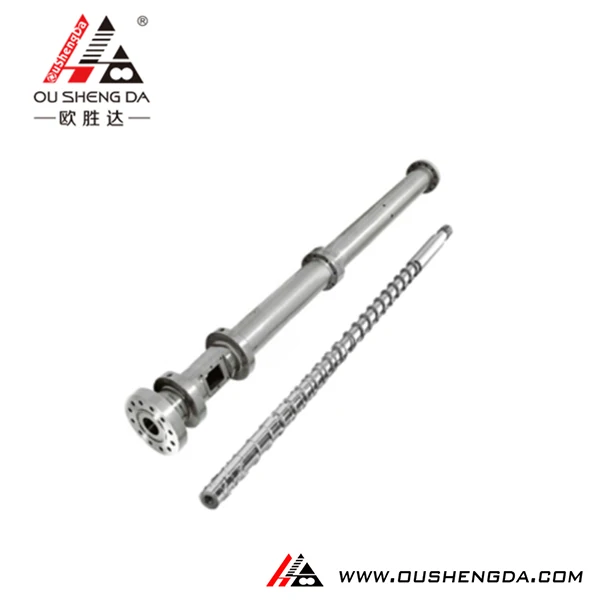

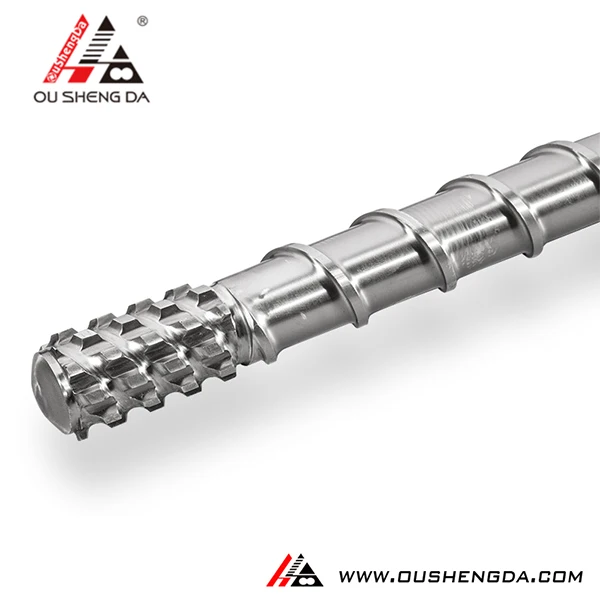

Venting/Degasing Single Barrel and Screw for Extruder
- Category: Plastic & Rubber Machinery Parts >>>
- Supplier: Zhoushan OSD Plastic Machinery Co. Ltd.
Share on (697873658):
Product Overview
Description
Company Profile
Hello friends~
We manufacture and offer the best quality of screws and barrels for Extrusion and Injection machines over 30 years.
We provide professional CAD drawing design and dimensional mapping. Provide you with as much service as possible.
Our bimetallic screws and barrels could let you use more time for processing.
We can manufacture according to your drawings, and we could supply with your machine model, please just contact with us for confirming the details :)
We provide professional CAD drawing design and dimensional mapping. Provide you with as much service as possible.
Our bimetallic screws and barrels could let you use more time for processing.
We can manufacture according to your drawings, and we could supply with your machine model, please just contact with us for confirming the details :)
Contact us
TIPS: Since every custermer has different requirements on the measurements for screw and barrel, we would be glad to quote you
according to your drawings, diamensions, etc.. Diameter 120mm screw would be more costly than 50mm screw. Thank you for your kind
understanding :)
according to your drawings, diamensions, etc.. Diameter 120mm screw would be more costly than 50mm screw. Thank you for your kind
understanding :)
ZHOUSHAN OSD MACHINERY CO.,LTD. | ||
Address | NO.22 XINGONG ROAD, JINTANG TOWN, ZHOUSHAN, ZHEJIANG, CHINA | |
Contact | Mr Wade Zheng | |
Whatsapp/ Wechat | +8613666718087 | |
Email | sales5@oushengda.com | |
Website | www.oushengda.com | |
Product Description

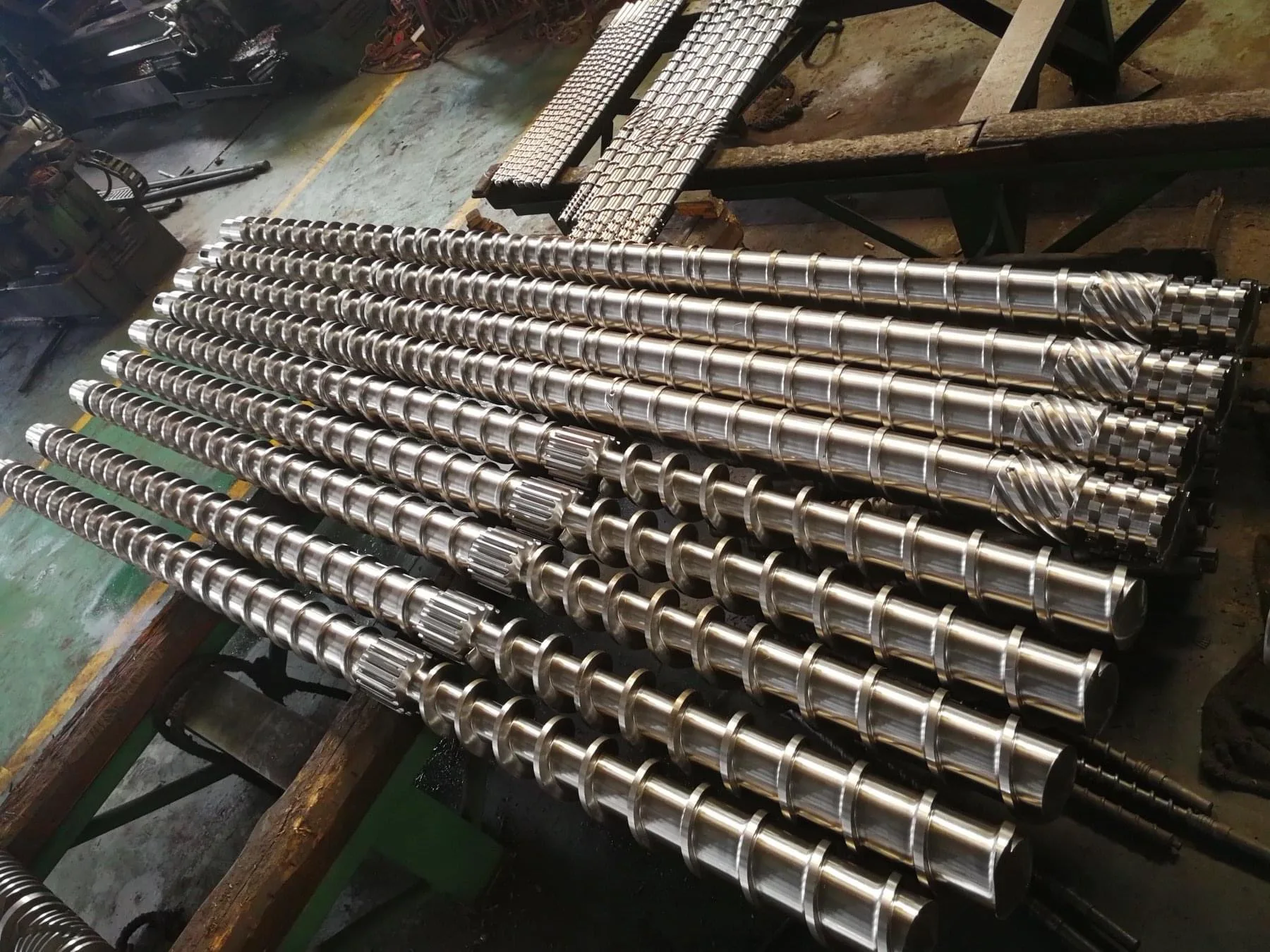

SINGLE SCREW AND BARREL
For pipe, profile, film blowing, pelletizing, etc.
Our company, ZHOUSHAN OSD MACHINERY COMPANY, provides professional CAD drawing design and dimensional mapping. Provide you with as much service as possible.much service as possible.
1. We can make any specification of extruder screw barrel and injection screw barrel for Engel, Krauss-maffei, Milacron, Demag, Arburg, Haitian, JSW, Toshiba, Nissei, Sumitomo, Nippon Steel, Mitsubishi, Fanuc, Chenhsong, Haitai, Yizumi, Cincinnati, Battenfeld, Weber, Theysohn, Bausano, Maris, Jwell, Jinhu, Liansu, Windsor, etc.
2. We also can supply all types of screw and barrel according to your different requirements;
3. Our screw barrel can ensure the well performance and low energy consumption of extruder and Injection molding machine. We insist on the principle of quality first, honest to customers, the quickest service for customers” to improving us, our goal is to satisfy our customers.
2. We also can supply all types of screw and barrel according to your different requirements;
3. Our screw barrel can ensure the well performance and low energy consumption of extruder and Injection molding machine. We insist on the principle of quality first, honest to customers, the quickest service for customers” to improving us, our goal is to satisfy our customers.
Specification
Materials for screw & cylinder
1) 38CrMoALA (JIS SACM645)
2) 42CrMo (JIS SCM440)
3) 4Cr5MoSiV1, SKD61, SKD11
4) 9Cr18MoV
5) CW6Mo5Cr4V2
6) GH113, GH132
7) Various high quality alloy steels, According to different usage, the choose for alloy is different, some require for abrasion-resistant while some require for corrsion-resistant. For standard, we have Fe-based, Ni-based, W2C alloy, Tunsten alloy etc for choice.
8) Other imported materials.
2) 42CrMo (JIS SCM440)
3) 4Cr5MoSiV1, SKD61, SKD11
4) 9Cr18MoV
5) CW6Mo5Cr4V2
6) GH113, GH132
7) Various high quality alloy steels, According to different usage, the choose for alloy is different, some require for abrasion-resistant while some require for corrsion-resistant. For standard, we have Fe-based, Ni-based, W2C alloy, Tunsten alloy etc for choice.
8) Other imported materials.
Production Process
Blanking→Rough Machining→Quenching & Tempering →Semi Finishing Machining→Finished Product→Detecting→Nitring/Alloy Processed →Finish Machining
Technical data of screw &cylinder | ||||||||
Base Material | 38CrMoAlA | |||||||
Heat treatment | Nitriding + Hardening & Tempering | |||||||
Nitriding hardness | HV900~1050 | |||||||
Nitriding thickness | 0.5~0.8mm | |||||||
Surface roughness | Ra0.4 | |||||||
Liner straightness | 0.015mm | |||||||
Technical data of alloy | ||||||||
Bimetallic hardness | HRC58-68 | |||||||
Bimetallic thickness for screw | 1.0-3.0mm | |||||||
Type of alloy | ||||||||
Stellite | Wear resistance | ★★★ | ||||||
Colmonoy 6 PTA | ||||||||
Colmonoy 56 PTA | ||||||||
Tungsten carbide | Wear resistance | ★★★★ | ||||||
Applications
LDPE, LLDPE, HDPE, PP, ABS, PET, PVC, PLA, PA6, PA66, EVA, PS, PU, rubber, etc.
For example:
For example:
Recylced LDPE, LLDPE, HDPE, PP
PVC with CaCo3
PVC with wooden powder
PVC foam
PE with CaCo3
Nylon with glass fiber
Other materials with high abrasion and corrosion
PVC with wooden powder
PVC foam
PE with CaCo3
Nylon with glass fiber
Other materials with high abrasion and corrosion
Packing & Delivery
Wrap the screw barrel with film
Put into the wooden cases
Print with our company Logo
Exhibition
CHINAPLAS 2019 IN GUANGZHOU
K SHOW 2019 IN DUSSELDORF
Plast Eurasia 2019 Istanbul
Our certificate
Welcome to contact us, hope long term relationship with you~
