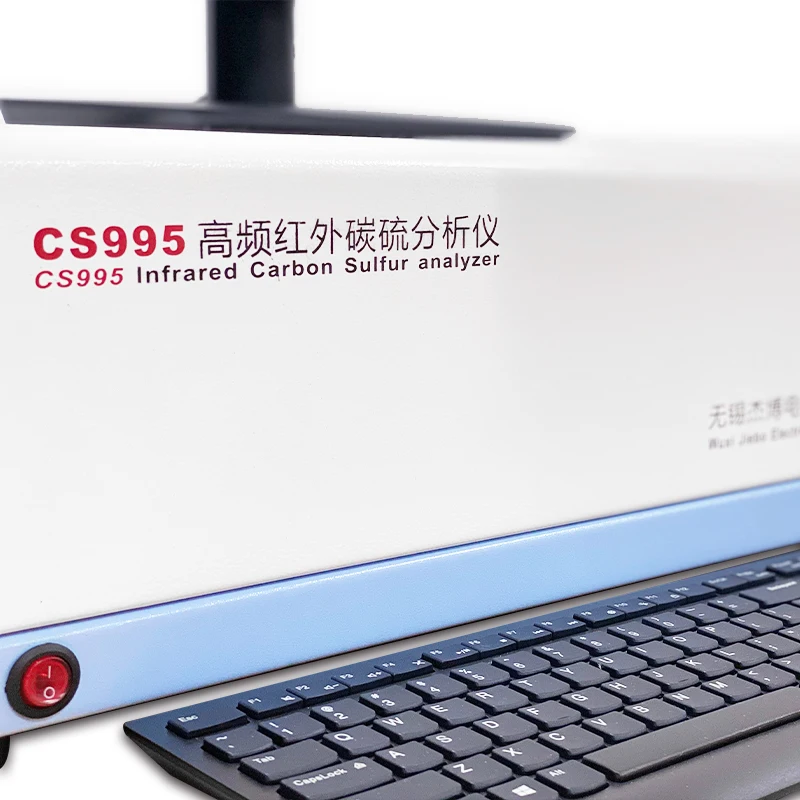

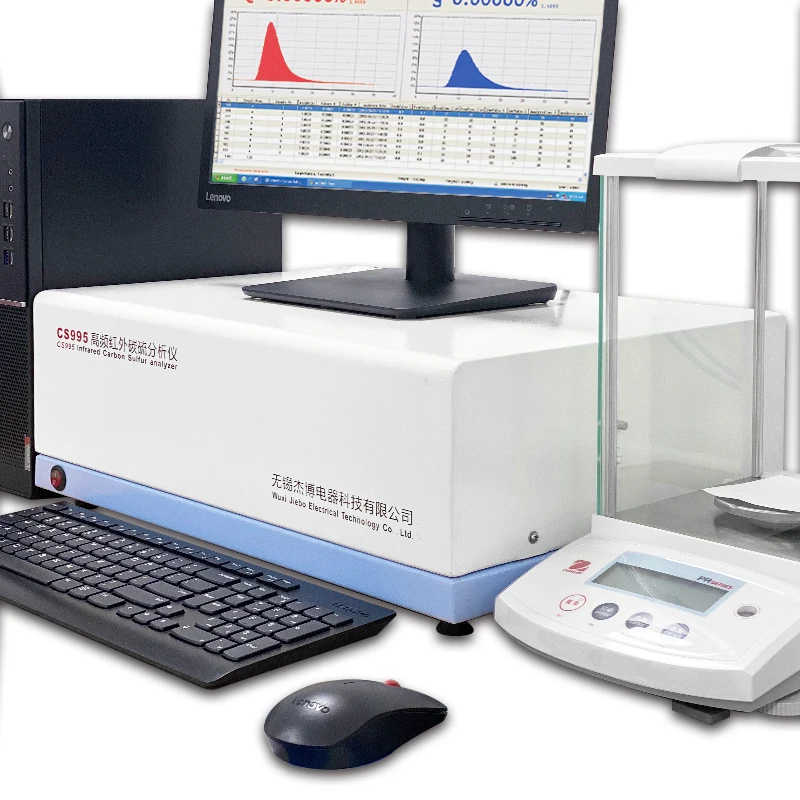

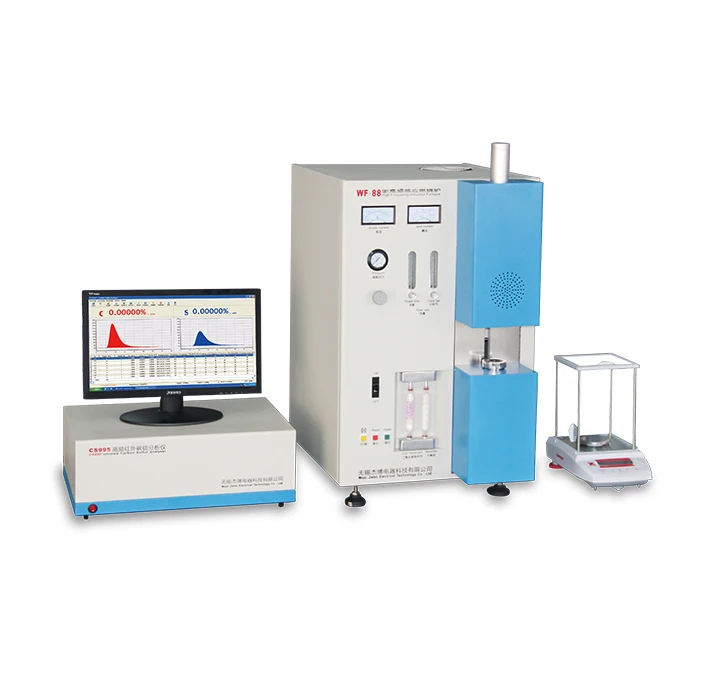

Qualified JIEBO CS Series Iron ore carbon sulfur analyzer

Product Overview

Description



Main parameters:

Main Parameter:

Measure Range:

Carbon: w(C) 0.0005%-6.0000% (can be extended to 99.999%)

Sulpher: w(C) 0.0005%-0.5000% (can be extended to 99.999%)

Sample weight:

standard 0.5g

Analysis Error:

Carbon: accord with ISO9556 standard

Sulfur: accord with ISO4935 standard

Analysis Precision:

Carbon: RSD<1%

Sulfur: RSD<1.5%

Analysis pool

Carbon: one pool

Sulfur: one pool

Time of analysis:

25 to 60 seconds, could be adjusted. Around 35 seconds usually

Sensitivity(The minimum readings):

C/S 0.1ppm

Electronic scale:

Precision of read: 0.0001g

Working Environment:

Room temp: 10 to 30 degree C,relative Humidity less than 75%

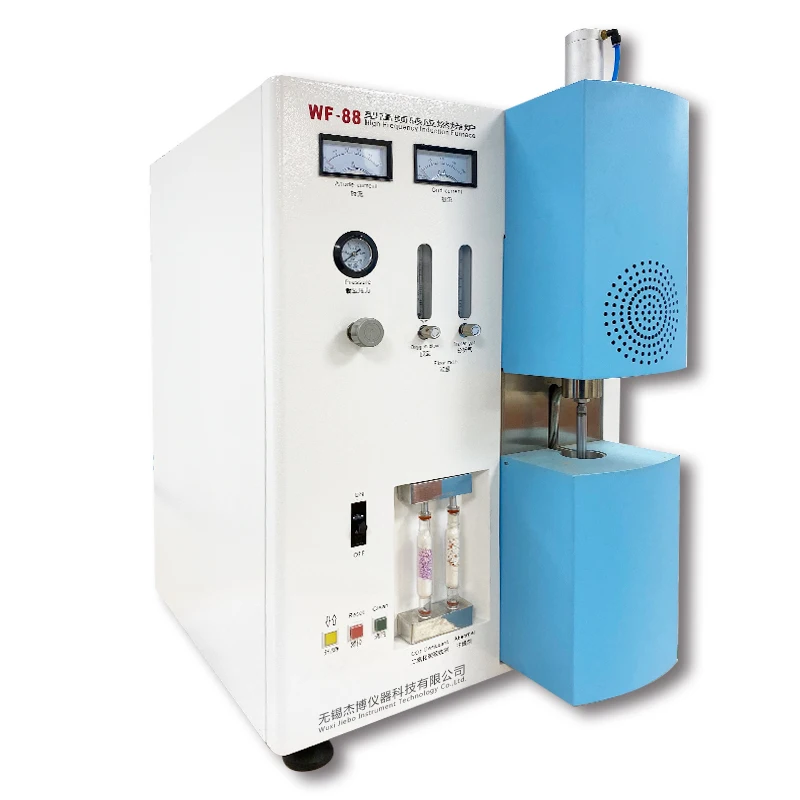

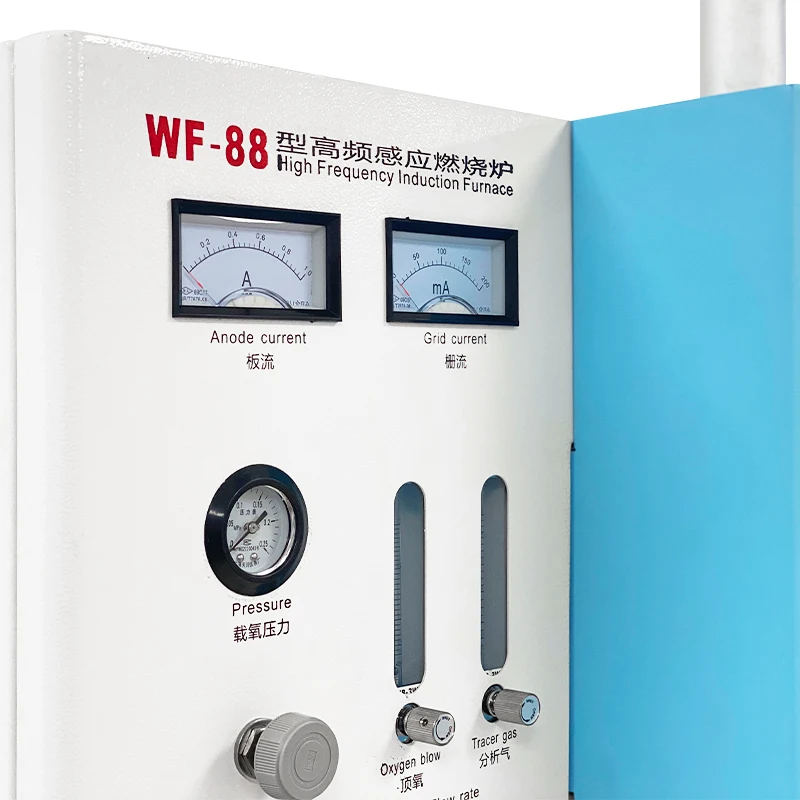

High-frequency combustion system

Radio circuit:	The design of high-duty radio circuit and the application of 2.2KVA HF pliotron.frequency : 20MHz<0}
	Military-purpose ceramic vacuum tubes and ceramic vacuum capacitors.
	HF control circuit: It is used for automatic detection of the electromagnetic valve, the elevation or descent of cylinder and the performance of HF unit.
	Automatic overtime/overflow alarming system enables the HF furnace to work under normal condition.
	The optional current/voltage/power regulator for furnace temperature control: It is applicable to samples of various materials.
