Kitchen sacles of micro load cell 3kg

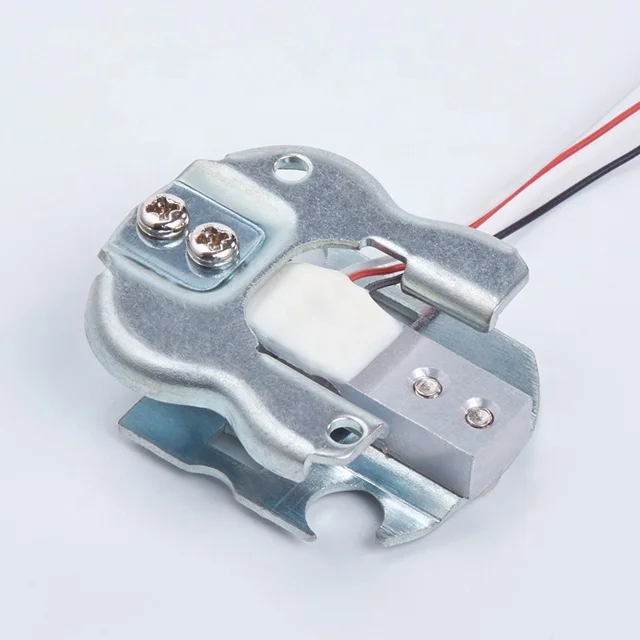

CZL716A load cell

Kitchen sacles of micro load cell 3kg

 Type:single point load cell

Material:aluminum alloy
Surface:anodized treatment
Protection: IP65
Application:balances, kitchen scales, counting scales

 Parameters:

 1.Rated Load: 4kg

 2.Rated Output: 1.5÷/-0.15mV/V

 3.Zero Balance: ÷/-0.3mV/V

 4.Nonlinearity: ÷/-0.1%F.S

 5.Hysteresis: ÷/-0.1%F.S

 6.Repeatability: ÷/-0.05%F.S

 7.Creep: ÷/-0.05%F.S-3min.

 8.Input Resistance: 1000÷/-10 ohm

 9.Output Resistance: 1000÷/-10 ohm

 10.Insulation Resistance: 2000Mohm

 11. Temperature Effect on Zero: ÷/-0.2%F.S/10 deg C

 12.Temperature Effect on Sensitivity: ÷/-0.1%F.S/10 deg C

 13.Temperature Range for Using: -10—÷60 deg C

 14.Ultimate Overload: 150%

 15.Excitation Voltage: 3—10VDC

 16.4pcs used as a group

 17.Accuracy:1‰-0.5‰

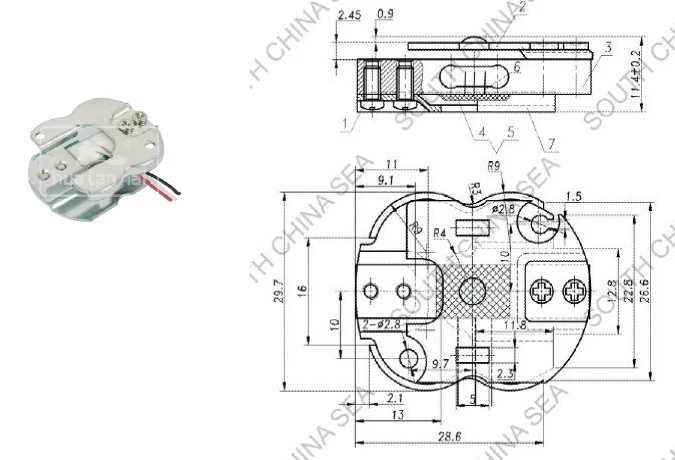

Demension Size

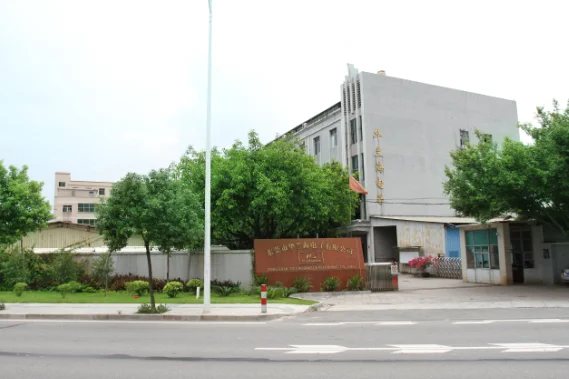

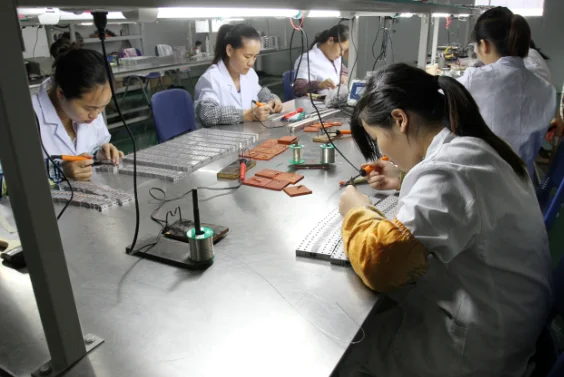

Factory:

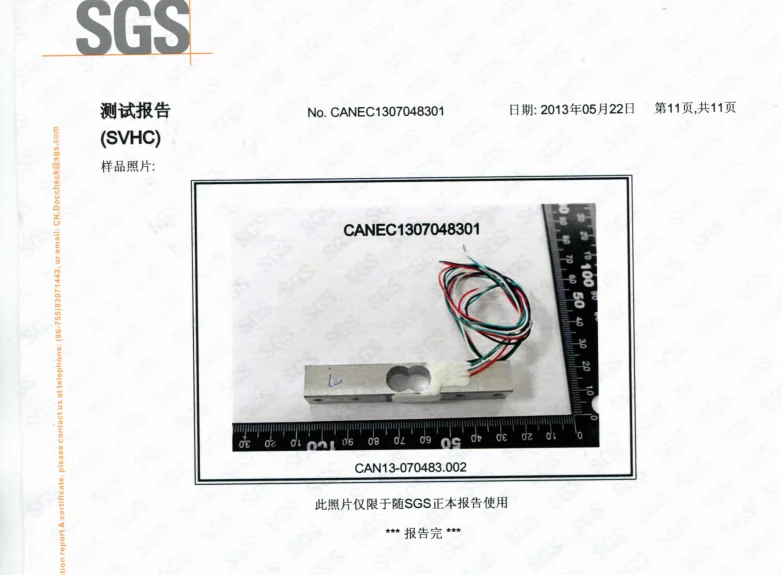

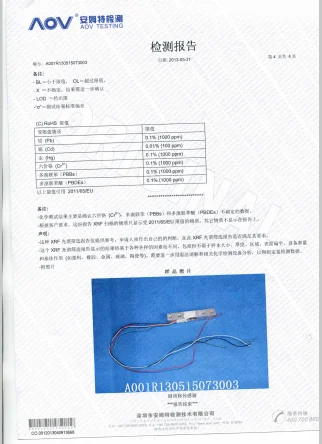

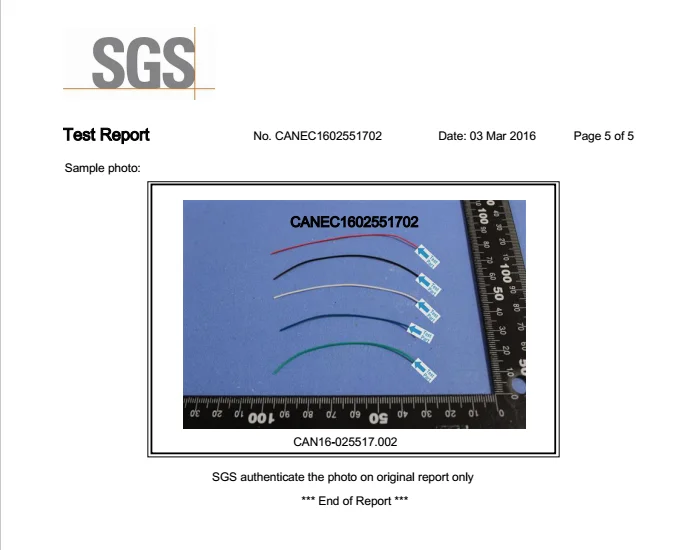

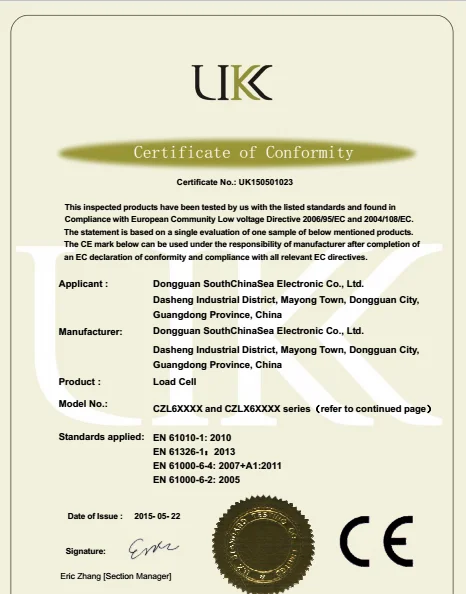

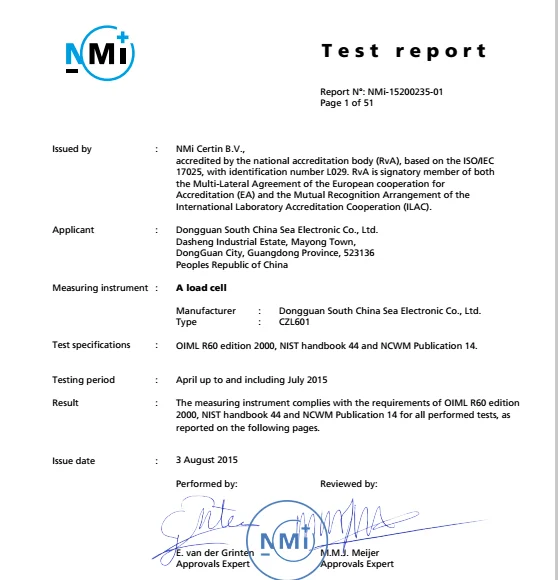

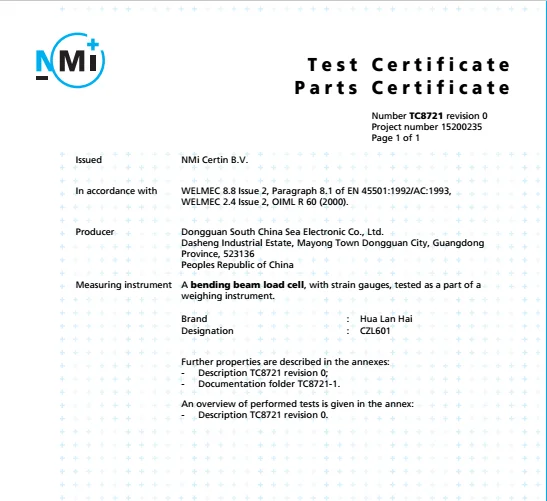

Certicate:

Service:

Can i get a samples?

When we have  in stock ,can be sending 1-3pcs samples to you by free,but shipping cost by client

Delivery Day:

10K--50K 30-40DAYS

Special requested

Yes,We can accept customized to manufacture it

Are you a factory?

Yes,we are a factory in DongGuan ,over 600 staff at the moment.welcome to your visit
