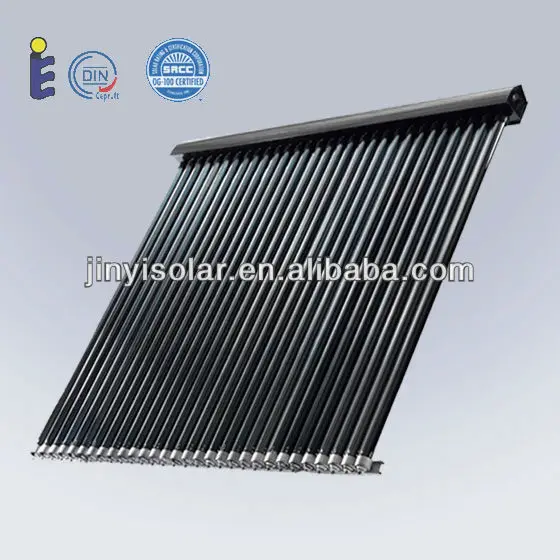

JHC 5818 18 Pressurized Vacuum Tube Solar Thermal Collector

Product Overview

Description

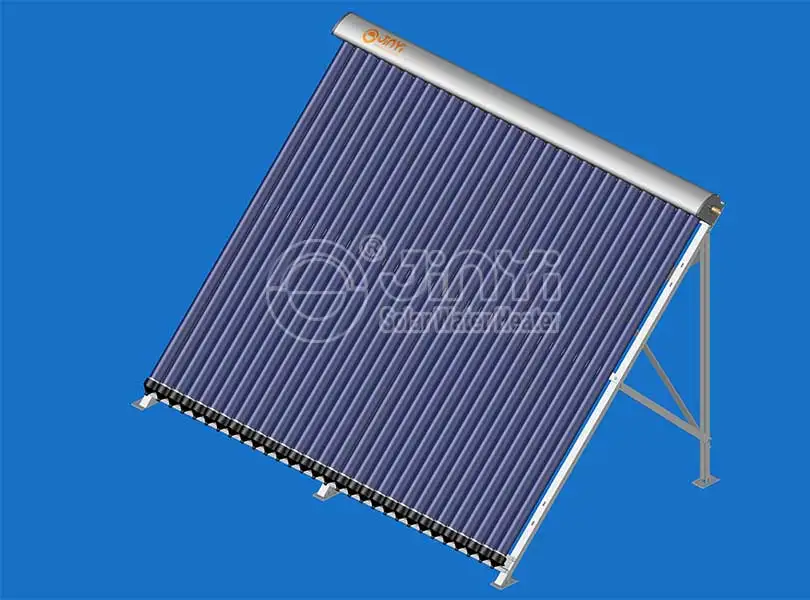

 JHC-5818-18 Pressurized Solar collector





The pressurized heat pipe solar collector is always connected with existing heating supply device.Metal heat pipe solar collector consists of a heat pipe, a metal heat absorption wing and the connecting manifold. The metal heat absorption wing with selective absorption coating converts solar energy into heat energy and transfers it medium liquid inside. The vacuum between the two glass tubes works as insulation. The liquid in the heat pipe changes into vapor which rises to the condenser. When passing through the heat exchanger, the heat is absorbed and the temperature is lowed, and the vapor becomes liquid, returns to the base of the heat pipe. This transference of heat is a continuous circulation as long as the collector is heated by the sun.

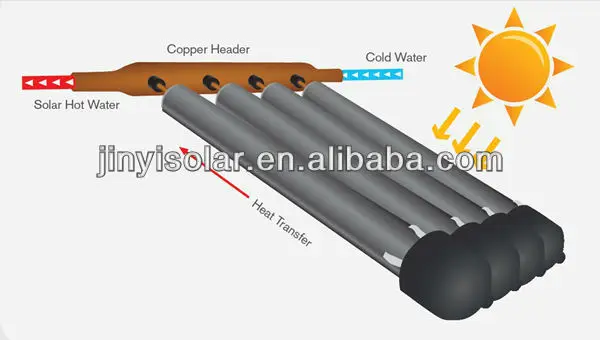

1.Working principle:







  2.Features:



• Manifold (interior): thickness1.0-1.2  Copper pipe


• Manifold Casing Material: thickness 2.0mm Aluminum alloy (Black or silver)


• Insulation: high desity rock wool


• Frame Material 2.0-3.0mm thickness Aluminum alloy


• Vacuum tube dimension: ø58mm* 1800mm


• Coating of vacuum tube: CU-SS-ALN/ALN.


• No of vacuum tube: 18pcs


• Daily output (50 oC ): 120-180L


• Daily efficiency:  average ≥55%, ≥45% in winter


• Heat pipe: anti-freezing > -35 centigrade

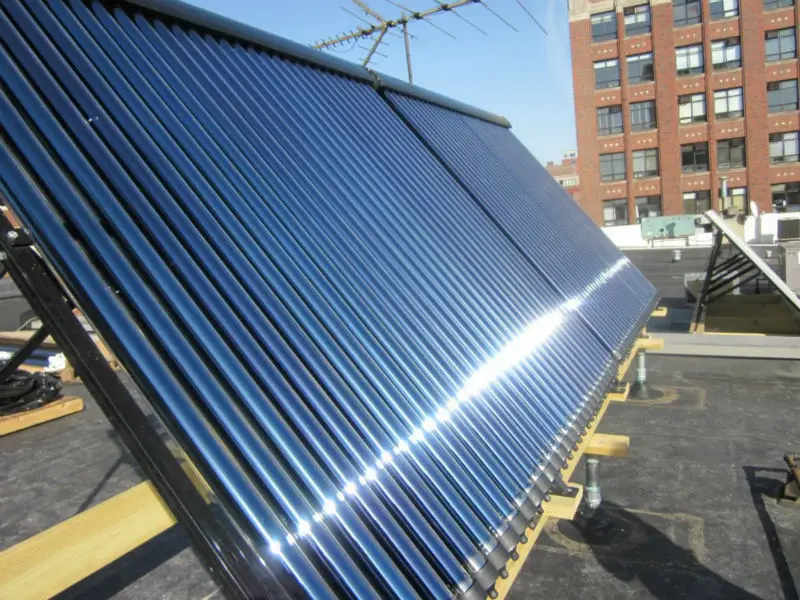

• Optimal installation angle 20-70°Vertical


• Test Pressure: 1.2 MPa (12 bar)


• Working pressure: 0.6 Mpa (6 bar)

   3.Specifications :

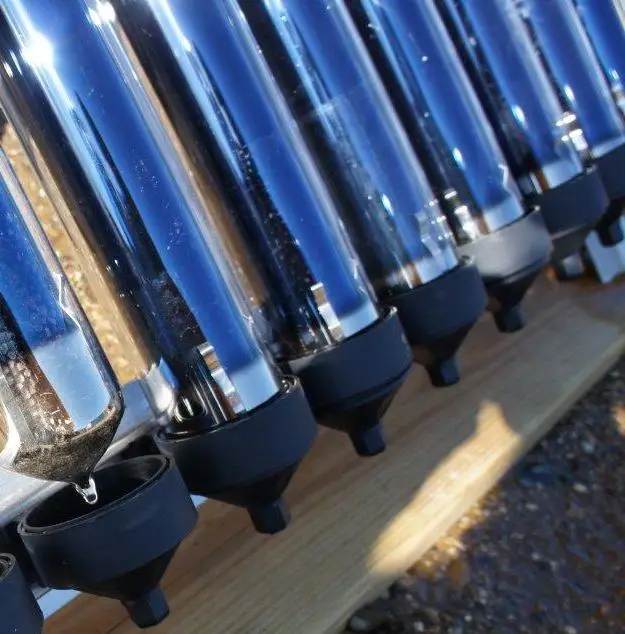

   Evacuated tube& Tube Seals



Material	High borosilicate glass 3.3, thickness:1.6mm
Size	58*1800mm
Coating	ALN/SS-ALN/CU (Three target vacuum tube)
Tube Holder/ Seals	UV stabilized nylon/ Silicon seal



   Heat pipe&Heat Transfer fin



Heat pipe Material	TU1 copper
Heat pipe Length	Consenser:55mm;Body:1700mm
Heat pipe Diameter	Condenser 14mm
Heat pipe Thickness	Condenser:1.0mm;Body:0.6mm
Heat Transfer Fin Material	Aluminum 3003
Heat Transfer Fin Length	1620mm
Heat Transfer Fin Thickness	0.25mm



 Manifold



Manifold Header Material	TP2 Red copper
Manifold Header Diameter	35mm
Manifold Header Thickness	0.8mm
Manifold Casing	Anodized aluminum alloy,thickness:2 mm
Insulation Layer	Rock wool
