  • Factory price servo motor 600W 6000RPM 4.3NW electrical sewing machine AC servo motor
Factory price servo motor 600W 6000RPM 4.3NW electrical sewing machine AC servo motor
Factory price servo motor 600W 6000RPM 4.3NW electrical sewing machine AC servo motor
Factory price servo motor 600W 6000RPM 4.3NW electrical sewing machine AC servo motor
Factory price servo motor 600W 6000RPM 4.3NW electrical sewing machine AC servo motor
Factory price servo motor 600W 6000RPM 4.3NW electrical sewing machine AC servo motor
Factory price servo motor 600W 6000RPM 4.3NW electrical sewing machine AC servo motor
Factory price servo motor 600W 6000RPM 4.3NW electrical sewing machine AC servo motor

Factory price servo motor 600W 6000RPM 4.3NW electrical sewing machine AC servo motor

Share on (700132671):


Price:RUB 4,590.62

Quantity:


Product Overview

Description

Needle Position Energy Saving Servo Motor,Industrial Sewing Machine Motor
Kesheng energy-saving servo motors for industrial sewing machine integrate Hall contactless sensor, mature silicon controlled rectifier control, electronic brake and point needle technologies together.This type of motors is the updated product instead of the traditional clutch motor. They are widely applied to the whole sewing machine matching and garment processing industry.
Compose of Kesheng Servo Motor
Controller
Foot Pedal

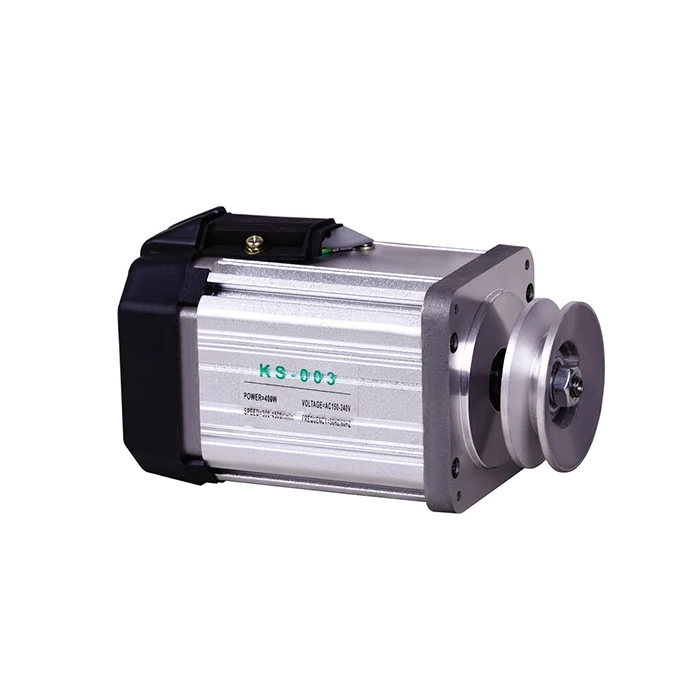

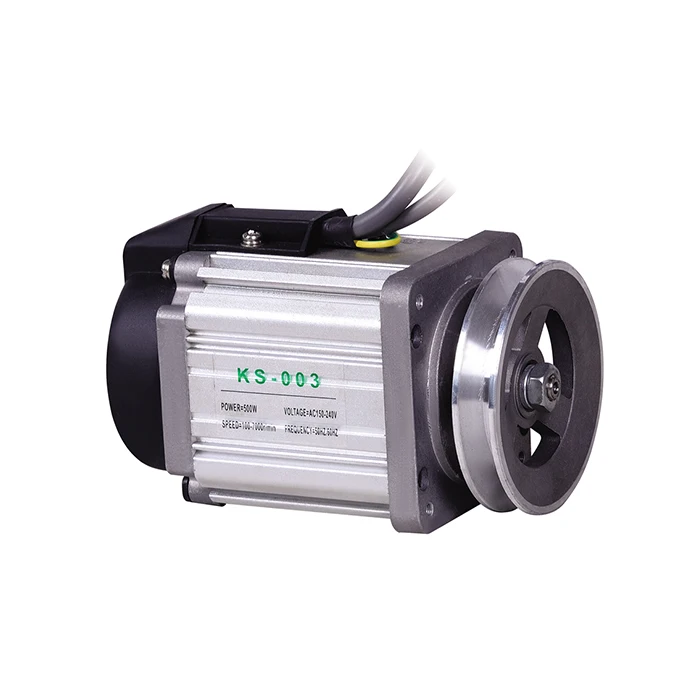

Motor

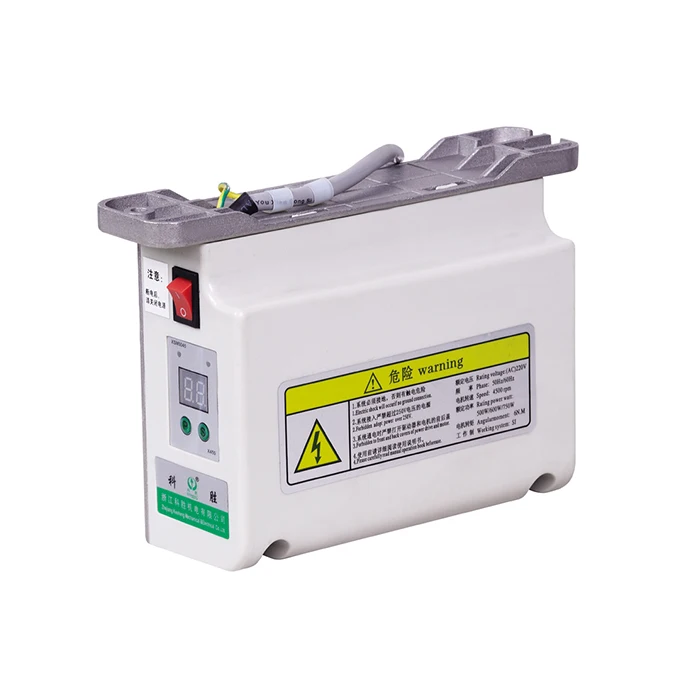

A. Controller
The controller precisely controls the working condition of the motor by using optimized algorithm programmed software. It has the perfect self-protection functions such as over-voltage, over-current, overheating etc. In addition, the structure of the controller is very refined but it possesses excellent performance.
B. Foot Pedal
It can be adjusted by multiple gears.
C. Motor The motor is a structure of energy-saving servo motor for industrial sewing machine. The rotor is made from tombarthite permanent magnet materials, thus it has the advantages of small size, high power, energy saving and high reliability. Besides, the motor is embedded with hall contactless sensor.
[ABOUT OUR MOTOR]
This product combines contactless sensor, mature silicon controlled rectifier control, electronic brake technology, point needle, brake precision together to make operation easy and flexible. And with ventilation, scattered heat, cooling function.

It drives sewing equipment directly by using the numerical control speed control system of brushless electric drive machine. Realize drive control, brake control, control feedback digital control functions. What makes staff speed conveniently, sensitive.Operation comfortable and more stable performance in using.

This type of motor is the best product to instead of the traditional clutch motor.
Detailed Images




* Pure Copper Coil

The motor coils are high-temperature copper wire, which makes the motor durable.



* Full Coverage Encoder

The code plate is fully covered, and the capacitive resistors and various devices on it make the motor work stronger and more stable.





* Dual Capacitor Circuit Board

Dual capacitive circuit board, prolong motor life, more powerful operation.




* Faster Scatter Thermal Diffusion

Double heat dissipation performance. The rear end of the motor is equipped with a blade, and the front large pulley also comes with a blade.





* Longer Cable

The longer cable design makes the motor suitable for all types of sewing machines.





* Aluminum Base

No plastic bases.We all use aluminum bases.It is stronger and less susceptible to weathering.
Application
[SUITABLE FOR THE MODEL OF SEWING MACHINE]

1.Normal lockstitch sewing machine as 8500, 8600, 8700, 8800, 1130B, 5550, 9600, 8778 and so on. 2.Computer controlled lockstitch sewing machine as 8800A, 9800A, 9701, 8900, 7200C, 3500, 8779D, 9000 and so on. 3.Overlock sewing machine/cup seaming machine as 700, 800, 747, 848, 2500A, 380, 737, 788, 798, 797, 900 and so on. 4.Coverstitch/interlock sewing machine as F007, 350, 335, 500, 600, 800, 888, 999 and so on. 5.High chariot/post-bed/heavy duty sewing machine as 810, 820 and so on. 6.Multineedle sewing machine as 8008, 008VC, 1400, 2000C, 1508P and so on. 7.Needle roland sewing machine as 9910, 9920 and so on. 8.Bartacking/special sewing machine as 1900B, 1850 and so on. 9.Button sewing machine. 10.Regular multi-axis sewing machine. 11.Blind stitch sewing machine. and so on.
Product Presentation
Model
Power
Voltage
Speed
Torque
Brake Time
Start Time of Speed
Frequency
(W)
(V/AC)
(r/min)
(N.M)
(ms)
(s)
(Hz)
KS003-450
450
85~240
0~6000
1~4
100
0.2
50/60
KS003-550
550
85~240
0~6000
1~4.2
100
0.2
50/60
KS003-600
600
85~240
0~6000
1~4.3
100
0.2
50/60
Related Products
1. OEM Manufacturing welcome: Product, Package... 2. Sample order acceptable. 3. We will reply you for your inquiry in 24 hours. 4. After sending, we will track the products for you once every two days, until you get them. When you get the goods, pls give us feedback after testing. If you have any problem, contact us, we will offer solution.
Packing&Shipping
The color box packaging
Packing in neutral carton
Using multiple transportation
Company Introduction
TAIZHOU DONGHAI FISHERY MACHINE & ELECTRICS CO., LTD.(ZHEJIANG KESHENG MACHINERY & ELECTRICS CO .,LTD .)is a modern enterprise which was set up in the 1990s, after years of unremitting innovation and developing, we have built a professional team, which integrated with designing, manufacturing, distributing and service. Our main products include marine generator, DC/AC solar water pump, large permanent magnet gearless industrial ceiling fan, and servo motor for industrial sewing machines. We are committed to the selection of the best materials and own professional production and testing equipment to gain the best product quality. And have achieved ISO Quality Management System, CE, IEC certifications. We are always concentrating on provide intelligence quality products to create a better and easier life for people all around the world..
FAQ
Q1. What is your terms of packing? A: Generally, we pack our goods in color cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Q3. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU. Q4. How about your delivery time? A: Generally, it will take 20 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q5. Can you produce according to the samples? A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. Q6. What is your sample policy? A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost. Q7. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery. Q8: How do you make our business long-term and good relationship? A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
