solar battery cable for solar panel solar water heater solar system solar lighting solar inverter solar power system
- Category: >>>
- Supplier: Zhejiang Permanent Cable Co. Ltd.
Share on (700312269):
Product Overview
Description
Products Description

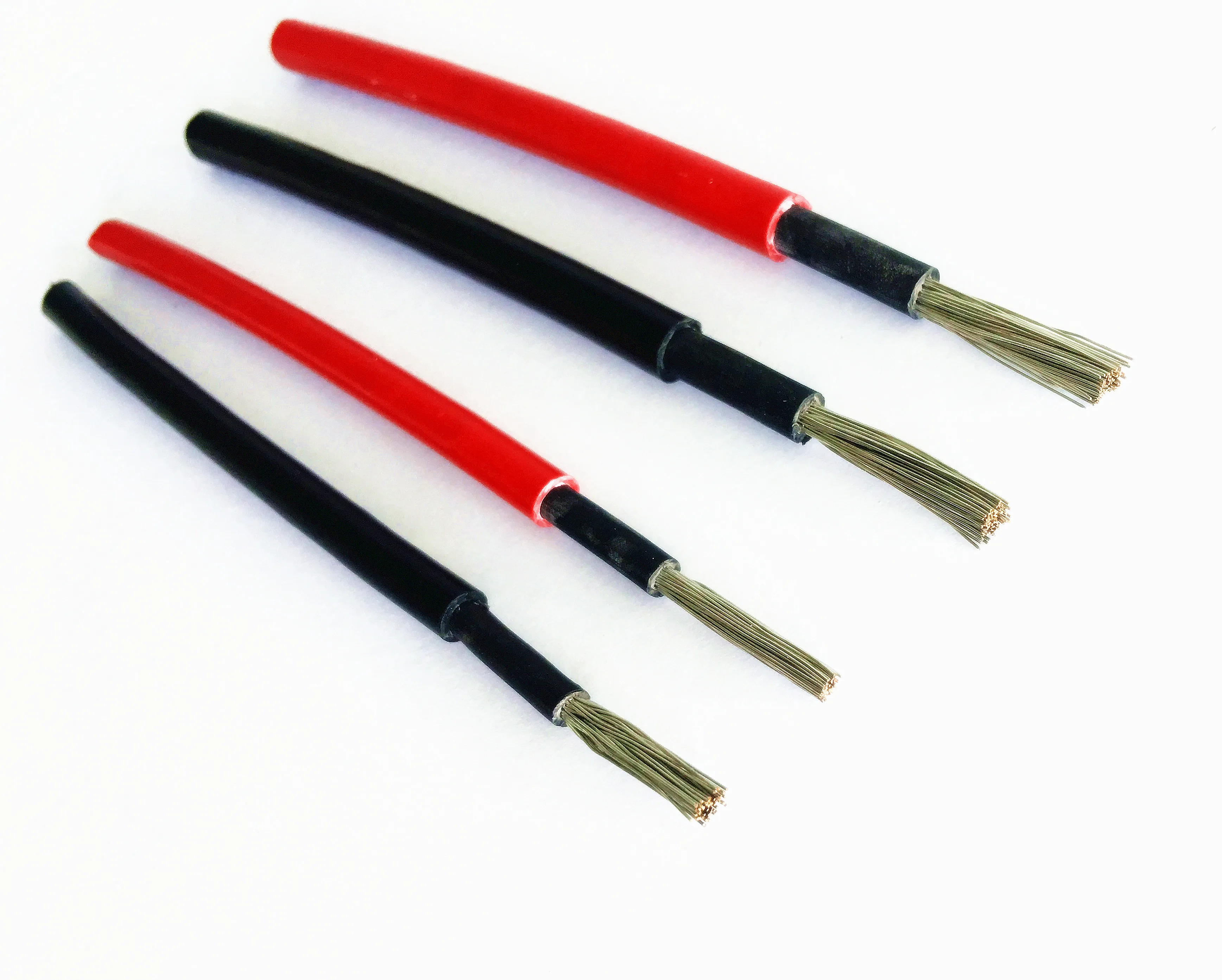

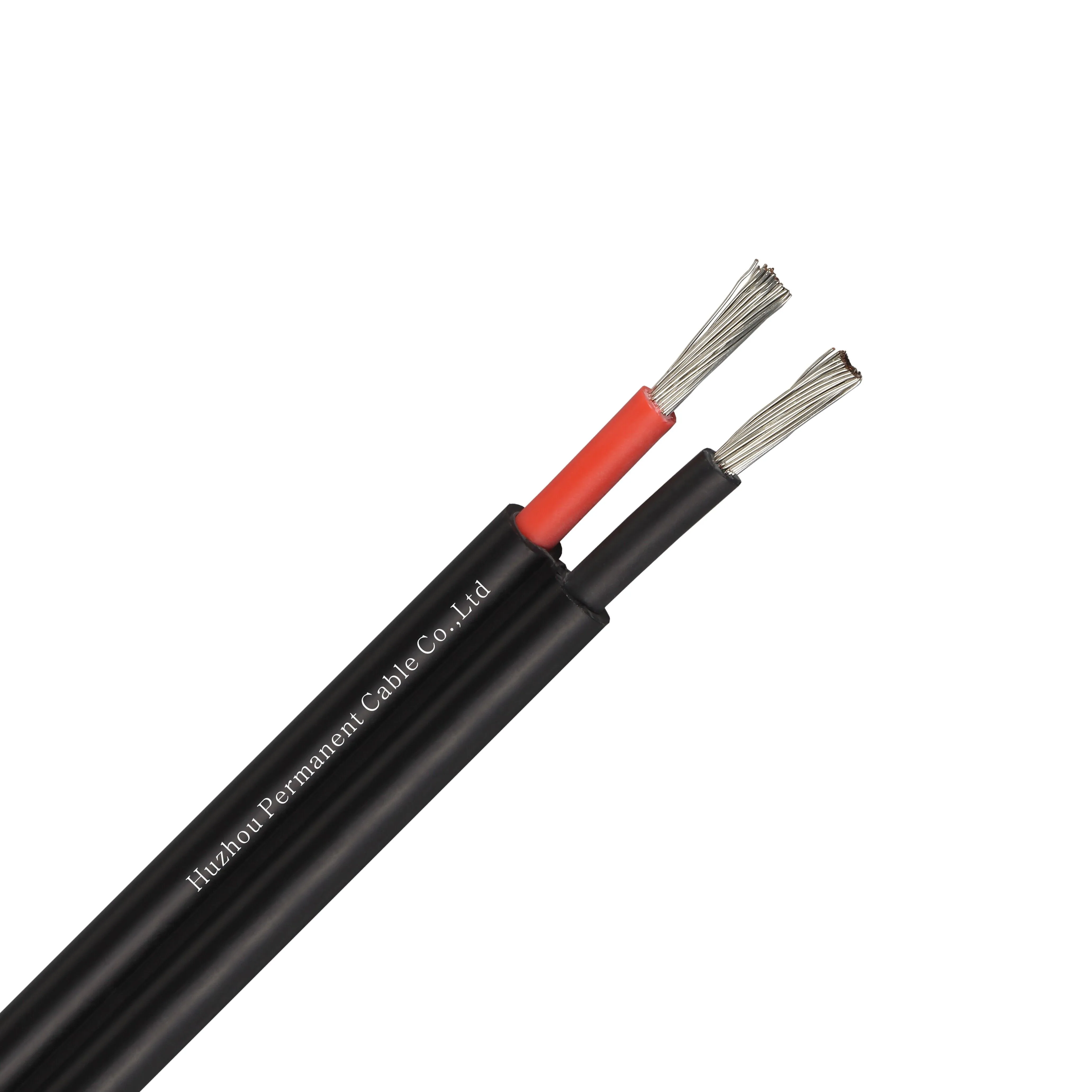

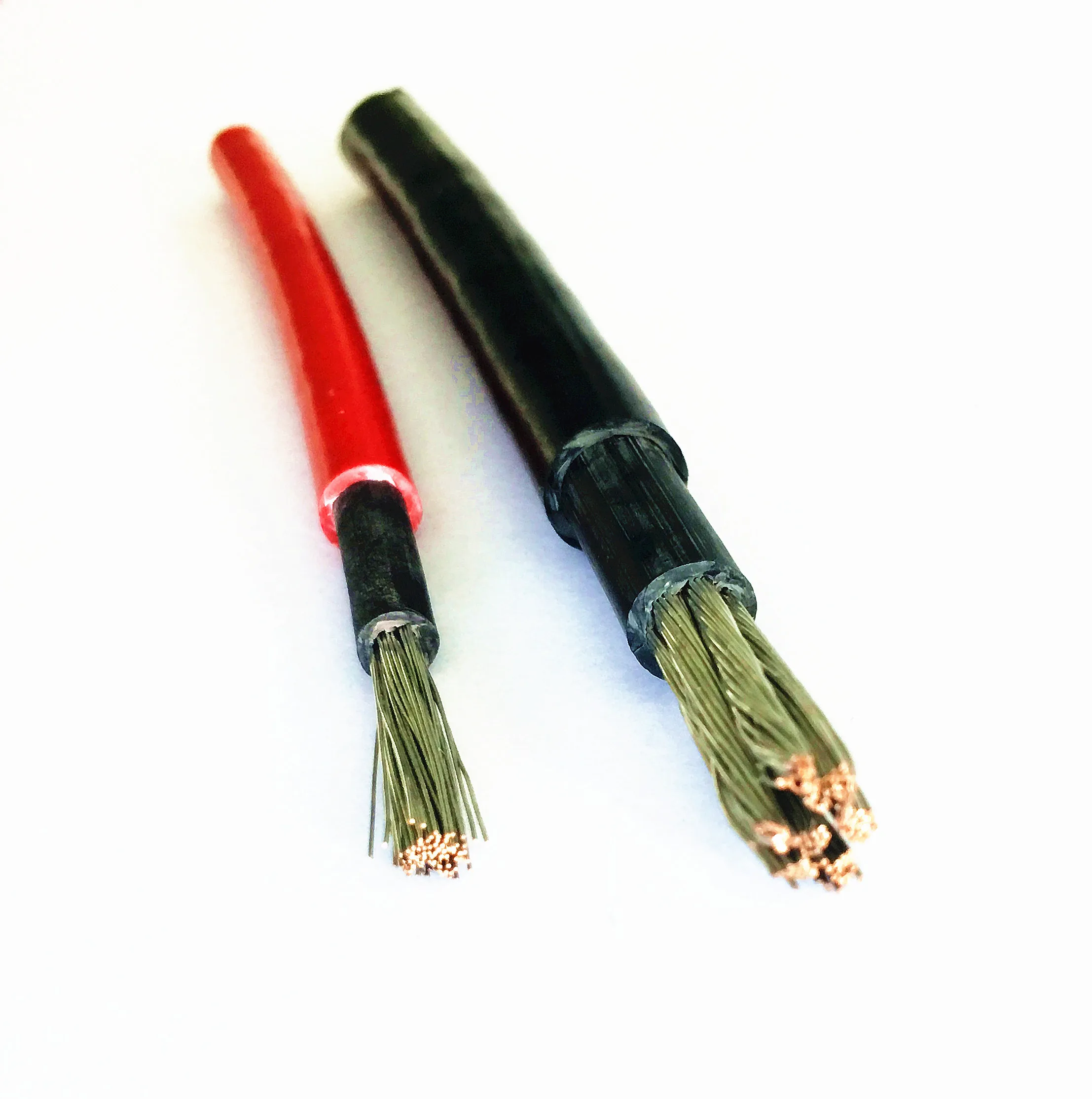

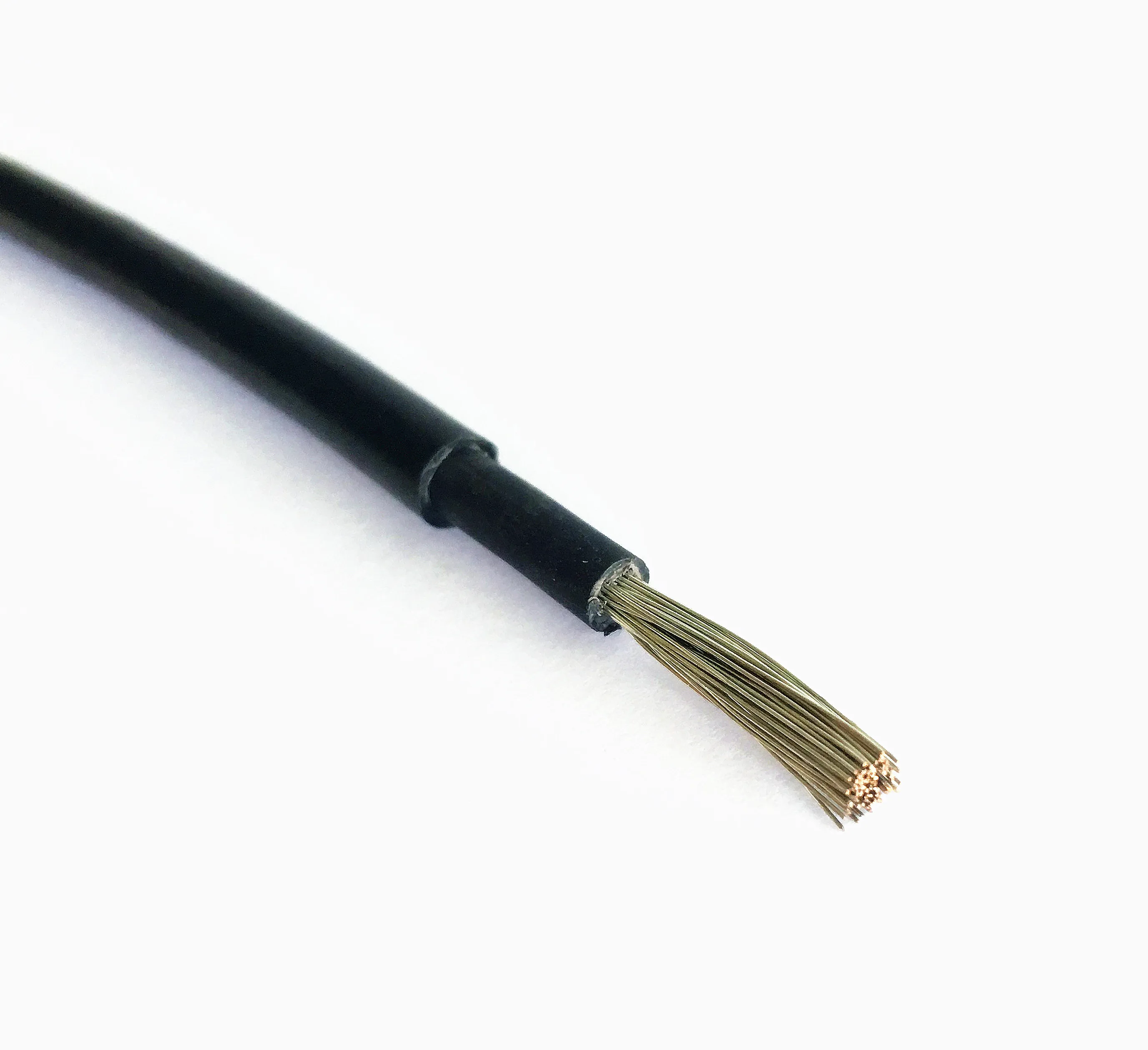

Solar Single/Twin Core Flat Sheath Cable
Item: PV1-F
Standard: UL/ TUV
Voltage: 0.6/1 KV
Conductor: Cu, Tinned copper
Material：XLPO/ XLPO
Section: 1.5 mm²—95 mm²
Standard: UL/ TUV
Voltage: 0.6/1 KV
Conductor: Cu, Tinned copper
Material：XLPO/ XLPO
Section: 1.5 mm²—95 mm²
Application: PV solar DC current system
FOB Ningbo or Shanghai
FOB Ningbo or Shanghai
Technicale Date
Corss section Area mm2 | NO./Diameter of conductor mm | Insulation thickness mm | Sheath thickness mm | Overall Diameter mm |
1.5 | 30/0.25 | 0.6 | 0.6 | 4.78 |
2.5 | 51/0.25 | 0.6 | 0.7 | 5.2 |
4 | 56/0.3 | 0.6 | 0.7 | 6.1 |
6 | 84/0.3 | 0.8 | 0.8 | 7.2 |
10 | 142/0.3 | 0.9 | 0.9 | 9 |
Product Pictures
Company Profile
Huzhou Permanent Cable Co., LTd
Huzhou Permanent Cable Co., Ltd was established in 1995.
The factory locates in a famous economic zone which is nearby with the Shanghai and Ningbo Port.
Factory covers an area of more than 66500 mm². And it has more than 30 advanced production lines and plenty of experienced cable technicians.
Factory's annual value has reached almost 50,000,000 USD.
Factory covers an area of more than 66500 mm². And it has more than 30 advanced production lines and plenty of experienced cable technicians.
Factory's annual value has reached almost 50,000,000 USD.
Standard
BS6004
IEC60227
UL
BS
EIA/TIA
AS/NZS...
Main Products
Solid or Stranded Building Electric wire Solar Cables,
Power Cables
Multi-core flexible cables
Aluminum Cables
Speaker Wire
Armored Cable
and so on
Main Export Country
Africa,
the Middle East
South America
Certifications
ISO9001, CE, TUV, CB, SGS, CCC, RoHS, REACH
Packing&Shipping
FAQ
(1)How to contact us?
E-mail:Maggie@permanentcable.com
Tel: 0086 19857297002
Free samples will send to you when we confirm the price.
(3).What about the lead time for mass production?
Generally 35days for the first order, and 25 days for the reorder.
