3C 2V 5C 2V Coaxial Cable for CCTV and TV

Product Overview

Description

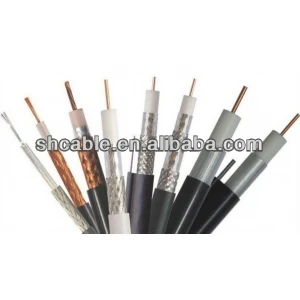

RG58/RG59/RG6 Series Coaxial Cable :



Specification:

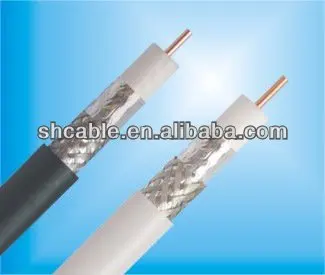

1)RG6:   1.02mm BC conductor+4.80mm PE +bonded AL foil + 96 wire/0.12mmTC braiding +7.0mm PVC

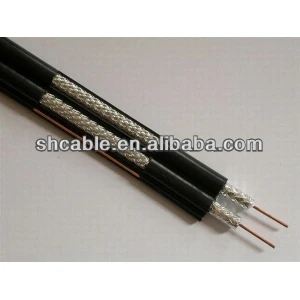

2)RG59: 1/0.63 BARE COPPER+FPE3.8mm+AL+BRAIDING 60%(80/0.12AL) +6.0mm Black PVC

3)RG58: 0.81mm Solid Bare Copper +2.95 mm Solid PE +Tinned Copper Braid 95% Coverage+4.9mm Black PVC

4)RG11: 1.63mm CCS/BC conductor+7.11mm PE foam+non-bonded al+al wire/TC/BC braiding +10.3mm PVC jacket



Options:

1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double are available
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70,75
9) Jacket :PE or PVC

10)OEM and Customer's designation are welcome



Characteristics:

RG6 Attenuation:

[@68 F. (20 C°) ]  dB/100meters
5MHz:   1.87dB        400MHz: 13.12dB
55MHz:  5.25dB       450MHz: 14.04dB
211MHz: 9.43dB      500MHz: 14.80dB
250MHz: 10.24dB     550MHz: 15.62dB
270MHz: 10.63dB     600MHZ: 16.34dB
300MHz: 11.25dB     870MHZ: 19.99dB
330MHz: 11.84dB     950MHZ: 21.33dB
350MHz: 12.20dB     1000MHZ: 21.46dB

 Impedance: 75+/-3 Ohm
Velocity of Propagation: 85%
Capacitance: 54 pF/m
Return Loss: 20dB min



 Applications:

1) CATV-community antenna television
2) CCTV-closed-circuit television
3) DBS-direct broadcasting satellite



4)  Multiplex telephony



5)  Closed-circuit television surveillance system & radio vision system



6)  Electronic warfare, aviation and other electronic devices





 Packing:
1) Packing lengths: 100m/roll, 200m/roll, 305m/roll, 100 yards/roll, 200 yards/roll
2) Inner packing: wooden drum, plastic drum, paper drum
3) Outer packing: carton box, pull out box
4) Other packing available according to customer



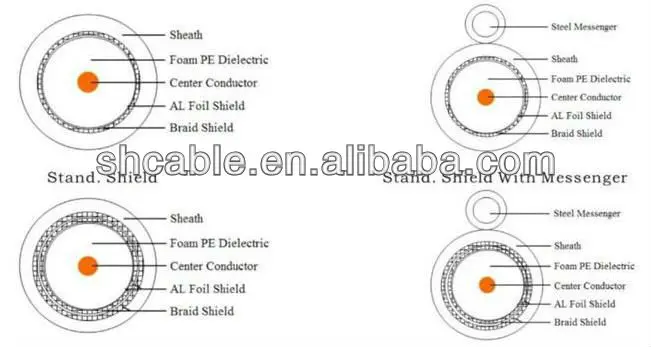

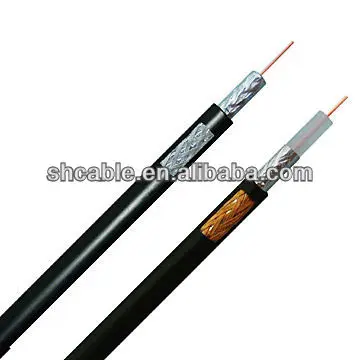

Structure:
